Wireless Access Points- Outdoor IP68
- RJ45 + SFP
- 512 clients
Lysora · Wireless Access Points

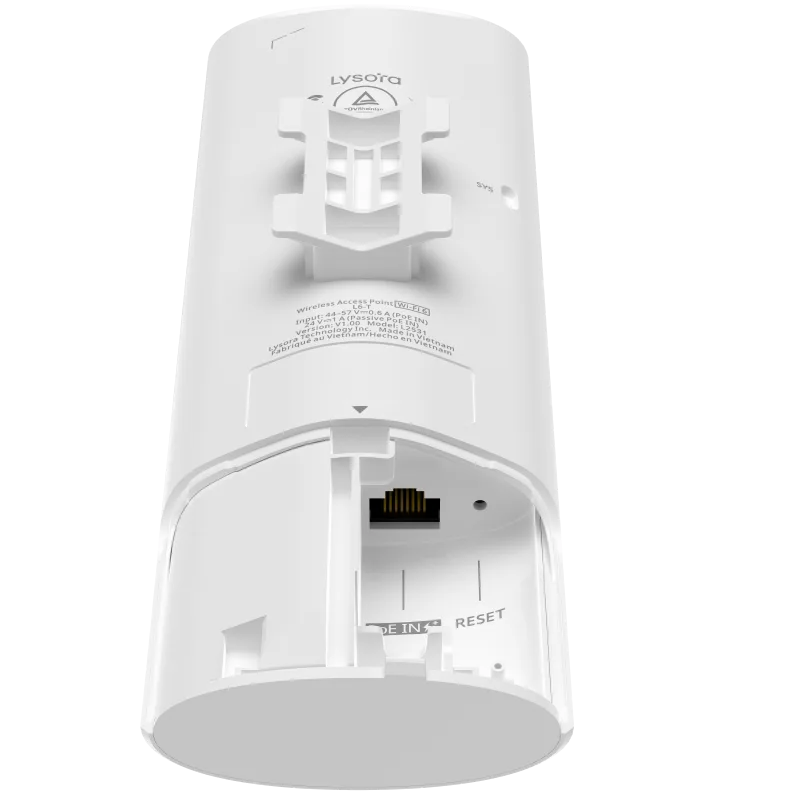

L6-T
Wi-Fi 6 AX3000 Outdoor Access Point
PricingContact for Best Price
- Class
- Wi-Fi 6 AX3000 dual-band
- Radios
- 573 + 2401 Mbps
- Clients
- 110+
- SSIDs
- 8 per radio
- Rating
- IP65, -30 to +65 °C
- Power
- 802.3af/at or 24 V passive, <16 W
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the L6-T is built to do
Technical Specifications
L6-T specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Radio | |
|---|---|
| Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Rates | 573 + 2401 Mbps (AX3000) |
| MIMO | 2×2 per band |
| Clients | 110+ |
| SSIDs | 8 per radio |
| Antennas | 4.0 / 6.5 dBi |
| Interfaces & Power | |
|---|---|
| Ethernet | 1× 1GbE |
| Power | 802.3af/at PoE or 24 V passive, <16 W |
| Management | Lysora Cloud, web |
| Physical & Environmental | |
|---|---|
| Dimensions | 70 × 35 × 200 mm |
| Weight | ≤0.4 kg |
| Mounting | Wall / pole |
| Ingress protection | IP65 |
| Operating temperature | -30 °C to +65 °C |
| Compliance | |
|---|---|
| Certifications | FCC, IC, cTUVus |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the L6-T
The Lysora L6-T is the compact outdoor Wi-Fi 6 unit: dual-band AX3000 (573 + 2401 Mbps) in an IP65 body rated -30 to +65 °C, with 4.0/6.5 dBi antennas shaping coverage outward.
It draws under 16 W from 802.3af/at PoE or 24 V passive PoE and supports 8 SSIDs per radio for segmented guest, staff, and device networks.
At 0.4 kg in a slim 70 mm profile, it wall/pole mounts at gates, yards, and shopfronts — the affordable outdoor cell on the Lysora Cloud estate.
Applications
Where the L6-T is deployed
Downloads
L6-T documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- L6-T Datasheet (PDF)Available on RequestRequest on WhatsApp
- L6-T User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the L6-T
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Wireless Access Points
Wireless Access Points- Wi-Fi 6 AX3000
- 512 clients
- WPA3

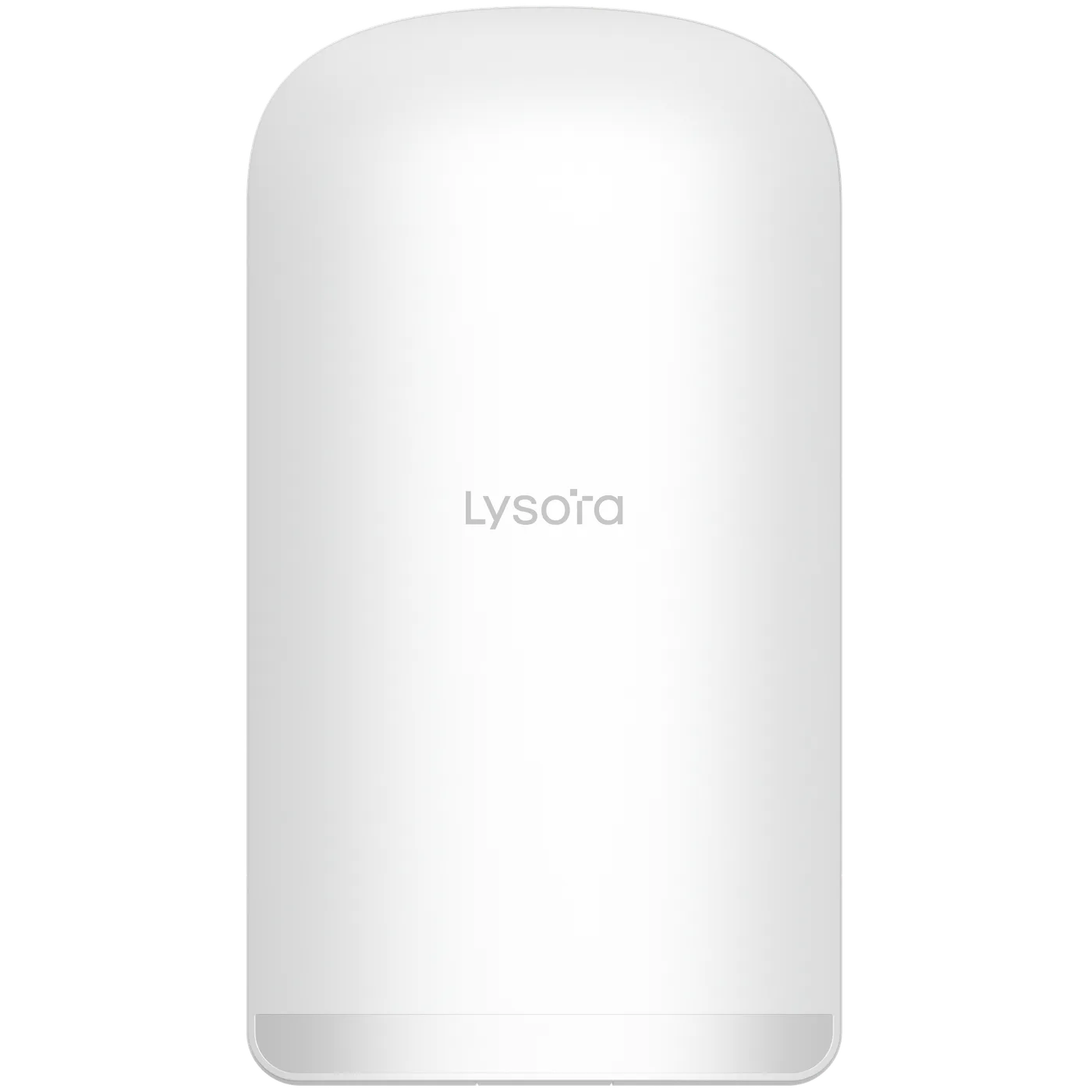

Wireless BridgesLysora
- 16 dBi
- 5 km range
- 3× GbE
Before You Enquire
Frequently asked questions
Can the L6-T run from a PoE injector?
Yes — it accepts 802.3af/at standard PoE and 24 V passive PoE, so both PoE switches and simple injectors power it. That flexibility suits retrofit sites where the nearest switch port isn't PoE.
How is the L6-T different from the L6Pro-T?
The L6-T is the compact IP65 option with directional antennas and a 110+ client rating for gates and yards. The L6Pro-T steps up to IP68 sealing, an SFP fiber port, surge protection, and a 512-client rating for exposed, high-density outdoor zones.
Compare the L6Pro-TWhat is the price of the L6-T in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the L6-T and quantity, and you receive priced options with stock confirmation within 24 working hours.
