CPE5
5 GHz CPE with 16 dBi Antenna
PricingContact for Best Price
- Band
- 5 GHz (2.4 GHz capable)
- Antenna
- 16 dBi directional
- Rate
- 867 Mbps (5 GHz)
- Range
- Up to 5 km
- Ethernet
- 3× Gigabit
- Rating
- IP55, -30 to +55 °C
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the CPE5 is built to do
Technical Specifications
CPE5 specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Radio | |
|---|---|
| Standard | IEEE 802.11 a/b/g/n/ac |
| Antenna gain | 16 dBi (5 GHz) |
| Max rate | 867 Mbps (5 GHz) / 300 Mbps (2.4 GHz) |
| Range | 5 km |
| Topology | PTP / PTMP up to 5 CPEs (TDMA) |
| Interfaces & Power | |
|---|---|
| Ethernet | 3× Gigabit |
| Power | 24 V DC 0.6 A / 12 V 1 A / PoE-PoE+ capable |
| Management | Web (eWeb), Cloud, SSH |
| Physical & Environmental | |
|---|---|
| Dimensions | 240 × 133 × 108 mm |
| Weight | 0.56 kg |
| Ingress protection | IP55 |

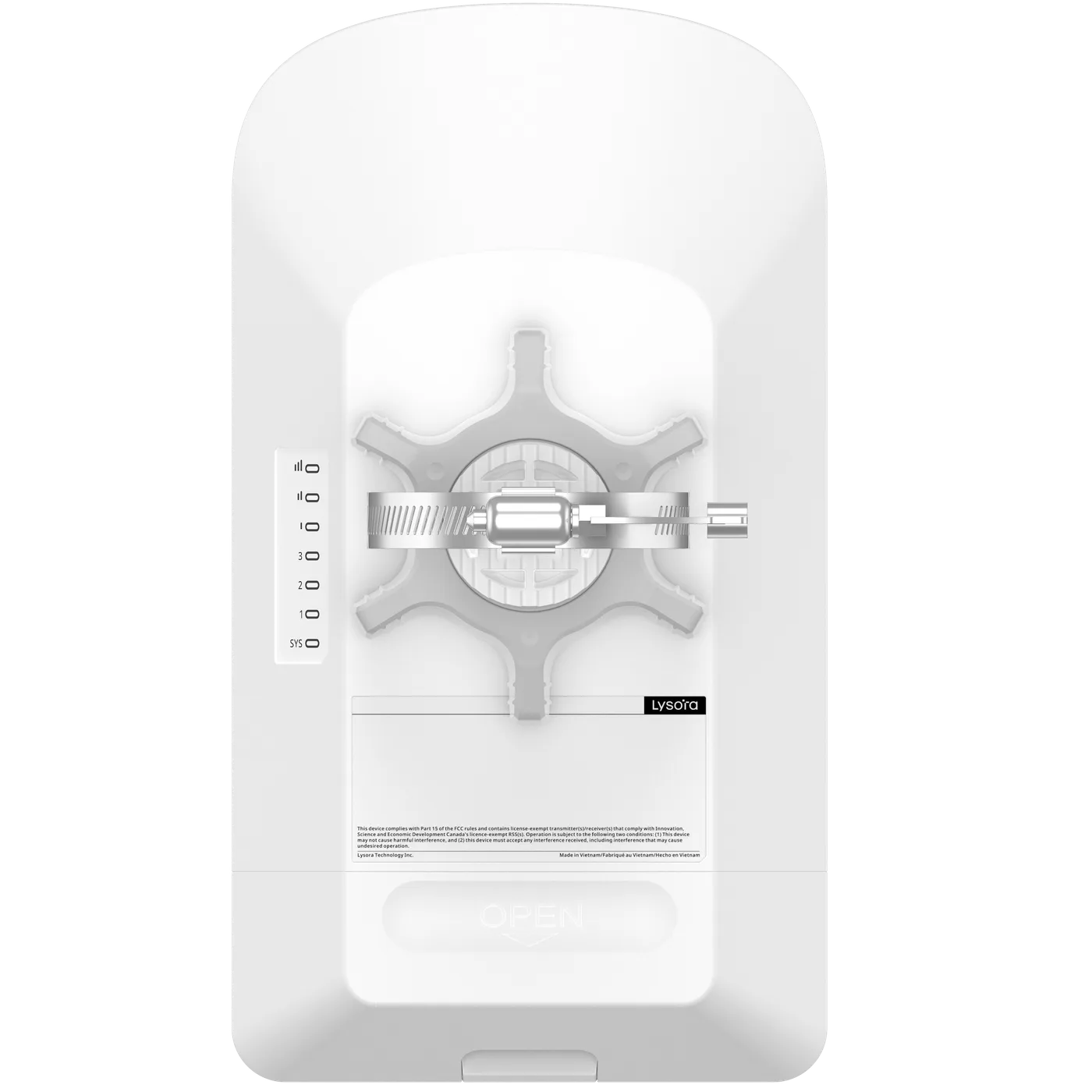

| Mounting | Wall / pole |
| Operating temperature | -30 °C to +55 °C |
| Compliance | |
|---|---|
| Certifications | FCC, IC, cTUVus; NDAA compliant |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the CPE5

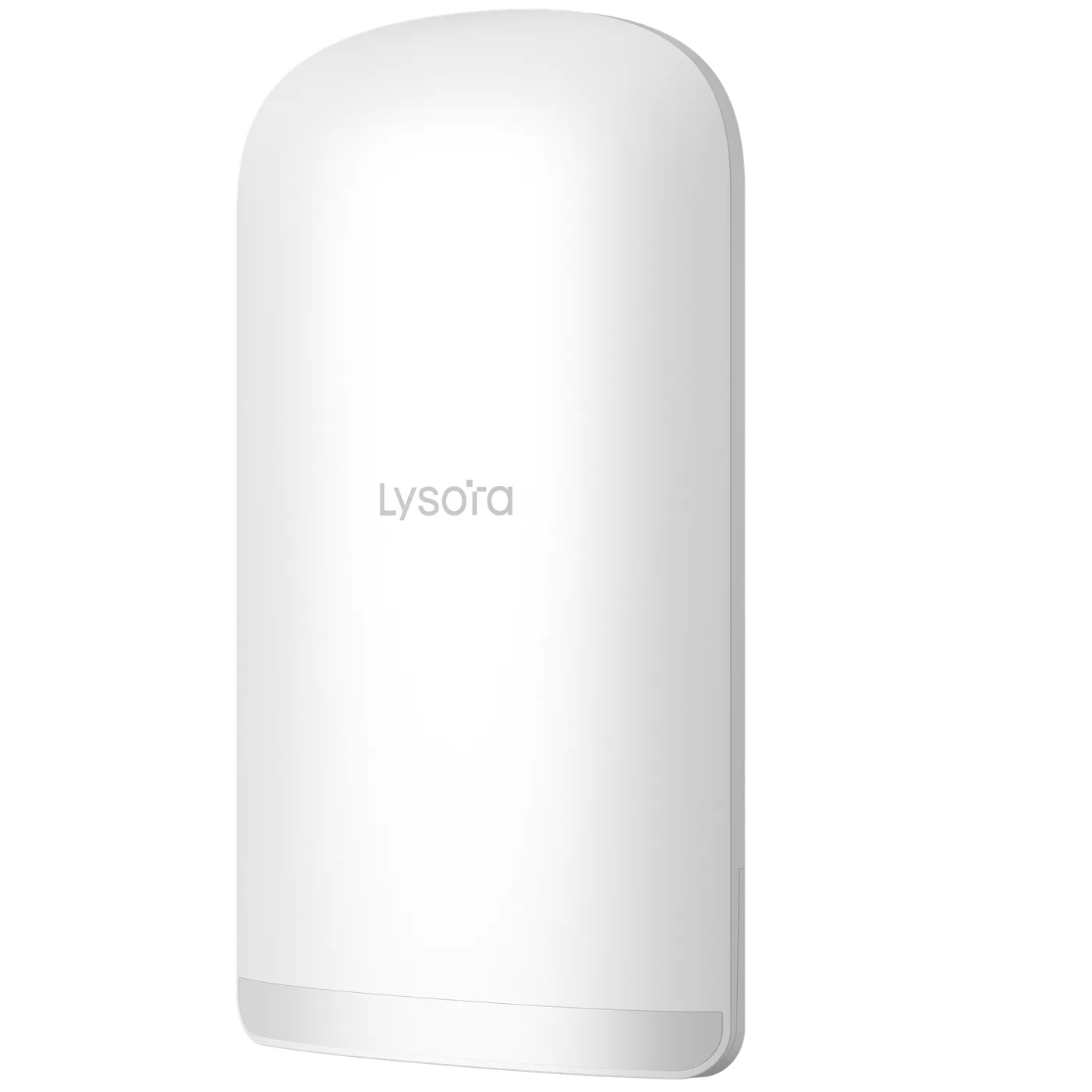

The Lysora CPE5 is the client end of a wireless bridge: a 16 dBi directional antenna carries up to 867 Mbps over 5 km of clear line of sight, with TDMA point-to-multipoint support for up to 5 CPEs.

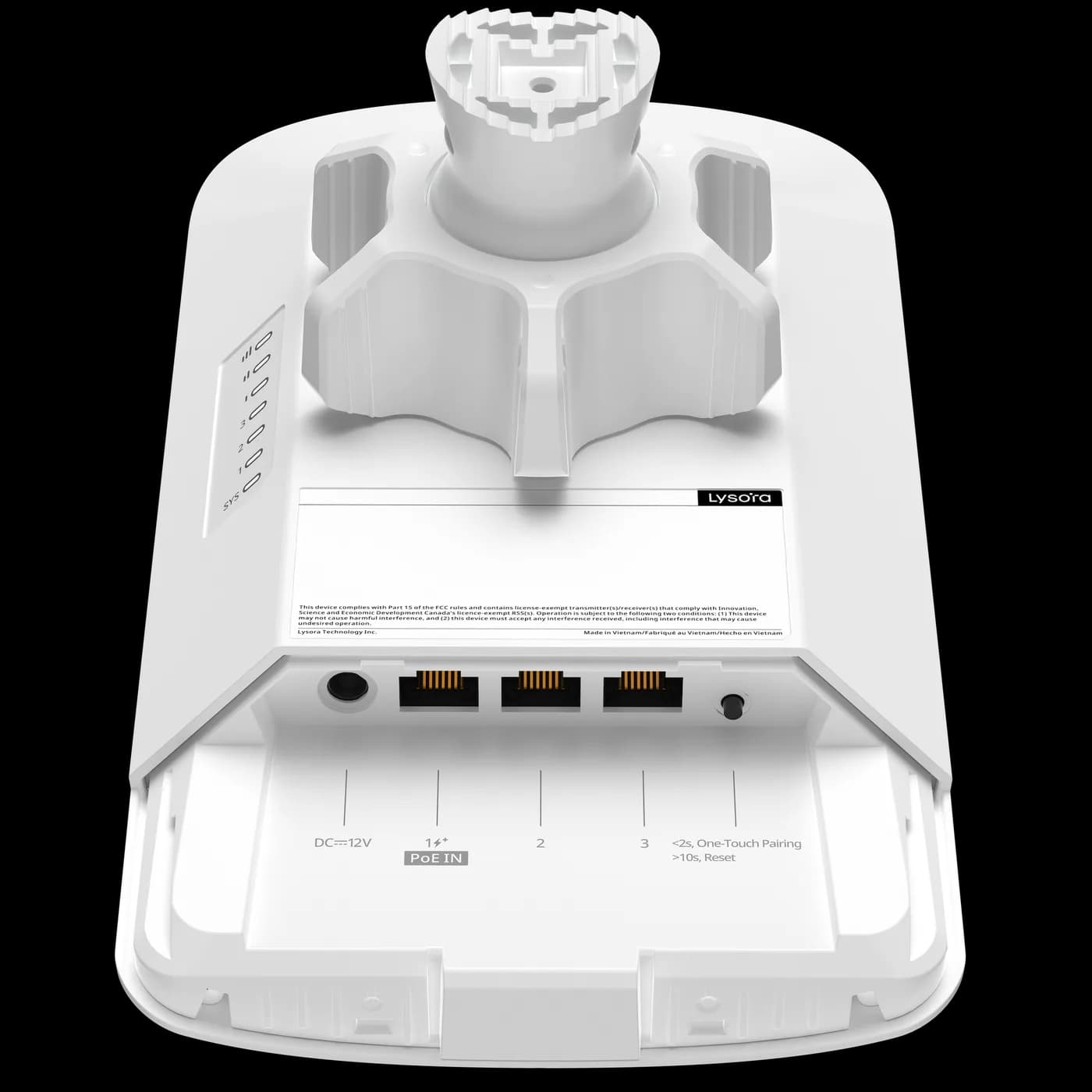

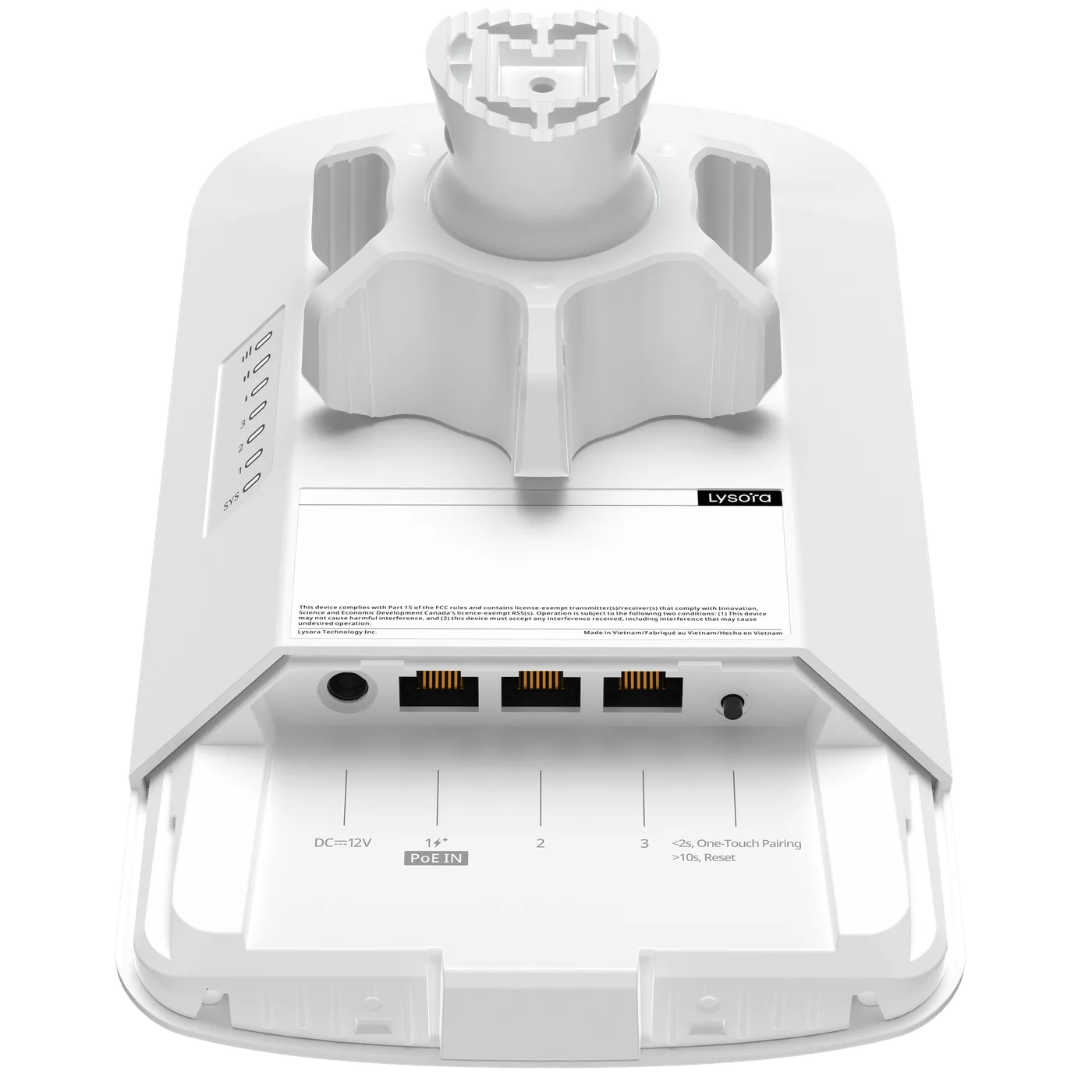

Three gigabit Ethernet ports serve devices at the remote end — cameras, a switch, or a local AP — with web (eWeb), cloud, and SSH management.

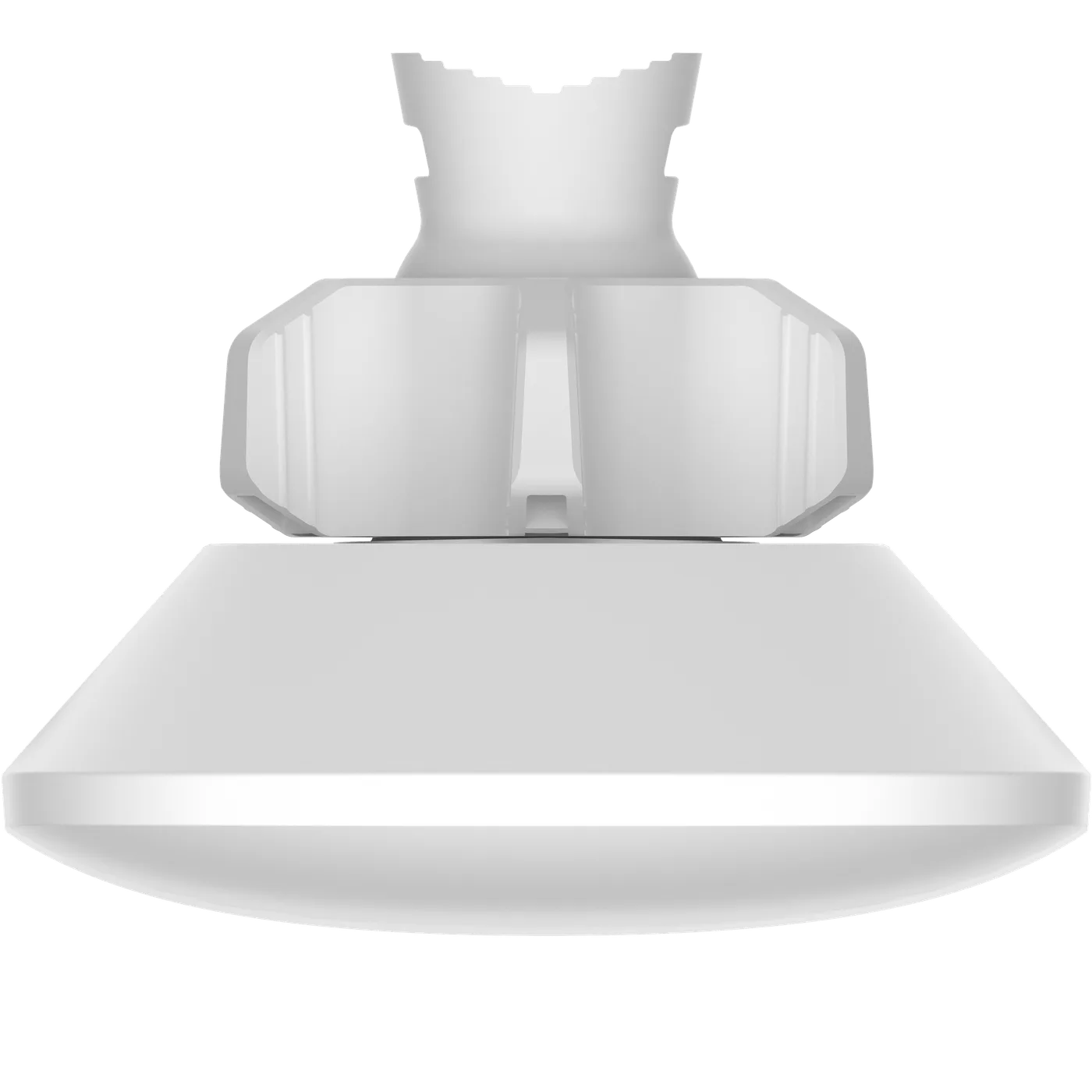

IP55-rated for wall or pole mounting from -30 to +55 °C, it pairs with the Base5i sector or another CPE5 for point-to-point links.
Applications
Where the CPE5 is deployed
Downloads
CPE5 documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- CPE5 Datasheet (PDF)Available on RequestRequest on WhatsApp
- CPE5 User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the CPE5
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Wireless Bridges
Wireless Bridges- 13 dBi
- 3 km range
- PoE out 15.4 W
Wireless Access Points- Outdoor IP65
- 8 SSIDs/radio
- 24 V or 802.3af/at
Before You Enquire
Frequently asked questions
CPE5 or CPE3-P — which client unit do I need?
Choose the CPE5 for links up to 5 km and gigabit Ethernet handoff at the remote end. The CPE3-P covers up to 3 km with 10/100 ports but adds a 15.4 W PoE output that can power a camera directly — handy on camera poles.
See the CPE3-PCan two CPE5 units form a link without a Base5i?
Yes. A pair of CPE5s forms a point-to-point bridge between two locations. The Base5i base station becomes useful when one central site must serve several remote CPEs in a sector.
What is the price of the CPE5 in India?
Pricing is quotation-based with dealer slabs for registered partners. Bridges quote as link sets — both ends together — so share your link plan and receive priced options within 24 working hours.
