Wireless Access Points- Wi-Fi 7 BE5040
- 511 clients
- 2.5G port
Lysora · Wireless Access Points
L7Lite
Wi-Fi 7 BE3600 Dual-Band Access Point
PricingContact for Best Price
- Class
- Wi-Fi 7 BE3600 dual-band
- Radios
- 688 + 2882 Mbps
- Streams
- 4 (2×2 + 2×2)
- Clients
- 100+
- Port
- 1× 2.5GbE
- Power
- 802.3at PoE / 12 V DC 1.5 A
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the L7Lite is built to do
Technical Specifications
L7Lite specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Radio | |
|---|---|
| Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bands | 2.4 / 5 GHz |
| Rates | 688 + 2882 Mbps (BE3600) |
| MIMO | 2×2 + 2×2, 4 streams |
| Clients | 100+ |
| Interfaces & Power | |
|---|---|
| Ethernet | 1× 2.5GbE |
| Power | 802.3at PoE or 12 V DC 1.5 A |
| Management | Lysora Cloud, web |
| Physical & Environmental | |
|---|---|
| Dimensions | Ø195 × 41 mm |
| Weight | ≤0.6 kg |
| Mounting | Ceiling / wall |
| Operating temperature | 0 °C to +40 °C |
| Compliance | |
|---|---|
| Certifications | FCC, IC; NDAA compliant |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the L7Lite

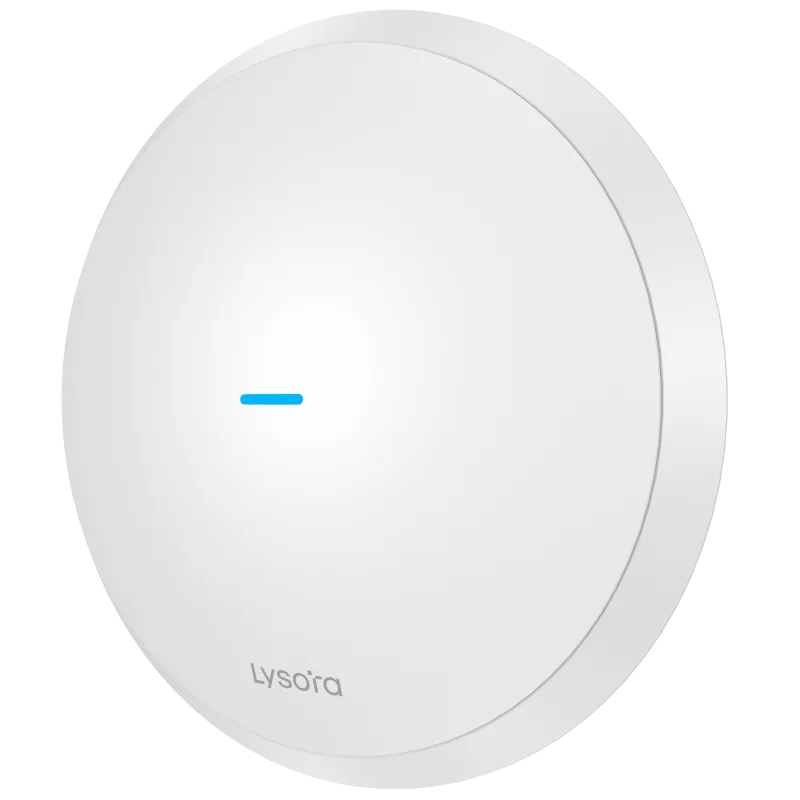

The Lysora L7Lite brings Wi-Fi 7 to volume deployments: dual-band BE3600 (688 + 2882 Mbps) with four spatial streams and a 2.5GbE port, rated for 100+ clients.
It powers over 802.3at PoE or 12 V DC in a compact Ø195 mm ceiling body, managed through Lysora Cloud like the rest of the L-series.
It is the per-room and per-classroom unit where many APs matter more than one big one — the small-cell strategy at Wi-Fi 7 rates.
Applications
Where the L7Lite is deployed
Downloads
L7Lite documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- L7Lite Datasheet (PDF)Available on RequestRequest on WhatsApp
- L7Lite User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the L7Lite
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Wireless Access Points
Wireless Access Points- Wi-Fi 6 AX3000
- 512 clients
- WPA3
Managed Switches- 8× 2.5G PoE+
- 2× 10G SFP+
- L2 + static routing
Before You Enquire
Frequently asked questions
L7Lite or L6 — is Wi-Fi 7 worth it over Wi-Fi 6?
At similar deployment classes, the L7Lite (BE3600, 2.5G port) future-proofs for Wi-Fi 7 clients arriving over the next device cycle, while the L6 (AX3000, 1G port) remains a proven Wi-Fi 6 workhorse. New estates generally justify the L7Lite; expansions of L6 estates stay consistent.
Compare the L6Does the L7Lite need a multi-gig switch?
It benefits from one — the 2.5GbE port outruns gigabit uplinks under load. It still runs on standard 802.3at PoE gigabit switches at capped backhaul, so estates can upgrade switching later.
See multi-gig PoE switchingWhat is the price of the L7Lite in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the L7Lite and AP count, and you receive priced options with stock confirmation within 24 working hours.
