Lysora · Wireless Access Points
L7
Wi-Fi 7 BE5040 Dual-Band Access Point
PricingContact for Best Price
- Class
- Wi-Fi 7 BE5040 dual-band
- Radios
- 688 + 4323 Mbps
- Streams
- 5 (2×2 + 3×3), MLO
- Clients
- 511 total
- Ports
- 1× 2.5G + 1× 1G
- Power
- PoE+ / 12 V DC, ≤30 W
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the L7 is built to do
Technical Specifications
L7 specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Radio | |
|---|---|
| Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bands | 2.4 / 5 GHz |
| Rates | 688 + 4323 Mbps (BE5040) |
| MIMO | 2×2 + 3×3 MU-MIMO, 5 streams |
| Clients | 511 total |
| Roaming / Mesh | 802.11v/k/r; mesh; band steering; MLO |
| Interfaces & Power | |
|---|---|

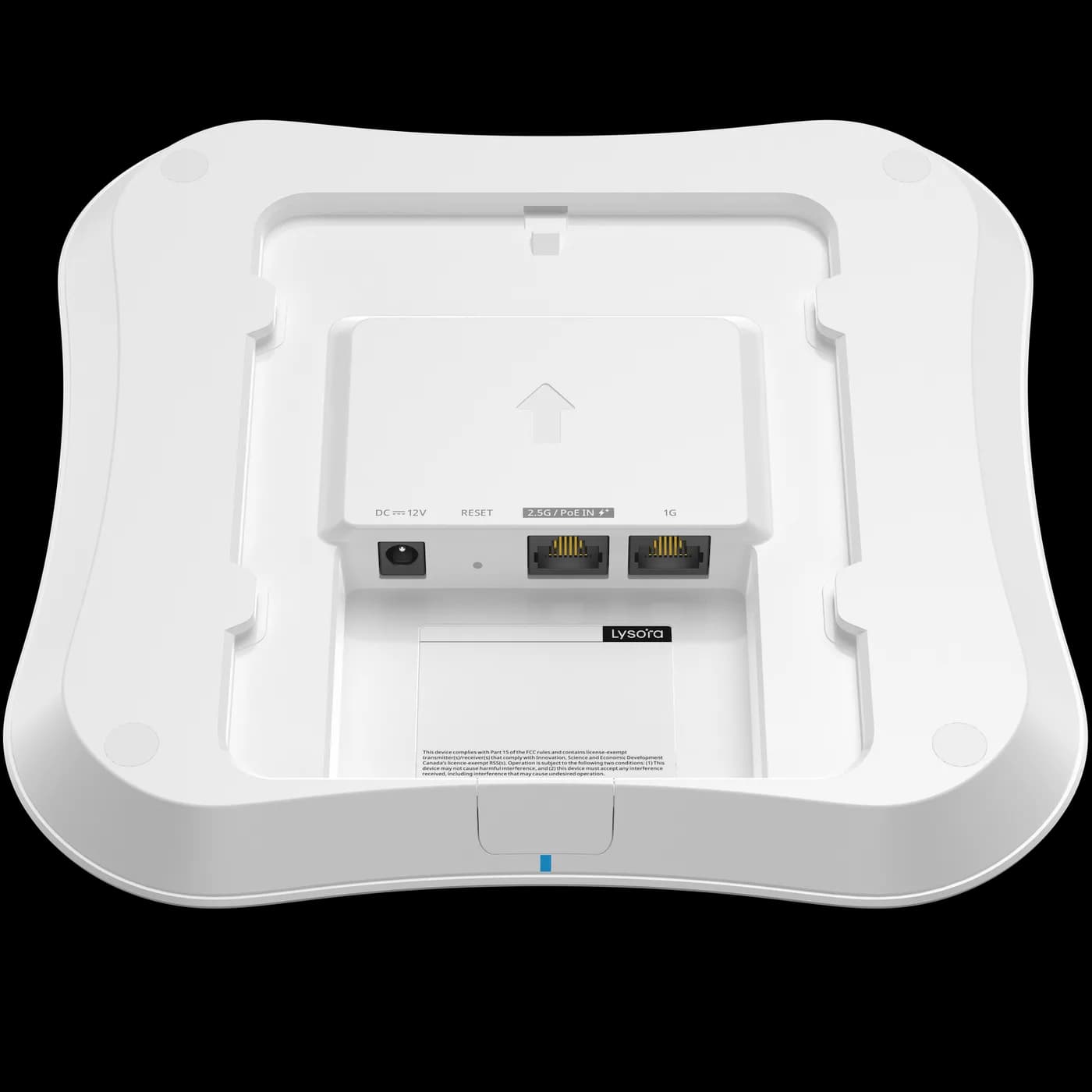

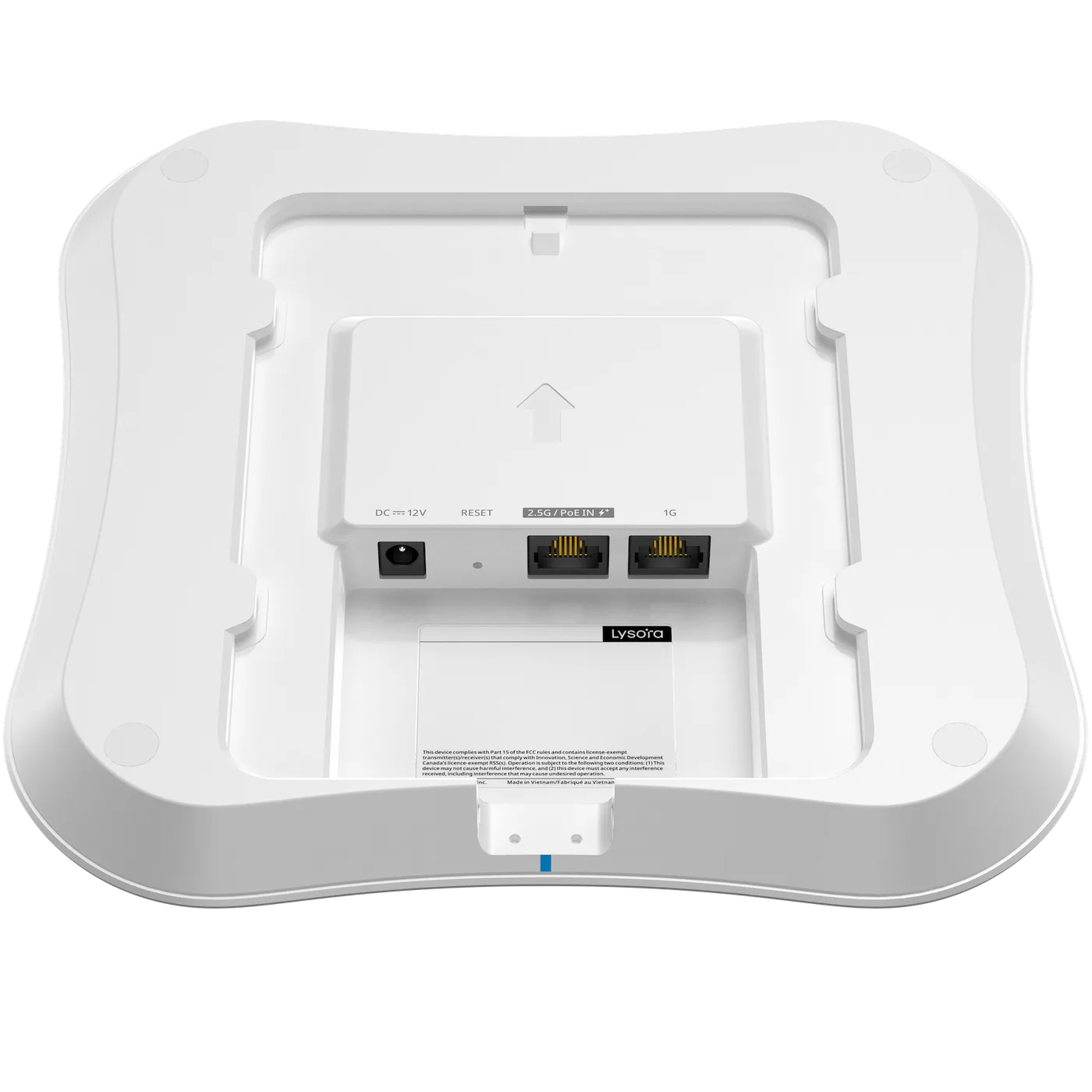

| Ethernet | 1× 2.5GbE + 1× 1GbE |
| Power | PoE+ or 12 V DC, ≤30 W |
| Management | Lysora Cloud, web, SNMP |
| Physical & Environmental | |
|---|---|
| Dimensions | 208 × 208 × 40 mm |
| Weight | ≤0.75 kg |

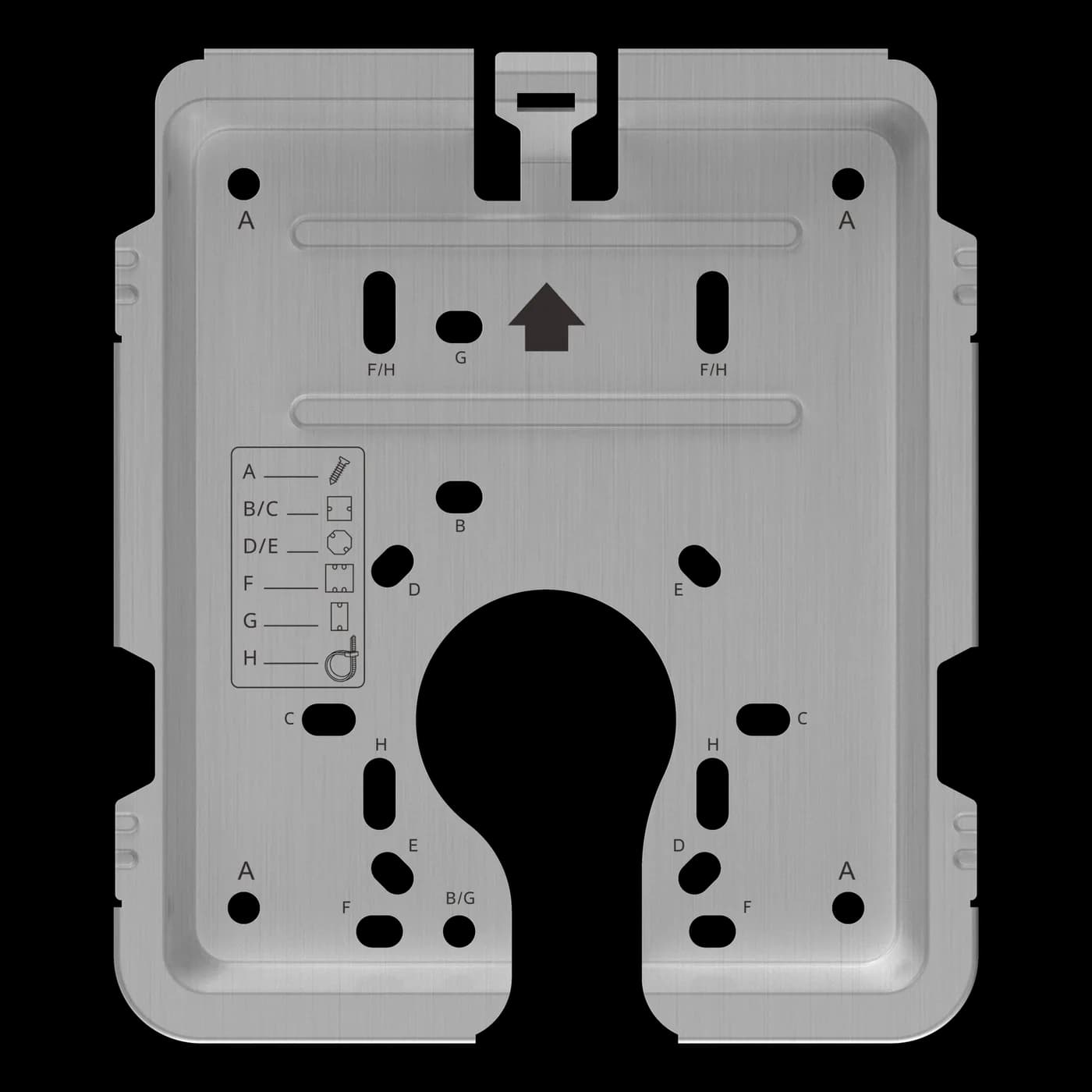

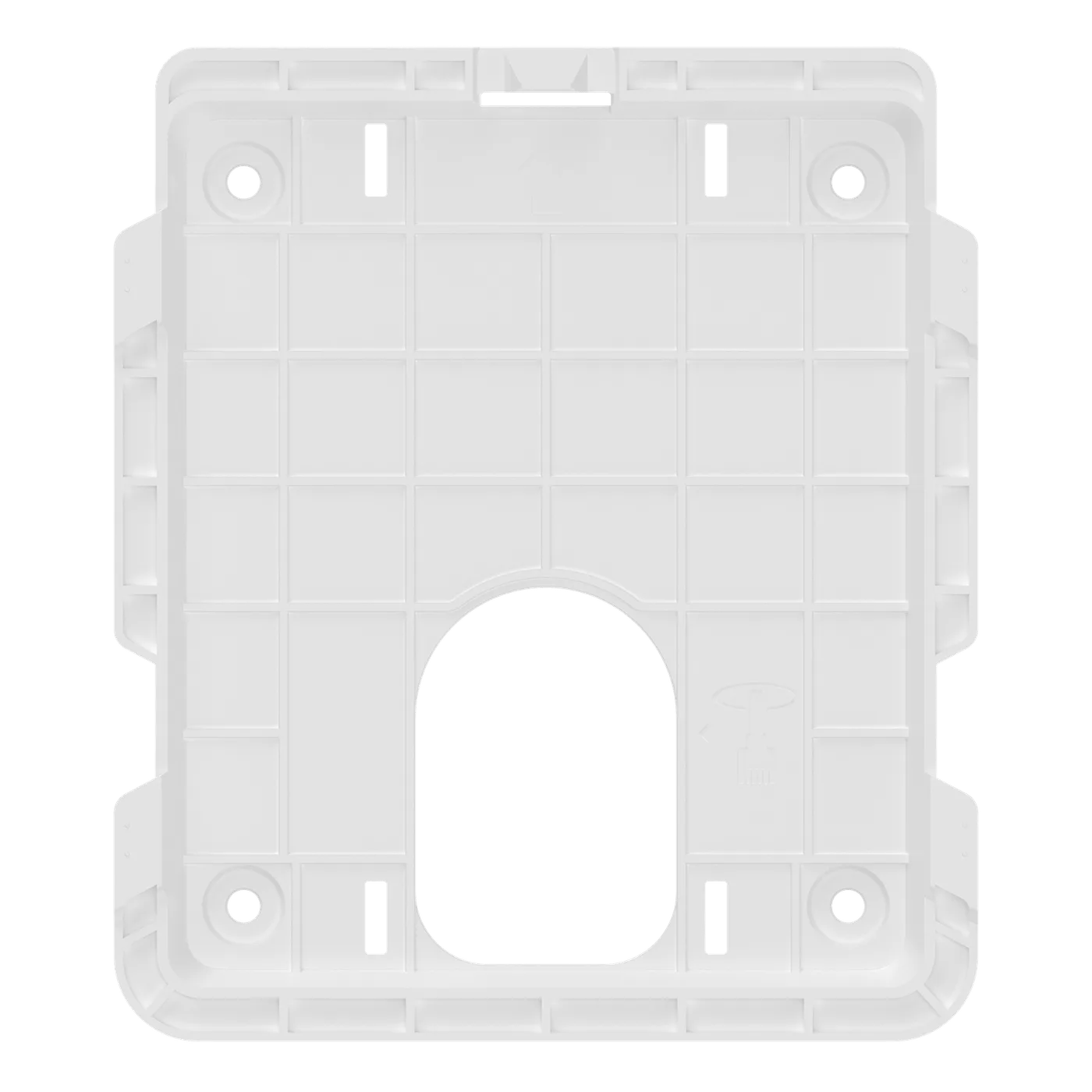

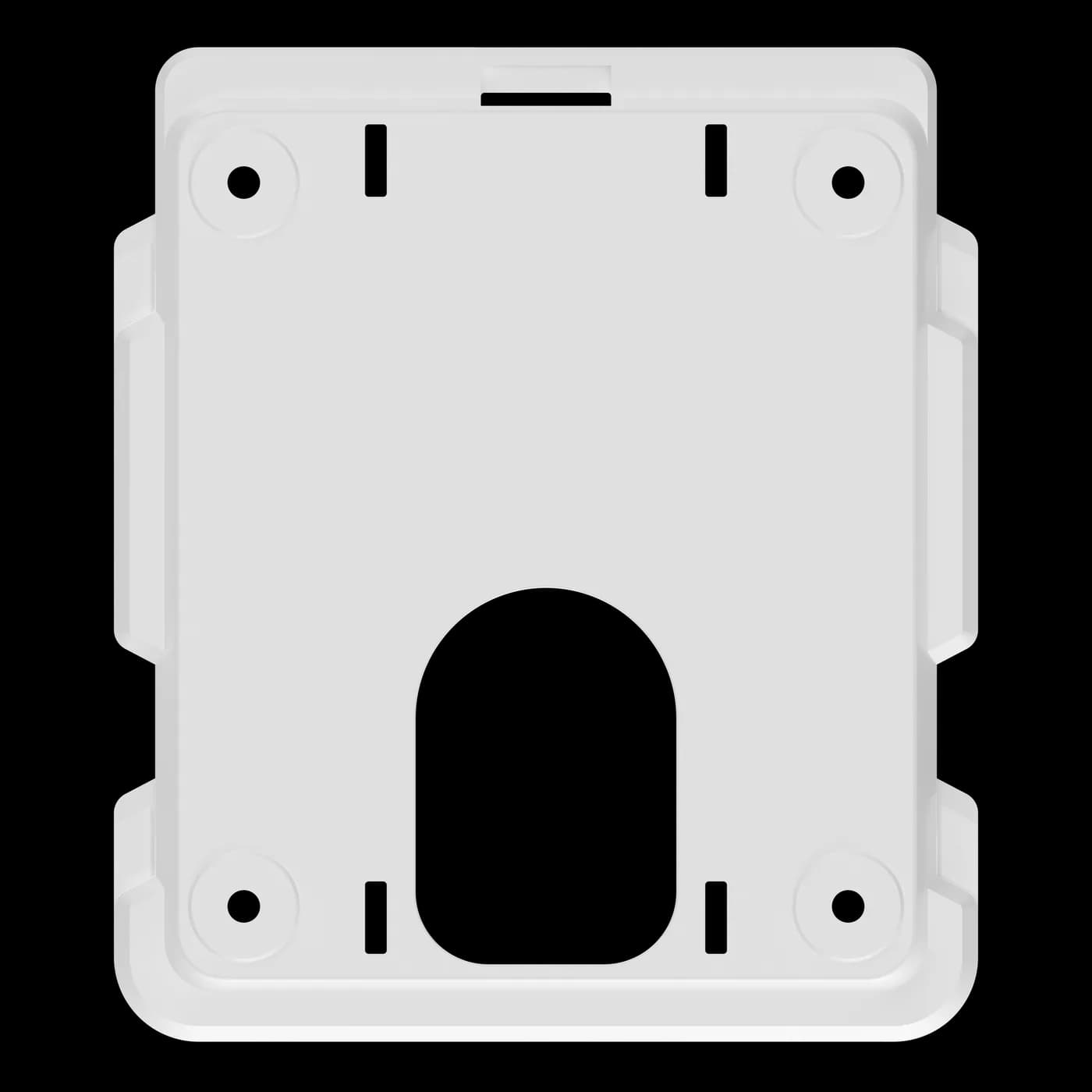

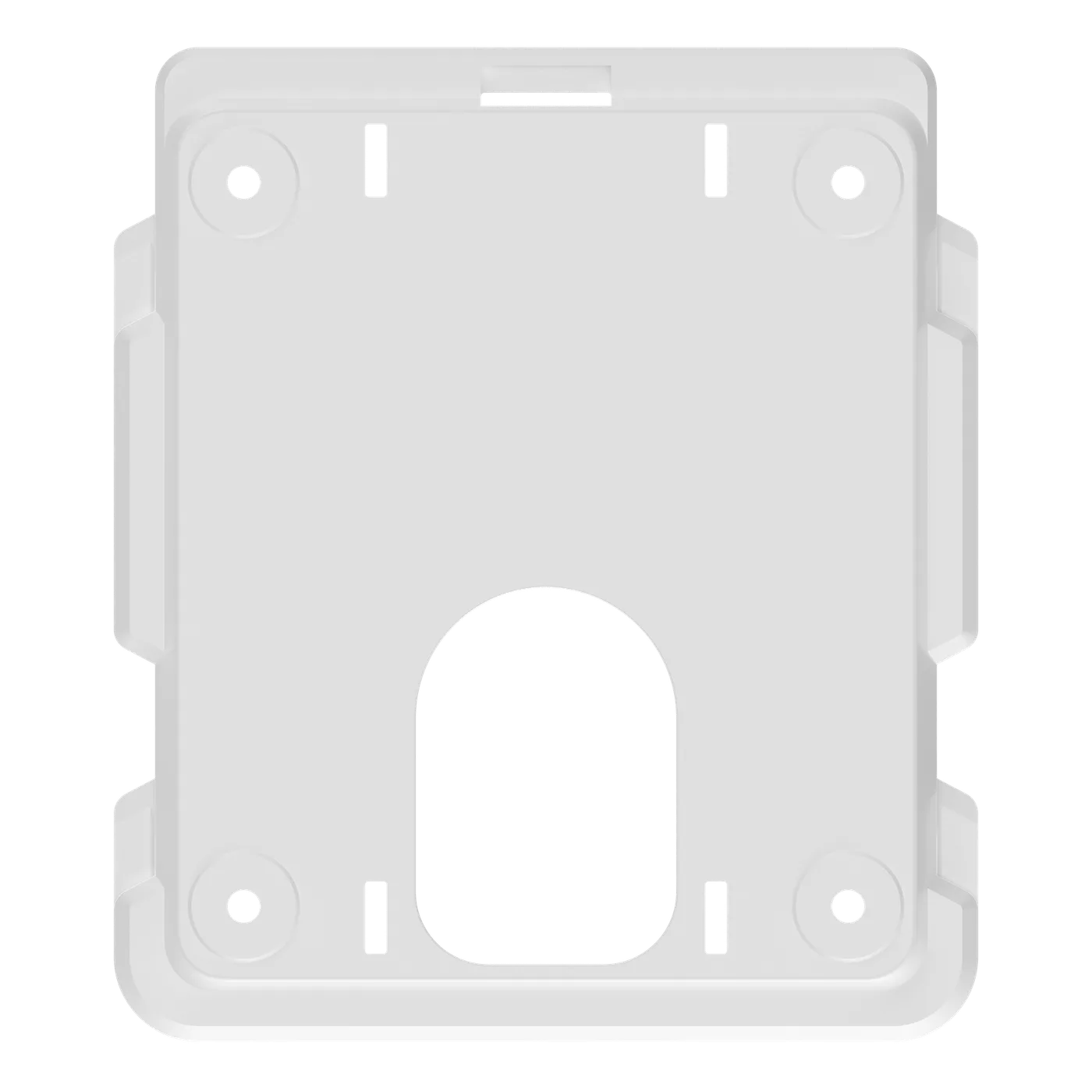

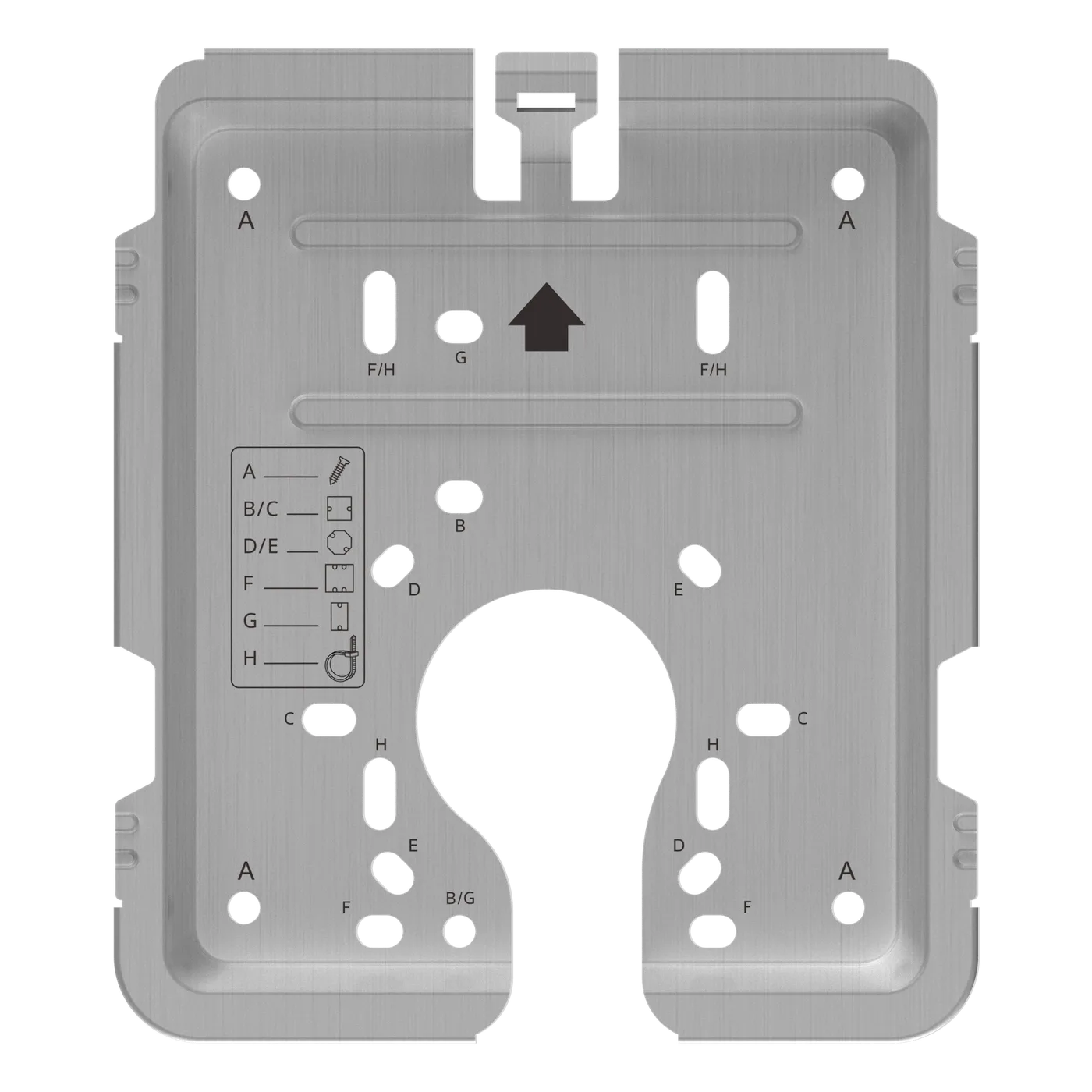

| Mounting | Ceiling / wall (kit included) |
| Ingress protection | IP41 |
| Operating temperature | 0 °C to +40 °C |
| Compliance | |
|---|---|
| Certifications | FCC, IC, cTUVus |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the L7
The Lysora L7 is the mainstream Wi-Fi 7 access point: dual-band BE5040 (688 + 4323 Mbps) with five spatial streams, Multi-Link Operation, and a 511-client rating.

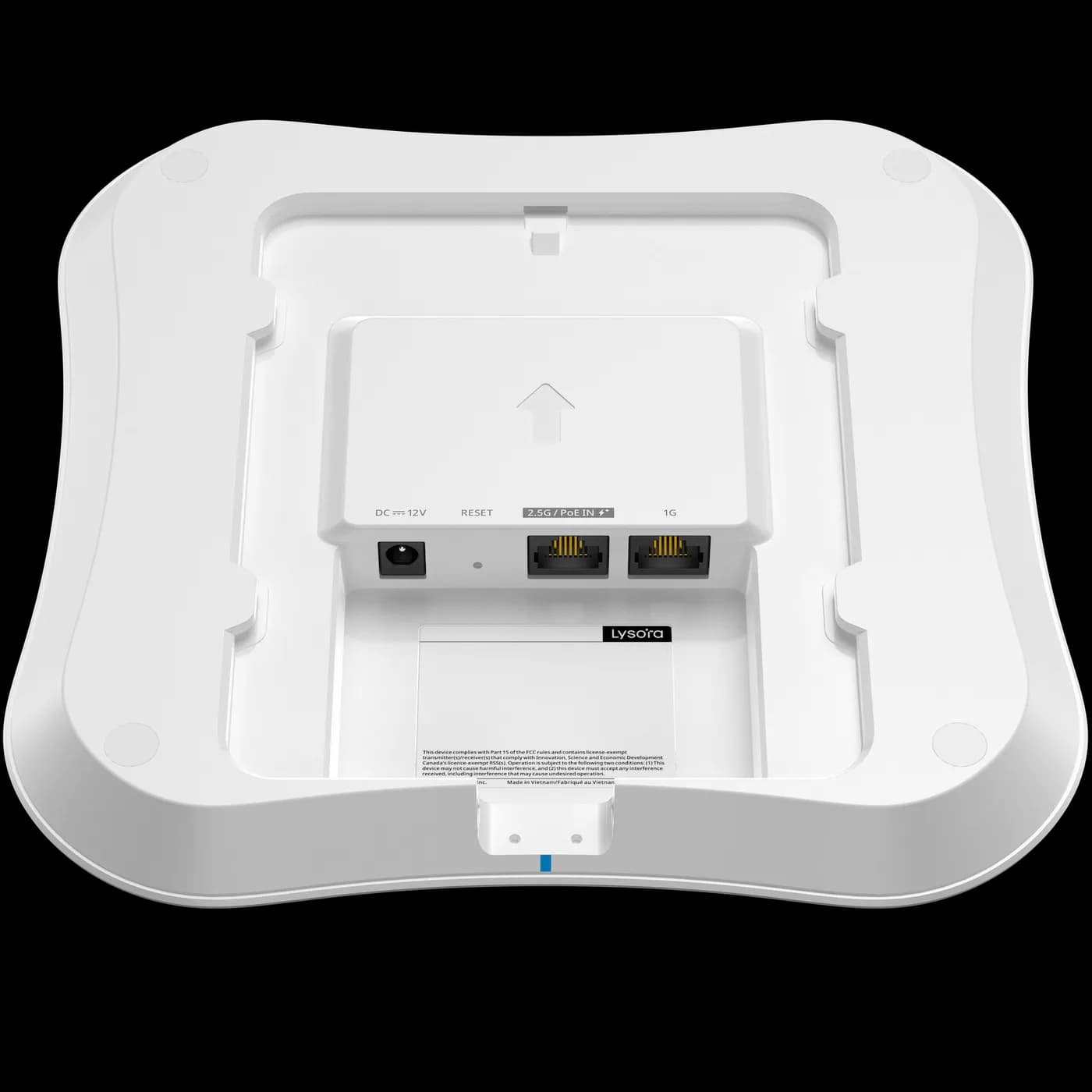

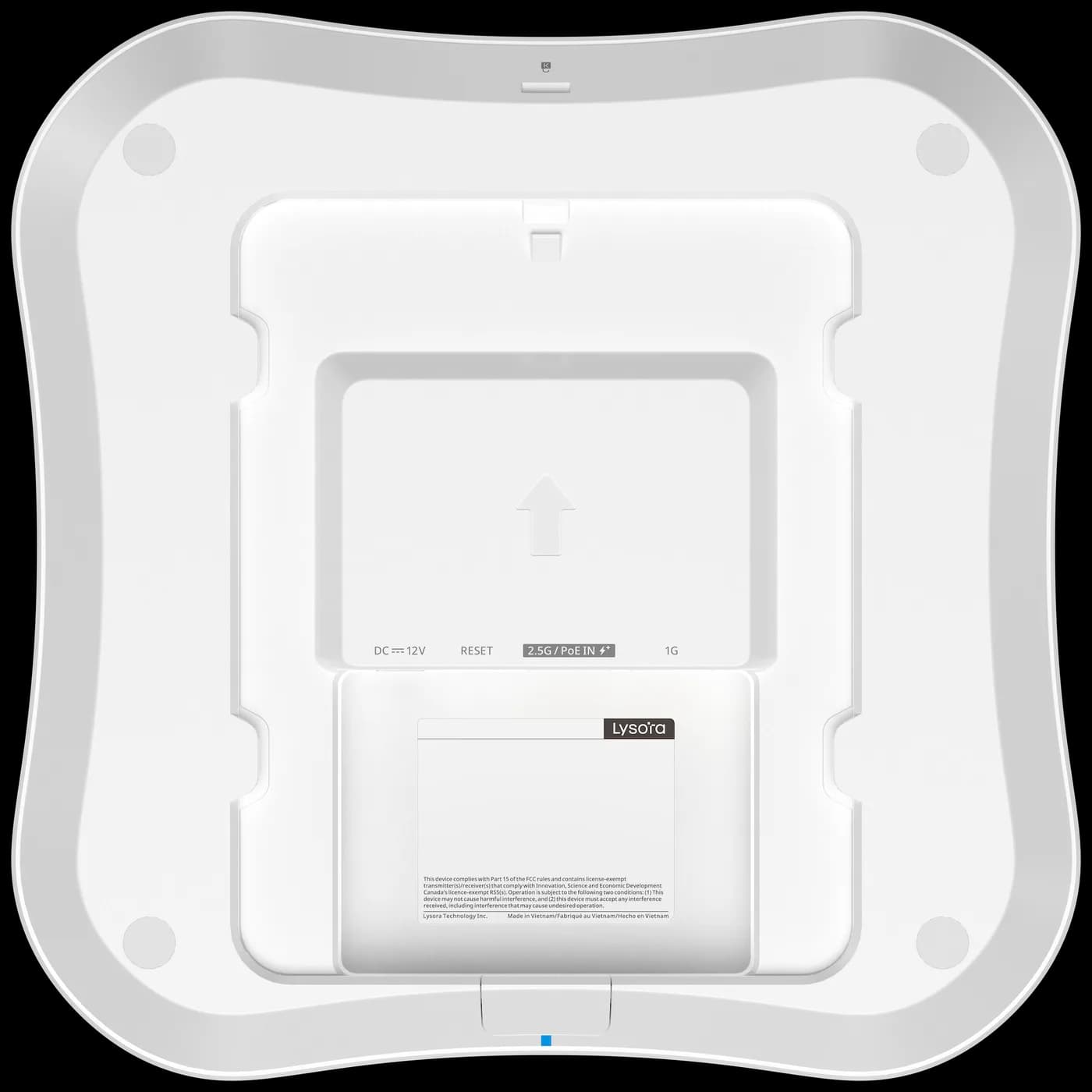

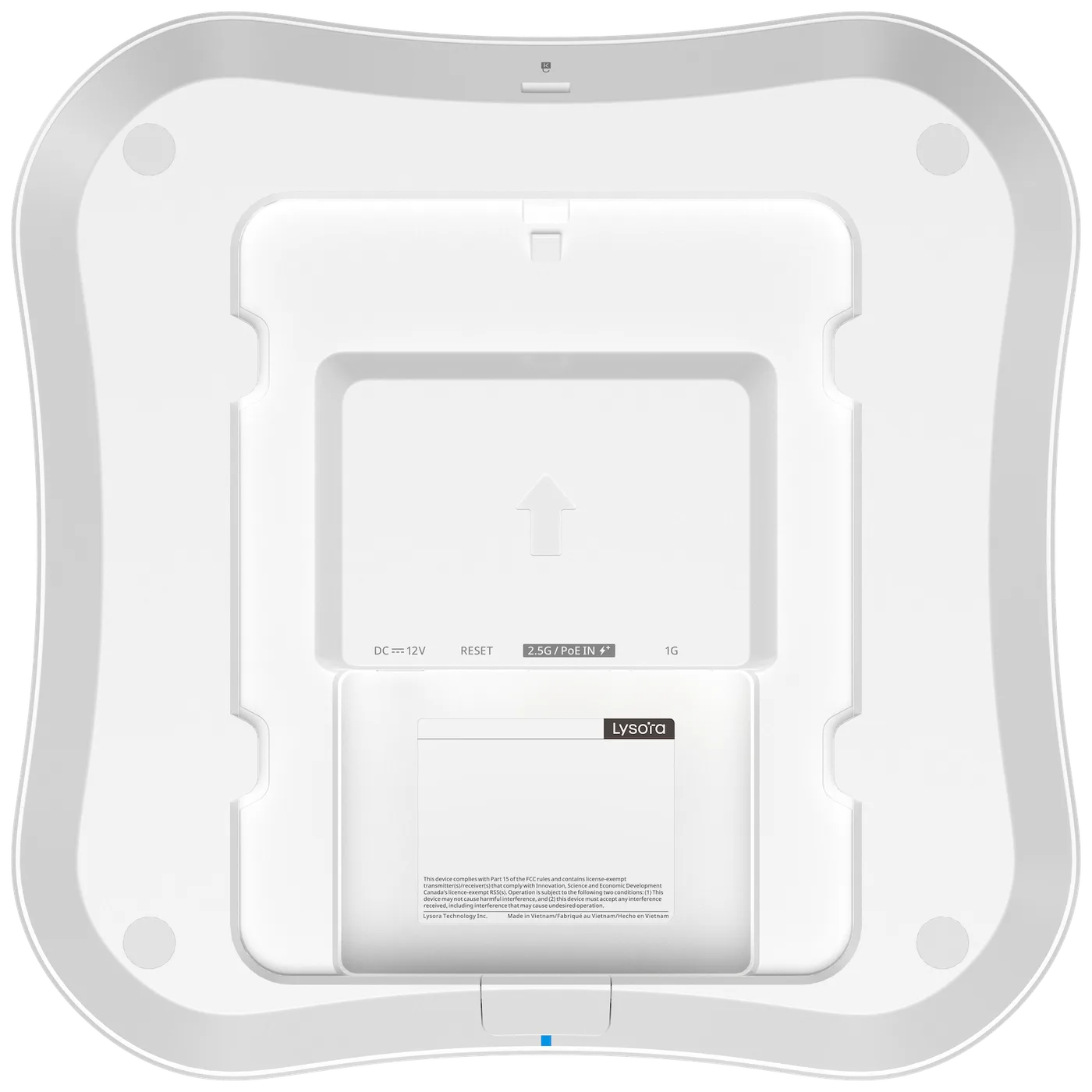

A 2.5G port carries Wi-Fi 7 backhaul with a second 1G port for daisy-chaining or local devices; power is PoE+ or 12 V DC at under 30 W.
Cloud, web, and SNMP managed with 802.11v/k/r roaming, meshing, and band steering, in an IP41 ceiling/wall body — self-organizing networks scale to 300 APs.
Applications
Where the L7 is deployed
Downloads
L7 documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- L7 Datasheet (PDF)Available on RequestRequest on WhatsApp
- L7 User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the L7
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Wireless Access Points
Wireless Access Points- Wi-Fi 7 BE3600
- 2.5G port
- Volume unit
Managed Switches- 8× 2.5G PoE+
- 2× 10G SFP+
- L2 + static routing
Related Resources
Guides that cover the L7
Selection and background reading from our technical team.
Before You Enquire
Frequently asked questions
What switch should feed the Lysora L7?
A PoE+ switch with 2.5G ports gets full value from the L7's BE5040 radios — the Lysora LS2P-8MG2XS-P is the matched option. On gigabit PoE+ switches the AP works normally but wired backhaul caps at 1 Gbps.
See the multi-gig PoE switchL7 or L7Pro — which do I need?
The L7 (dual-band, 511 clients) covers offices, classrooms, and hotels. Choose the L7Pro where 6 GHz tri-band capacity and a 10G SFP+ uplink matter — auditoriums, convention halls, and venues with hundreds of concurrent users.
Compare the L7ProWhat is the price of the L7 in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the L7 and AP count, and you receive priced options with stock confirmation within 24 working hours.
