Lysora · Managed Switches

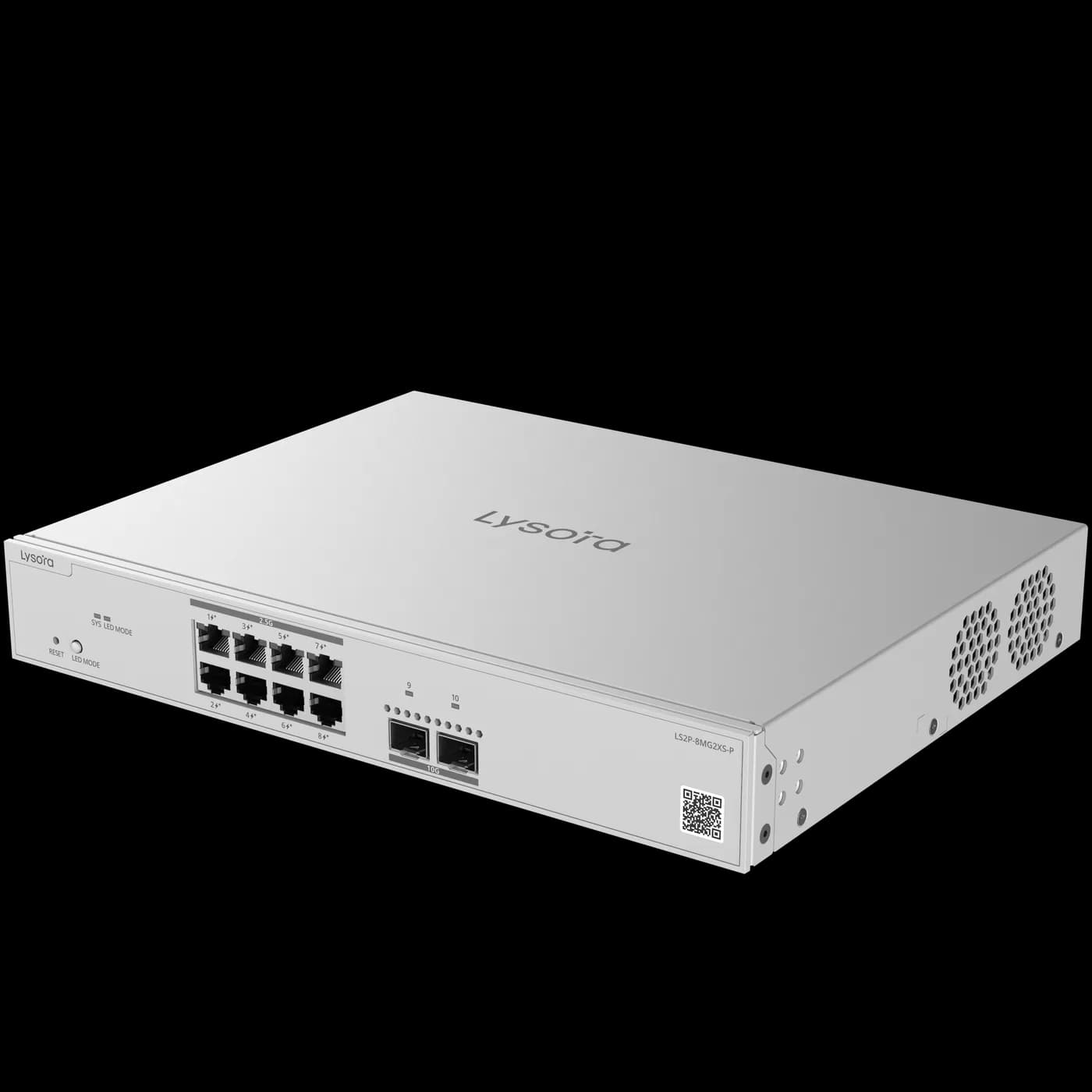

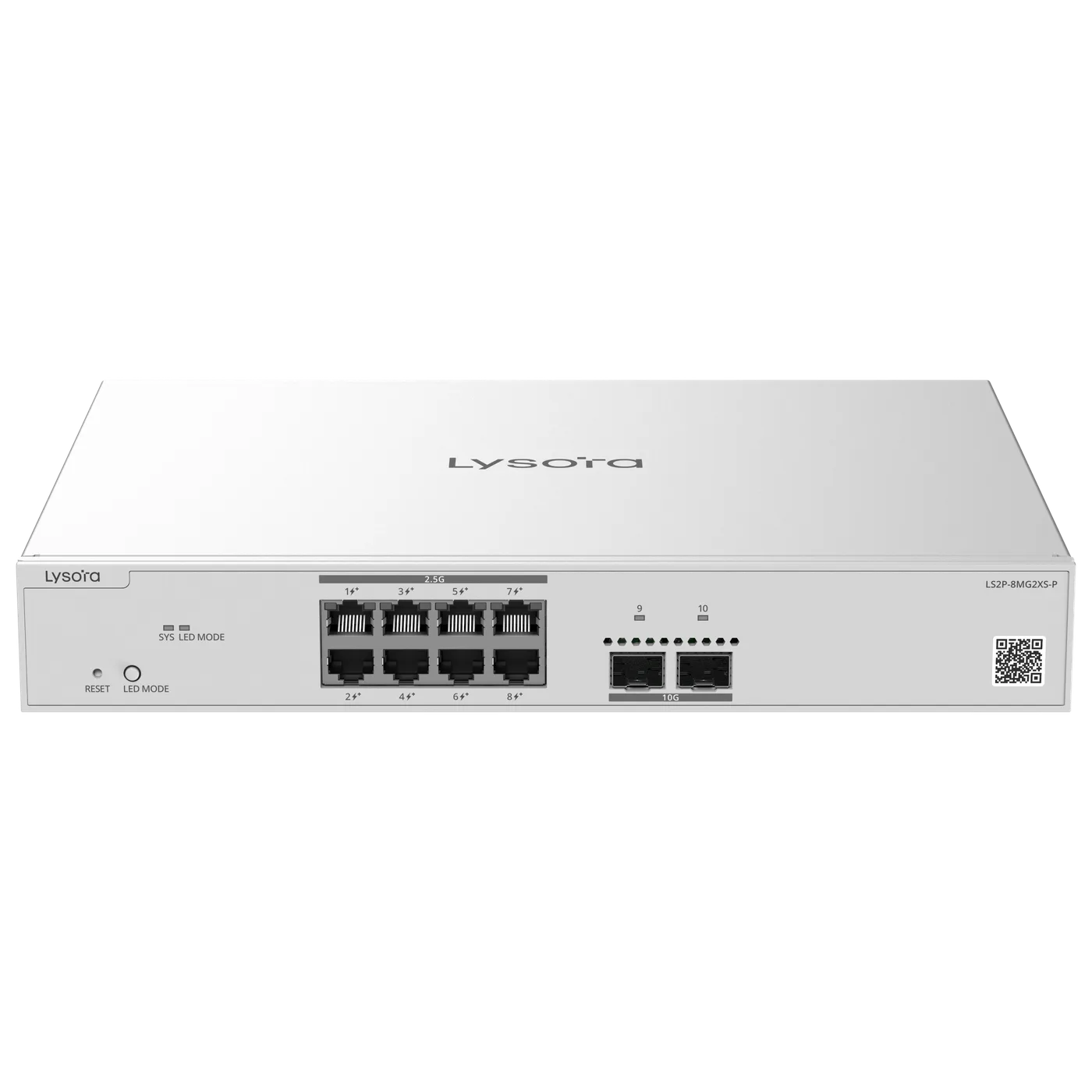

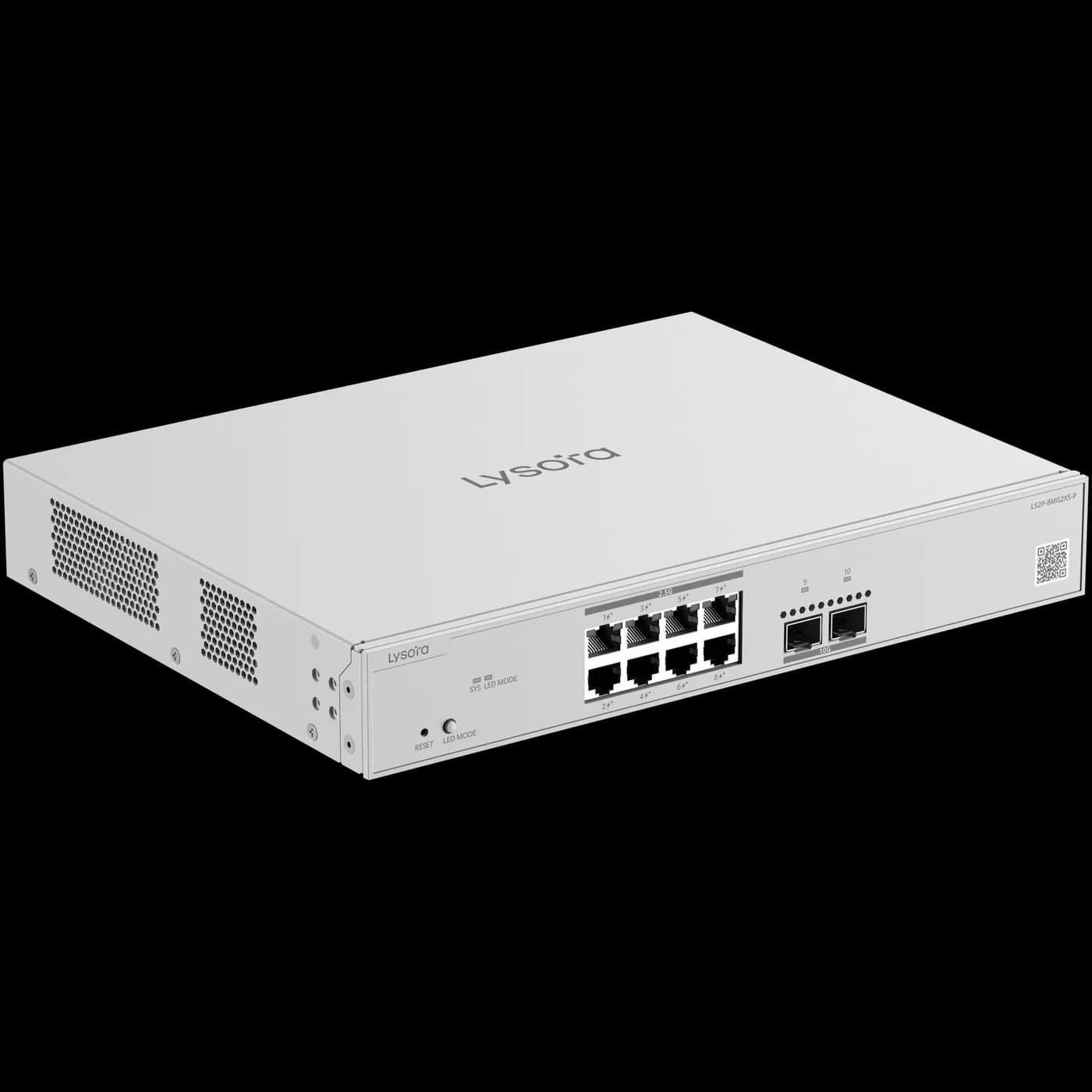

LS2P-8MG2XS-P

8-Port Multi-Gig Layer 2 Managed PoE Switch

PricingContact for Best Price
Ports
8× 10/100/1000/2500BASE-T PoE/PoE+
Uplinks
2× 10GE SFP+
PoE budget
240 W (per product page)
Layer
L2 managed + static routing
Capacity
80 Gbps / 58.72 Mpps
Warranty
3 years (manufacturer)
Request QuoteUpload BOQWhatsApp
  • Ready Stock
  • PAN India Supply
  • Same Day Dispatch*
  • GST Billing
  • BOQ Assistance

*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.

Key Features

What the LS2P-8MG2XS-P is built to do

2.5G on every port

Multi-gig backhaul for Wi-Fi 7 APs without re-cabling — Cat5e carries 2.5G.

2× 10G SFP+ uplinks

Aggregate multi-gig edge traffic upstream without a bottleneck.

PoE/PoE+ powered edge

Power the same APs the multi-gig ports serve.

L2+ security set

802.1X, IP-MAC-port binding, storm control, multicast snooping, static routing.

16K MAC / 12 Mbit buffer

80 Gbps capacity with 256 MB flash.

Web, cloud & app managed

Local or Lysora Cloud management; NDAA compliant.

Technical Specifications

LS2P-8MG2XS-P specifications

Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.

Interfaces specifications
Interfaces
RJ45 ports8× 10/100/1000/2500BASE-T, PoE/PoE+
SFP+ slots2× 10GE SFP+
PoE specifications
PoE
StandardPoE/PoE+
Total budget240 W (product page; category card lists 125 W — specification confirmed during quotation)
Camera capacity300 (200 W H.265) / 150 (400 W H.265)
Switching Performance specifications
Switching Performance
Switching capacity80 Gbps
Forwarding rate58.72 Mpps
MAC address table16,000 entries
Packet buffer12 Mbit
Flash memory256 MB
L2/L2+ Features specifications
L2/L2+ Features
VLANUp to 4094
RoutingStatic routing
Security802.1X, IP-MAC-port binding, storm control
MulticastMulticast snooping
ManagementWeb, Cloud, App
Physical & Environmental specifications
Physical & Environmental
Dimensions300 × 233 × 43.6 mm
Weight2.64 kg
Power supply100–240 V AC, 50/60 Hz
Consumption27 W (no load) / 278 W (full load)
Operating temperature0 °C to +50 °C
MTBF400,000 hours
Surge / ESD±6 kV / 6 kV contact, 8 kV air
Compliance & Warranty specifications
Compliance & Warranty
CertificationsFCC, IC, cTUVus; NDAA compliant
Warranty3 years

Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.

Overview

About the LS2P-8MG2XS-P

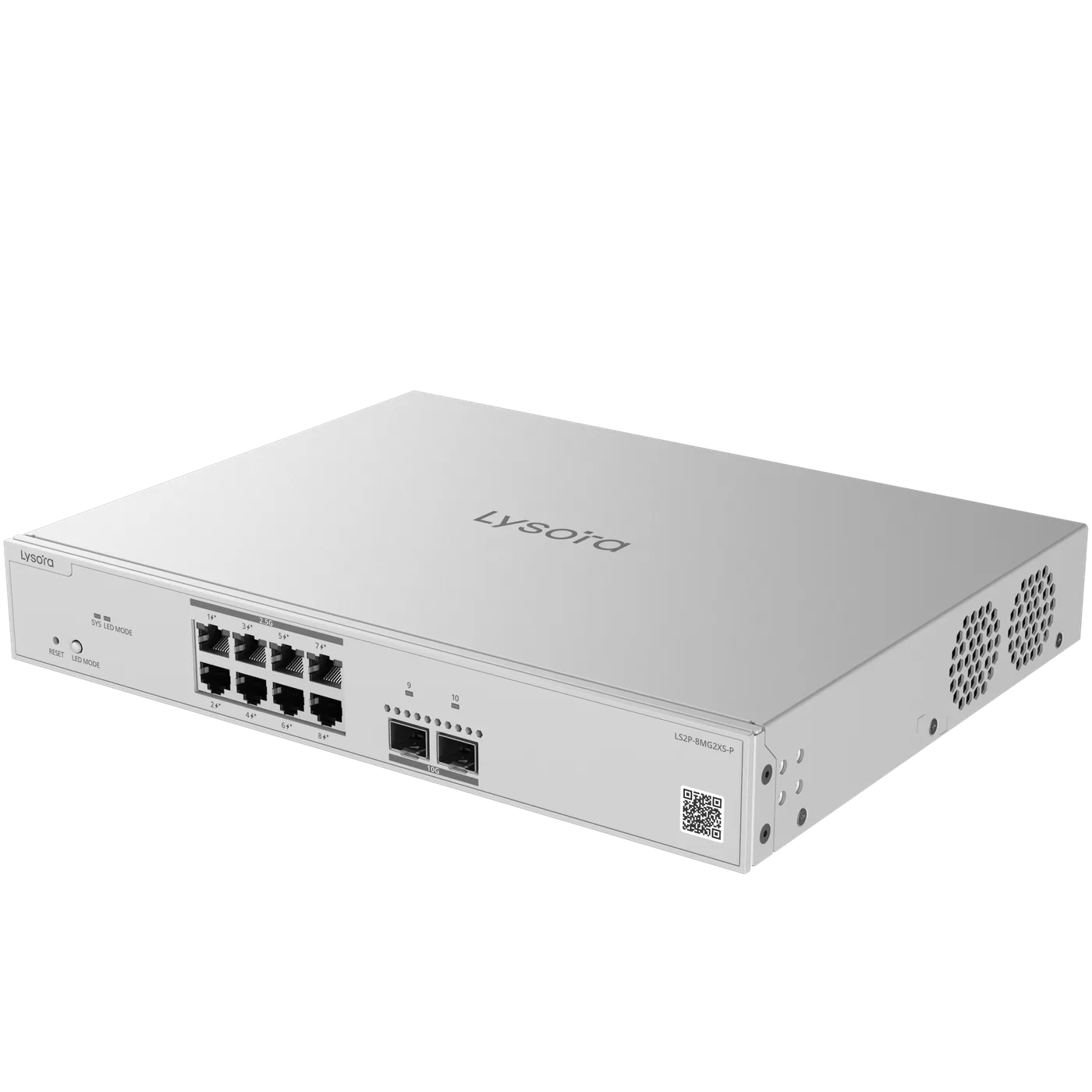

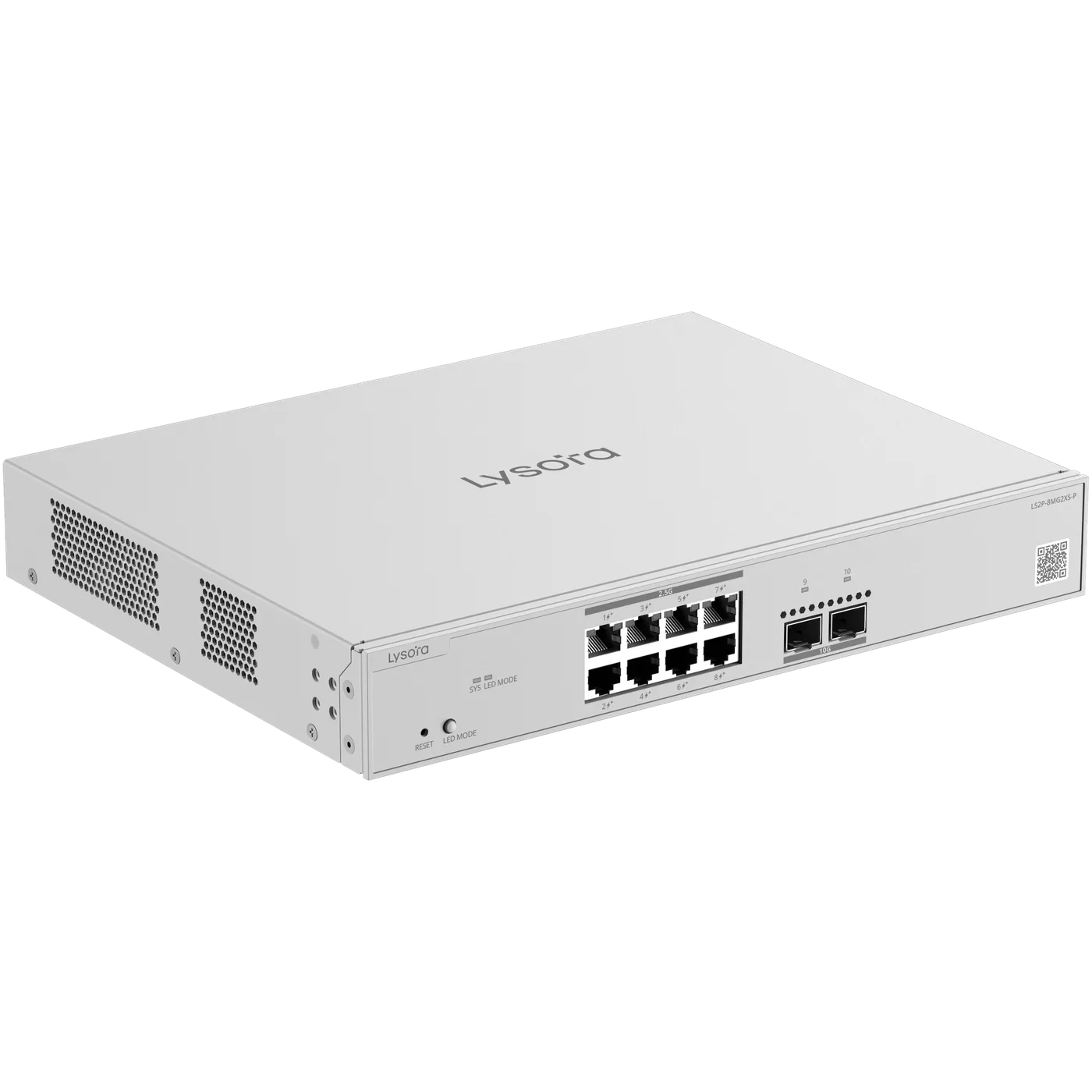

The Lysora LS2P-8MG2XS-P is an 8-port multi-gigabit Layer 2 managed PoE switch: every RJ45 port runs 10/100/1000/2500BASE-T with PoE/PoE+, and two 10GE SFP+ slots carry aggregation upstream. It exists for one modern problem — Wi-Fi 7 access points that exceed gigabit backhaul.

Its L2+ feature set includes static routing, 802.1X authentication, IP-MAC-port binding, multicast snooping, and storm control, with VLANs up to 4094 across web, cloud, and app management.

Officially rated for 300 cameras at the 200 W H.265 profile, it also serves as a compact high-throughput surveillance aggregator. The product page states a 240 W PoE budget (the category listing shows 125 W — we confirm the datasheet value on quotation).

Applications

Where the LS2P-8MG2XS-P is deployed

Wi-Fi 7 AP backhaul

2.5G + PoE per AP; 10G SFP+ to the core.

High-density camera aggregation

Rated for 300 cameras at 200 W H.265.

Small-site 10G aggregation

Multi-gig edge with 10G uplinks in one compact unit.

Future-ready office edge

Multi-gig drops over existing Cat5e/Cat6 cabling.

Downloads

LS2P-8MG2XS-P documents

Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.

Related Products

Pairs with the LS2P-8MG2XS-P

Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.

Why Buy From Lizora Infotech

A supply partner, not just a price list

Ready Stock Availability

Fast-moving SKUs held in the Delhi NCR warehouse, with availability confirmed on every quotation.

PAN India Supply Network

Surface and air cargo delivery to every state, with GST invoicing and e-way bills handled end to end.

BOQ & Solution Consultation

Bill-of-quantities reviewed line by line, with alternatives suggested for out-of-stock or discontinued items.

Technical Pre-Sales Consulting

Switch sizing, PoE budgets, VLAN design, and GPON planning reviewed by our technical team before you commit.

Dedicated B2B Sales Support

A named point of contact for quotes, stock checks, and RMA — not a ticket queue.

Request Dealer Pricing

Related Resources

Guides that cover the LS2P-8MG2XS-P

Selection and background reading from our technical team.

  • Buying Guides

    How to Choose the Right Managed Switch

    A six-step method for sizing a managed switch — port count, PoE budget, uplinks, switching layer, environment, and management — before the BOQ goes out for pricing.

  • Networking Basics

    Difference Between Layer 2 and Layer 3 Switches

    Layer 2 switches forward by MAC address inside VLANs; Layer 3 switches also route between IP subnets in hardware. Where each belongs, and what it costs to choose wrong.

  • Product Comparisons

    Wi-Fi 6 vs Wi-Fi 7: What Actually Changes

    Wi-Fi 6 (802.11ax) and Wi-Fi 7 (802.11be) compared on channel width, modulation, and Multi-Link Operation — plus the wired upgrade Wi-Fi 7 quietly demands.

  • Networking Basics

    Understanding SFP and SFP+ Modules

    SFP, SFP+, single-mode vs multi-mode, BiDi and DAC explained — how to specify the right optic for a fibre uplink and avoid the usual compatibility traps.

  • Buying Guides

    Network Switch Selection Guide

    A decision tree across the whole switch range — unmanaged, managed, PoE, multi-gig, Layer 3, and industrial — mapping site type to the right class of switch.

Before You Enquire

Frequently asked questions

Why choose a 2.5G multi-gig switch over a gigabit PoE switch?

Wi-Fi 7 access points can push more than 1 Gbps of real traffic to the wire, so a gigabit port becomes the ceiling. The LS2P-8MG2XS-P runs 2.5G with PoE on the same port and existing Cat5e/Cat6 cabling — the APs get both power and full backhaul.

See wireless access points

What is the actual PoE budget of the LS2P-8MG2XS-P?

Lysora's product page states 240 W, while the category listing shows 125 W — an inconsistency on the official site. We confirm the datasheet value on every quotation before you commit, so your PoE budget math is based on the verified number.

Ask us to confirm

Does the LS2P-8MG2XS-P support static routing?

Yes. Alongside the L2 set it supports static routing, 802.1X authentication, IP-MAC-port binding, multicast snooping, and storm control, with VLANs up to 4094 — enough to route between local VLANs without a separate device.

What is the price of the LS2P-8MG2XS-P in India?

Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LS2P-8MG2XS-P and quantity, and you receive priced options with stock confirmation within 24 working hours.

Request pricing
