Lysora · Wireless Access Points
L7-W
Wi-Fi 7 BE3600 Wall-Plate Access Point
PricingContact for Best Price
- Class
- Wi-Fi 7 BE3600 dual-band
- Radios
- 688 + 2882 Mbps
- Uplink
- 1× 2.5GbE
- LAN
- 4× 1GbE (1 with PoE out)
- Power
- PoE+, <15 W
- Rating
- IP41 wall-plate
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the L7-W is built to do
Technical Specifications
L7-W specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Radio | |
|---|---|
| Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Rates | 688 + 2882 Mbps (BE3600) |
| Streams | 4 |
| Clients | 64 (2.4 GHz) / 511 total |
| Interfaces & Power | |
|---|---|
| Uplink | 1× 2.5GbE |
| LAN | 4× 1GbE, 1 with PoE out |
| Power | PoE+, <15 W |
| Management | Lysora Cloud, web |
| Physical & Environmental | |
|---|---|
| Dimensions | 86 × 24 × 124 mm |
| Weight | ≤0.27 kg |

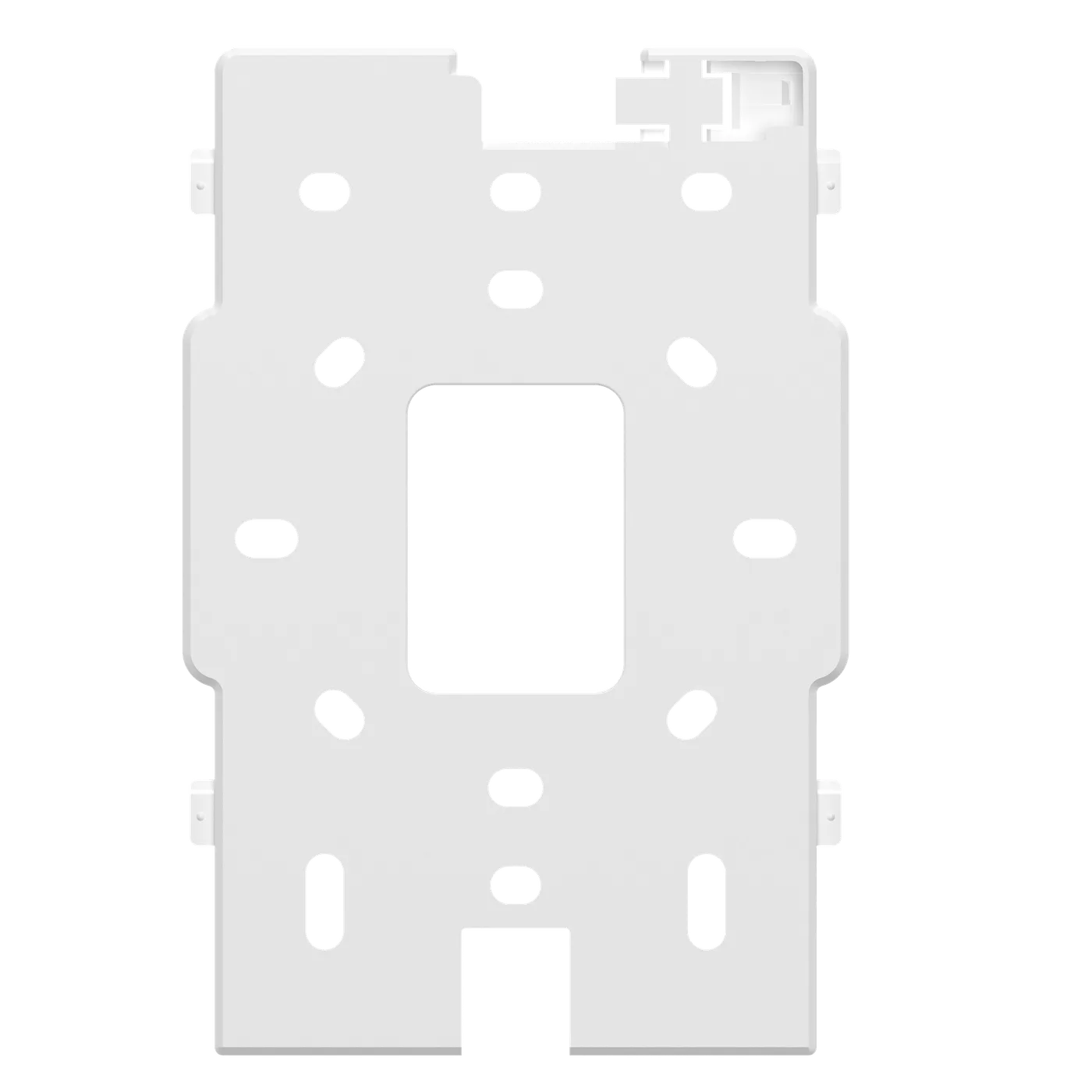

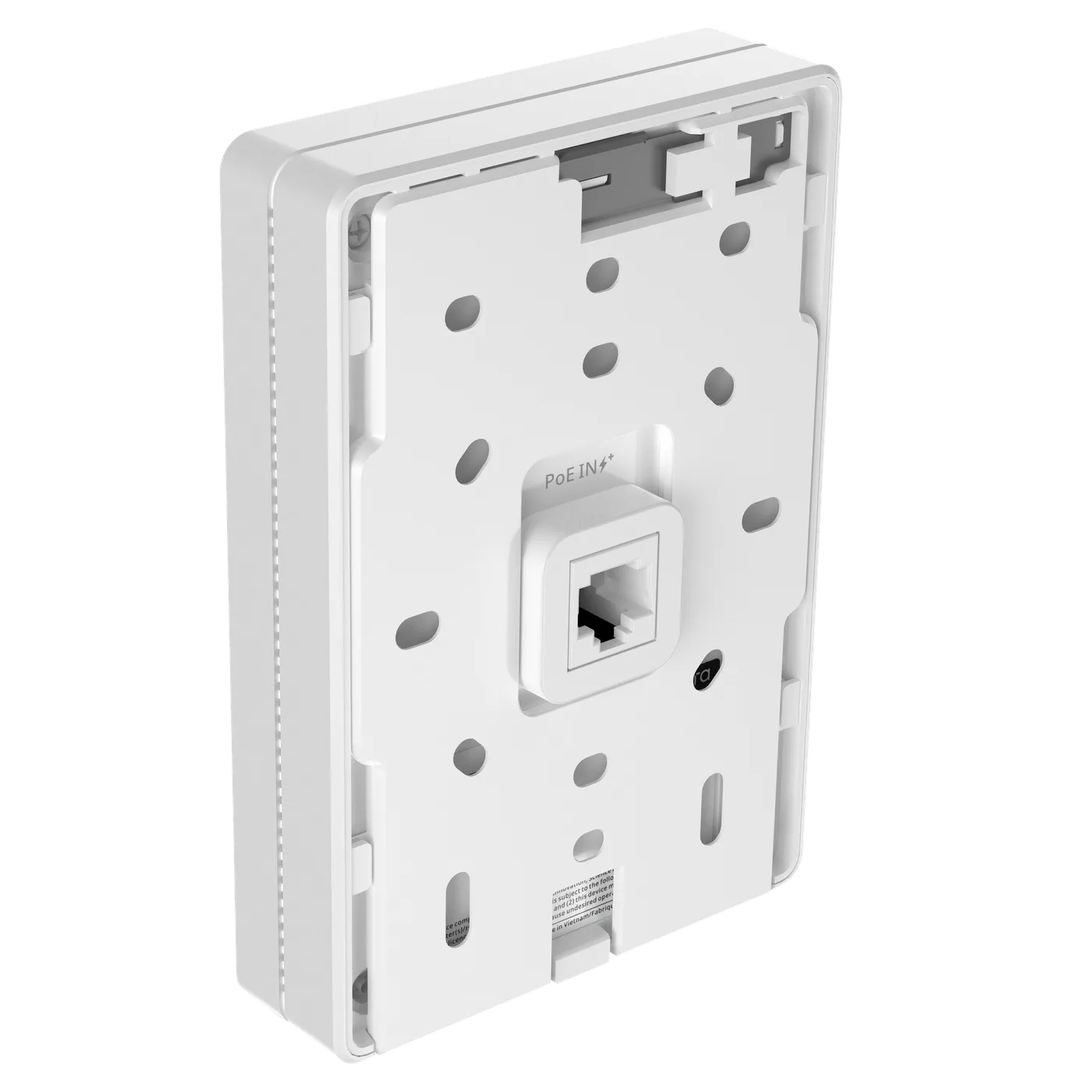

| Mounting | Wall-plate |
| Ingress protection | IP41 |
| Operating temperature | 0 °C to +40 °C |
| Compliance | |
|---|---|
| Certifications | FCC, IC, cTUVus; NDAA compliant |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the L7-W

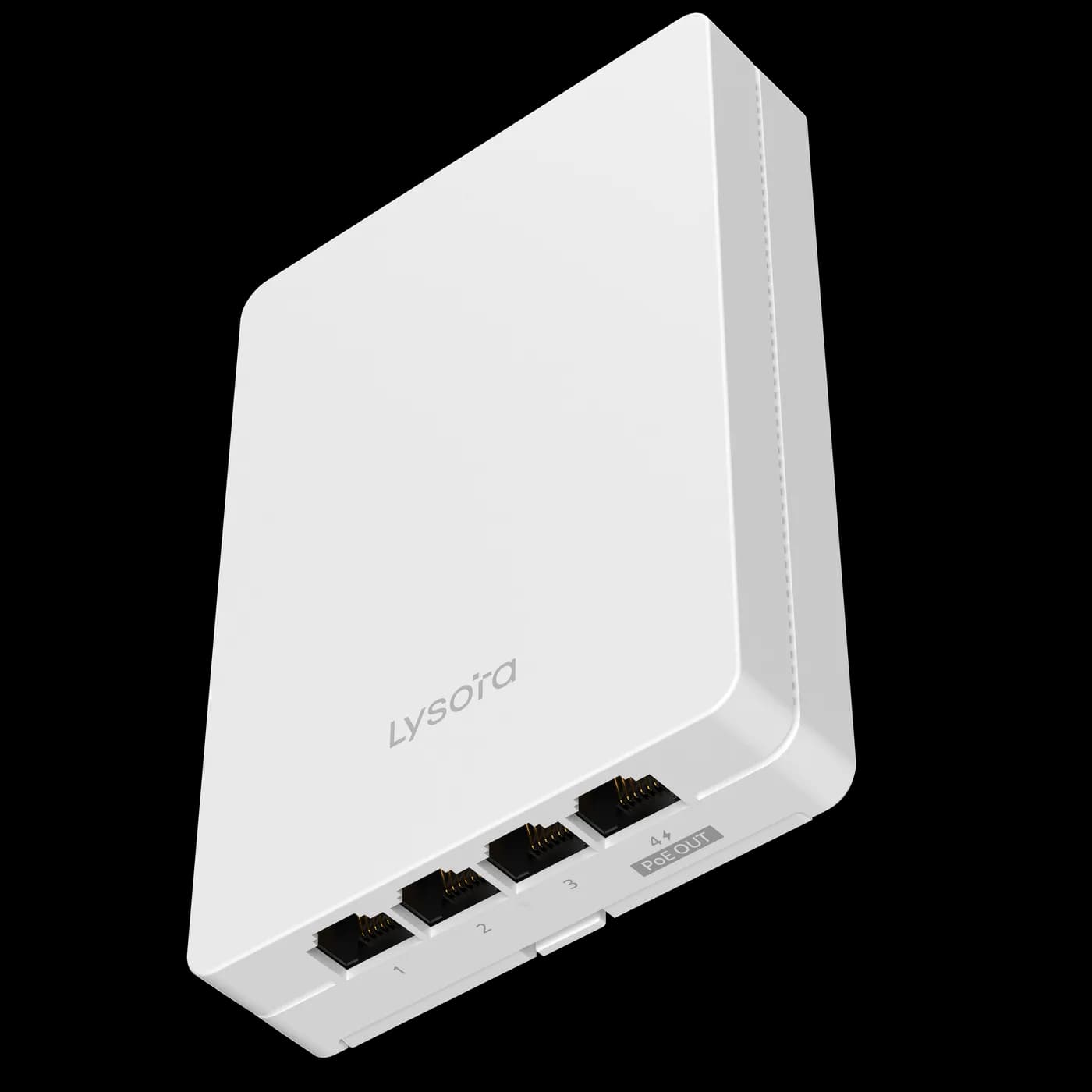

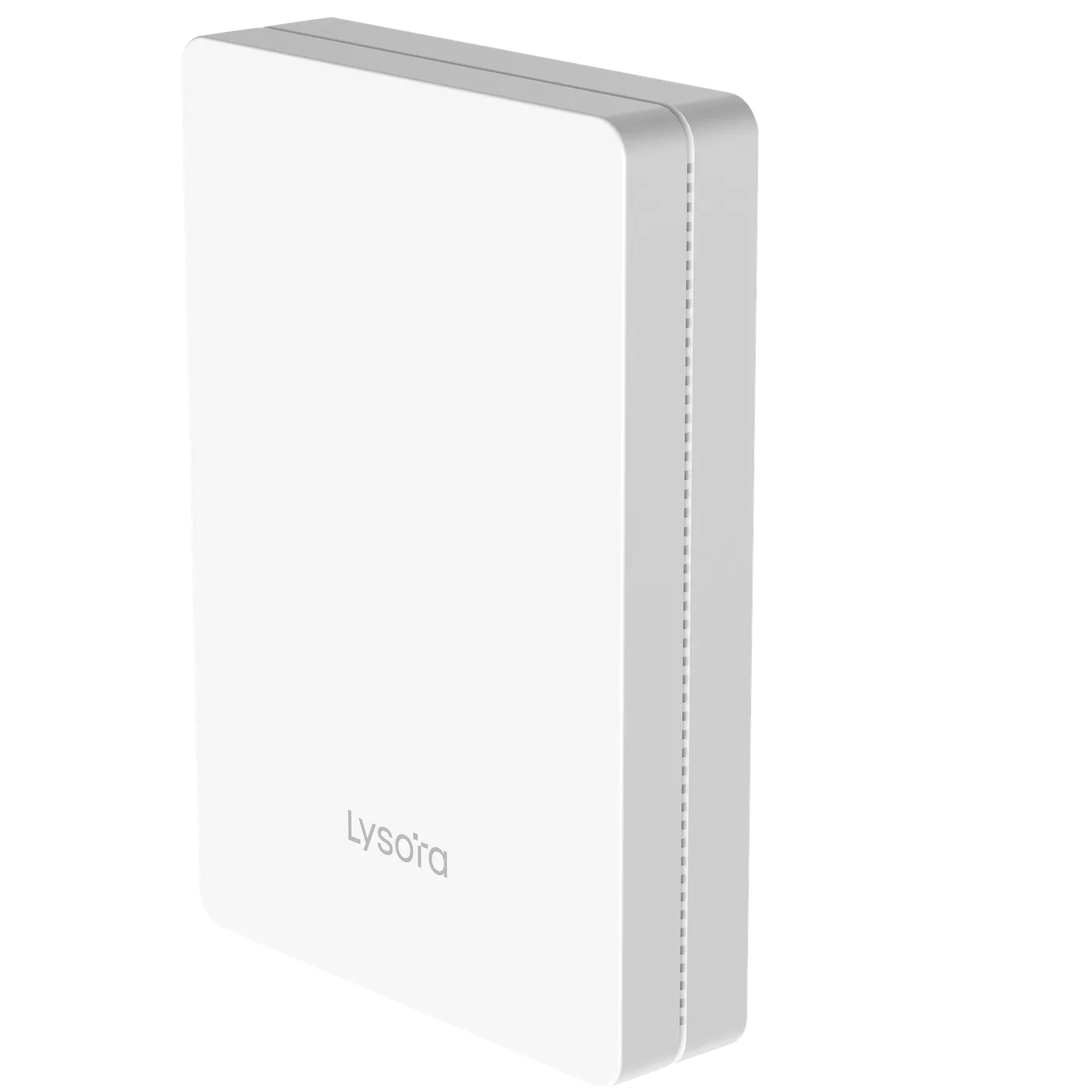

The Lysora L7-W is a wall-plate Wi-Fi 7 access point: BE3600 dual-band radio plus four gigabit LAN ports on the faceplate, one with PoE out for an IP phone or camera — the whole room served from one junction box.
It draws under 15 W over PoE+ with a 2.5GbE uplink, rated for 511 total clients, in a slim 86 mm faceplate weighing 0.27 kg.
It is the hotel-room and hostel-room standard: guest Wi-Fi, wired TV/STB ports, and a powered phone port with no visible cabling.
Applications
Where the L7-W is deployed
Downloads
L7-W documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- L7-W Datasheet (PDF)Available on RequestRequest on WhatsApp
- L7-W User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the L7-W
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Wireless Access Points
Wireless Access Points- Wi-Fi 7 BE5040
- 511 clients
- 2.5G port
PoE Switches- 24× GbE PoE+
- 370 W budget
- 1U rack
Before You Enquire
Frequently asked questions

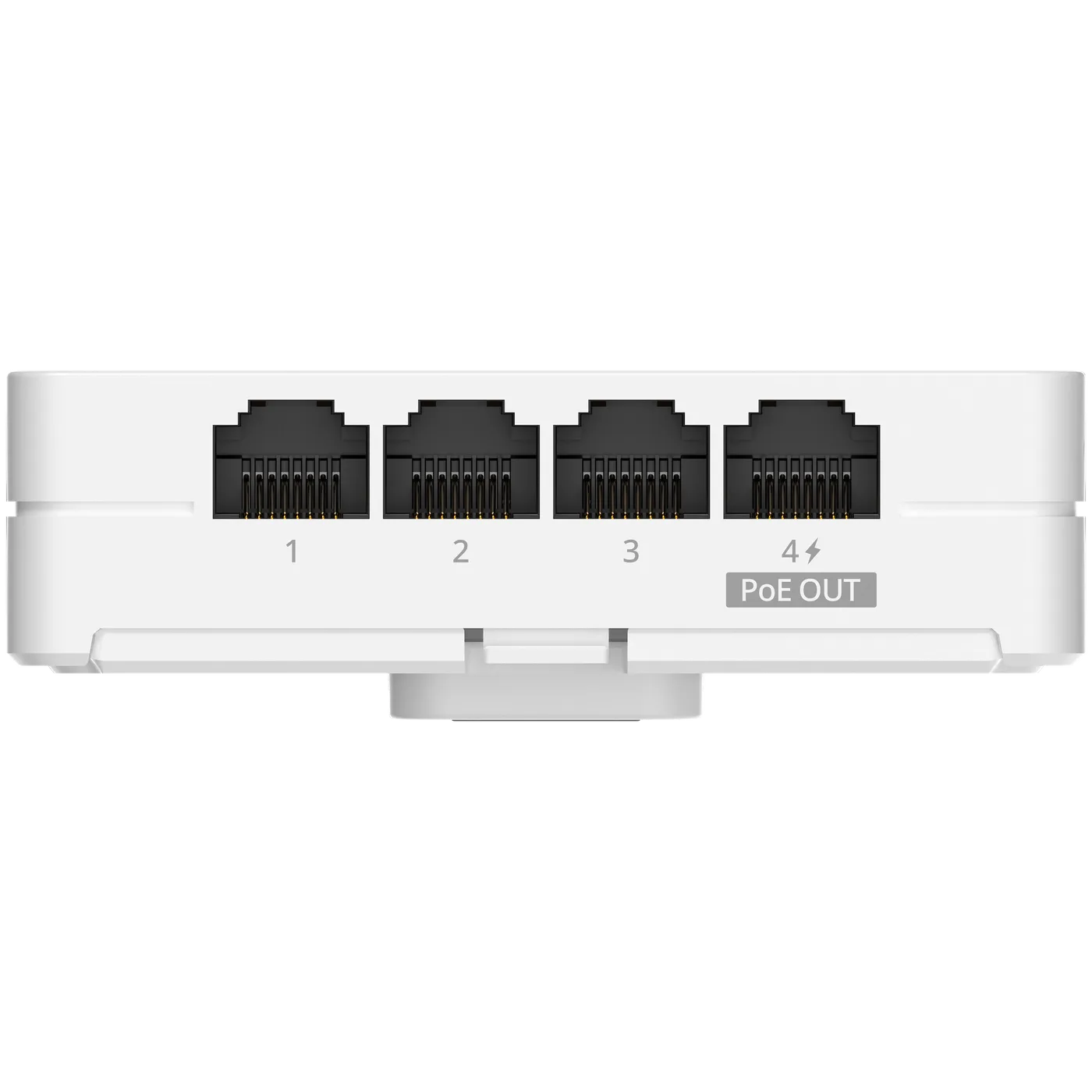

What can the L7-W's PoE out port power?
One of its four LAN ports passes PoE through to a downstream device — typically an IP phone or a small camera in the same room. The AP itself then needs PoE+ input to carry both its radio and the passed-through load.
Does the L7-W replace the room's wired ports?
Yes — that is its point. The faceplate carries four gigabit LAN ports for TV, set-top box, or desk use alongside Wi-Fi 7, so one cable to the room serves everything with no extra switch.
What is the price of the L7-W in India?
Pricing is quotation-based with dealer slabs for registered partners — room-count projects get slab pricing. Send your room count and receive priced options with stock confirmation within 24 working hours.
