Lysora · PoE Switches

LCS-24GS-P

24-Port Cloud Managed PoE Switch

PricingContact for Best Price
Ports
24× GbE PoE/PoE+
Uplinks
2× GbE RJ45 + 2× SFP
PoE budget
370 W
Management
Web / Cloud / App
Camera rating
80 (200 W H.265)
Warranty
3 years (manufacturer)
Request QuoteUpload BOQWhatsApp
  • Ready Stock
  • PAN India Supply
  • Same Day Dispatch*
  • GST Billing
  • BOQ Assistance

*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.

Key Features

What the LCS-24GS-P is built to do

370 W PoE/PoE+ budget

Full-rack PoE for cameras, APs, and phones.

1U rack body

440 mm chassis with brackets included.

Cloud + app managed

Fleet visibility across sites.

56 Gbps / 41.6 Mpps

8K MAC table, 4.1 Mbit buffer, 8 MB flash.

PoE watchdog & camera detection

The LCS CCTV toolkit at 24-port scale.

CE, FCC, NDAA

Compliance flagged by Lysora.

Technical Specifications

LCS-24GS-P specifications

Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.

Interfaces specifications
Interfaces
PoE ports24× 10/100/1000BASE-T PoE/PoE+
Uplinks2× GbE RJ45 + 2× GbE SFP
PoE specifications
PoE
Total budget370 W
Camera capacity80 (200 W H.265) / 40 (400 W H.265)
Performance specifications
Performance
Switching capacity56 Gbps
Forwarding rate41.6 Mpps
MAC address table8,000 entries
Buffer / Flash4.1 Mbit / 8 MB
VLANMax 16
Physical & Environmental specifications
Physical & Environmental
Dimensions440 × 214.9 × 44 mm (1U)
Weight2.84 kg
Power supply100–240 V AC
Consumption25 W (no PoE) / 400 W (full PoE)
Operating temperature0 °C to +40 °C
MTBF200,000 hours
Compliance & Warranty specifications
Compliance & Warranty
CertificationsCE, FCC; NDAA compliant
Warranty3 years

Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.

Overview

About the LCS-24GS-P

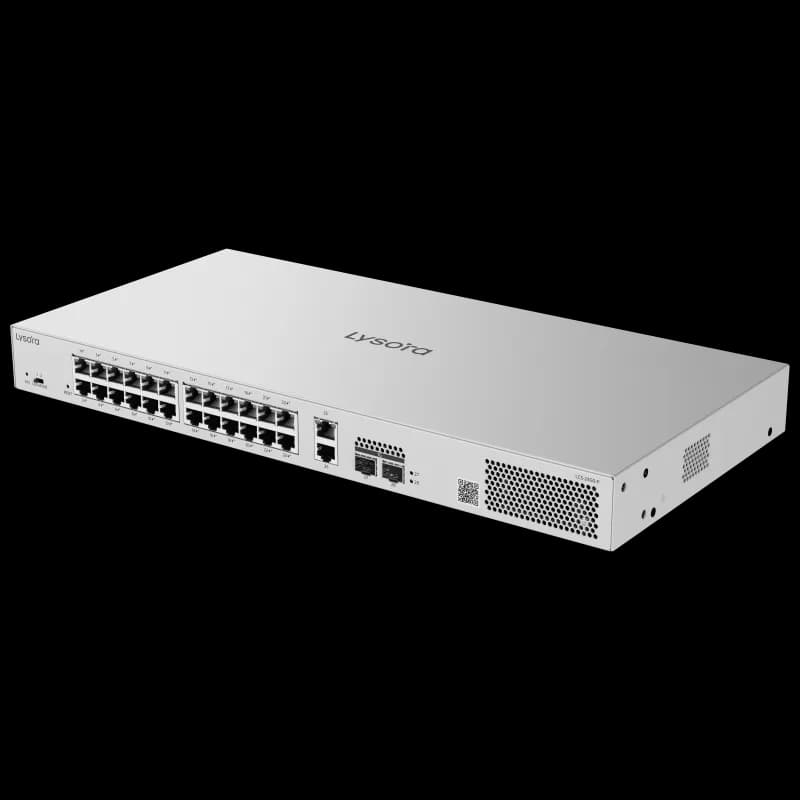

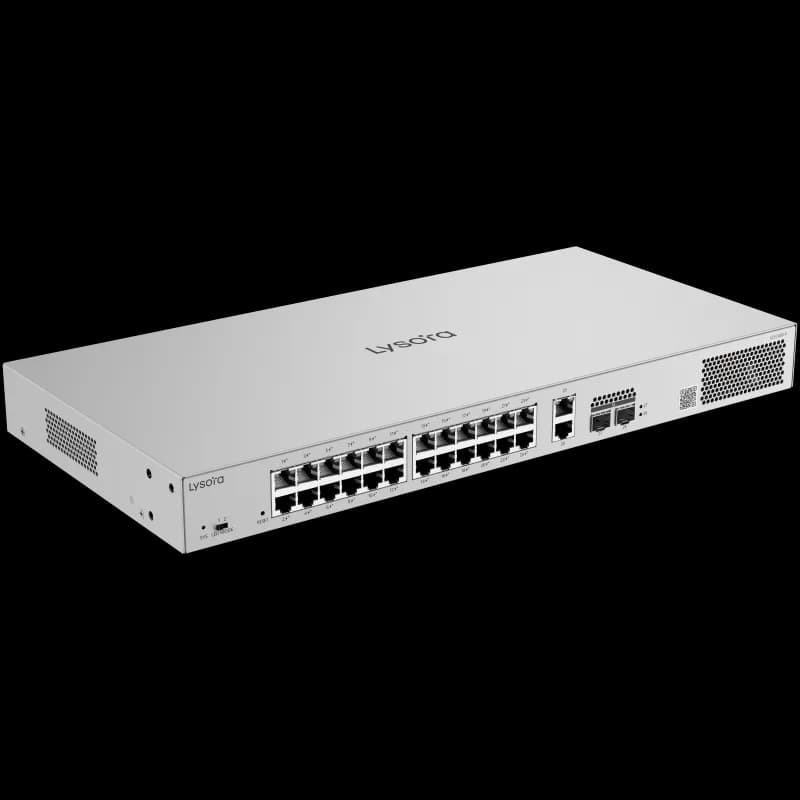

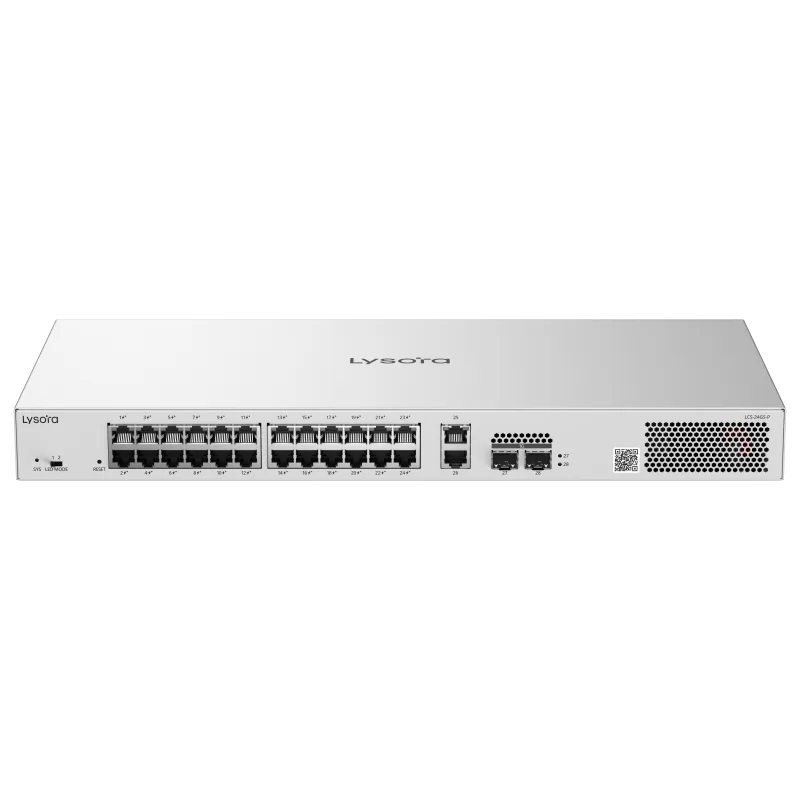

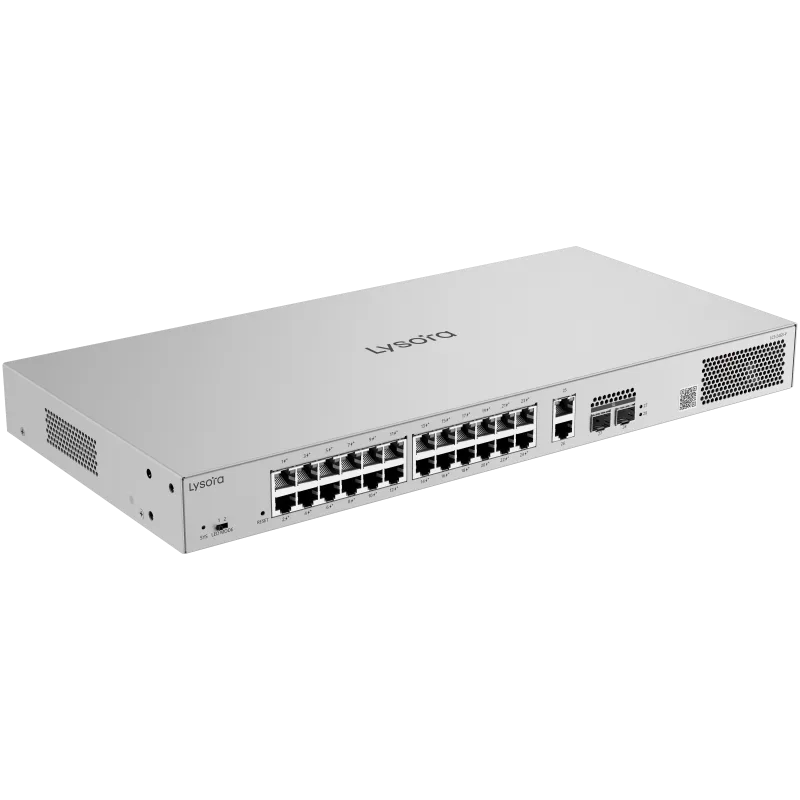

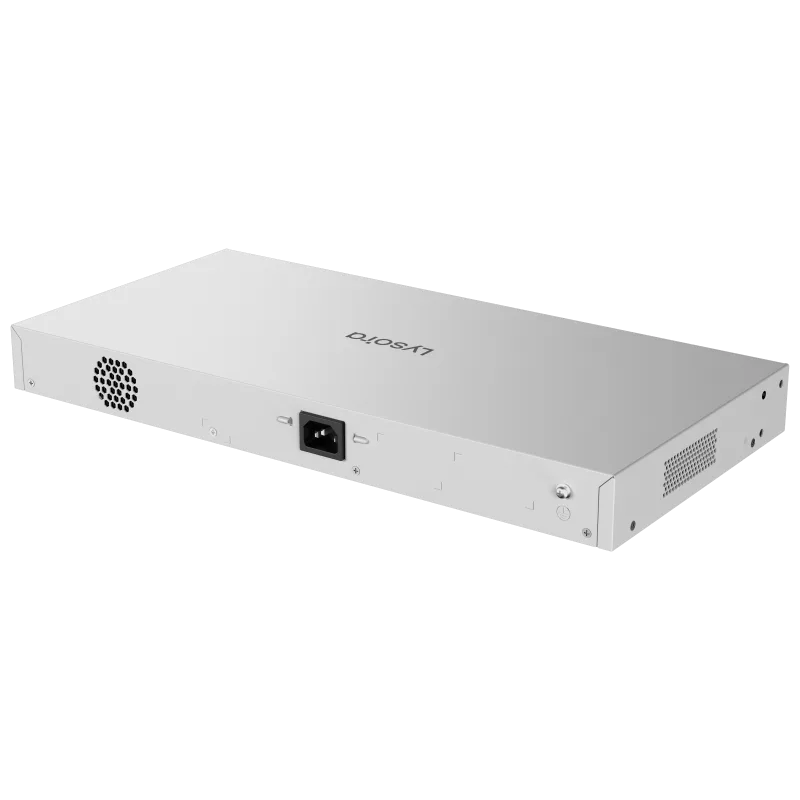

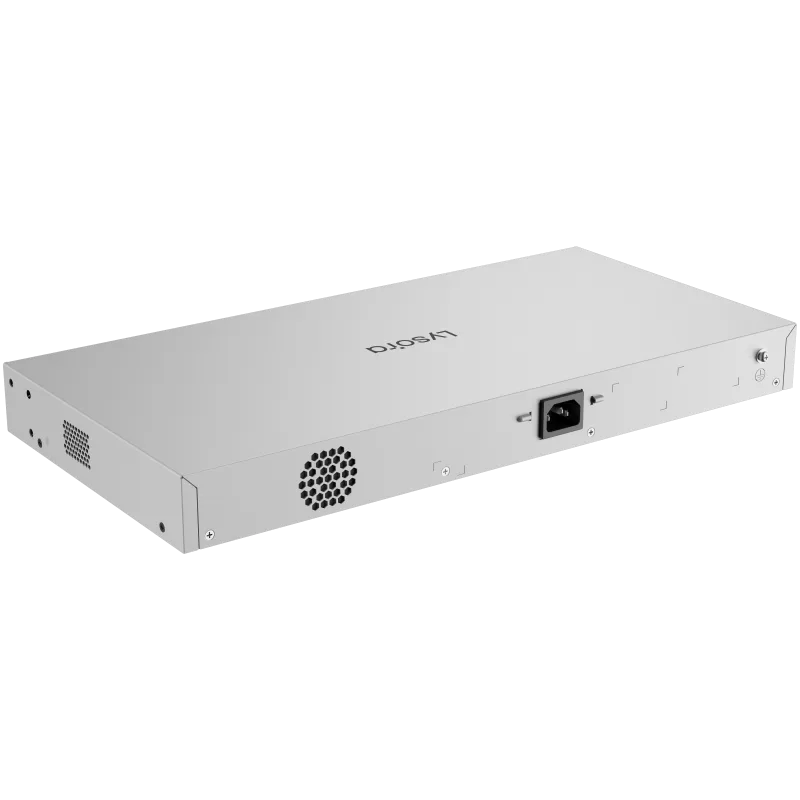

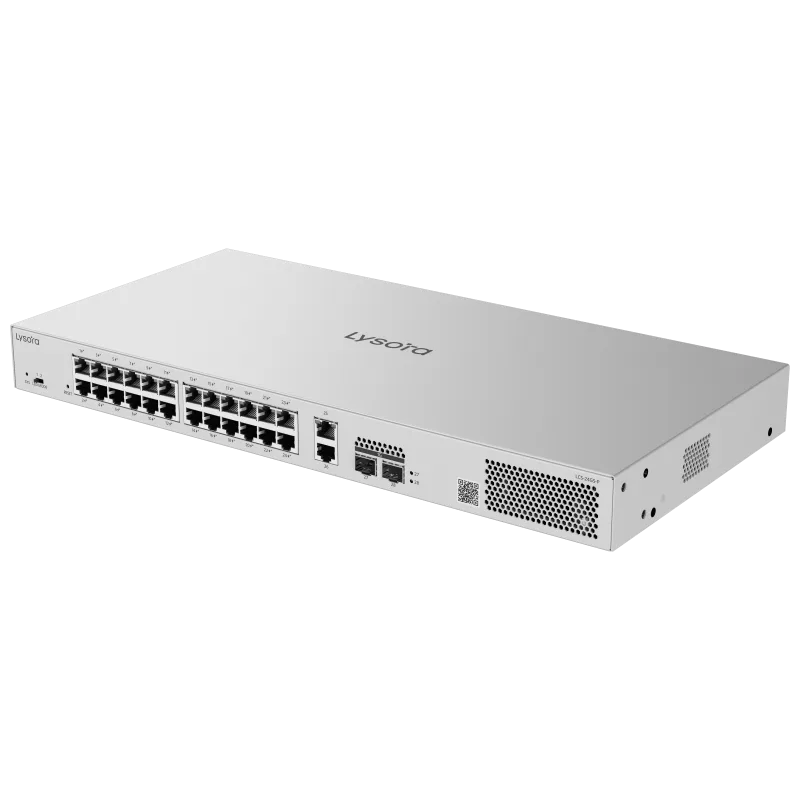

The Lysora LCS-24GS-P is a 24-port cloud managed PoE switch with a 370 W PoE/PoE+ budget, two gigabit RJ45 uplinks, and two SFP slots in a 19-inch 1U body with rack brackets included.

It carries the LCS line's cloud, app, and web management with camera detection, PoE watchdog, and online upgrade, and is rated for 80 cameras at the 200 W H.265 profile.

It anchors surveillance racks and floor cabinets where two dozen powered drops are needed with remote oversight; sites needing full 802.1Q VLAN scale step up to the LS2 managed line.

Applications

Where the LCS-24GS-P is deployed

Surveillance racks

Two dozen powered camera drops with cloud oversight.

Office PoE closets

Phones, APs, and cameras across a floor.

Hotel floors

Room and corridor devices from one rack unit.

Campus blocks

Building-level PoE with remote management.

Downloads

LCS-24GS-P documents

Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.

Related Products

Pairs with the LCS-24GS-P

Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.

Why Buy From Lizora Infotech

A supply partner, not just a price list

Ready Stock Availability

Fast-moving SKUs held in the Delhi NCR warehouse, with availability confirmed on every quotation.

PAN India Supply Network

Surface and air cargo delivery to every state, with GST invoicing and e-way bills handled end to end.

BOQ & Solution Consultation

Bill-of-quantities reviewed line by line, with alternatives suggested for out-of-stock or discontinued items.

Technical Pre-Sales Consulting

Switch sizing, PoE budgets, VLAN design, and GPON planning reviewed by our technical team before you commit.

Dedicated B2B Sales Support

A named point of contact for quotes, stock checks, and RMA — not a ticket queue.

Request Dealer Pricing

Related Resources

Guides that cover the LCS-24GS-P

Selection and background reading from our technical team.

  • Buying Guides

    Network Switch Selection Guide

    A decision tree across the whole switch range — unmanaged, managed, PoE, multi-gig, Layer 3, and industrial — mapping site type to the right class of switch.

Before You Enquire

Frequently asked questions

LCS-24GS-P or LS2-24GT4SFP-P — which 24-port PoE switch fits my project?

Both offer 370 W across 24 gigabit PoE+ ports. Choose the LCS-24GS-P for cloud-managed CCTV and simpler sites (16 VLANs, camera tools); choose the LS2-24GT4SFP-P where full Layer 2 management with VLANs to 4094 and four SFP uplinks is required.

Compare the L2 model

How many cameras can the LCS-24GS-P power?

Lysora rates it for 80 cameras at the 200 W H.265 profile and 40 at 400 W within the 370 W budget. With 24 physical ports, the practical limit is one camera per port with generous per-port power headroom.
