Lysora · Managed Switches
LS2-8GT2SFP-P
8-Port Layer 2 Managed PoE Switch
PricingContact for Best Price
- Ports
- 8× 10/100/1000BASE-T PoE/PoE+
- Uplinks
- 2× 1GE SFP
- PoE budget
- 125 W
- Layer
- Layer 2 managed
- Cooling
- Fanless
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LS2-8GT2SFP-P is built to do
Technical Specifications
LS2-8GT2SFP-P specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| RJ45 ports | 8× 10/100/1000BASE-T, PoE/PoE+ |
| SFP slots | 2× 1GE SFP |
| PoE | |
|---|---|
| Standard | PoE/PoE+ |
| Total budget | 125 W |
| Camera capacity | 80 (200 W H.265) / 40 (400 W H.265) |
| Switching Performance | |
|---|---|
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8,000 entries |
| Packet buffer | 4.1 Mbit |
| Flash memory | 16 MB |
| L2 Features | |
|---|---|
| VLAN | Up to 4094 |
| Security | DHCP snooping, IP-MAC-port binding, loop prevention |
| Management | Web; cloud management support |
| Physical & Environmental | |
|---|---|
| Dimensions | 300 × 205 × 44 mm |
| Weight | 1.80 kg |
| Cooling | Fanless |
| Power supply | 100–240 V AC, 50/60 Hz |
| Consumption | 11 W (no PoE) / 145 W (full PoE) |
| Operating temperature | 0 °C to +50 °C |
| MTBF | 400,000 hours |
| Surge protection | ±6 kV |
| ESD protection | 6 kV contact / 8 kV air |
| Compliance & Warranty | |
|---|---|
| Certifications | FCC, IC, cTUVus |
| Warranty | 3 years |
| In the box | Manual, warranty card, rubber pads, 1.5 m power cord, grounding cable, rack brackets, screws, cord retention clip |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LS2-8GT2SFP-P

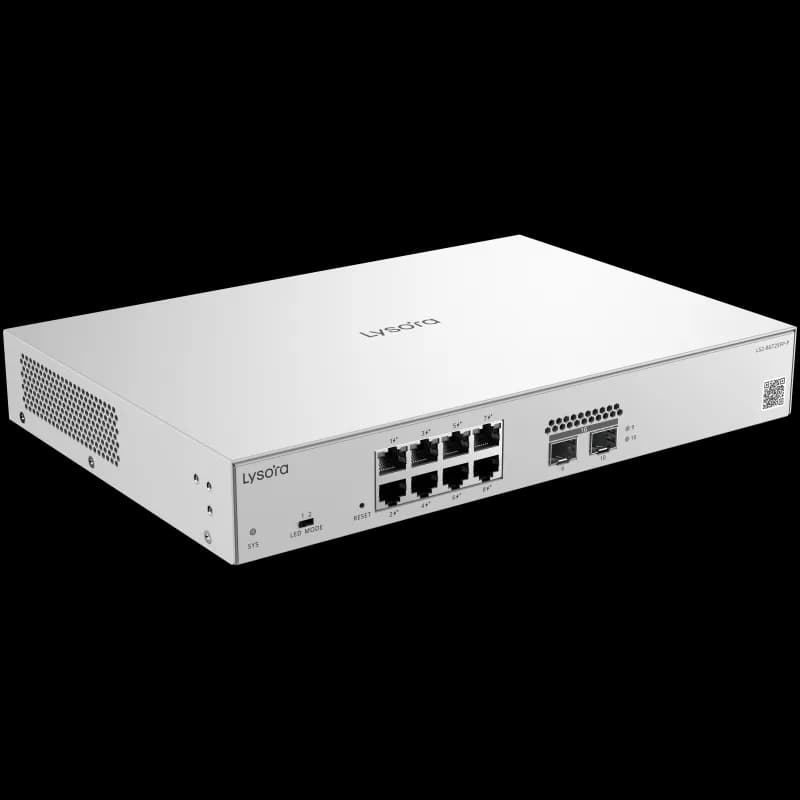

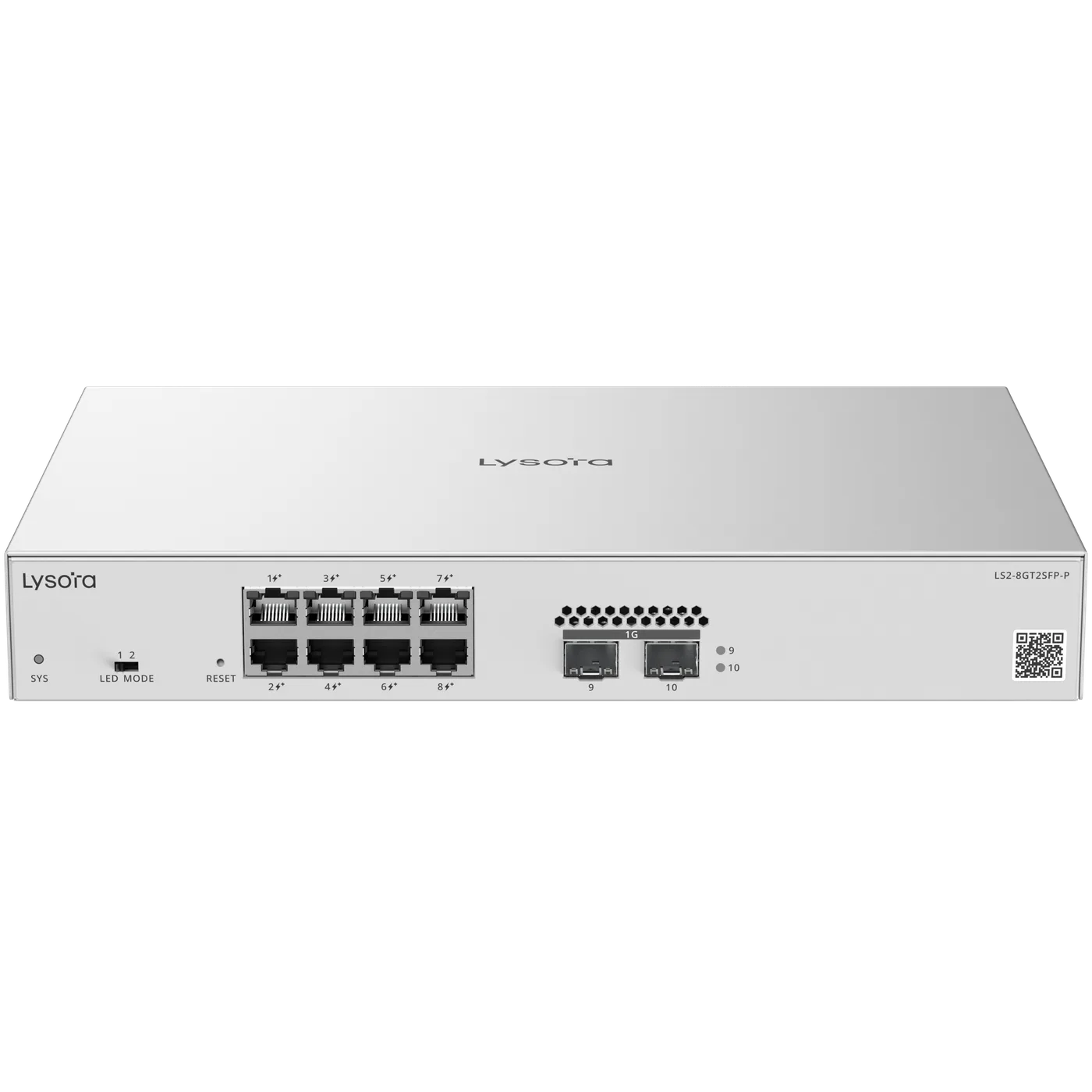

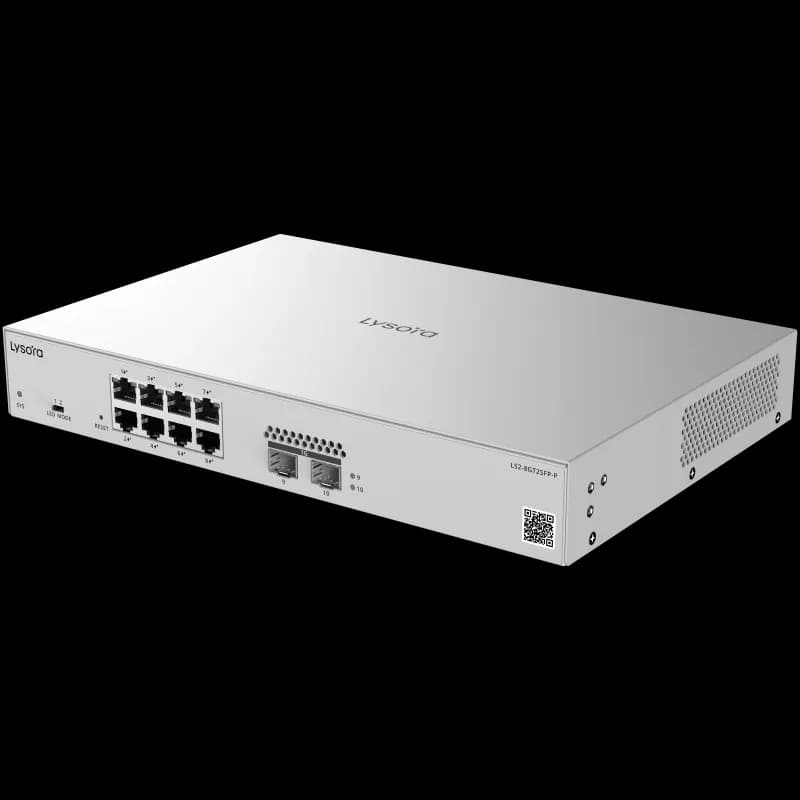

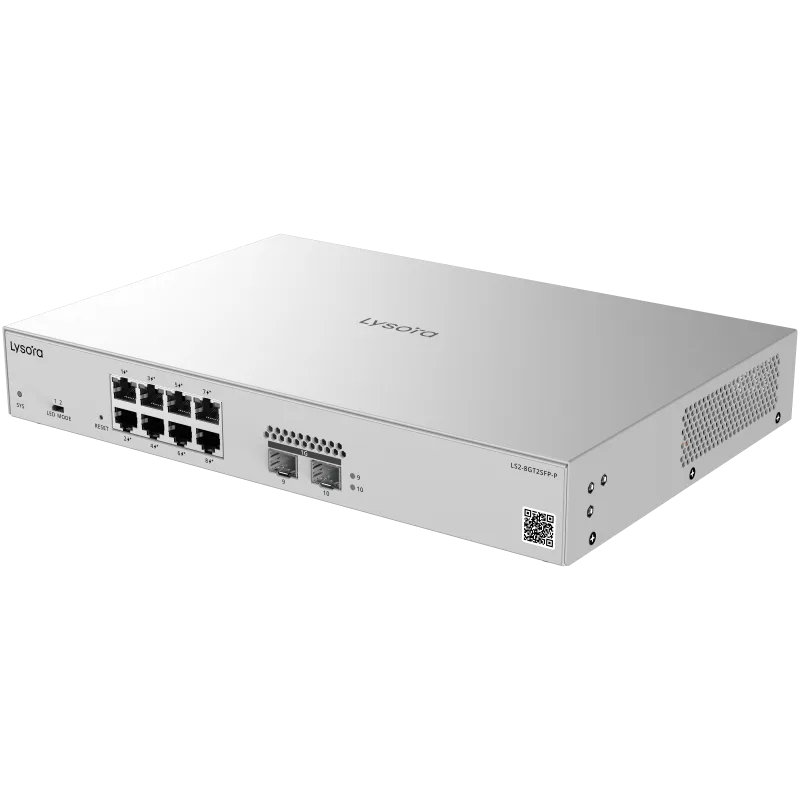

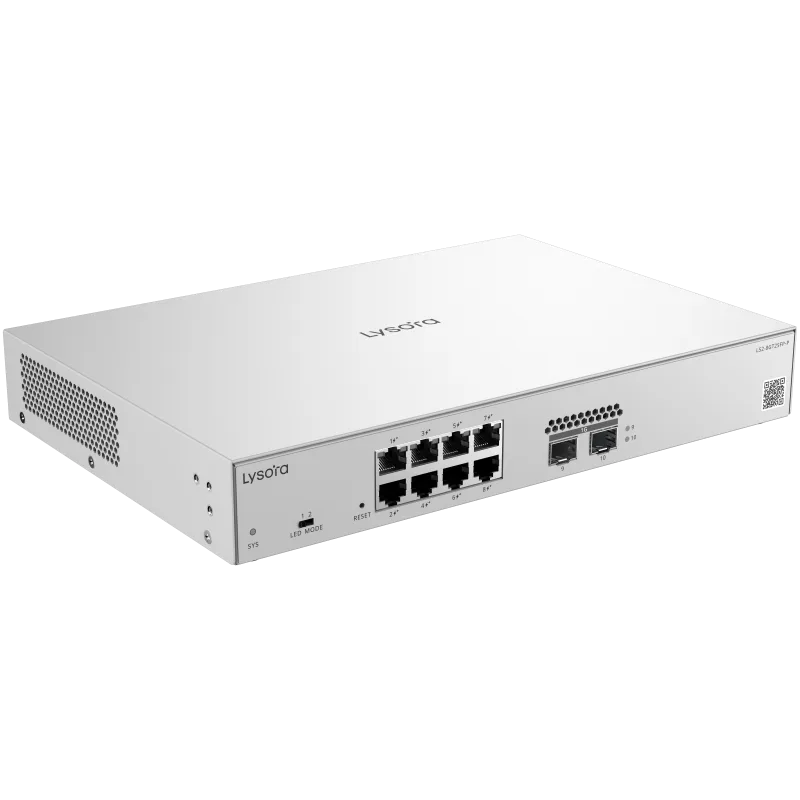

The Lysora LS2-8GT2SFP-P is an 8-port gigabit Layer 2 managed PoE switch with a 125 W PoE/PoE+ budget and two SFP uplink slots. It powers cameras, access points, and IP phones while providing the L2 controls — VLANs up to 4094, DHCP snooping, IP-MAC-port binding, and loop prevention — that keep edge traffic segmented and stable.
The switch is fanless in a desktop steel case and is cloud-management capable alongside its web interface. Lysora rates it for 80 cameras at a 200 W H.265 profile and 40 at 400 W.
In deployments it sits at the PoE edge under an aggregation switch, with the SFP slots carrying fiber uplinks back to the core. It pairs with the larger LS2-24GT4SFP-P where port counts grow.
Applications
Where the LS2-8GT2SFP-P is deployed
Downloads
LS2-8GT2SFP-P documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LS2-8GT2SFP-P Datasheet (PDF)Available on RequestRequest on WhatsApp
- LS2-8GT2SFP-P User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LS2-8GT2SFP-P
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Managed Switches
Managed Switches- 8× 2.5G PoE+
- 2× 10G SFP+
- L2 + static routing
Managed Switches- 24× RJ45
- 4× SFP
- Fanless 1U
Before You Enquire
Frequently asked questions
How many cameras can the LS2-8GT2SFP-P power?
Lysora rates the LS2-8GT2SFP-P for 80 cameras on a 200 W H.265 profile and 40 on a 400 W profile, within its 125 W PoE/PoE+ budget across 8 ports. Actual counts depend on per-camera draw — share your camera model for exact sizing.
Request a sizing quoteDoes the LS2-8GT2SFP-P support VLANs?
Yes. It is a Layer 2 managed switch supporting VLANs up to 4094, along with DHCP snooping, IP-MAC-port binding, and loop prevention — enough to isolate camera, voice, and data traffic at the edge.
Is the LS2-8GT2SFP-P fanless?
Yes. The switch uses a fanless desktop steel case rated for 0–50 °C operation with a 400,000-hour MTBF, making it suitable for offices and equipment shelves where fan noise matters.
What is the price of the LS2-8GT2SFP-P in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LS2-8GT2SFP-P and quantity, and you receive priced options with stock confirmation within 24 working hours.
