Lysora · Managed Switches

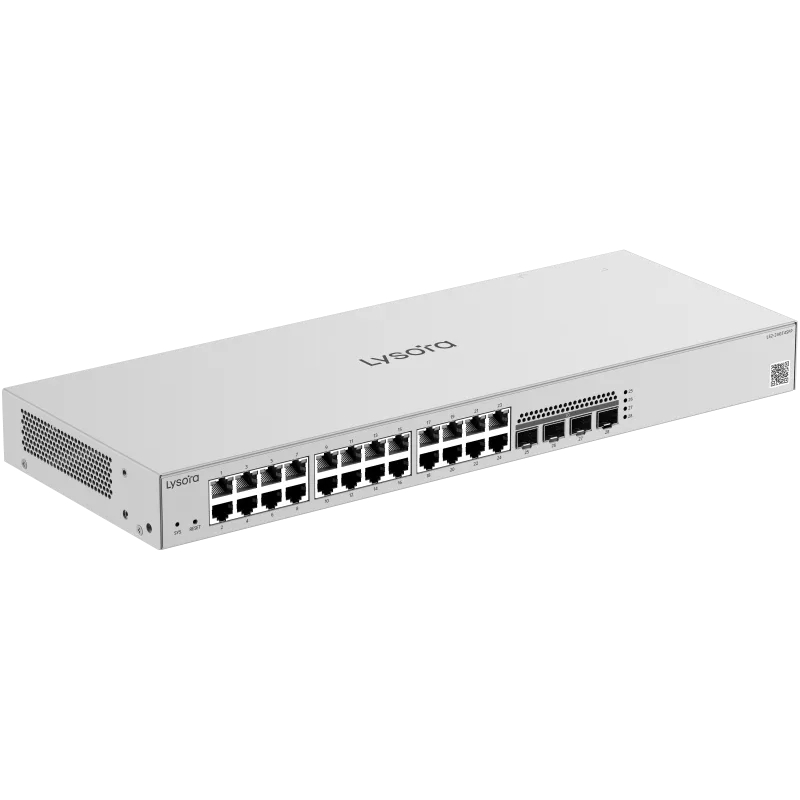

LS2-24GT4SFP

24-Port Layer 2 Managed Switch

PricingContact for Best Price
Ports
24× RJ45
Uplinks
4× 1GE SFP
PoE
Non-PoE (see LS2-24GT4SFP-P)
Layer
Layer 2 managed
Cooling
Fanless, rack-mount
Warranty
3 years (manufacturer)
Request QuoteUpload BOQWhatsApp
  • Ready Stock
  • PAN India Supply
  • Same Day Dispatch*
  • GST Billing
  • BOQ Assistance

*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.

Key Features

What the LS2-24GT4SFP is built to do

24 access ports + 4 SFP

Copper access with four fiber ports for uplinks or links between closets.

L2 management

VLANs up to 4094 with web and cloud management.

Fanless 1U design

Silent rack unit at 21 W maximum draw.

512 MB RAM / 16 MB flash

Headroom for management features and firmware updates.

400,000-hour MTBF

Rated for continuous duty at 0–50 °C.

UL-listed

FCC, IC, cTUVus, and UL 62368-1:2019 certifications.

Technical Specifications

LS2-24GT4SFP specifications

Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.

Interfaces specifications
Interfaces
RJ45 ports24 (official spec table: 10/100BASE-T; product titled Gigabit — specification confirmed during quotation)
SFP slots4× 1GE SFP
Switching Performance specifications
Switching Performance
Switching capacity56 Gbps
Forwarding rate41.66 Mpps
MAC address table8,000 entries
Packet buffer4.1 Mbit
Flash / RAM16 MB / 512 MB
L2 Features specifications
L2 Features
VLANUp to 4094
ManagementWeb; cloud management support
Physical & Environmental specifications
Physical & Environmental
Dimensions440 × 165 × 44 mm (1U)
Weight2.4 kg
CoolingFanless
Power supply100–240 V AC
Consumption21 W max
Operating temperature0 °C to +50 °C
MTBF400,000 hours
Compliance & Warranty specifications
Compliance & Warranty
CertificationsFCC, IC, cTUVus, UL 62368-1:2019
Warranty3 years

Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.

Overview

About the LS2-24GT4SFP

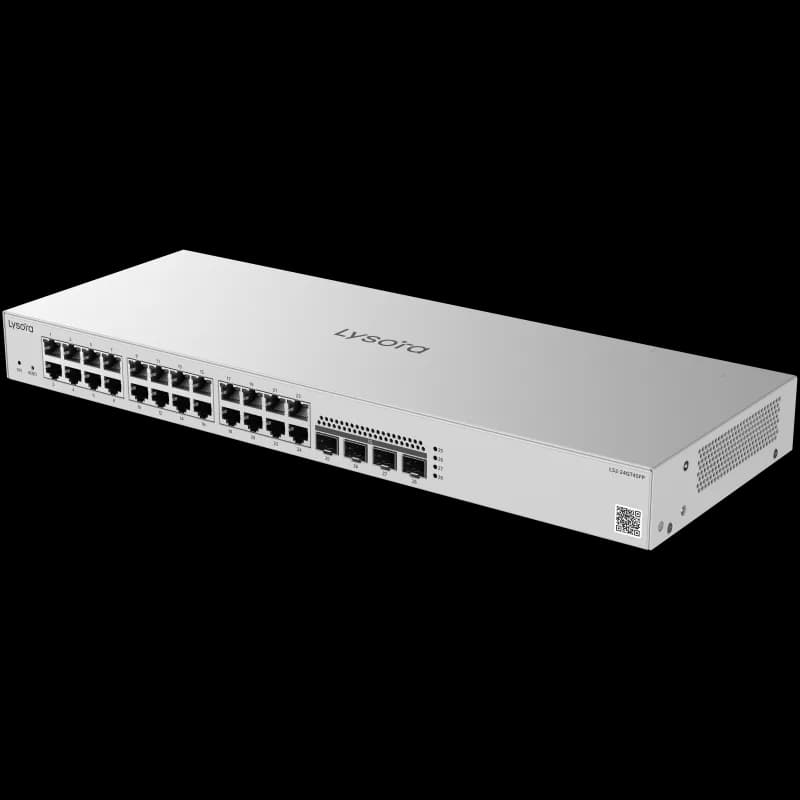

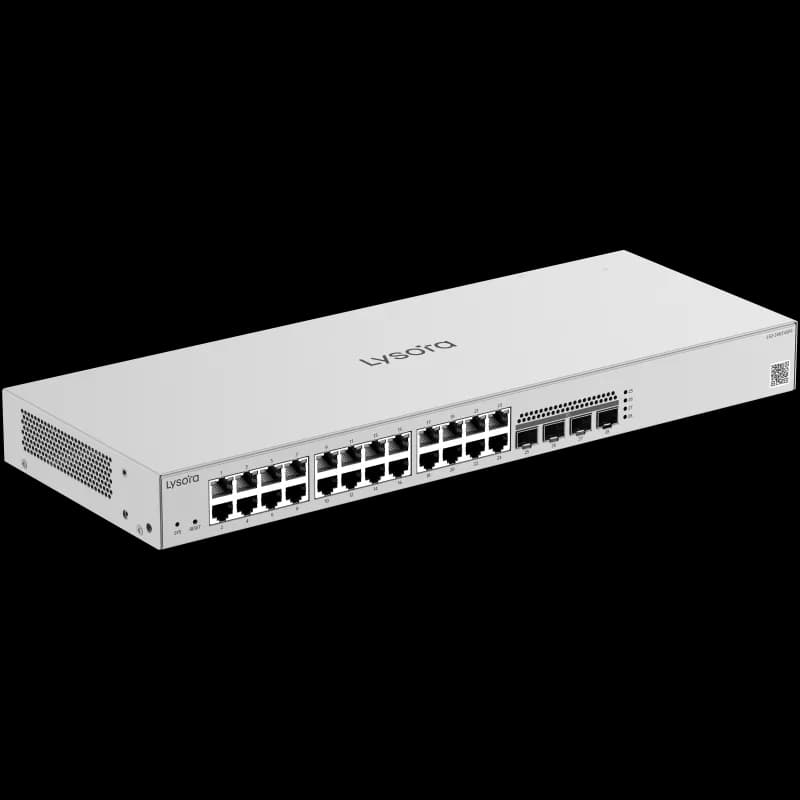

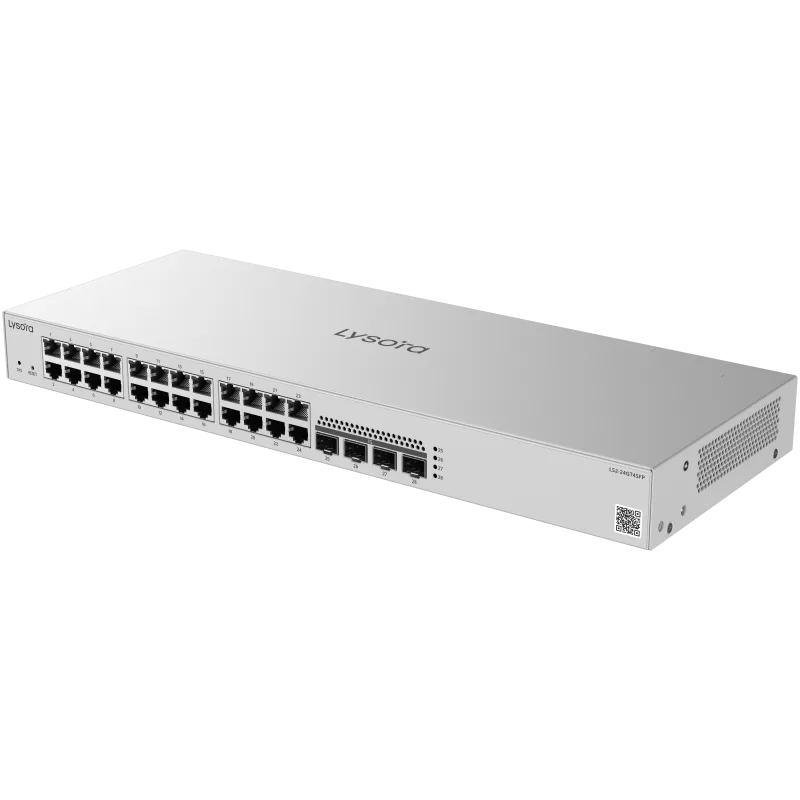

The Lysora LS2-24GT4SFP is a 24-port Layer 2 managed switch with four SFP ports, built for data-only access layers where devices carry their own power. It provides VLANs up to 4094 and the standard Lysora L2 management set over web and cloud.

The fanless 1U rack-mount body draws a maximum of 21 W, with a 400,000-hour MTBF rating and 0–50 °C operating range.

It typically serves desktop clusters and labs under a core switch, with the PoE variant (LS2-24GT4SFP-P) covering closets that also feed cameras or access points.

Applications

Where the LS2-24GT4SFP is deployed

Office desktop access

Data-only closets where devices are locally powered.

Labs and classrooms

Quiet, fanless switching for teaching spaces.

Rack aggregation

Collect edge switches over the four SFP ports.

Mixed BOQ data layer

The non-PoE line item beside PoE edge switches.

Downloads

LS2-24GT4SFP documents

Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.

Related Products

Pairs with the LS2-24GT4SFP

Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.

Why Buy From Lizora Infotech

A supply partner, not just a price list

Ready Stock Availability

Fast-moving SKUs held in the Delhi NCR warehouse, with availability confirmed on every quotation.

PAN India Supply Network

Surface and air cargo delivery to every state, with GST invoicing and e-way bills handled end to end.

BOQ & Solution Consultation

Bill-of-quantities reviewed line by line, with alternatives suggested for out-of-stock or discontinued items.

Technical Pre-Sales Consulting

Switch sizing, PoE budgets, VLAN design, and GPON planning reviewed by our technical team before you commit.

Dedicated B2B Sales Support

A named point of contact for quotes, stock checks, and RMA — not a ticket queue.

Request Dealer Pricing

Related Resources

Guides that cover the LS2-24GT4SFP

Selection and background reading from our technical team.

  • Buying Guides

    How to Choose the Right Managed Switch

    A six-step method for sizing a managed switch — port count, PoE budget, uplinks, switching layer, environment, and management — before the BOQ goes out for pricing.

  • Networking Basics

    Difference Between Layer 2 and Layer 3 Switches

    Layer 2 switches forward by MAC address inside VLANs; Layer 3 switches also route between IP subnets in hardware. Where each belongs, and what it costs to choose wrong.

  • Networking Basics

    Understanding SFP and SFP+ Modules

    SFP, SFP+, single-mode vs multi-mode, BiDi and DAC explained — how to specify the right optic for a fibre uplink and avoid the usual compatibility traps.

Before You Enquire

Frequently asked questions

Does the LS2-24GT4SFP support PoE?

No. The LS2-24GT4SFP is a data-only Layer 2 managed switch. For the same port layout with PoE, Lysora offers the LS2-24GT4SFP-P, which adds a 370 W PoE/PoE+ budget across its 24 ports.

See the PoE variant

Are the LS2-24GT4SFP access ports gigabit?

The product is titled a Gigabit switch with 56 Gbps switching capacity, but Lysora's published spec table lists the ports as 10/100BASE-T — an inconsistency on the official page. We confirm the datasheet value on your quotation before you commit.

Ask us to confirm

What is the price of the LS2-24GT4SFP in India?

Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LS2-24GT4SFP and quantity, and you receive priced options with stock confirmation within 24 working hours.

Request pricing
