Lysora · Managed Switches
LS2P-16MG4XS-HP
16-Port Multi-Gig Layer 2+ Managed PoE Switch
Price
Contact for Best Price
- Ports
- 16× 10/100/1000/2500BASE-T PoE
- PoE split
- 12× PoE/PoE+ (30 W) + 4× PoE++ (60 W)
- Uplinks
- 4× 10GE SFP+
- PoE budget
- 370 W
- Capacity
- 160 Gbps / 119.04 Mpps
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LS2P-16MG4XS-HP is built to do
Technical Specifications
LS2P-16MG4XS-HP specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| RJ45 ports | 16× 10/100/1000/2500BASE-T |
| SFP+ slots | 4× 10GE SFP+ |
| Jumbo frames | 9216 bytes (global configuration) |
| Energy efficiency | EEE supported |
| PoE | |
|---|---|
| PoE/PoE+ out ports | 12 (up to 30 W each) |
| PoE/PoE+/PoE++ out ports | 4 (up to 60 W each) |
| Total budget | 370 W |
| Power pins | Ports 1–4: 1–2(−), 3–6(+), 4–5(+), 7–8(−); ports 5–16: 1–2(+), 3–6(−) |
| Camera capacity | 300 (200 W H.265) / 150 (400 W H.265) |
| PoE watchdog | Supported |
| Switching Performance | |
|---|---|
| Switching capacity | 160 Gbps |
| Forwarding rate | 119.04 Mpps |
| MAC address table | 16,000 entries |
| Packet buffer | 12 Mbit |
| CPU | Single-core, 800 MHz |
| RAM / flash | 512 MB / 256 MB |
| Layer 2+ Features | |
|---|---|
| VLAN | Up to 4094, 802.1Q and port-based |
| Voice VLAN | Supported |
| Spanning tree | STP, RSTP, MSTP |
| Link aggregation | Static and LACP |
| Static routing | 64 IPv4 and 64 IPv6 routes |
| Routing table | 512 IPv4 network routes, 128 IPv6 network routes |
| Multicast | IGMP v1/v2/v3 snooping and filtering |
| QoS | 802.1p and DSCP classification, SP, WRR, SP+WRR |
| Security | |
|---|---|
| Authentication | 802.1X (port and MAC based), IAB, RADIUS |
| Protection | DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP source guard, CPU protection policy |
| Access control | Standard and extended ACLs, port isolation |
| Storm control | Broadcast, multicast and unknown unicast |
| Management | |
|---|---|
| Interfaces | Web, Lysora Cloud, mobile app |
| SNMP | v1, v2c and v3 |
| Monitoring | Port mirroring, syslog, RLOG, NTP client, HTTPS login, cable test, camera detection |
| Alerts | PoE service failure and PoE power overload |
| Upgrade | Local and online; cloud auto-recovery |
| Physical & Environmental | |
|---|---|
| Dimensions | 440 × 267.5 × 43.6 mm (1U) |
| Weight | 3.6 kg (without packaging) |
| Enclosure | Metal, rack or desk mount |
| Power supply | 100–240 V AC, 50/60 Hz, max. input current 6 A |
| Consumption | Under 40 W with no PoE load; under 460 W at full PoE load |
| Cooling | 2 fixed fans, left-to-rear airflow |
| Operating temperature | 0 °C to +50 °C |
| MTBF | 400,000 hours |
| Surge / ESD | ±6 kV / 6 kV contact, 8 kV air |
| Compliance & Warranty | |
|---|---|
| Certifications | FCC, IC, cTUVus; UL 62368-1:2019; NDAA compliant |
| Warranty | 3 years |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LS2P-16MG4XS-HP

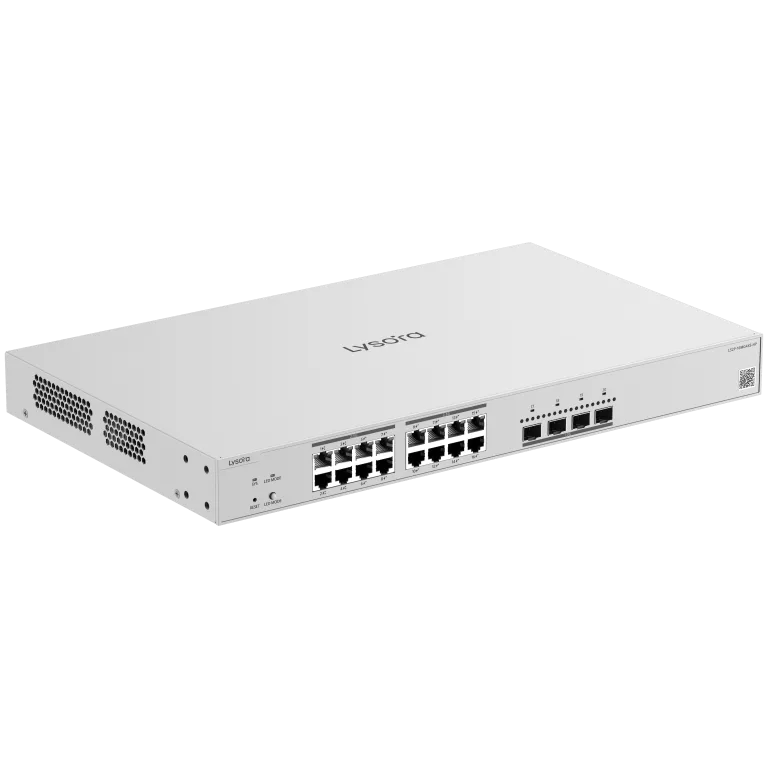

The Lysora LS2P-16MG4XS-HP is a 16-port multi-gigabit managed PoE switch: every RJ45 port runs 10/100/1000/2500BASE-T, and four 10GE SFP+ slots carry aggregation upstream. It is the model to reach for when the edge devices have outgrown gigabit.
PoE is split by class. Twelve ports deliver PoE/PoE+ up to 30 W, while ports 1–4 add PoE++ up to 60 W for pan-tilt-zoom domes, video bars and multi-radio access points — all inside a 370 W budget, with a PoE watchdog and camera detection.
Its Layer 2+ feature set adds static routing for IPv4 and IPv6, 802.1X with RADIUS, DHCP snooping, IP-MAC-port binding and IP source guard on top of VLANs up to 4094, managed from the web interface, Lysora Cloud or the mobile app.
Applications
Where the LS2P-16MG4XS-HP is deployed
Downloads
LS2P-16MG4XS-HP documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LS2P-16MG4XS-HP Datasheet (PDF)Available on RequestRequest on WhatsApp
- LS2P-16MG4XS-HP User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LS2P-16MG4XS-HP
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Managed Switches
Managed Switches- 12× 10G SFP+
- OSPFv2/v3
- 240 Gbps
Managed Switches- 48× GbE PoE+
- 370 W budget
- 4× SFP
Before You Enquire
Frequently asked questions
How many ports on the LS2P-16MG4XS-HP deliver 60 W?
Four. Ports 1–4 are PoE/PoE+/PoE++ and deliver up to 60 W each; the remaining twelve are PoE/PoE+ at up to 30 W. All sixteen draw from one shared 370 W budget, so plan the total load rather than the per-port maximum.
Can it power eight Wi-Fi 7 access points at full speed?
Yes. Eight access points at 30 W each come to 240 W against a 370 W budget, and every port runs 2.5G, so neither power nor backhaul is the limit. The four 10G SFP+ uplinks carry the aggregated traffic upstream.
See wireless access pointsWhat is the difference between the LS2P-16MG4XS-HP and the LS2P-8MG2XS-P?
The LS2P-16MG4XS-HP doubles the multi-gig port count to sixteen, doubles the SFP+ uplinks to four, and adds four PoE++ ports at 60 W that the eight-port model does not have. The smaller unit suits a single closet; this one suits a floor.
Does the LS2P-16MG4XS-HP support dynamic routing?
No. It is a Layer 2+ switch: it routes between VLANs using up to 64 IPv4 and 64 IPv6 static routes, but it does not run OSPF. Where dynamic routing is needed, pair it with a Layer 3 model such as the LS3-12XS.
See the LS3-12XSWhat is the price of the LS2P-16MG4XS-HP in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LS2P-16MG4XS-HP and the quantity, and you receive priced options with stock confirmation within 24 working hours.
