Lysora · Managed Switches
LS2-48GT4SFP-P
48-Port Layer 2 Managed PoE Switch
PricingContact for Best Price
- Ports
- 48× GbE PoE/PoE+
- Uplinks
- 4× 1GE SFP
- PoE budget
- 370 W
- Layer
- Layer 2 managed
- Camera rating
- 200 (200 W H.265)
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LS2-48GT4SFP-P is built to do
Technical Specifications
LS2-48GT4SFP-P specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| RJ45 ports | 48× GbE, PoE/PoE+ |
| SFP slots | 4× 1GE SFP |
| PoE | |
|---|---|
| Standard | PoE/PoE+ |
| Total budget | 370 W |
| Camera capacity | 200 (200 W H.265) / 100 (400 W H.265) |
| Switching Performance | |
|---|---|
| Switching capacity | 104 Gbps |
| Forwarding rate | 77.38 Mpps |
| MAC address table | 16,000 entries |
| Packet buffer | 4.1 Mbit |
| Flash memory | 256 MB |
| L2 Features | |
|---|---|
| VLAN | Up to 4094 |
| Management | Web; cloud management support |
| Physical & Environmental | |
|---|---|
| Dimensions | 440 × 293 × 44 mm (1U) |
| Weight | 4.32 kg |
| Power supply | 100–240 V AC |
| Consumption | 450 W at full PoE load |
| Operating temperature | 0 °C to +50 °C |
| MTBF | 400,000 hours |
| Compliance & Warranty | |
|---|---|
| Certifications | FCC, IC, cTUVus |
| Warranty | 3 years |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LS2-48GT4SFP-P

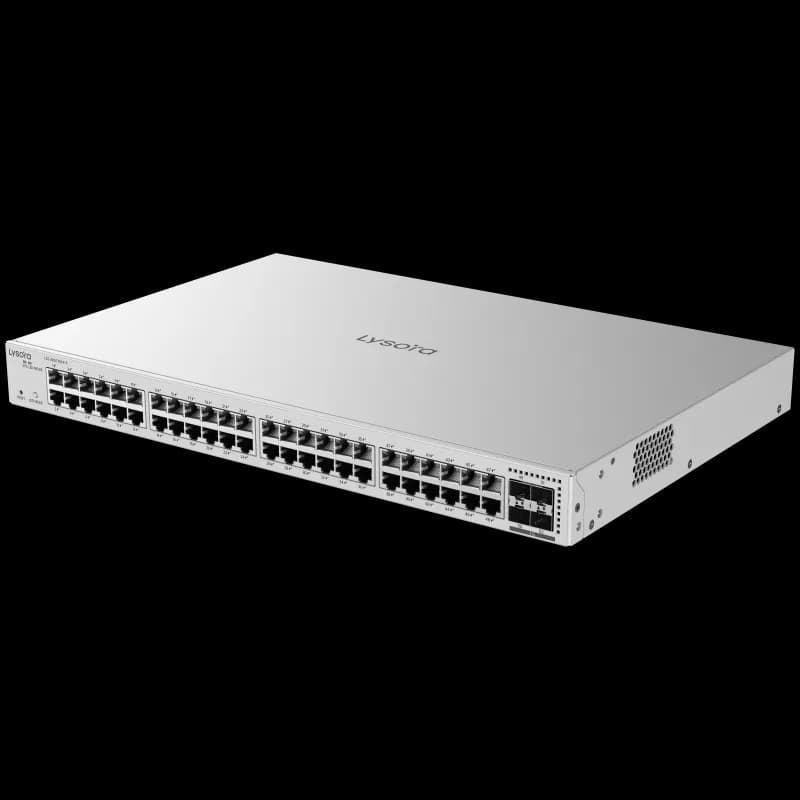

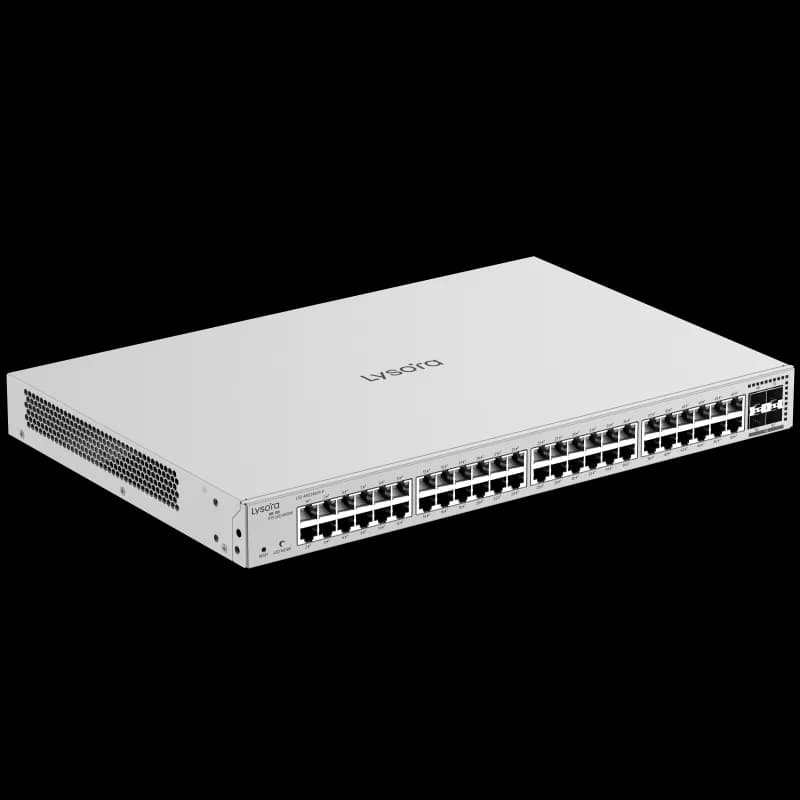

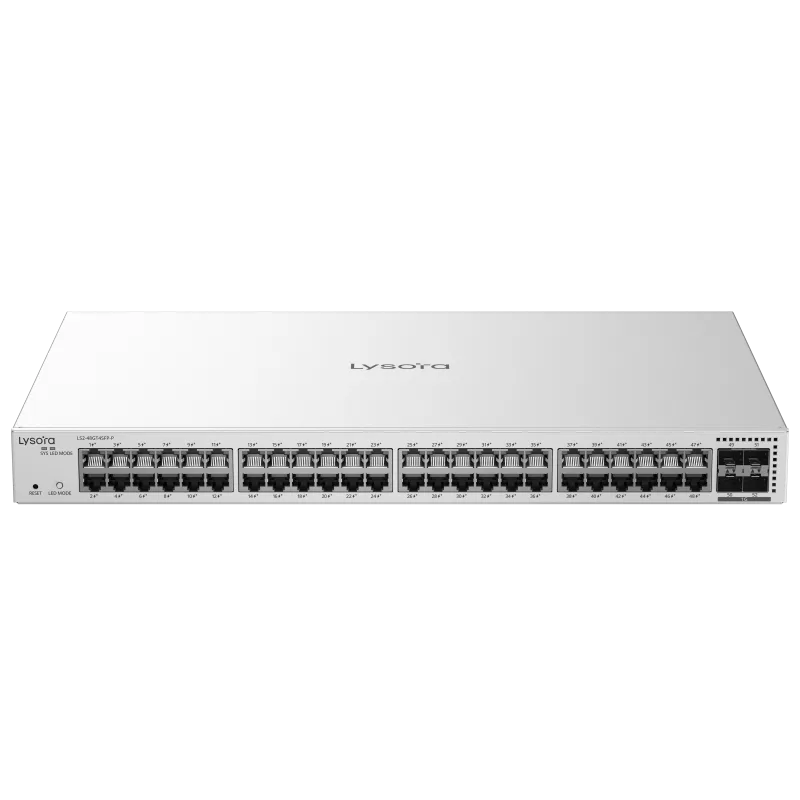

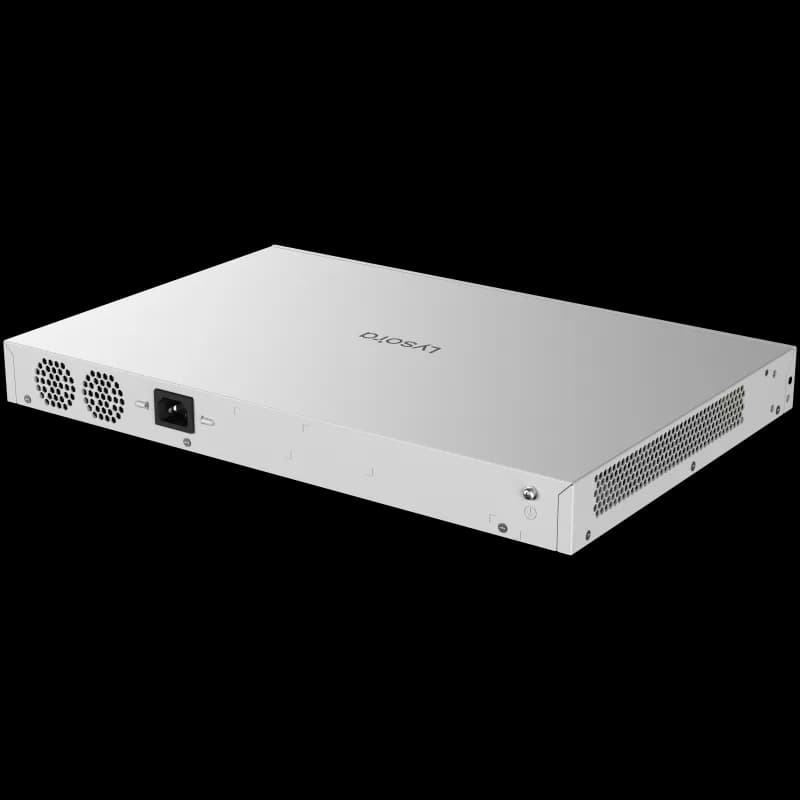

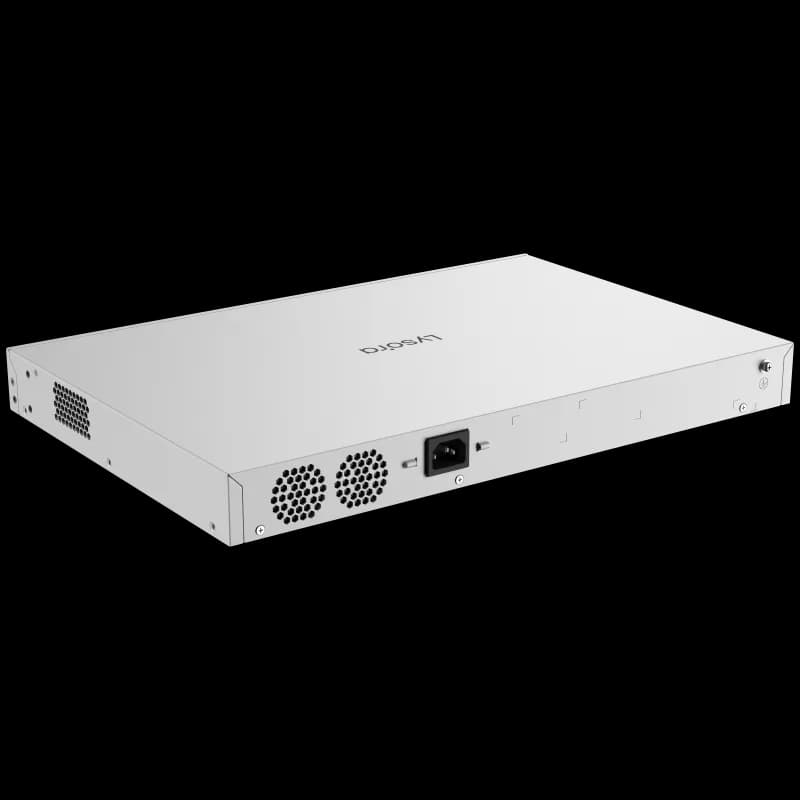

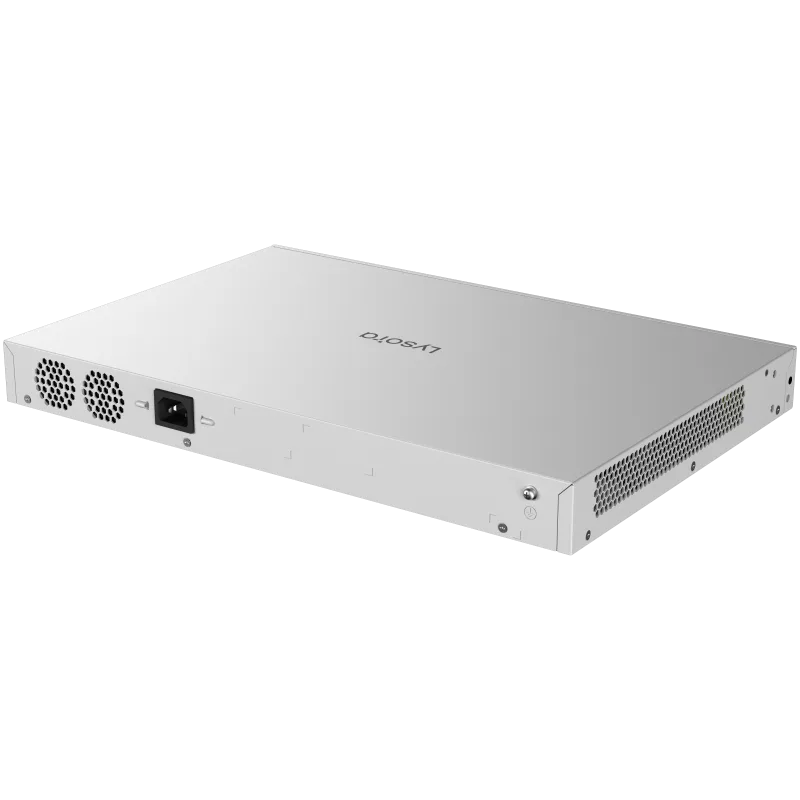

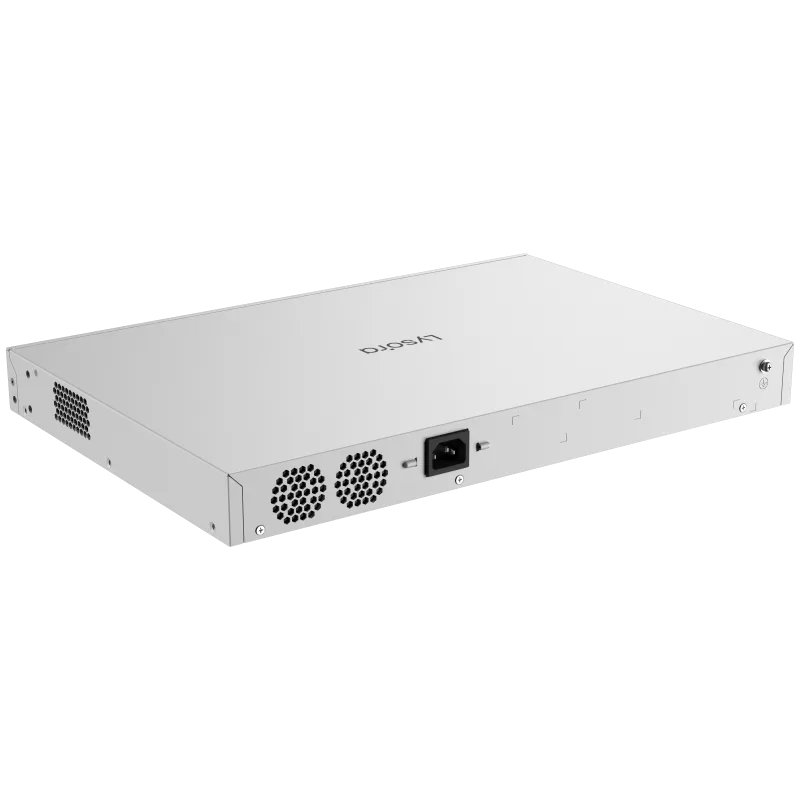

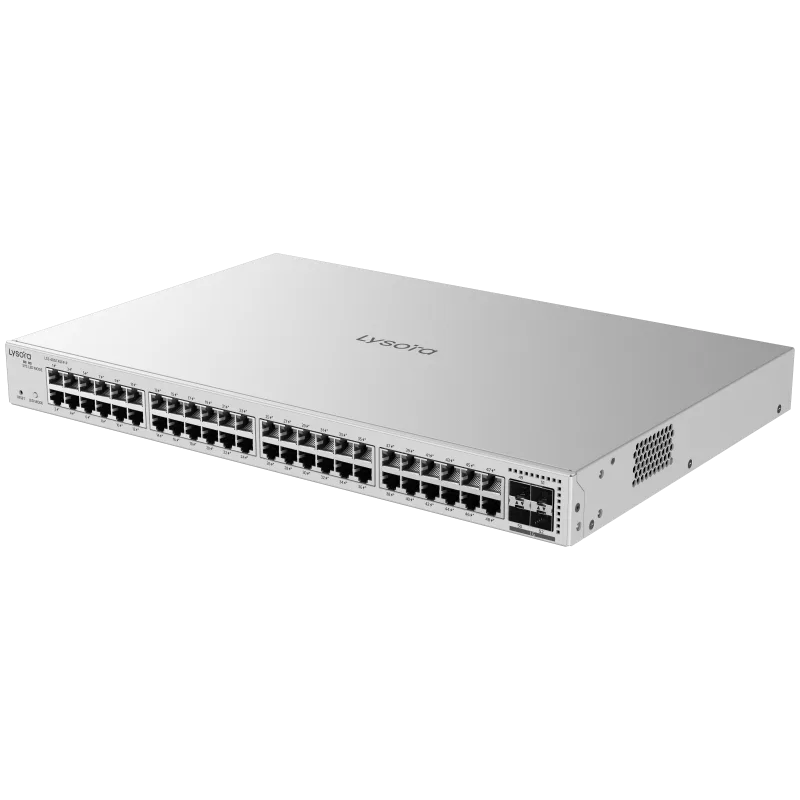

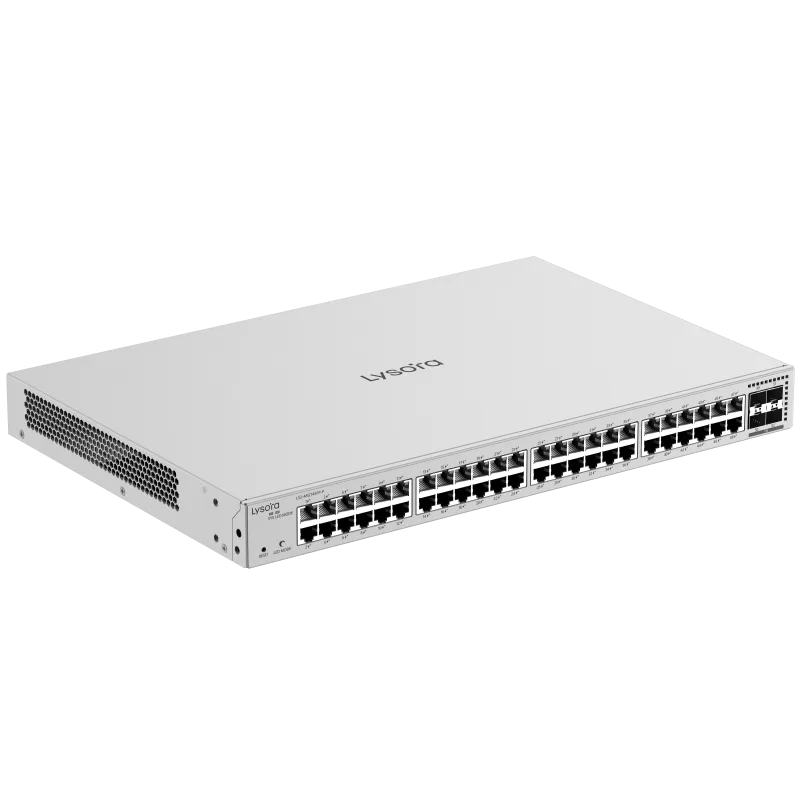

The Lysora LS2-48GT4SFP-P is a 48-port gigabit Layer 2 managed PoE switch with a 370 W PoE/PoE+ budget and four SFP ports. With 104 Gbps switching capacity, a 16K MAC table, and an official rating of 200 cameras at the 200 W H.265 profile, it is the density option in the Lysora managed range.
L2 management provides VLANs up to 4094 over web and cloud control, keeping high port counts segmented and monitorable from one interface.
It replaces stacked 24-port units in large closets, aggregating over its SFP ports; the LS3-24SFP/8GT4XS sits above it where a routing core is required.
Applications
Where the LS2-48GT4SFP-P is deployed
Downloads
LS2-48GT4SFP-P documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LS2-48GT4SFP-P Datasheet (PDF)Available on RequestRequest on WhatsApp
- LS2-48GT4SFP-P User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LS2-48GT4SFP-P
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Managed Switches
Managed Switches- 24× SFP (8 combo)
- 4× 10G SFP+
- OSPFv2/v3
Managed Switches- 8× 2.5G PoE+
- 2× 10G SFP+
- L2 + static routing
Related Resources
Guides that cover the LS2-48GT4SFP-P
Selection and background reading from our technical team.
Before You Enquire
Frequently asked questions
Can the LS2-48GT4SFP-P run PoE on all 48 ports at once?
All 48 ports support PoE/PoE+, shared from a 370 W total budget — about 7.7 W average per port fully loaded. Fixed cameras and phones fit comfortably; plan the budget explicitly if many ports carry 25–30 W devices like PTZ cameras or Wi-Fi 7 APs.
Get a PoE budget checkWhen should I choose the 48-port over two 24-port units?
One LS2-48GT4SFP-P saves a rack unit, a power feed, and an uplink pair versus two LS2-24GT4SFP-P switches, and keeps one management point. Two 24-port units win where you need more than 370 W of combined PoE or physical redundancy across closets.
See the 24-port modelWhat is the price of the LS2-48GT4SFP-P in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LS2-48GT4SFP-P and quantity, and you receive priced options with stock confirmation within 24 working hours.
