LS3-12XS
12-Port SFP+ Layer 3 Managed Switch
Price
Contact for Best Price
- Ports
- 12× 10GE SFP+
- Layer
- L3 — OSPFv2/v3 + static routing
- Capacity
- 240 Gbps / 178.56 Mpps
- Stacking
- VCS, 2 members
- Camera rating
- 400 (200 W H.265)
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LS3-12XS is built to do
Technical Specifications
LS3-12XS specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| SFP+ slots | 12× 10GE SFP+ |
| RJ45 ports | None — the front panel is all fibre |
| Jumbo frames | 9216 bytes (global configuration) |
| Switching Performance | |
|---|---|
| Switching capacity | 240 Gbps |
| Forwarding rate | 178.56 Mpps |
| MAC address table | 32,000 entries |
| Packet buffer | 16 Mbit |
| CPU | Single-core, 1 GHz |
| RAM / flash | 1 GB / 256 MB |
| Camera capacity | 400 (200 W H.265) / 200 (400 W H.265) |
| Layer 3 Routing | |
|---|---|
| Dynamic routing | OSPFv2, OSPFv3 |
| Static routes | 500 IPv4, 500 IPv6 |
| Routing table | 12,000 IPv4 host and network routes; 500 IPv6 network routes |
| ARP entries | 2,000 |
| DHCP | Server, relay and client |
| Layer 2 Switching | |
|---|---|
| VLAN | Up to 4094, 802.1Q and port-based |
| Voice VLAN | Supported |
| Spanning tree | STP, RSTP, MSTP |
| Link aggregation | Static and LACP |
| Multicast | IGMP v1/v2/v3 snooping and filtering |
| Discovery | LLDP / LLDP-MED |
| Security & Reliability | |
|---|---|
| Authentication | 802.1X (port and MAC based), IAB, RADIUS |
| Protection | DHCP snooping, IP-MAC-port binding, ARP anti-spoofing, IP source guard, CPU protection policy |
| Storm control | Broadcast, multicast and unknown unicast |
| Stacking | VCS, 2 members |
| Redundancy | ERPS (stand-alone), DHCP server hot standby, dual system backup, cloud auto-recovery |
| Management | |
|---|---|
| Interfaces | Web, Lysora Cloud, mobile app |
| SNMP | v1, v2c and v3 |
| Monitoring | Port mirroring, syslog, NTP client, HTTPS login, cable test |
| Upgrade | Local and online |
| Physical & Environmental | |
|---|---|
| Dimensions | 300 × 232 × 44 mm (1U) |
| Weight | 2.26 kg (without packaging) |
| Enclosure | Metal, rack or desk mount |

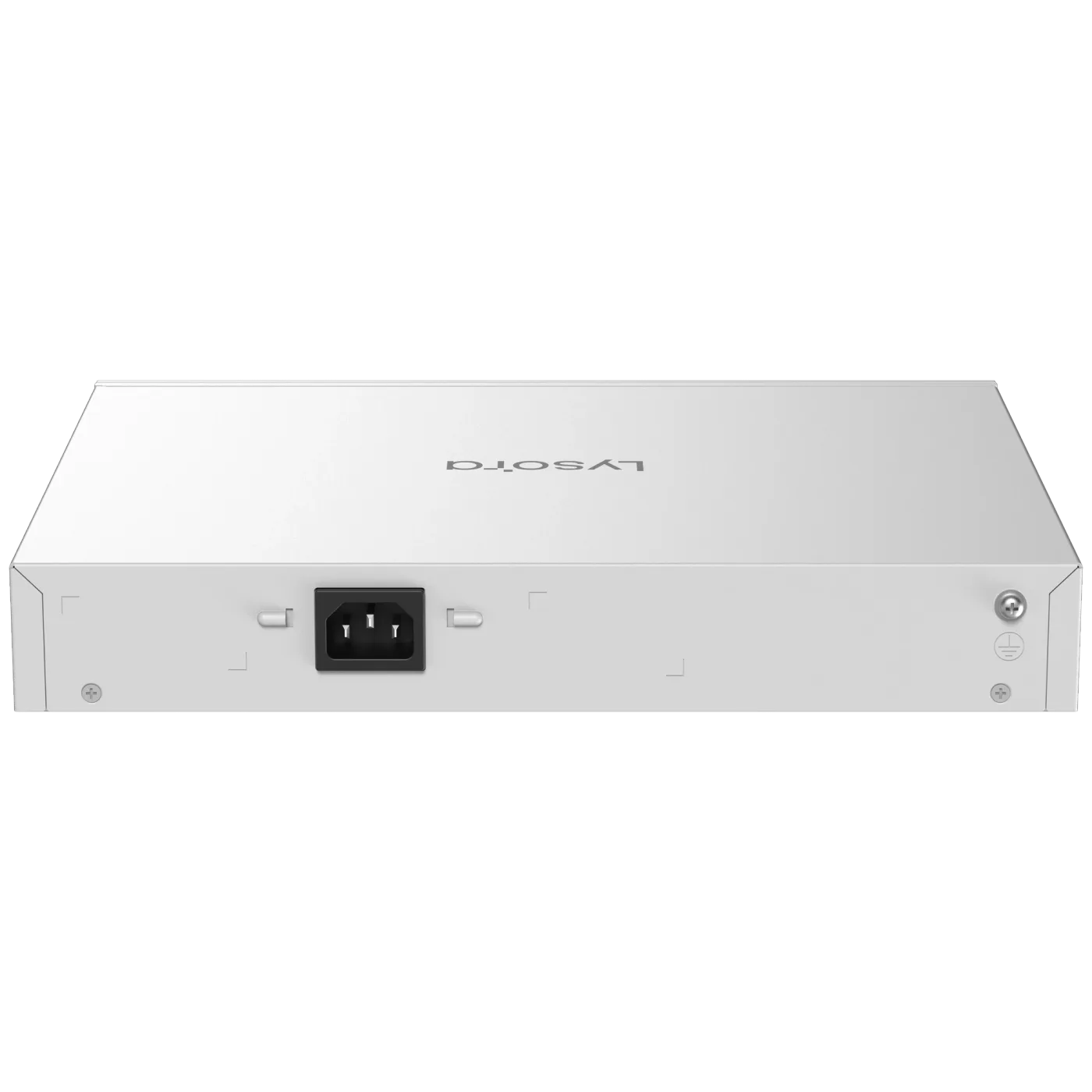

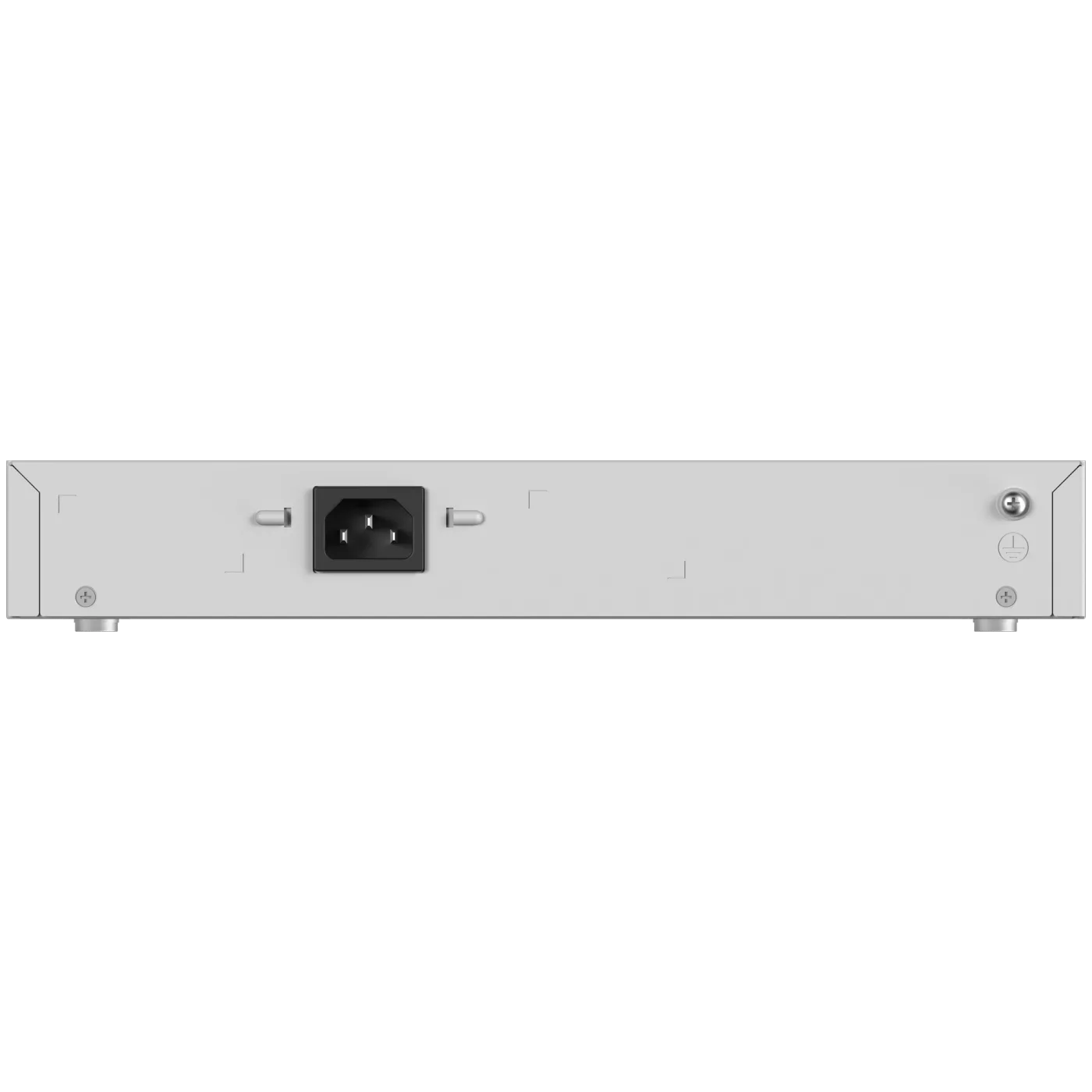

| Power supply | 100–240 V AC, 50/60 Hz |
| Max. consumption | 44 W |

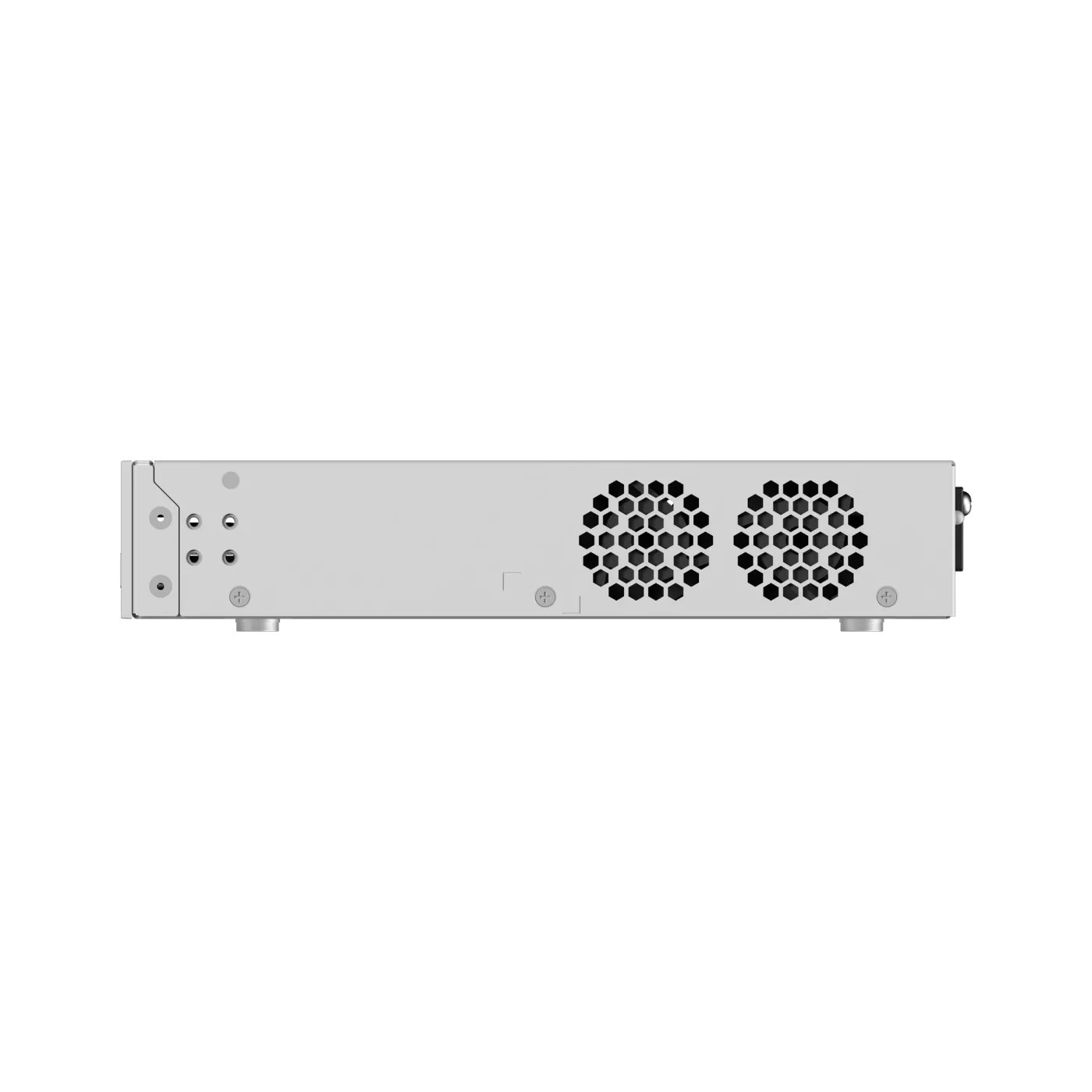

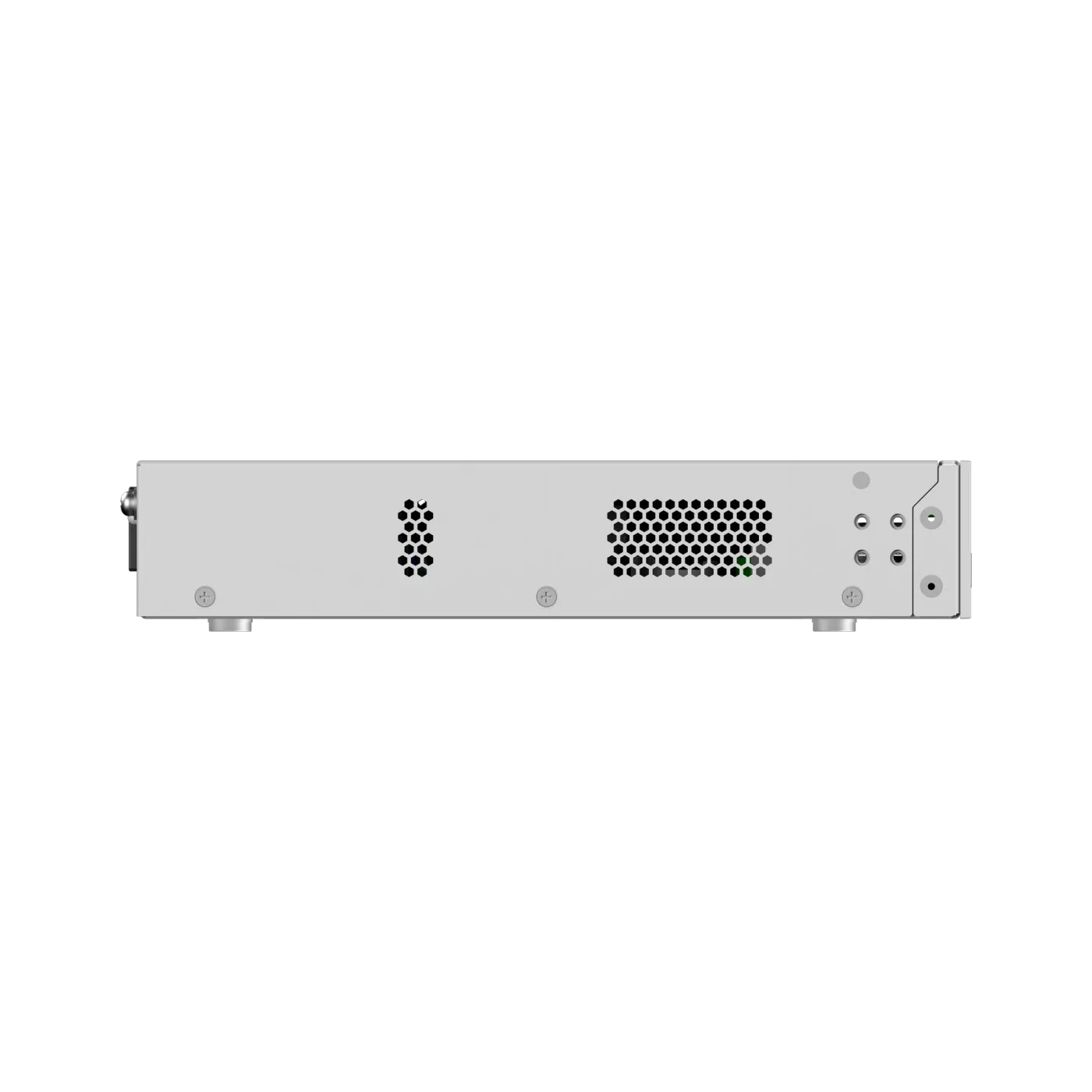

| Cooling | 2 fixed fans, left-to-right airflow |
| Operating temperature | 0 °C to +50 °C |
| MTBF | 400,000 hours |
| Surge / ESD | ±6 kV / 6 kV contact, 8 kV air |
| Compliance & Warranty | |
|---|---|
| Certifications | FCC, ISED, cTUVus, TEC (India); NDAA compliant |
| Warranty | 3 years |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LS3-12XS

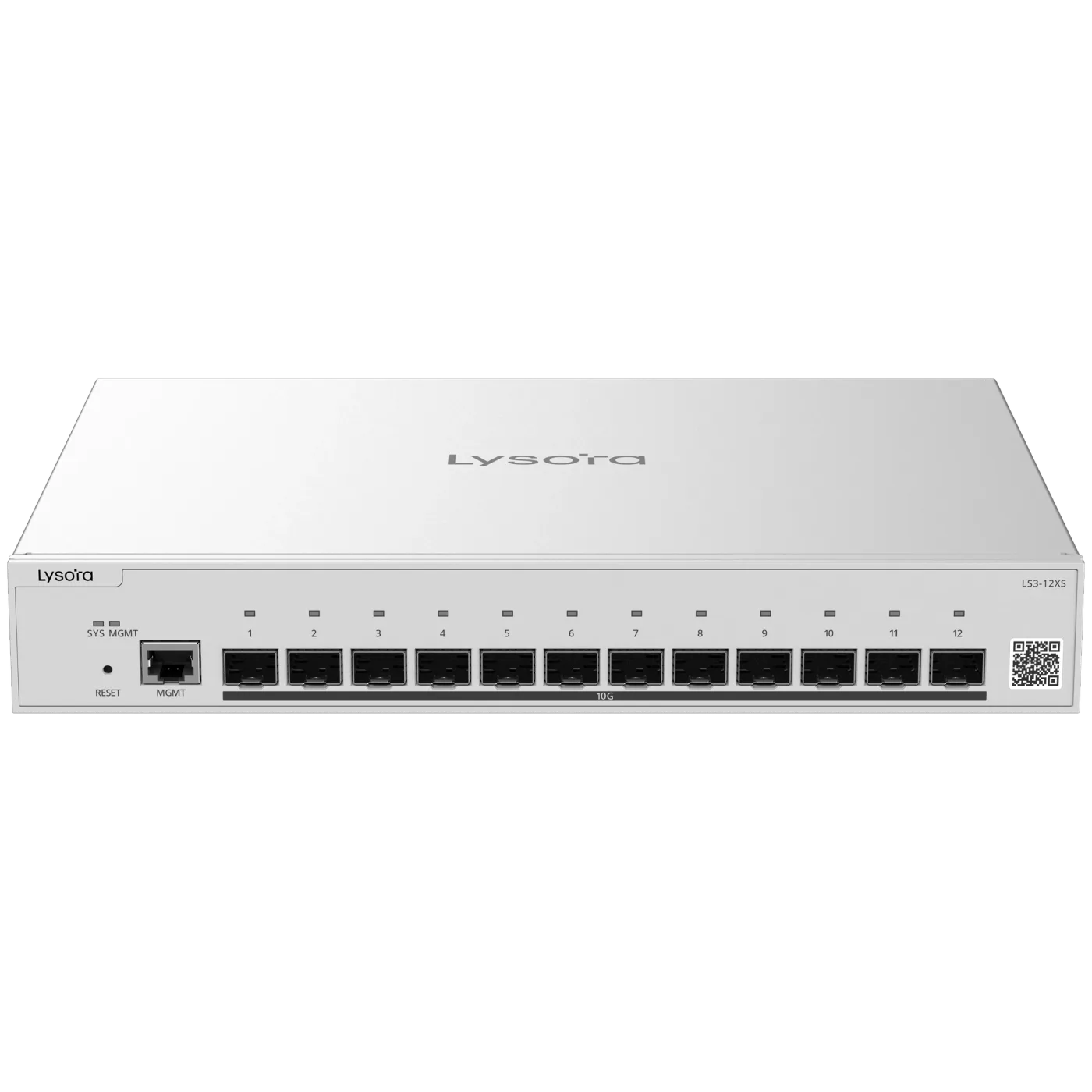

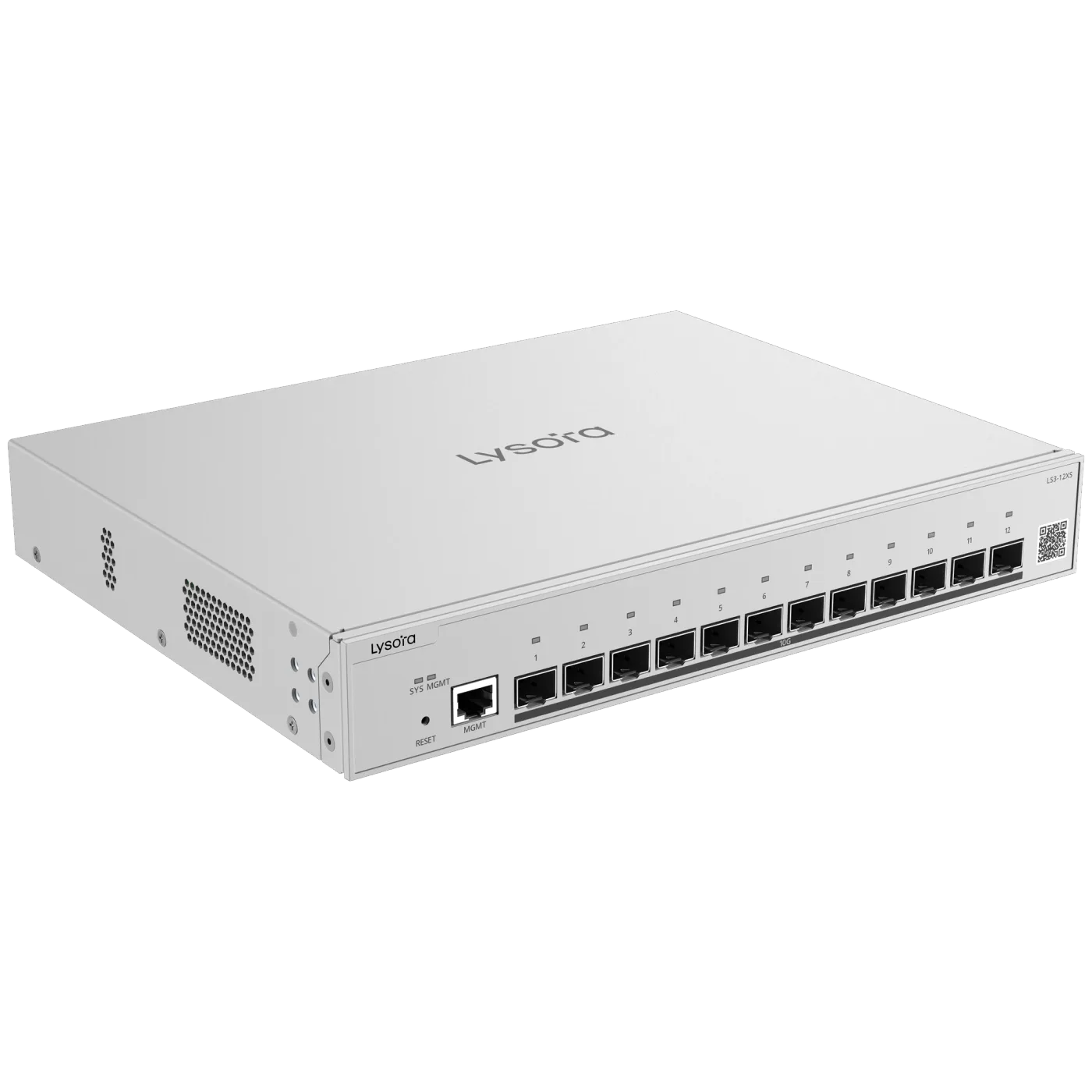

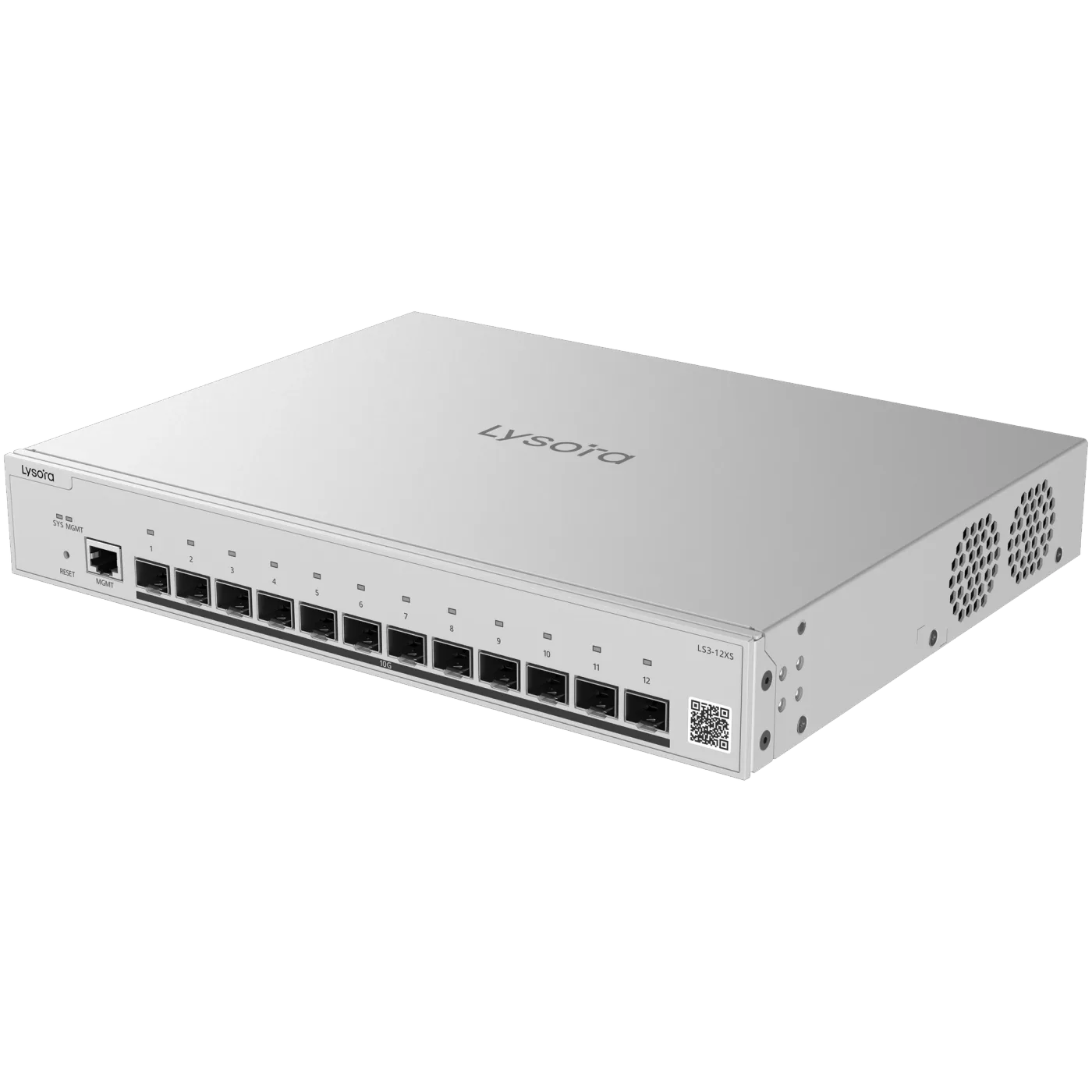

The Lysora LS3-12XS is a 12-port Layer 3 managed switch in which every port is a 10GE SFP+ slot. There is no copper on the front panel: it is built to aggregate fibre uplinks from access switches rather than to terminate desks.
Routing is full Layer 3 — OSPFv2 and OSPFv3 alongside 500 IPv4 and 500 IPv6 static routes, a 12,000-entry IPv4 routing table, and DHCP server and relay — so inter-VLAN traffic is routed in hardware at 240 Gbps and 178.56 Mpps without a separate router.
It anchors the aggregation layer of a campus or the core of a surveillance network, where it is officially rated for 400 cameras at the 200 W H.265 profile. Two units can be joined as a single managed entity through VCS stacking.
Applications
Where the LS3-12XS is deployed
Downloads
LS3-12XS documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LS3-12XS Datasheet (PDF)Available on RequestRequest on WhatsApp
- LS3-12XS User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LS3-12XS
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Managed Switches
Managed Switches- 16× 2.5G PoE+
- 370 W + 4× PoE++ 60 W
- 4× 10G SFP+
Managed Switches- 48× GbE PoE+
- 370 W budget
- 4× SFP
Before You Enquire
Frequently asked questions
Does the LS3-12XS have any copper RJ45 ports?
No. All twelve ports are 10GE SFP+ slots. Where a copper device has to connect, use an SFP+ to RJ45 transceiver or a media converter — but the switch is designed to sit above the access layer, aggregating fibre from switches that do terminate copper.
See SFP modulesDoes the LS3-12XS support OSPF?
Yes. It runs OSPFv2 for IPv4 and OSPFv3 for IPv6, alongside 500 IPv4 and 500 IPv6 static routes and a 12,000-entry IPv4 routing table. That is enough to route a multi-VLAN campus without adding a separate router.
Can two LS3-12XS switches be stacked?
Yes. VCS stacking joins two units into a single managed entity, with DHCP server hot standby and dual system backup for failover. The stack is configured and monitored as one device through web, cloud, or app management.
What is the difference between the LS3-12XS and the LS3-24SFP/8GT4XS?
The LS3-24SFP/8GT4XS has 24 one-gigabit SFP ports, eight of them combo, with four 10G SFP+ uplinks — it aggregates many slower fibre links. The LS3-12XS gives you twelve ports that are all 10G, for fewer but much faster links, with a larger MAC table and buffer.
Compare managed switchesWhat is the price of the LS3-12XS in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LS3-12XS and the quantity, and you receive priced options with stock confirmation within 24 working hours.
