Lysora · PoE Switches
LCS-16GS-P
16-Port Cloud Managed PoE Switch
PricingContact for Best Price
- Ports
- 16× GbE PoE/PoE+
- Uplinks
- 2× GbE RJ45 + 2× SFP
- PoE budget
- 250 W
- Management
- Web / Cloud / App
- Camera rating
- 80 (200 W H.265)
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LCS-16GS-P is built to do
Technical Specifications
LCS-16GS-P specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| PoE ports | 16× 10/100/1000BASE-T PoE/PoE+ |
| Uplinks | 2× GbE RJ45 + 2× GbE SFP |
| PoE | |
|---|---|
| Total budget | 250 W |
| Camera capacity | 80 (200 W H.265) / 40 (400 W H.265) |
| Performance | |
|---|---|
| Switching capacity | 40 Gbps |
| Forwarding rate | 29.7 Mpps |
| MAC address table | 8,000 entries |
| Buffer / Flash | 4.1 Mbit / 8 MB |
| VLAN | Max 16 |
| Physical & Environmental | |
|---|---|
| Dimensions | 300 × 223 × 43.6 mm |
| Weight | 2.12 kg |
| Power supply | 100–240 V AC internal |
| Consumption | 265 W max |
| Operating temperature | 0 °C to +40 °C |
| MTBF | 200,000 hours |
| Compliance & Warranty | |
|---|---|
| Certifications | CE, FCC; NDAA compliant |
| Warranty | 3 years |
| In the box | Device, manual, warranty card, rubber pads, 1.8 m cord, screws |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LCS-16GS-P

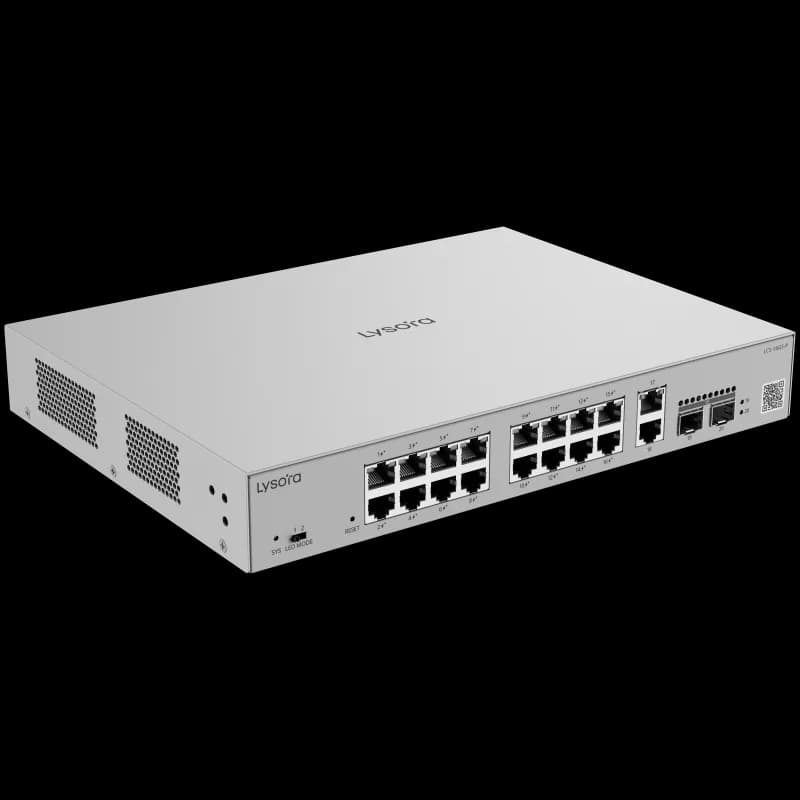

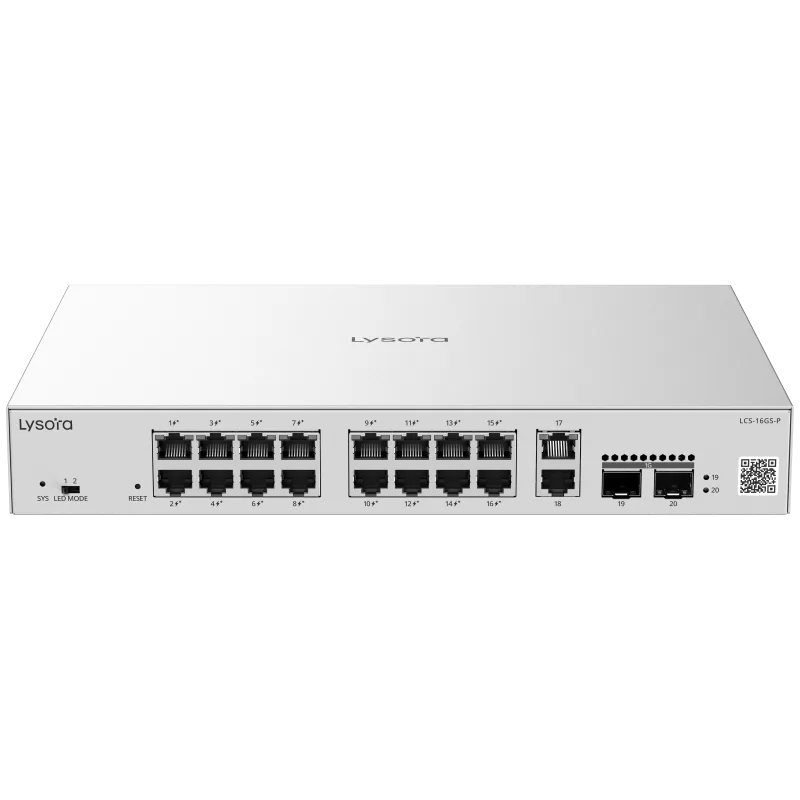

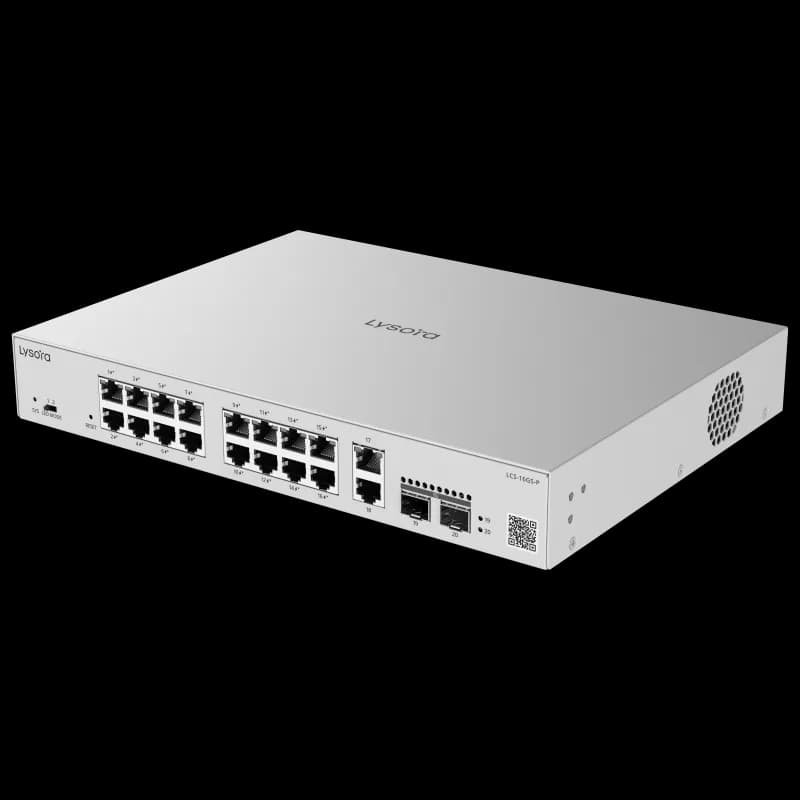

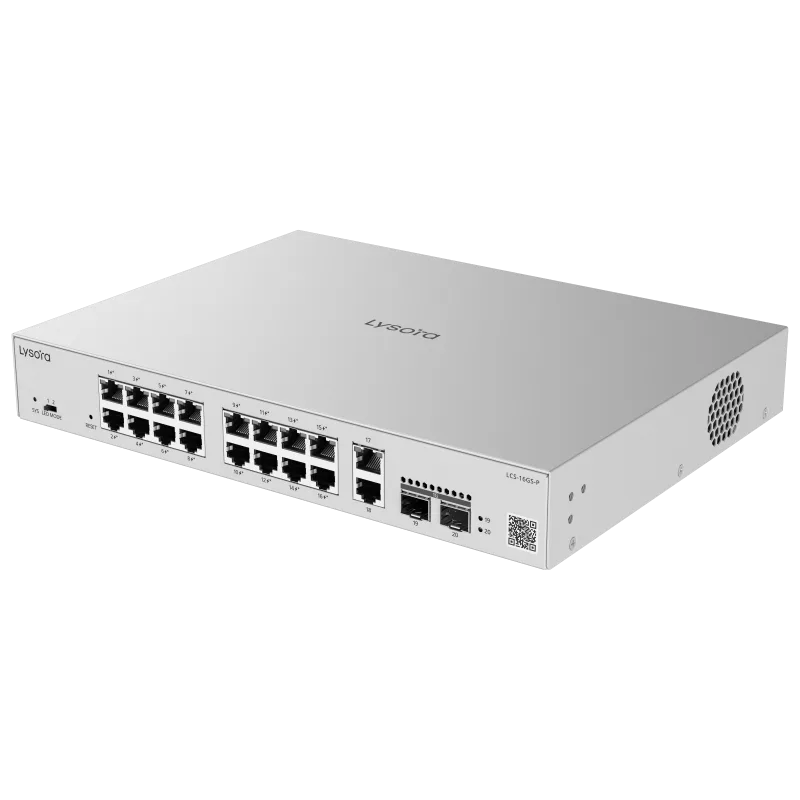

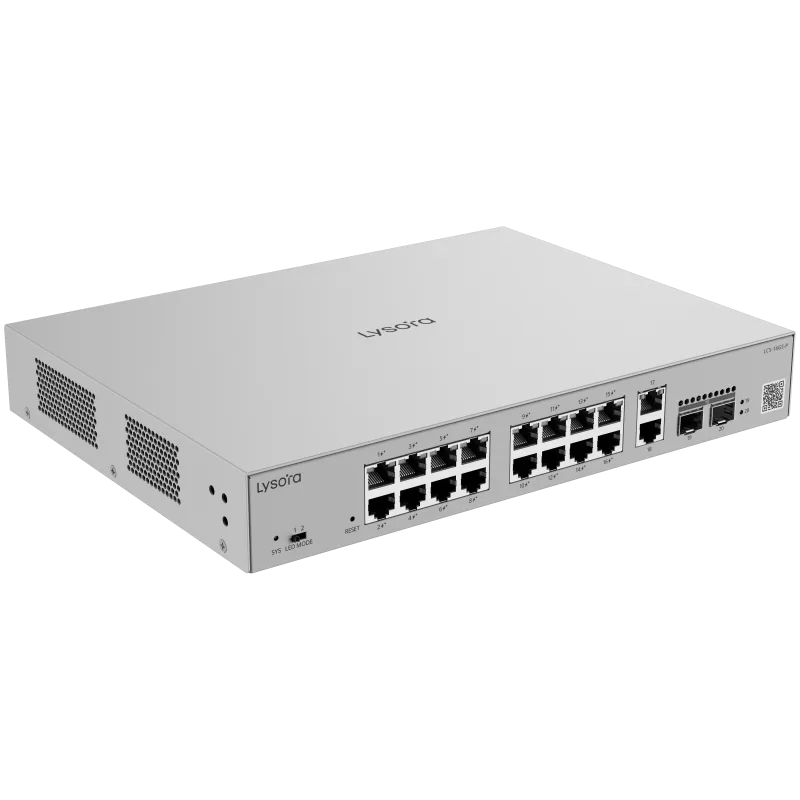

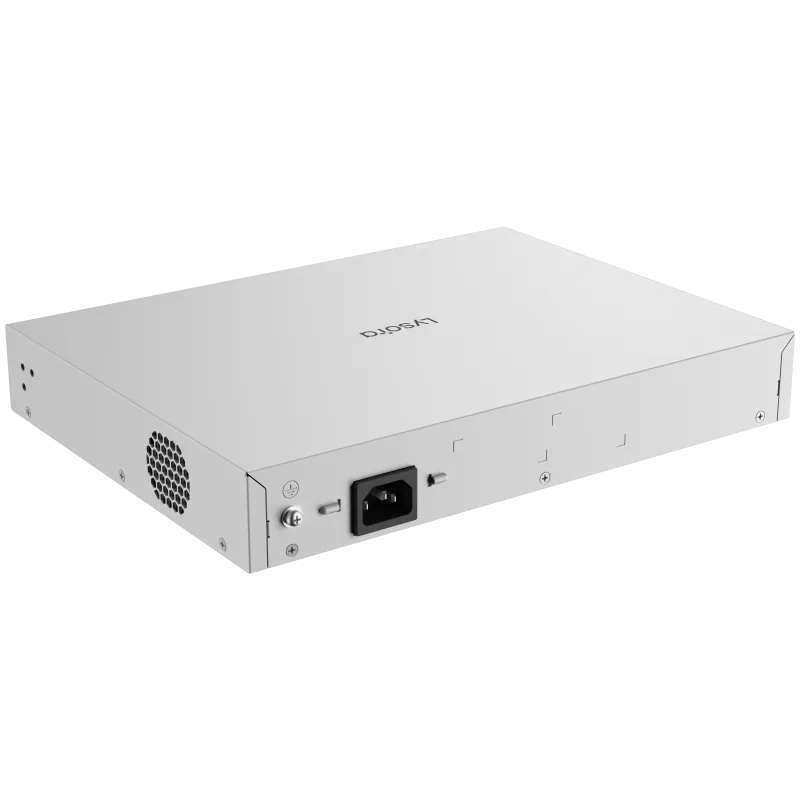

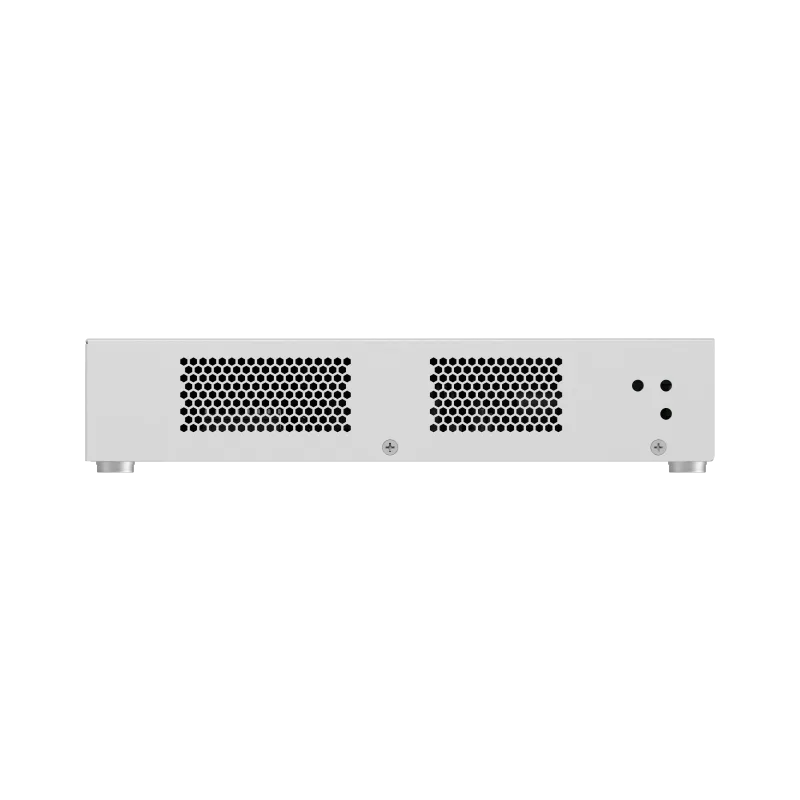

The Lysora LCS-16GS-P is a 16-port cloud managed PoE switch with a 250 W PoE/PoE+ budget, two gigabit RJ45 uplinks, and two SFP slots. Lysora rates it for 80 cameras at the 200 W H.265 profile.
Cloud, app, and web management carry the LCS CCTV feature set — camera detection, PoE watchdog, online upgrade — to mid-size sites.

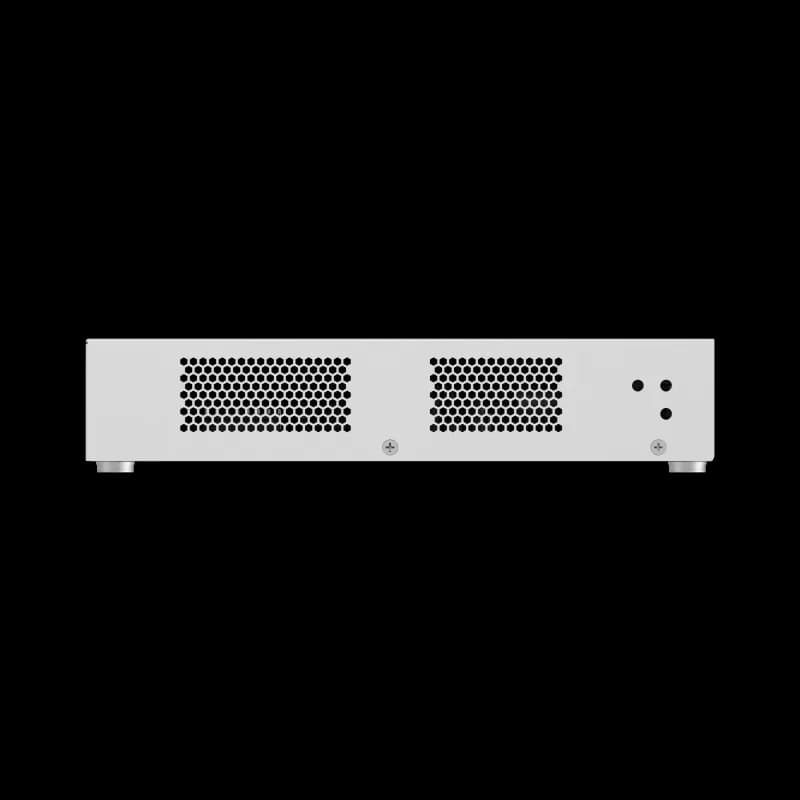

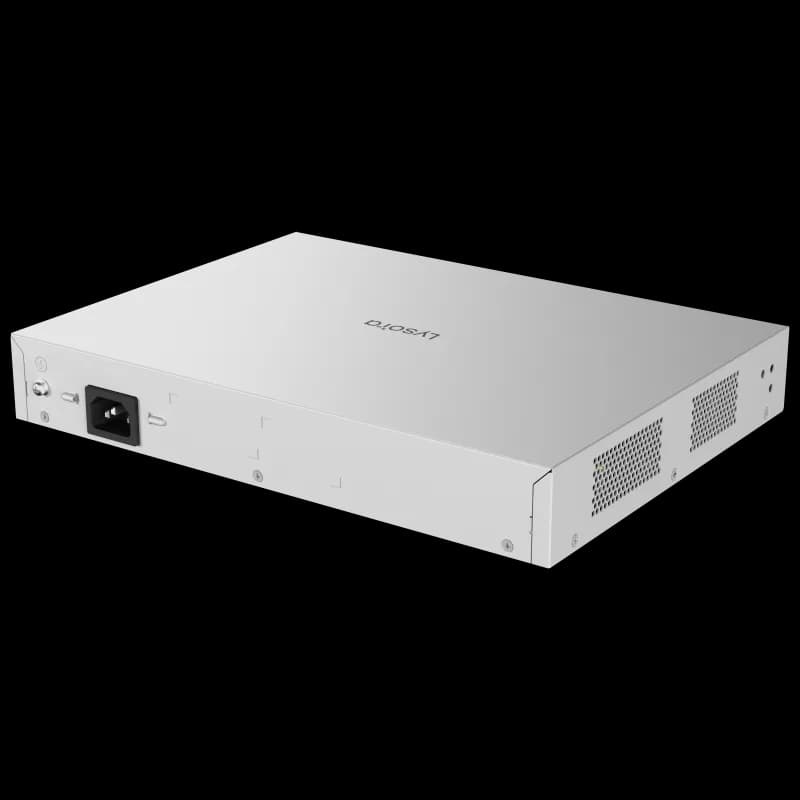

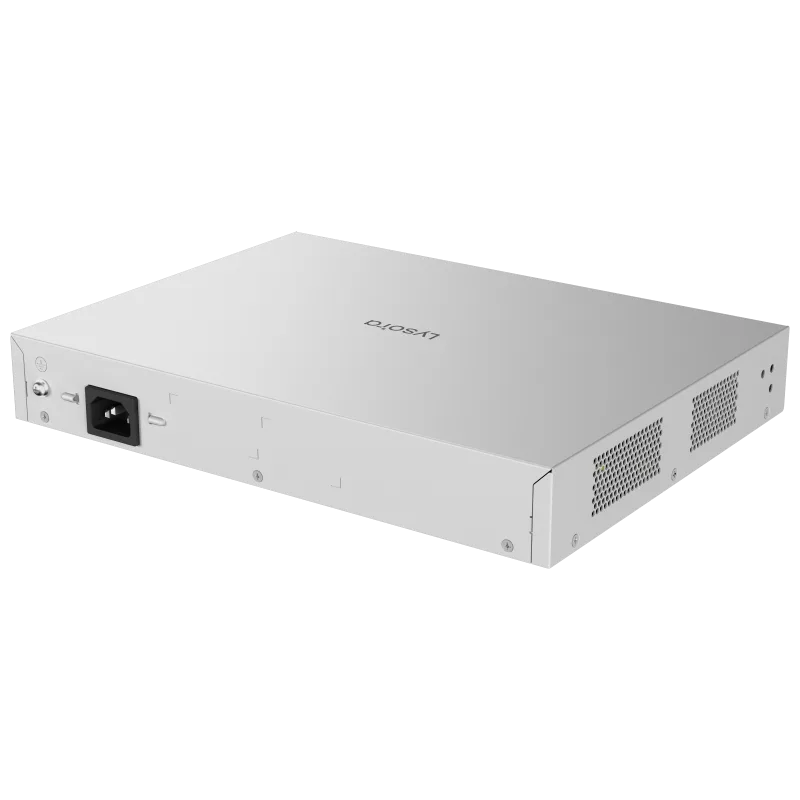

The internal-PSU rack body (300 × 223 mm) suits wall cabinets and small racks feeding a floor of cameras, APs, and phones.
Applications
Where the LCS-16GS-P is deployed
Downloads
LCS-16GS-P documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LCS-16GS-P Datasheet (PDF)Available on RequestRequest on WhatsApp
- LCS-16GS-P User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LCS-16GS-P
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- PoE Switches
PoE Switches- 8× GbE PoE+
- 120 W budget
- Cloud managed
Managed Switches- 24× GbE PoE+
- 370 W budget
- 4× SFP
Before You Enquire
Frequently asked questions
How many cameras can the LCS-16GS-P power?
Lysora rates it for 80 cameras at the 200 W H.265 profile and 40 at 400 W, within its 250 W PoE/PoE+ budget across 16 ports. Confirm the per-camera draw of your model — IR at night raises it — when sizing near the budget.
Request a sizing quoteDoes the LCS-16GS-P support VLANs?
Yes, up to 16 VLANs — enough to separate camera, voice, and data traffic at a small site. Networks needing 802.1Q at scale (up to 4094 VLANs) should use the Lysora L2 managed line instead.
See L2 managed switchesWhat is the price of the LCS-16GS-P in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LCS-16GS-P and quantity, and you receive priced options with stock confirmation within 24 working hours.
