Lysora · PoE Switches
LCS-4GS-P
4-Port Cloud Managed PoE Switch
PricingContact for Best Price
- Ports
- 4× GbE PoE/PoE+ + 1× GbE RJ45
- Uplink
- 1× combo SFP
- PoE budget
- 54 W
- Management
- Web / Cloud / App
- Camera rating
- 40 (200 W H.265)
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LCS-4GS-P is built to do
Technical Specifications
LCS-4GS-P specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| PoE ports | 4× 10/100/1000BASE-T PoE/PoE+ |
| Uplink | 1× GbE RJ45 + 1× combo SFP |
| PoE | |
|---|---|
| Total budget | 54 W |
| Camera capacity | 40 (200 W H.265) / 20 (400 W H.265) |
| Performance | |
|---|---|
| Switching capacity | 12 Gbps |
| Forwarding rate | 8.9 Mpps |
| MAC address table | 2,000 entries |
| Buffer / Flash | 1.5 Mbit / 4 MB |
| VLAN | 802.1Q, max 16; jumbo 9216 B |
| Physical & Environmental | |
|---|---|
| Dimensions | 148 × 78 × 26 mm |
| Weight | 0.31 kg |
| Power | 54 V DC adapter (100–240 V AC) |
| Consumption | 6 W (no PoE) / 60 W (full PoE) |
| Operating temperature | 0 °C to +40 °C |
| MTBF | 200,000 hours |
| Surge / ESD | ±6 kV service, ±4 kV power / 8 kV air, 6 kV contact |
| Compliance & Warranty | |
|---|---|
| Certifications | CE, FCC; NDAA compliant |
| EMC / Safety | EN 55032, EN 61000-3-2/-3-3, EN 55035, EN 300 386 / EN 62638-1 |
| Warranty | 3 years |
| In the box | Device, manual, warranty card, 1 m power cord |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LCS-4GS-P

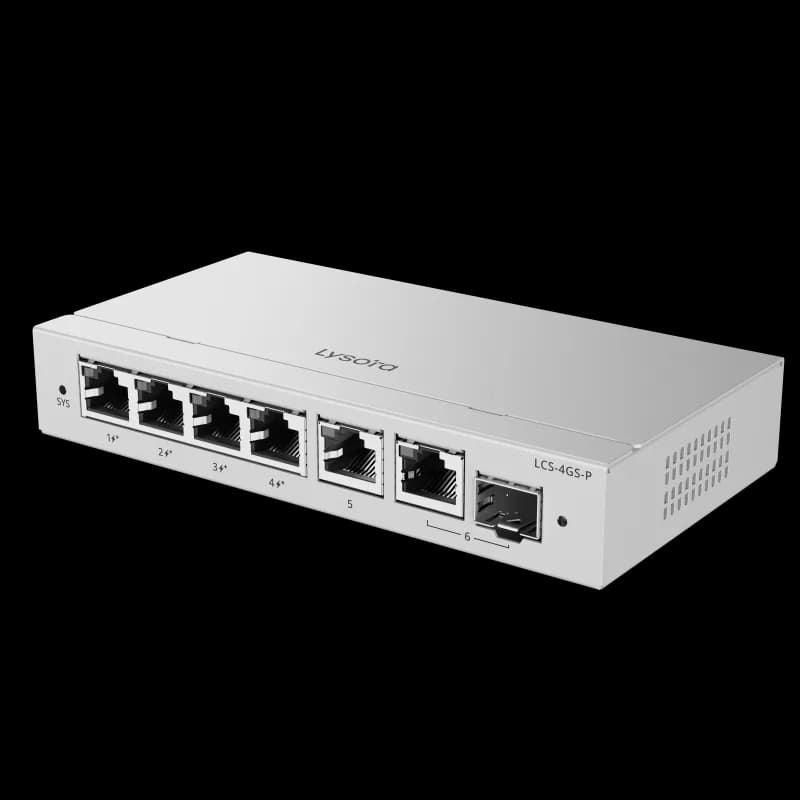

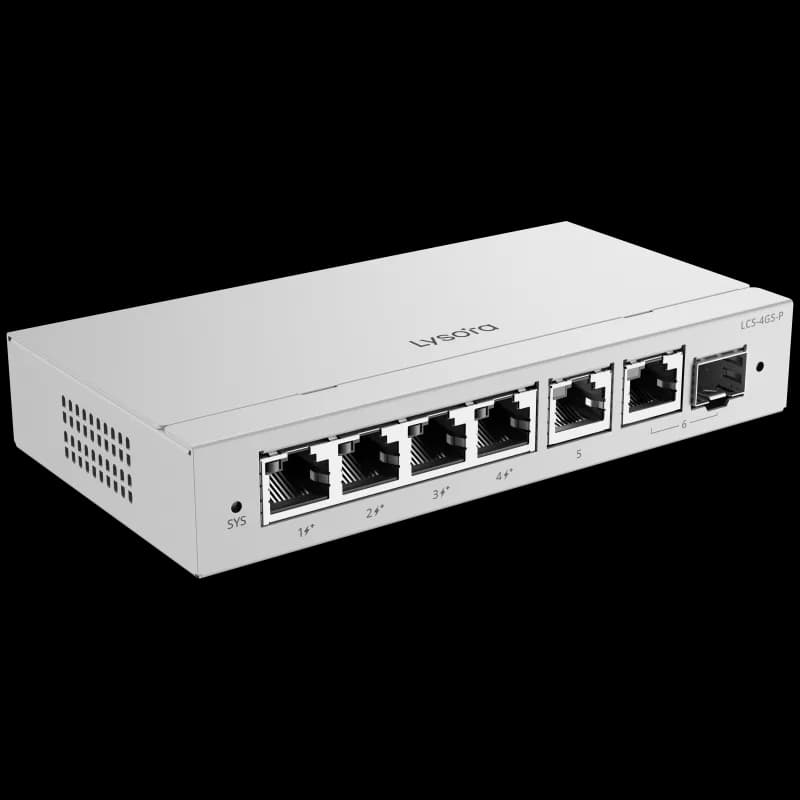

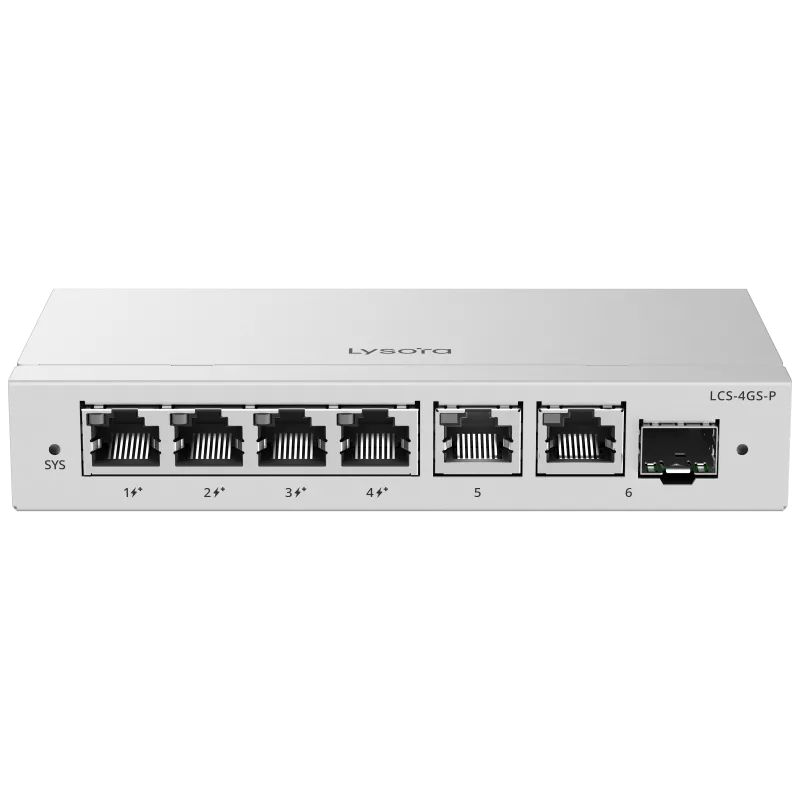

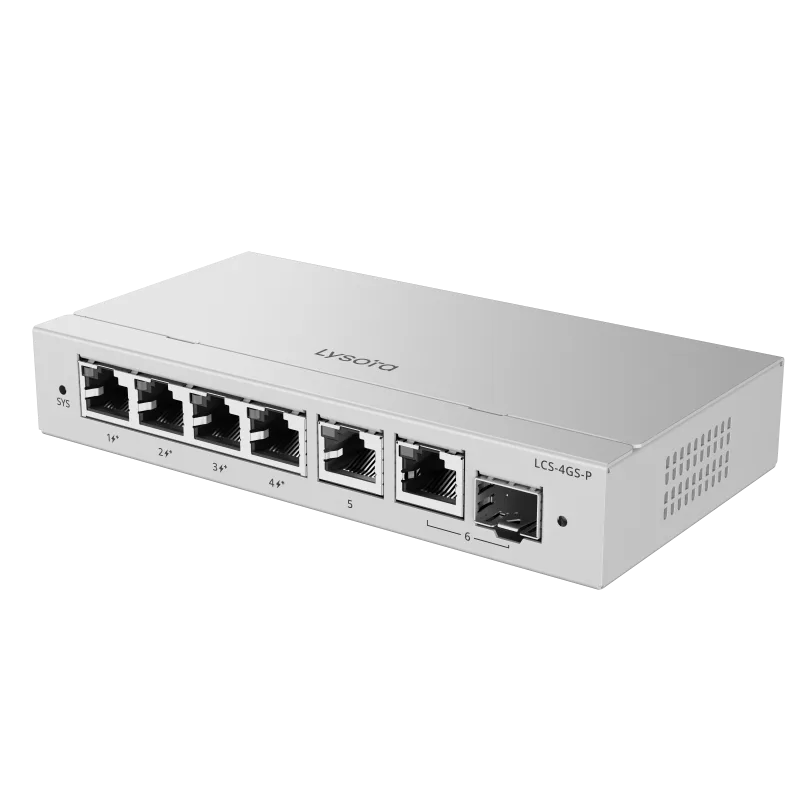

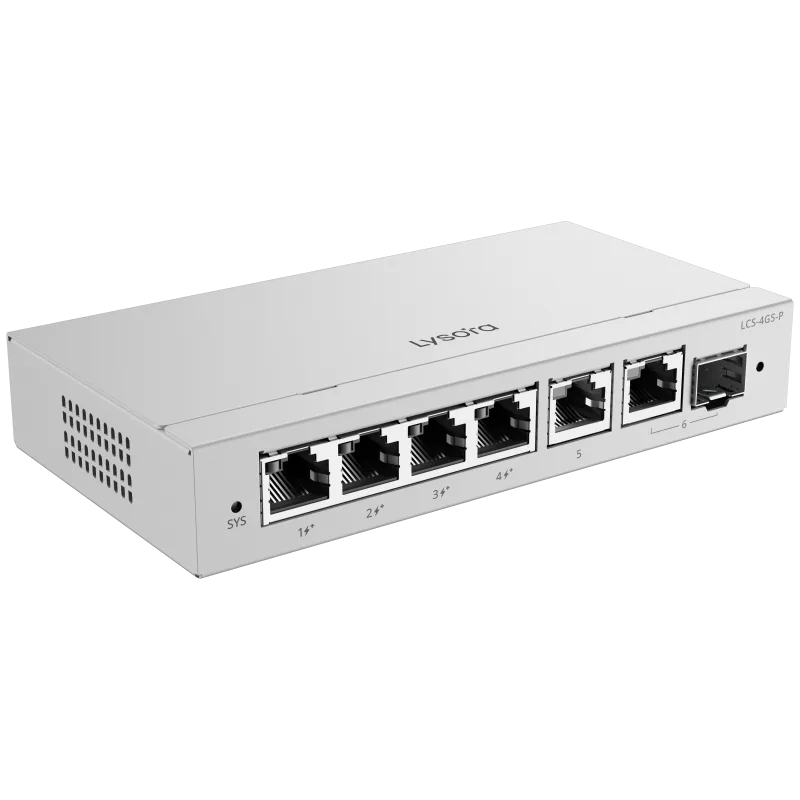

The Lysora LCS-4GS-P is a compact cloud managed PoE switch: four gigabit PoE/PoE+ ports with a 54 W budget, plus a gigabit RJ45 and a combo SFP uplink. Lysora rates it for 40 cameras at the 200 W H.265 profile.
It is managed through the web interface, Lysora Cloud, or the app, with camera detection, PoE watchdog, and online upgrade — features aimed at unattended CCTV sites.

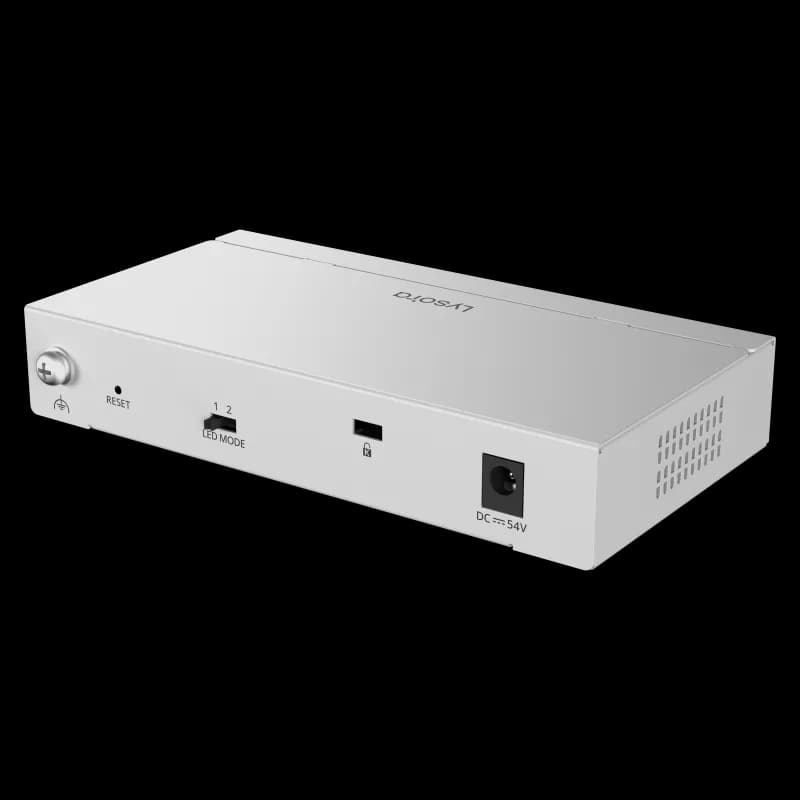

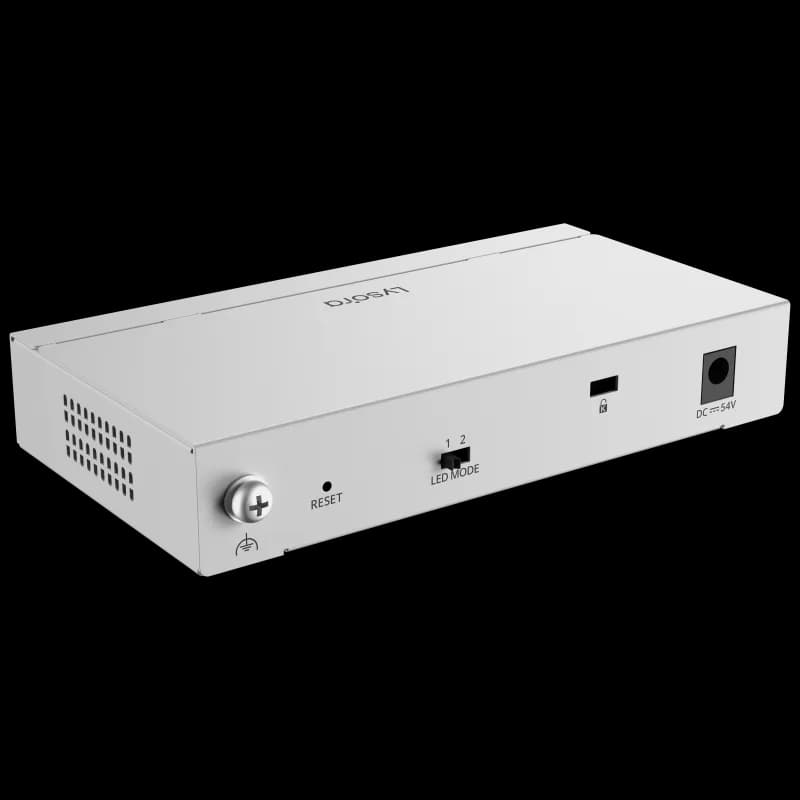

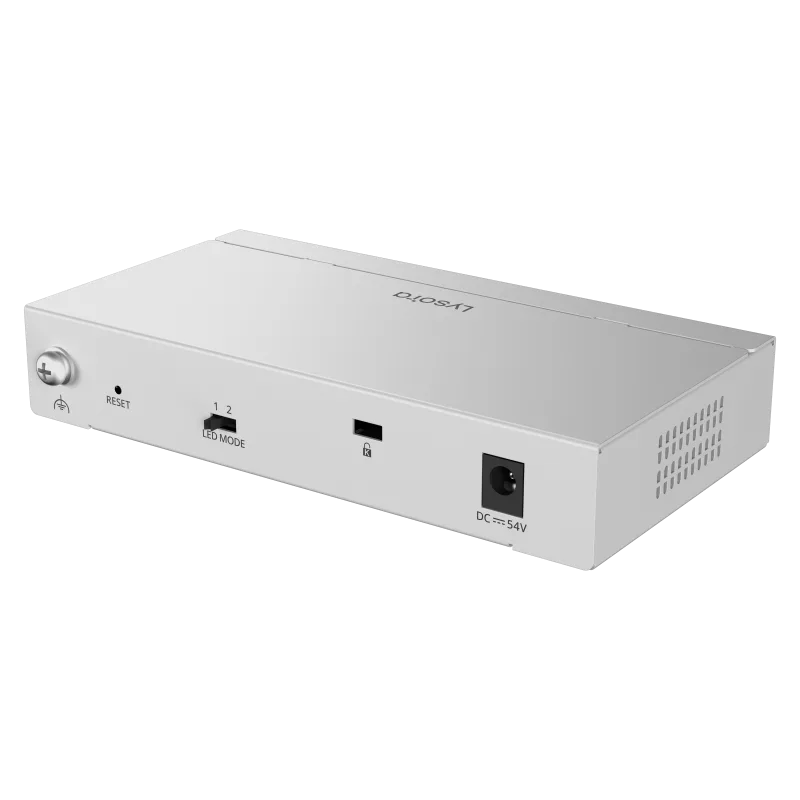

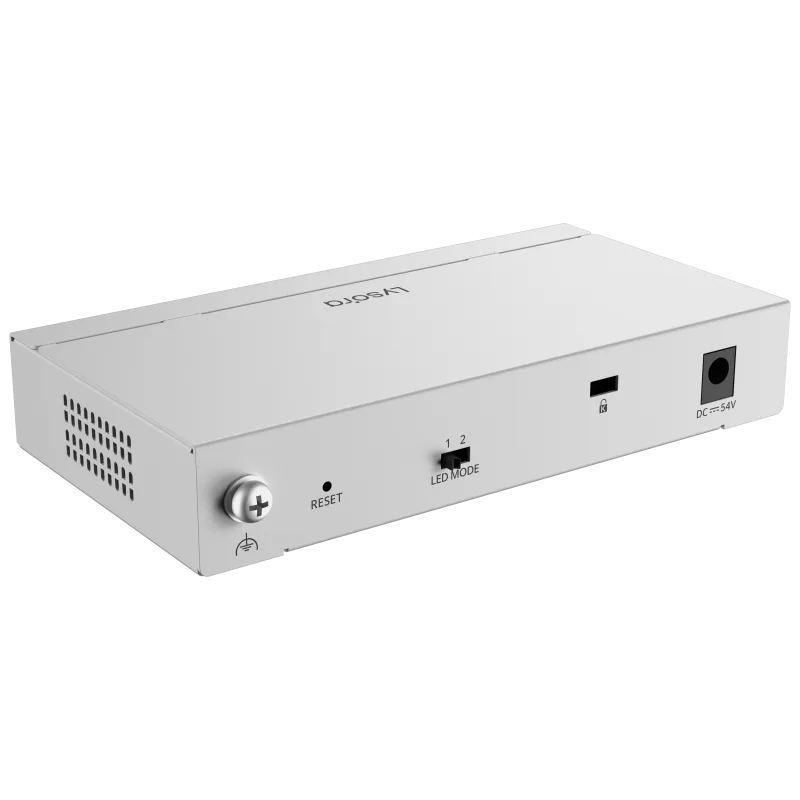

The fanless desktop steel case wall- or desk-mounts at small sites: shops, kiosks, gate cabins, and single-camera-string deployments.
Applications
Where the LCS-4GS-P is deployed
Downloads
LCS-4GS-P documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LCS-4GS-P Datasheet (PDF)Available on RequestRequest on WhatsApp
- LCS-4GS-P User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LCS-4GS-P
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- PoE Switches
PoE Switches- 16× GbE PoE+
- 250 W budget
- 2× SFP
Managed Switches- 8× GbE PoE+
- 125 W budget
- 2× SFP
Before You Enquire
Frequently asked questions
How many cameras can the LCS-4GS-P power?
Lysora rates the LCS-4GS-P for 40 cameras at the 200 W H.265 profile and 20 at 400 W, within its 54 W budget across four PoE/PoE+ ports. In practice that means four powered devices directly, with the rating describing supported recording load.
Request a sizing quoteWhat is a PoE watchdog and does this switch have it?
Yes. The PoE watchdog monitors powered devices and automatically power-cycles a port when a camera stops responding — recovering hung cameras without a site visit, which is why this feature matters for unattended CCTV cabinets.
What is the price of the LCS-4GS-P in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LCS-4GS-P and quantity, and you receive priced options with stock confirmation within 24 working hours.
