Lysora · Routers
LR100G
5-Port Cloud Managed Router
PricingContact for Best Price
- Ports
- 5× GbE (max 2 WAN / 3 LAN)
- Throughput
- 600 Mbps (1000 Mbps turbo)
- Users
- 100 recommended
- VPN
- IPsec, WireGuard, OpenVPN +3
- Management
- Lysora Cloud / web
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LR100G is built to do
Technical Specifications
LR100G specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| Ports | 5× 10/100/1000BASE-T |
| WAN / LAN | Up to 2 WAN / 3 LAN fixed |
| Performance | |
|---|---|
| Throughput | 600 Mbps (normal) / 1000 Mbps (turbo) |
| Concurrent sessions | 12,000 |
| Recommended users | 100 |
| Flash / RAM | 32 MB / 128 MB |
| Features | |
|---|---|
| VPN | IPsec, L2TP, L2TP/IPsec, OpenVPN, PPTP, WireGuard |
| SD-WAN | Supported |
| Management | Lysora Cloud, web |
| Physical & Environmental | |
|---|---|
| Dimensions | 206.5 × 108.5 × 28 mm |
| Weight | 0.41 kg |
| Power | 12 V DC 1 A adapter, ≤5 W |
| Operating temperature | 0 °C to +40 °C |
| Surge / ESD | ±4 kV ports / 4 kV contact, 6 kV air |
| Compliance & Warranty | |
|---|---|
| Certifications | FCC, IC, cTUVus |
| Warranty | 3 years |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LR100G

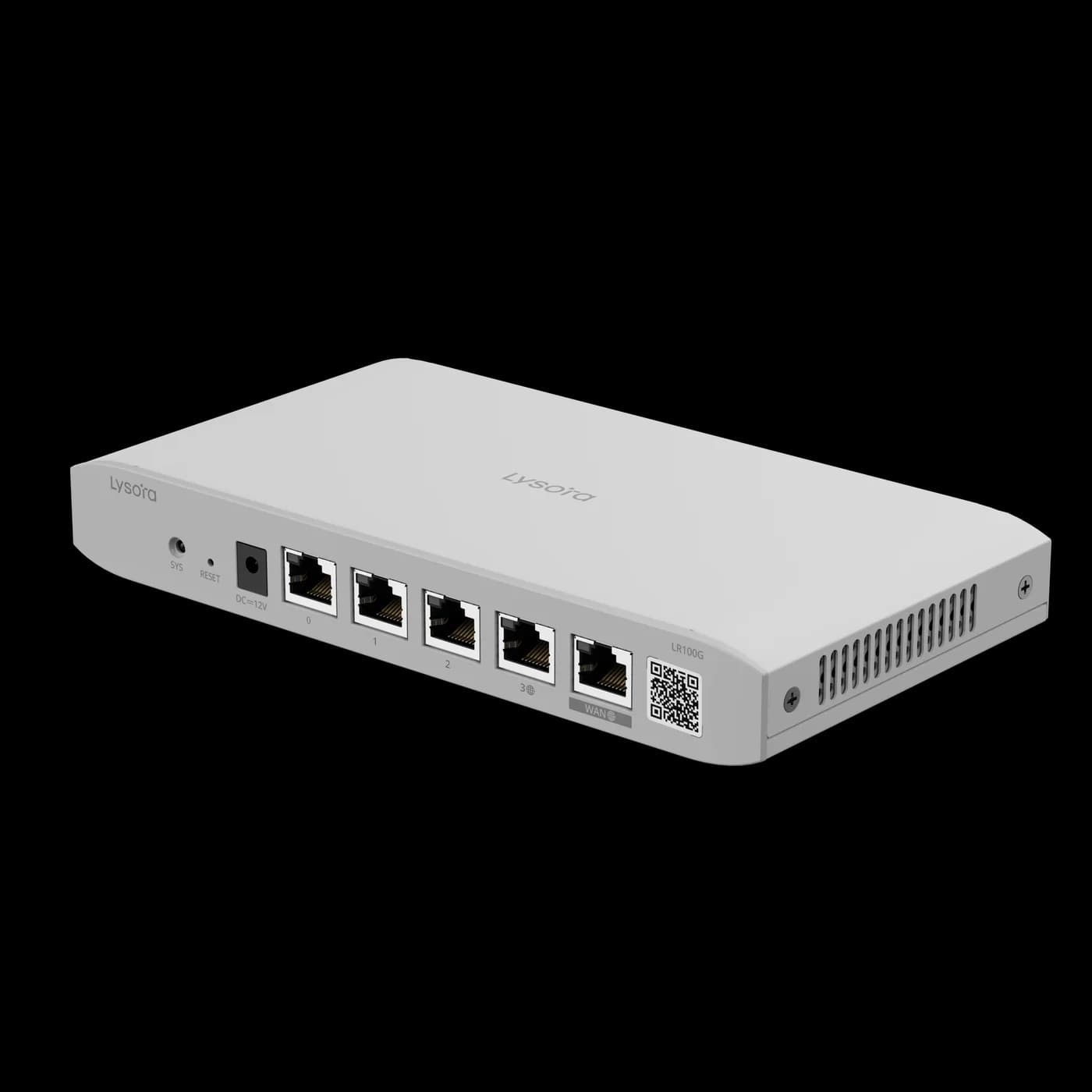

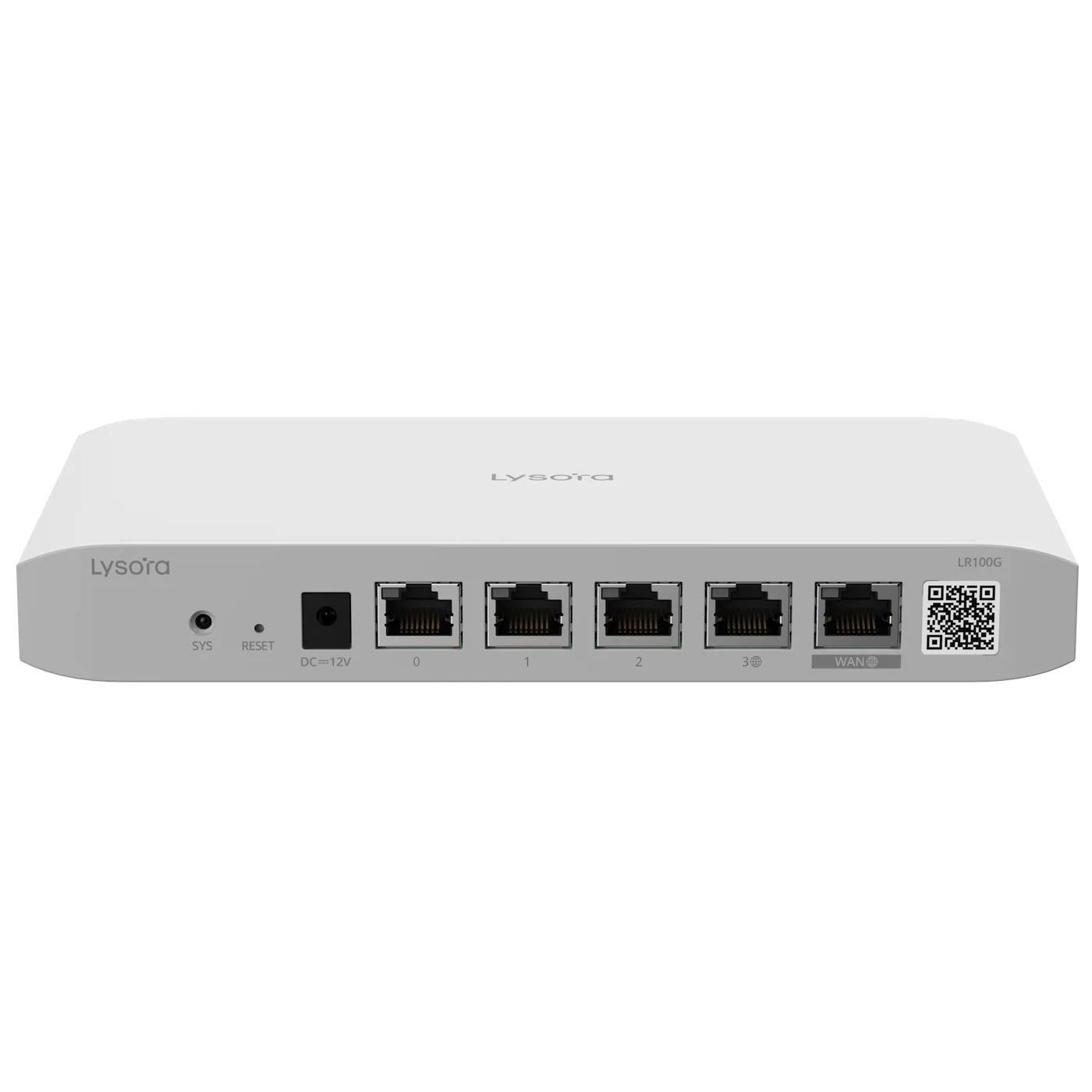

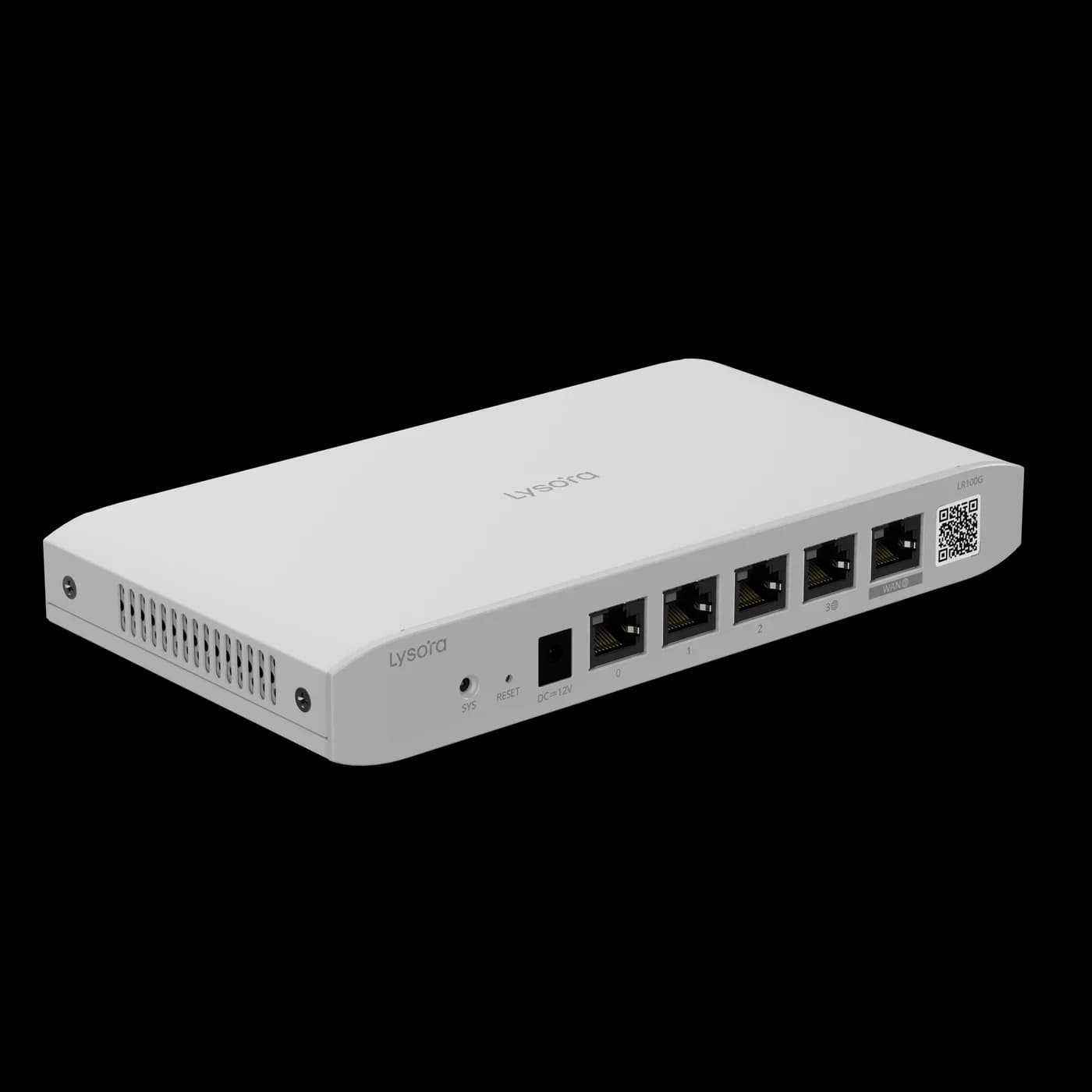

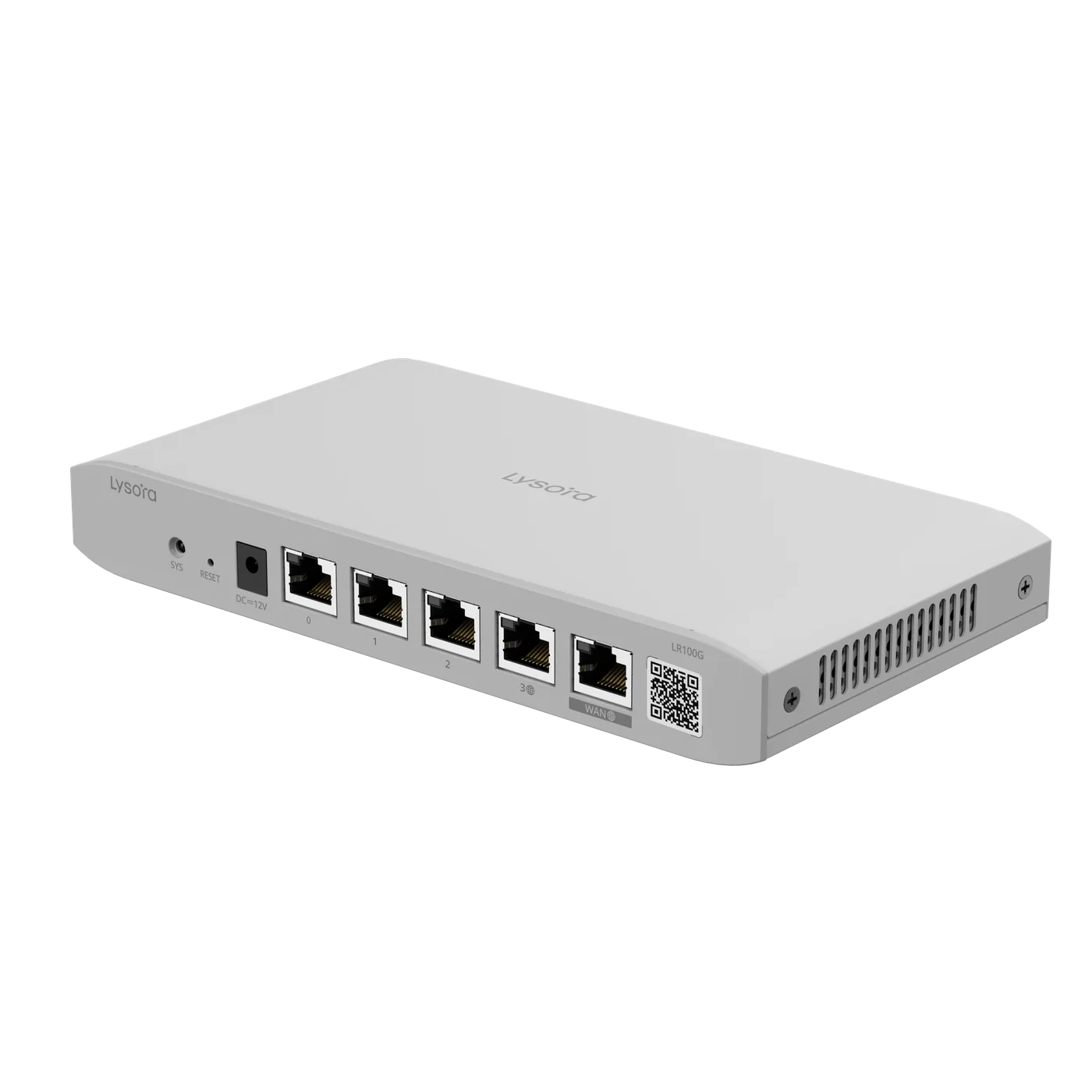

The Lysora LR100G is a 5-port gigabit cloud managed router with up to two WAN links, recommended for 100 concurrent users and 12,000 sessions. Throughput is rated 600 Mbps, with a 1000 Mbps turbo mode.
VPN support covers IPsec, L2TP, L2TP/IPsec, OpenVPN, PPTP, and WireGuard, alongside SD-WAN and Lysora Cloud management — branch connectivity managed from a central dashboard.
Fanless at a 5 W maximum draw, it fronts small offices and shops, with LCS/LS2 switches and Lysora APs behind it forming a fully cloud-managed stack.
Applications
Where the LR100G is deployed
Downloads
LR100G documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LR100G Datasheet (PDF)Available on RequestRequest on WhatsApp
- LR100G User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LR100G
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Routers
Routers- 4× 2.5G + 2× SFP+
- 4 Gbps
- 1500 clients
PoE Switches- 8× GbE PoE+
- 120 W budget
- Cloud managed
Before You Enquire
Frequently asked questions
How many users can the LR100G handle?
Lysora recommends the LR100G for up to 100 concurrent users with 12,000 sessions and 600 Mbps throughput (1000 Mbps in turbo mode). Larger offices should step up to the LR300G-P or LR1500XS.
See the LR300G-PWhich VPN protocols does the LR100G support?
Six: IPsec, L2TP, L2TP/IPsec, OpenVPN, PPTP, and WireGuard — covering site-to-site tunnels to head office and remote-access connections for staff, configured locally or through Lysora Cloud.
What is the price of the LR100G in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LR100G and quantity, and you receive priced options with stock confirmation within 24 working hours.
