Lysora · Routers

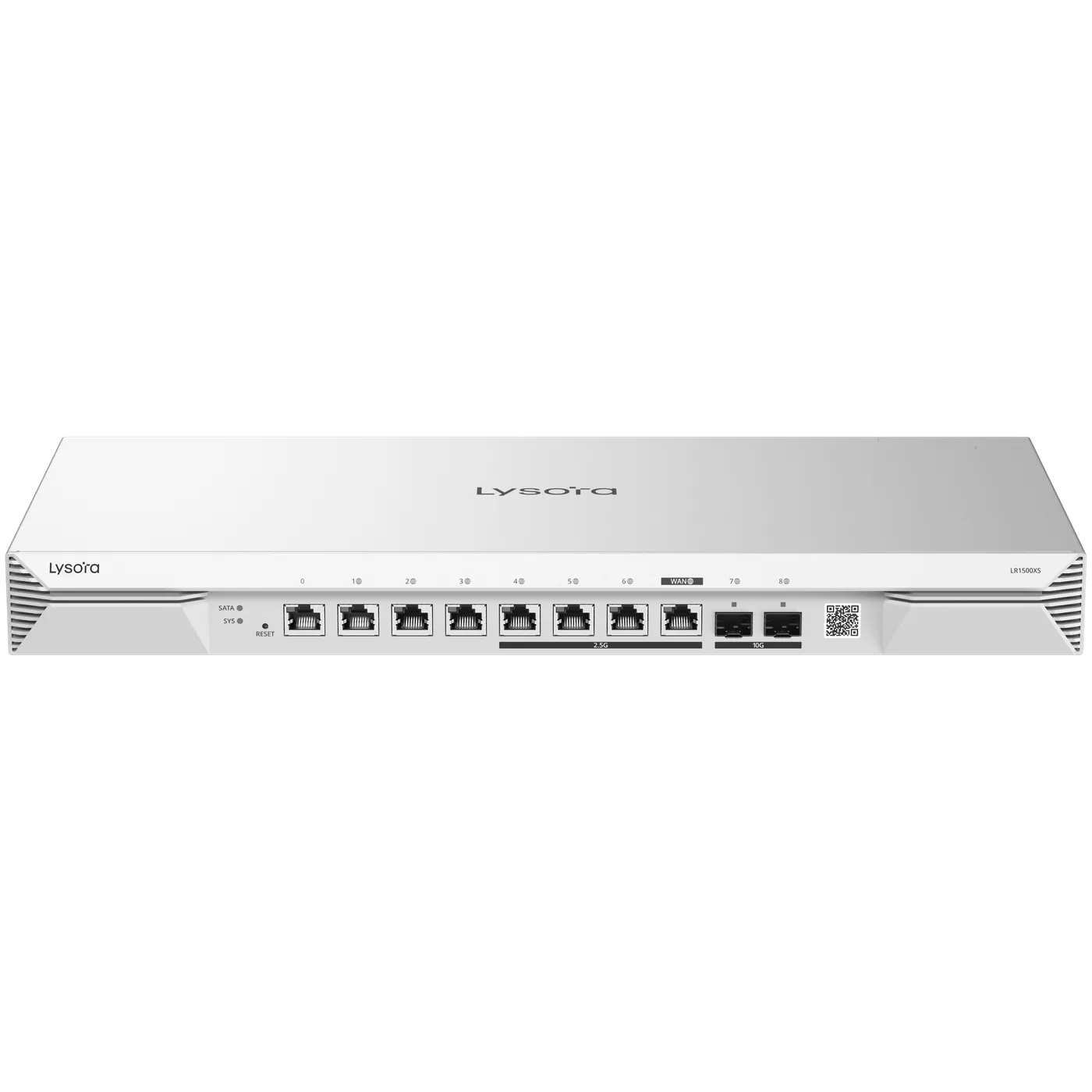

LR1500XS

High-Performance Cloud Managed Router

PricingContact for Best Price
Ports
8× RJ45 (4× 2.5G) + 2× 10GE SFP+
Throughput
4 Gbps
Sessions
300,000
Clients
1500 recommended
Routing
BGP, OSPF, RIP; SD-WAN
Warranty
3 years (manufacturer)
Request QuoteUpload BOQWhatsApp
  • Ready Stock
  • PAN India Supply
  • Same Day Dispatch*
  • GST Billing
  • BOQ Assistance

*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.

Key Features

What the LR1500XS is built to do

4 Gbps routing

300K sessions for campus-scale user counts.

2× 10G SFP+

Fiber into the core without a bottleneck.

4× 2.5G multi-gig ports

High-throughput links to servers or multi-gig switches.

BGP / OSPF / RIP

Full dynamic routing at the head-end.

SATA storage bay

8 GB eMMC plus HDD bay for logs and auditing.

Fanless 1U, 18 W

Rack head-end with UL 62368-1 listing.

Technical Specifications

LR1500XS specifications

Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.

Interfaces specifications
Interfaces
RJ45 ports8 (4× 2.5G + 4× 1G); 1 fixed WAN, 1 fixed LAN, 8 configurable
SFP+ slots2× 10GE SFP+
Performance specifications
Performance
Throughput4 Gbps
Concurrent sessions300,000
Recommended clients1500
RAM / eMMC / Flash4 GB / 8 GB / 128 MB
Storage bay1× SATA 3.0 HDD
Features specifications
Features
RoutingBGP, OSPF, RIP; SD-WAN
VPNIPsec, WireGuard, L2TP, OpenVPN, PPTP, L2TP/IPsec
PolicyBehavior management
ManagementLysora Cloud, web
Physical & Environmental specifications
Physical & Environmental
Dimensions440 × 210 × 43.6 mm (1U)
Weight3 kg
Consumption18 W max, fanless
Operating temperature0 °C to +40 °C
Surge±6 kV
Compliance & Warranty specifications
Compliance & Warranty
CertificationsFCC, IC, cTUVus, UL 62368-1; NDAA compliant
Warranty3 years

Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.

Overview

About the LR1500XS

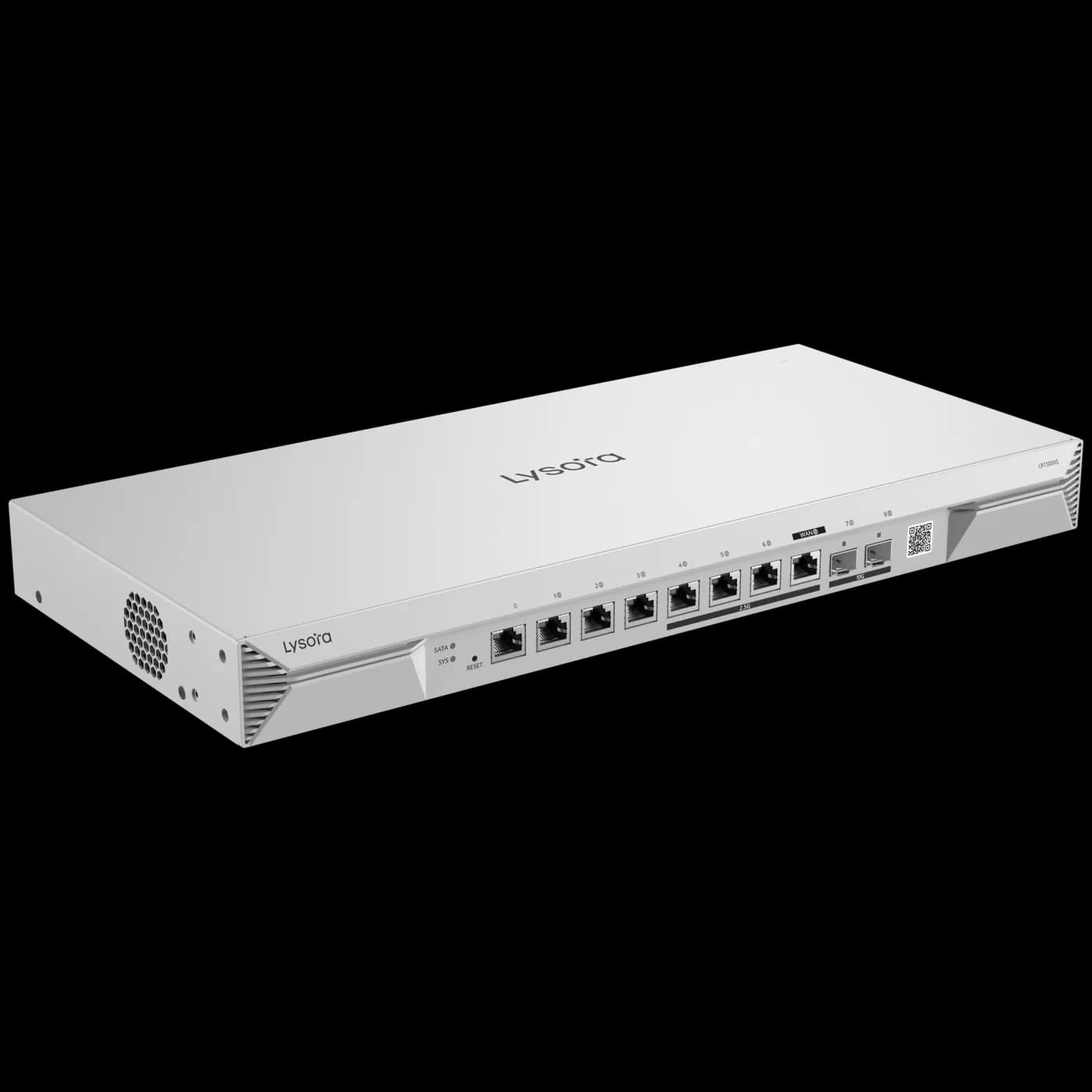

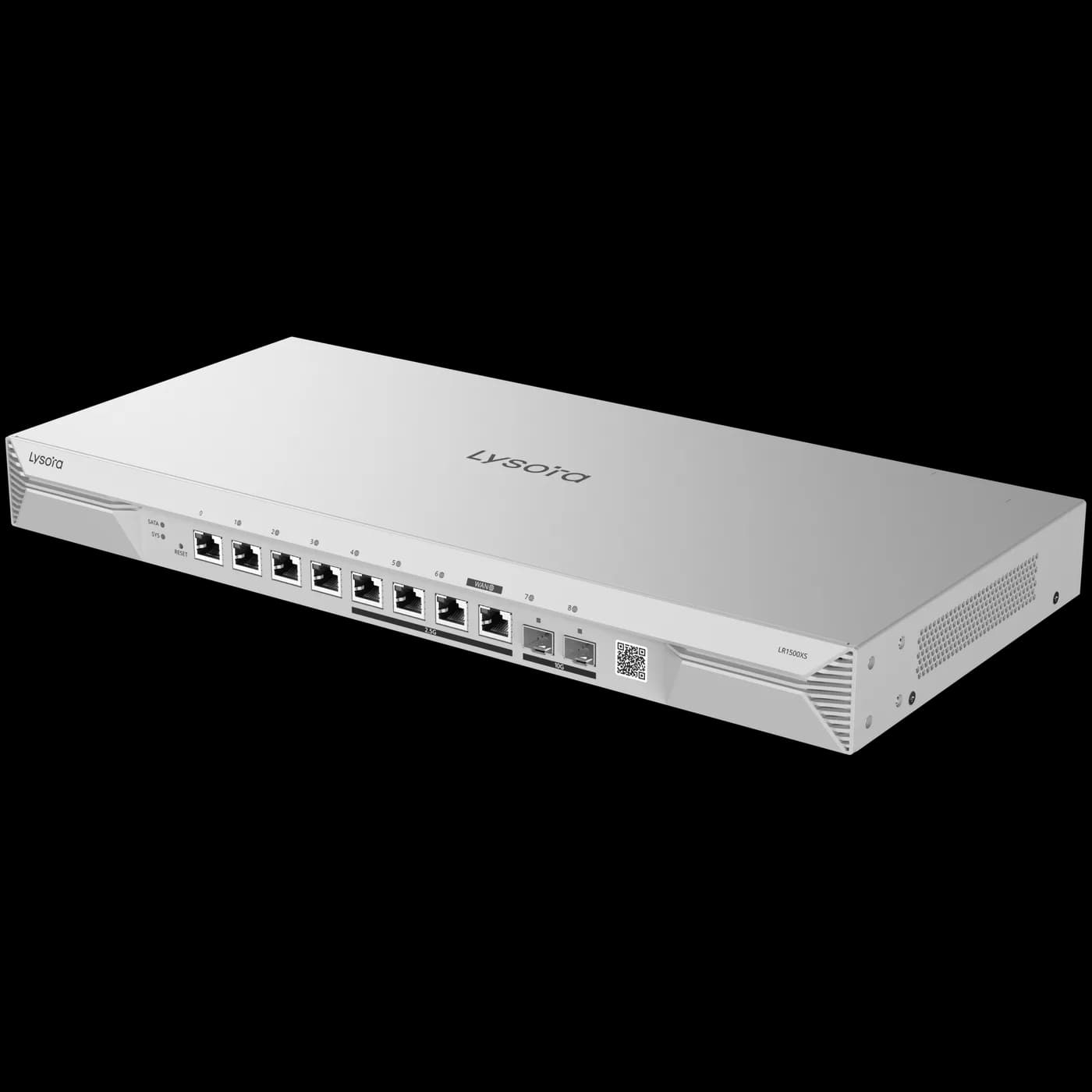

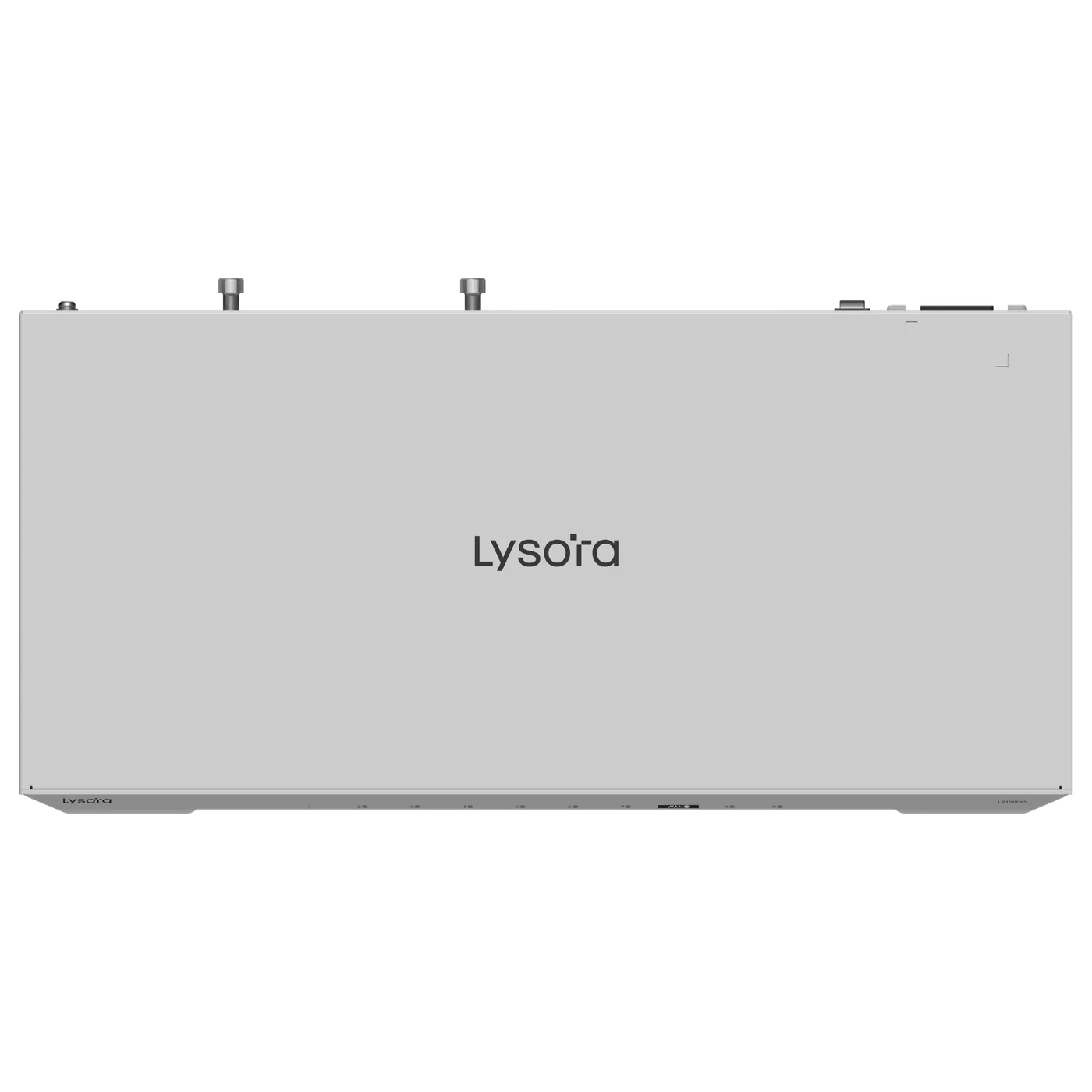

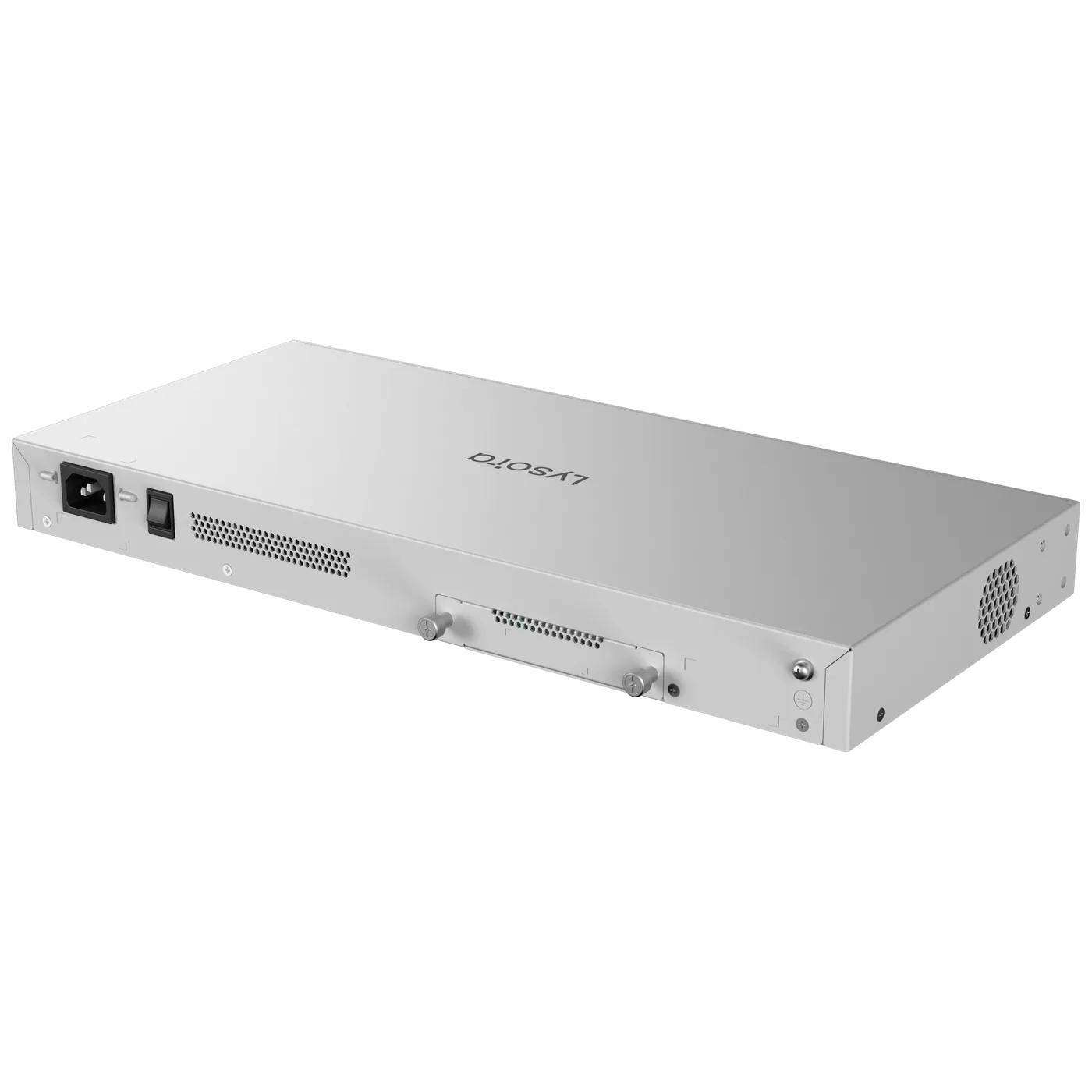

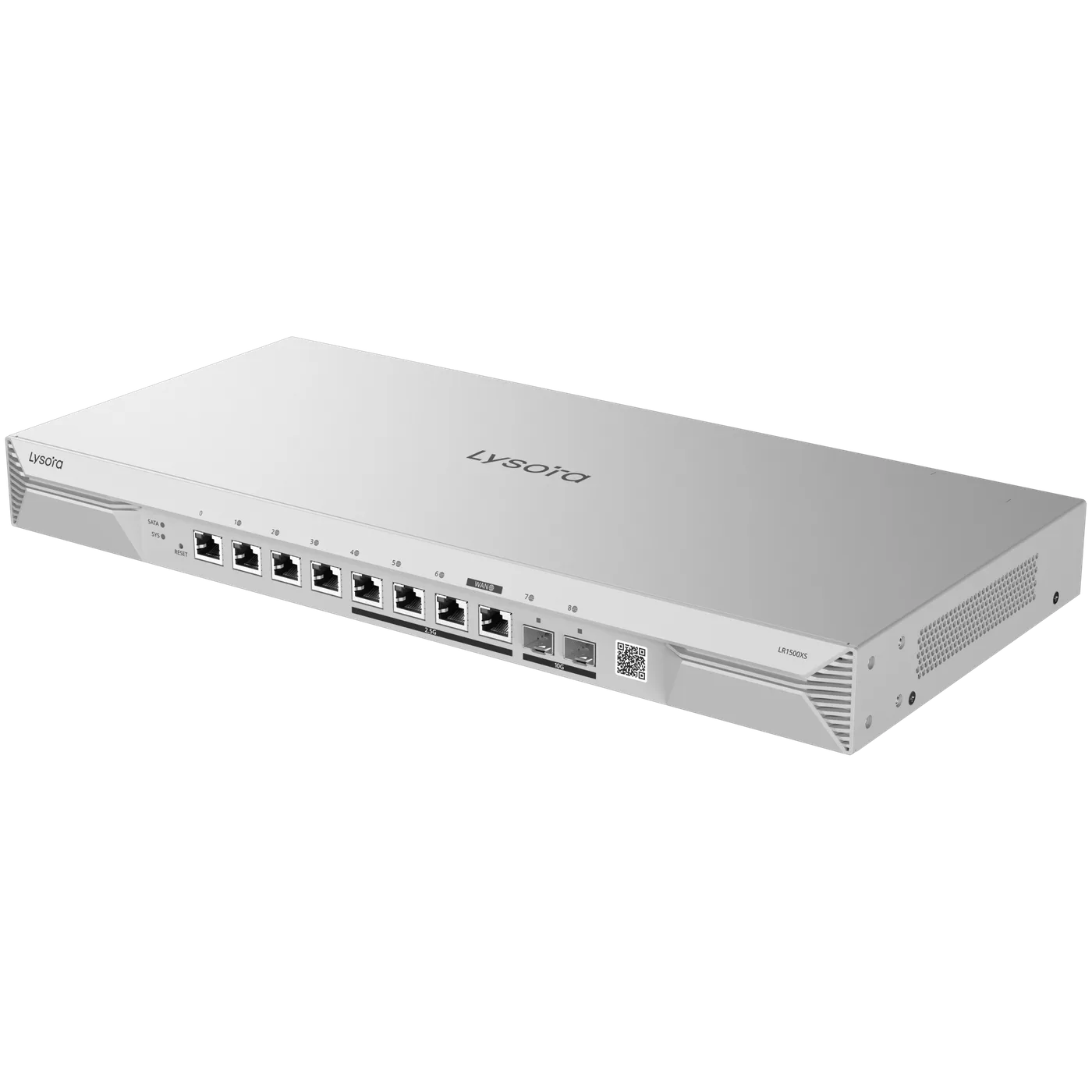

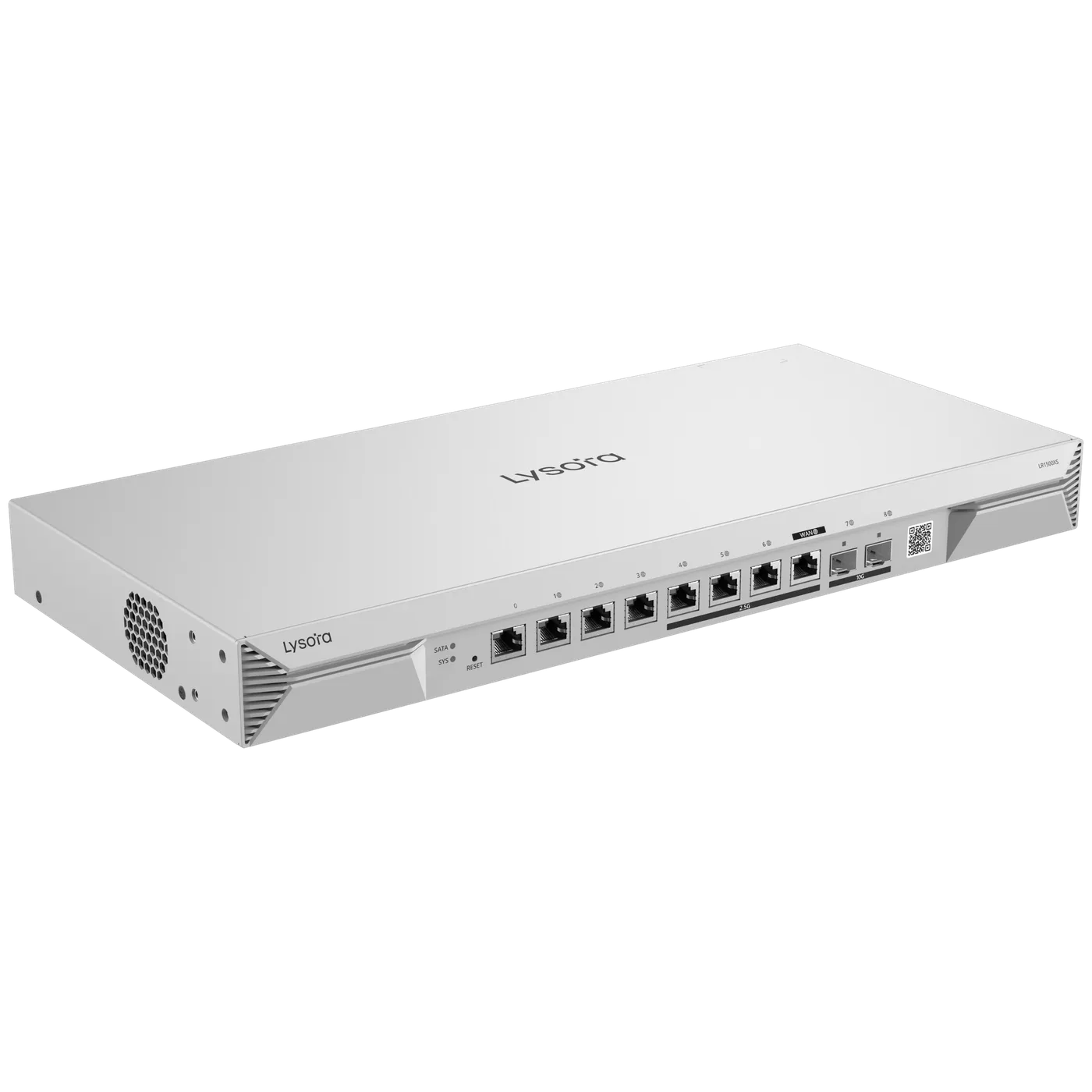

The Lysora LR1500XS is the high-performance router of the range: eight RJ45 ports (four at 2.5G), two 10GE SFP+ slots, 4 Gbps throughput, and 300,000 concurrent sessions, recommended for up to 1500 clients.

Routing covers BGP, OSPF, and RIP with SD-WAN, six VPN types, and behavior management; hardware includes 4 GB RAM, 8 GB eMMC, and a SATA 3.0 bay for local logging storage.

Fanless in a 1U rack body at 18 W, it fronts campuses, hostels, and multi-tenant buildings, with 10G SFP+ feeding the switching core below it.

Applications

Where the LR1500XS is deployed

Campus head-end

1500-client gateway above an L3/L2 switching core.

Hostels & multi-tenant

Session capacity for dense user populations.

Multi-WAN edge

BGP to carriers with SD-WAN overlays.

Audited networks

Behavior management with local log storage.

Downloads

LR1500XS documents

Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.

Related Products

Pairs with the LR1500XS

Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.

Why Buy From Lizora Infotech

A supply partner, not just a price list

Ready Stock Availability

Fast-moving SKUs held in the Delhi NCR warehouse, with availability confirmed on every quotation.

PAN India Supply Network

Surface and air cargo delivery to every state, with GST invoicing and e-way bills handled end to end.

BOQ & Solution Consultation

Bill-of-quantities reviewed line by line, with alternatives suggested for out-of-stock or discontinued items.

Technical Pre-Sales Consulting

Switch sizing, PoE budgets, VLAN design, and GPON planning reviewed by our technical team before you commit.

Dedicated B2B Sales Support

A named point of contact for quotes, stock checks, and RMA — not a ticket queue.

Request Dealer Pricing

Related Resources

Guides that cover the LR1500XS

Selection and background reading from our technical team.

  • Networking Basics

    Difference Between Layer 2 and Layer 3 Switches

    Layer 2 switches forward by MAC address inside VLANs; Layer 3 switches also route between IP subnets in hardware. Where each belongs, and what it costs to choose wrong.

Before You Enquire

Frequently asked questions

How many users can the LR1500XS support?

Lysora recommends up to 1500 clients, backed by 4 Gbps throughput and 300,000 concurrent sessions. It is the head-end option for campuses, hostels, and large offices where the LR300G-P's 300-user class is outgrown.

Compare the LR300G-P

Does the LR1500XS support BGP?

Yes — BGP, OSPF, and RIP are supported alongside SD-WAN, which is uncommon in this class. That allows multi-homed carrier connections and dynamic routing into the campus core over its two 10G SFP+ ports.

What is the price of the LR1500XS in India?

Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LR1500XS and quantity, and you receive priced options with stock confirmation within 24 working hours.
