LR300G-P
10-Port Cloud Managed PoE Router
PricingContact for Best Price
- Ports
- 10× GbE (1 WAN + 6 LAN + 3 LAN/WAN)
- PoE
- 8× PoE/PoE+, 110 W budget
- Throughput
- 1.5 Gbps
- Sessions
- 100,000
- Routing
- BGP, OSPF; SD-WAN
- Warranty
- 3 years (manufacturer)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the LR300G-P is built to do
Technical Specifications
LR300G-P specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Interfaces | |
|---|---|
| Ports | 10× 10/100/1000BASE-T |
| WAN / LAN | 1 fixed WAN + 6 LAN + 3 configurable LAN/WAN |
| PoE | 8× PoE/PoE+ out, 110 W total |
| Performance | |
|---|---|
| Throughput | 1.5 Gbps |
| Concurrent sessions | 100,000 |
| Recommended users | 300–350 (official page lists both — specification confirmed during quotation) |
| CPU / RAM / Flash | Dual-core 1.35 GHz / 512 MB / 256 MB |
| Features | |
|---|---|
| Routing | BGP, OSPF; SD-WAN |
| VPN | IPsec, WireGuard, OpenVPN, L2TP, PPTP |
| VLAN | 64 |
| Policy | Application control, traffic audit |
| Management | Lysora Cloud, web |
| Physical & Environmental | |
|---|---|
| Dimensions | 202 × 108 × 28 mm |
| Weight | 0.55 kg |
| Consumption | 9 W / 119 W (full PoE) |
| Operating temperature | -10 °C to +50 °C |
| Cooling | Fanless |
| Compliance & Warranty | |
|---|---|
| Certifications | FCC, IC, cTUVus; NDAA compliant |
| Warranty | 3 years |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the LR300G-P

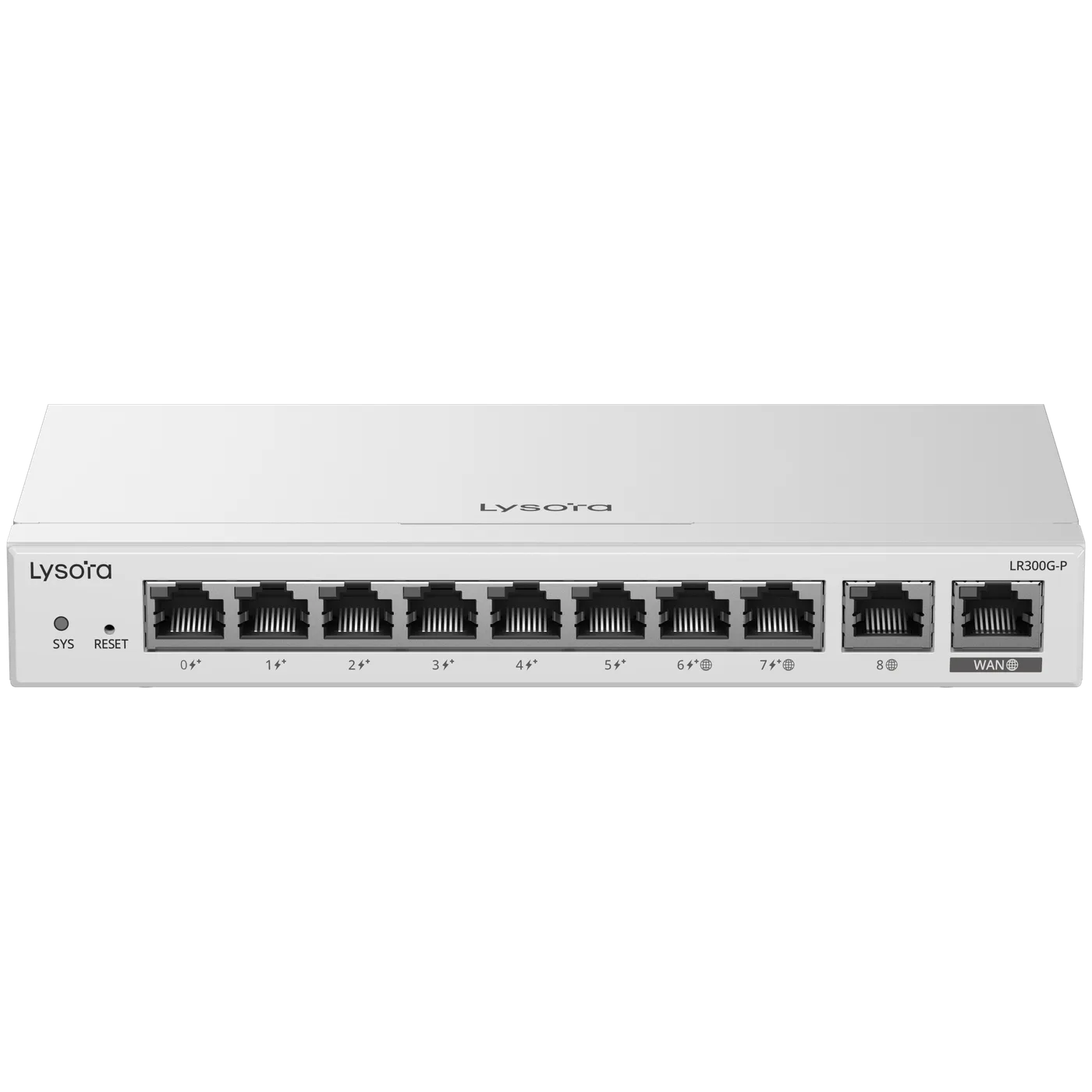

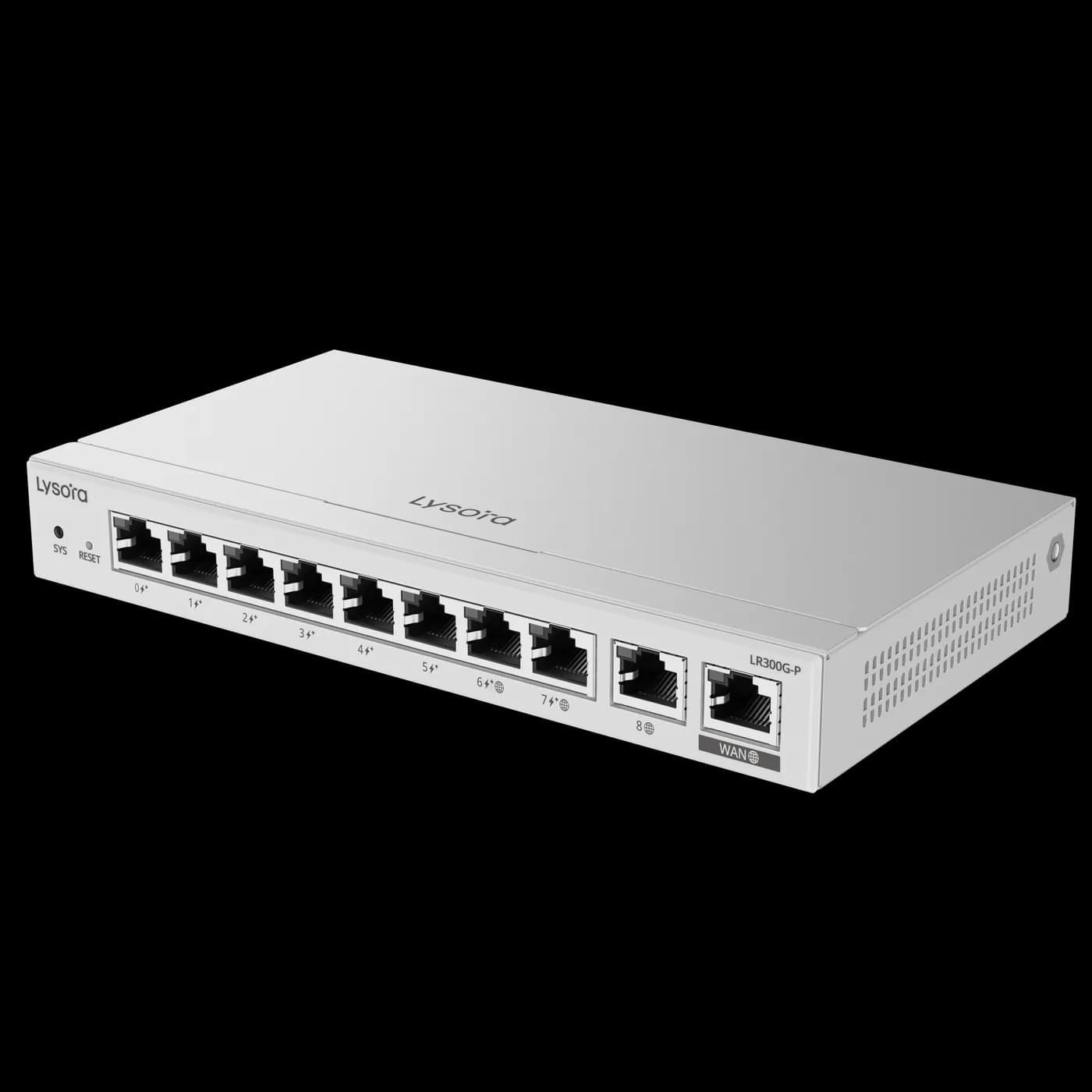

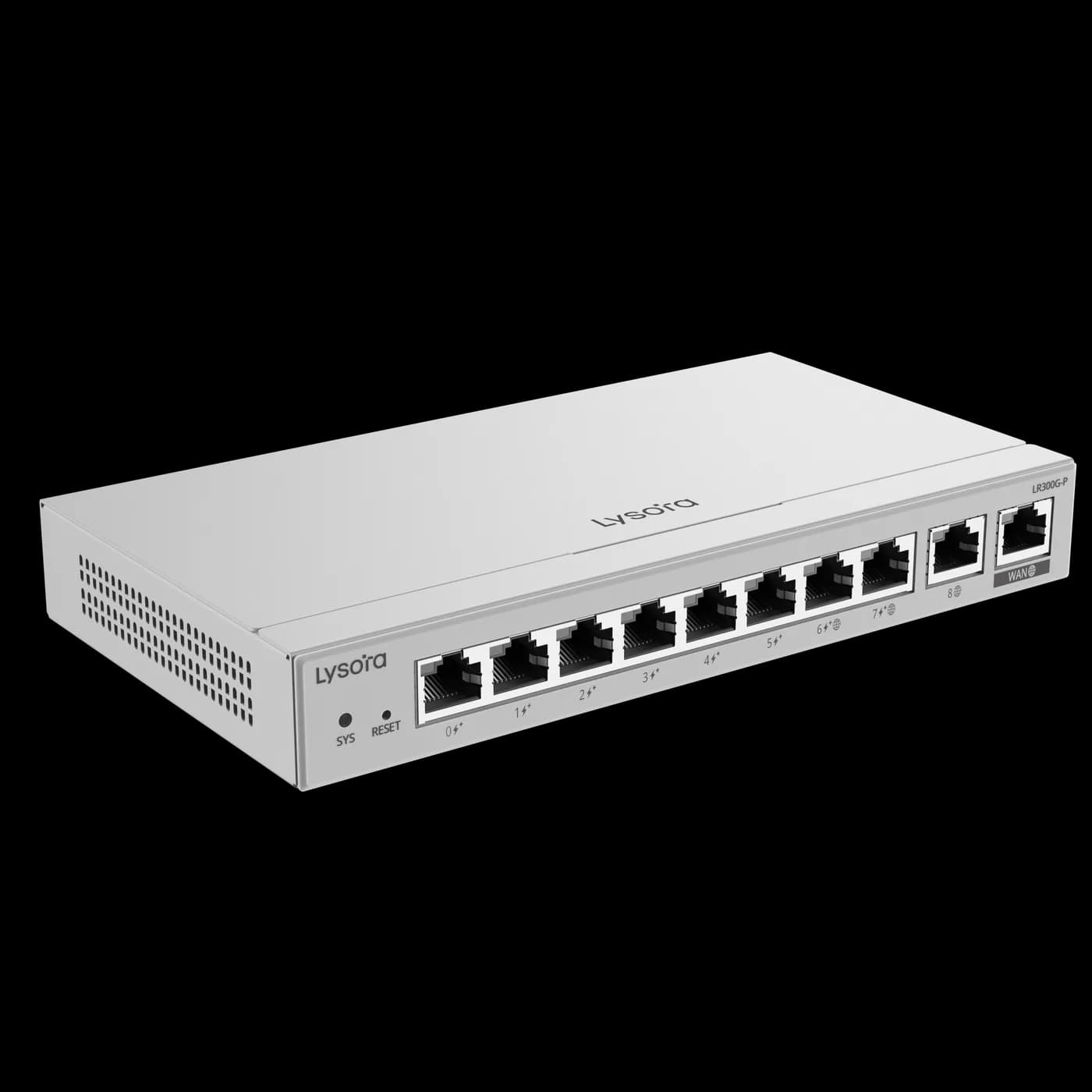

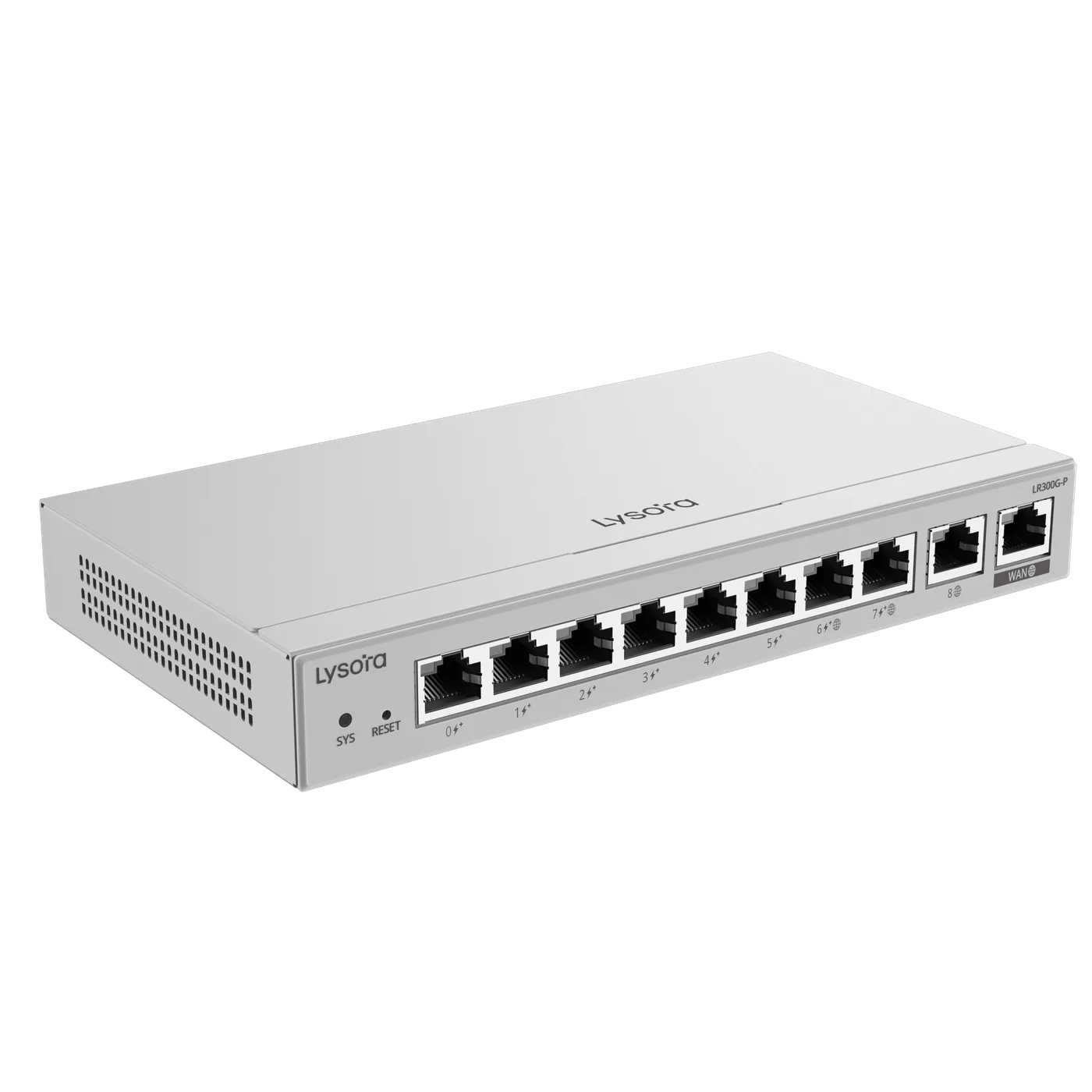

The Lysora LR300G-P combines a gigabit router with a PoE switch: ten gigabit ports of which eight supply PoE/PoE+ from a 110 W budget, so a small site's cameras and APs plug straight into the gateway.
It routes at 1.5 Gbps with 100,000 concurrent sessions, supports BGP and OSPF, five VPN types, 64 VLANs, and application control with traffic auditing — managed through Lysora Cloud.
Lysora recommends it for roughly 300–350 users (the official page states both figures). It suits offices and shops that want one cloud-managed box instead of separate router and PoE switch.
Applications
Where the LR300G-P is deployed
Downloads
LR300G-P documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- LR300G-P Datasheet (PDF)Available on RequestRequest on WhatsApp
- LR300G-P User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the LR300G-P
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Routers
Routers- 4× 2.5G + 2× SFP+
- 4 Gbps
- 1500 clients
PoE Switches- 8× GbE PoE+
- 120 W budget
- Cloud managed
Before You Enquire
Frequently asked questions
Can the LR300G-P replace a separate PoE switch?
For compact sites, yes: eight of its ten gigabit ports supply PoE/PoE+ from a 110 W budget, enough for a handful of cameras and access points directly on the gateway. Larger device counts still warrant a dedicated PoE switch behind it.
See PoE switchesHow many users does the LR300G-P support?
Lysora's page states 300 recommended concurrent users in one section and 350 in another — an official-site inconsistency we flag rather than hide. With 1.5 Gbps throughput and 100,000 sessions, mid-size offices are comfortably in range; we confirm the datasheet figure on quotation.
What is the price of the LR300G-P in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LR300G-P and quantity, and you receive priced options with stock confirmation within 24 working hours.
