Wireless BridgesLysora
- 16 dBi
- 5 km range
- 3× GbE
Lysora · Wireless Bridges

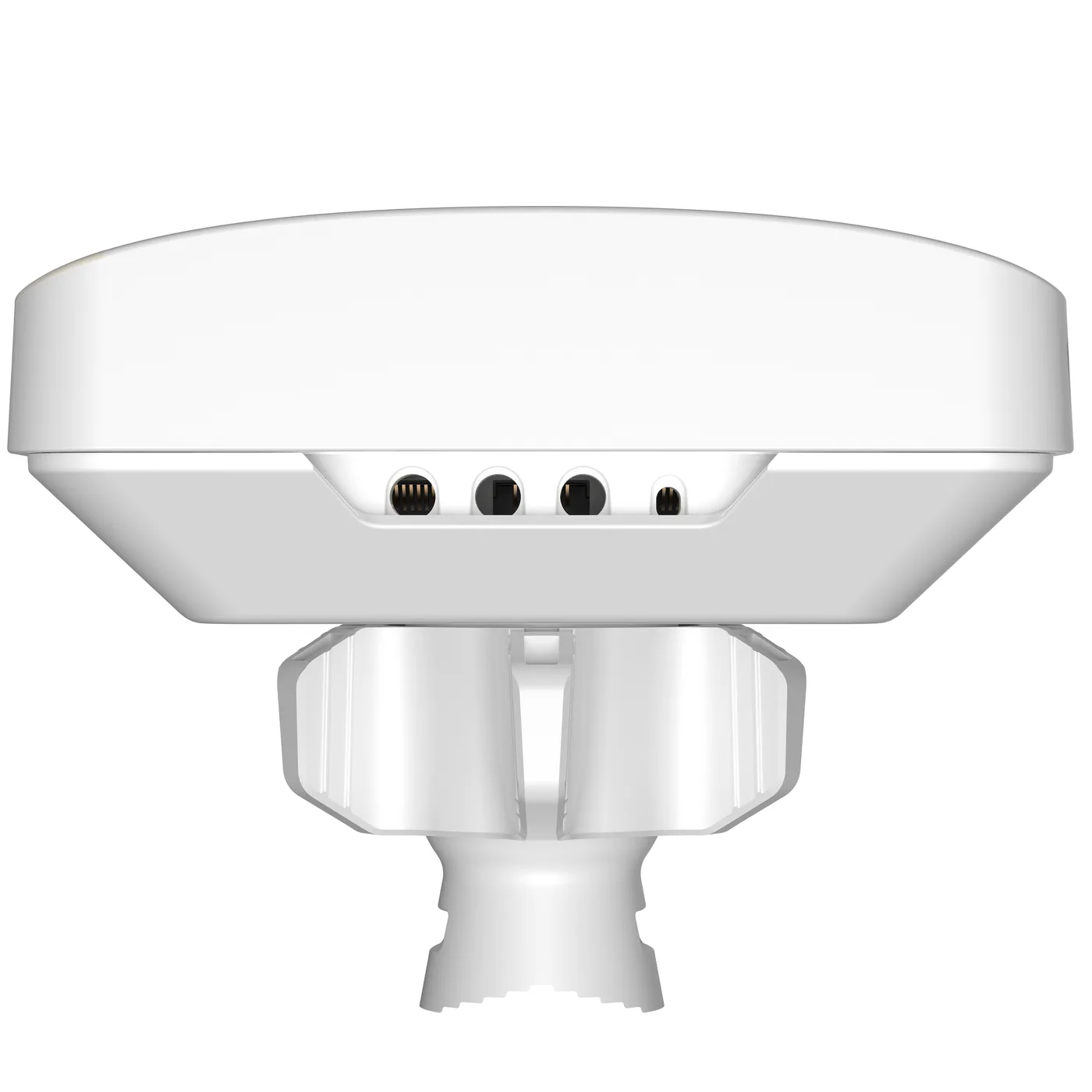

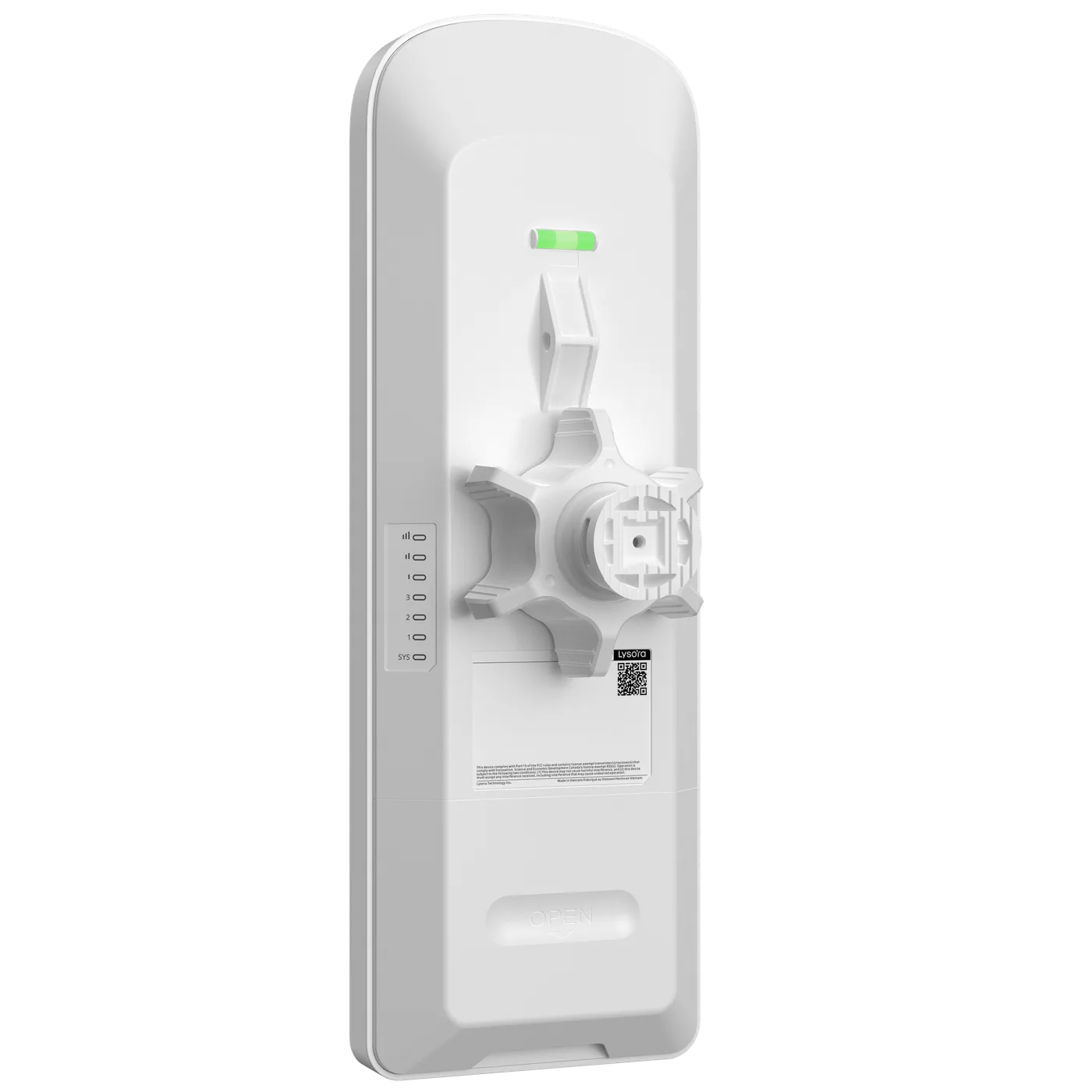

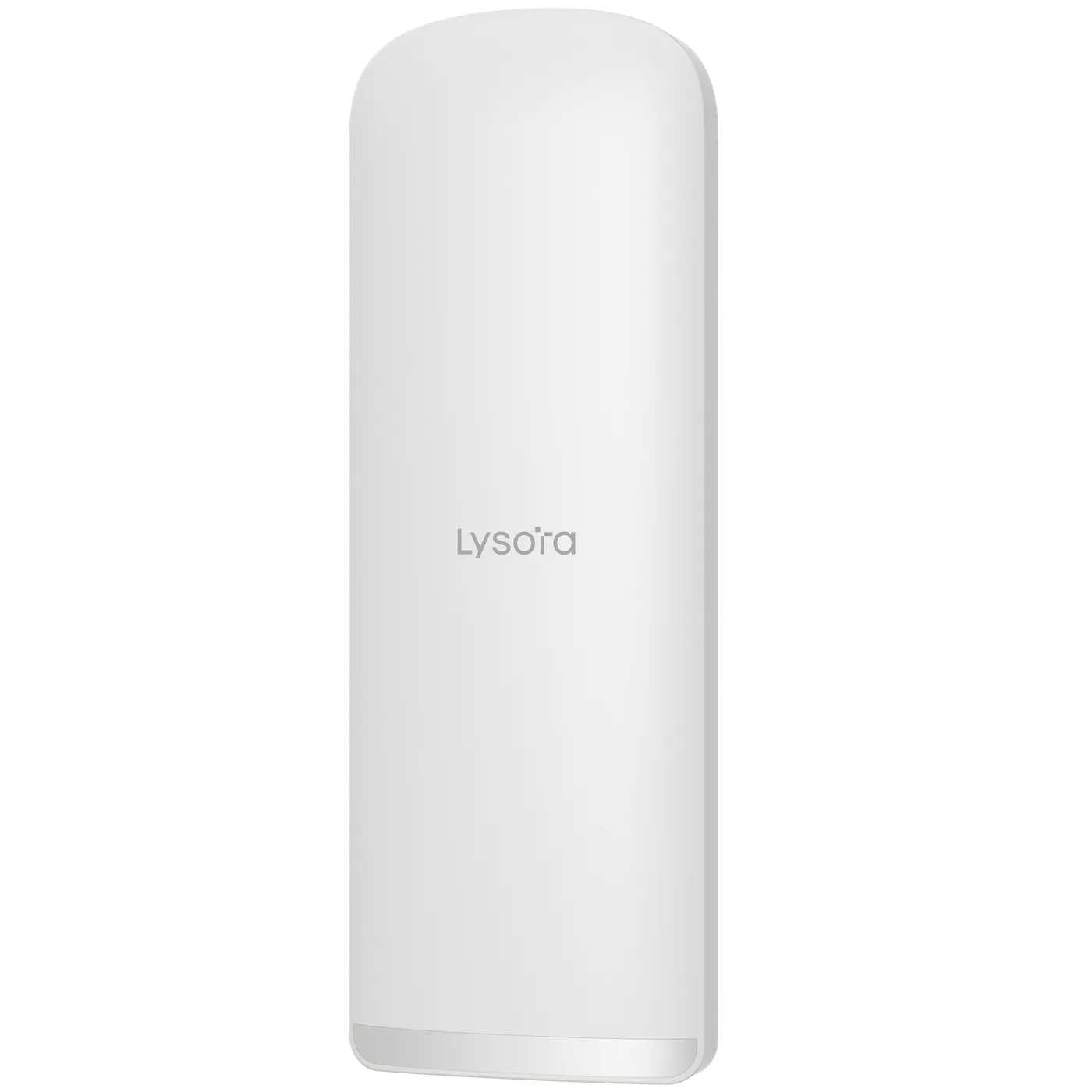

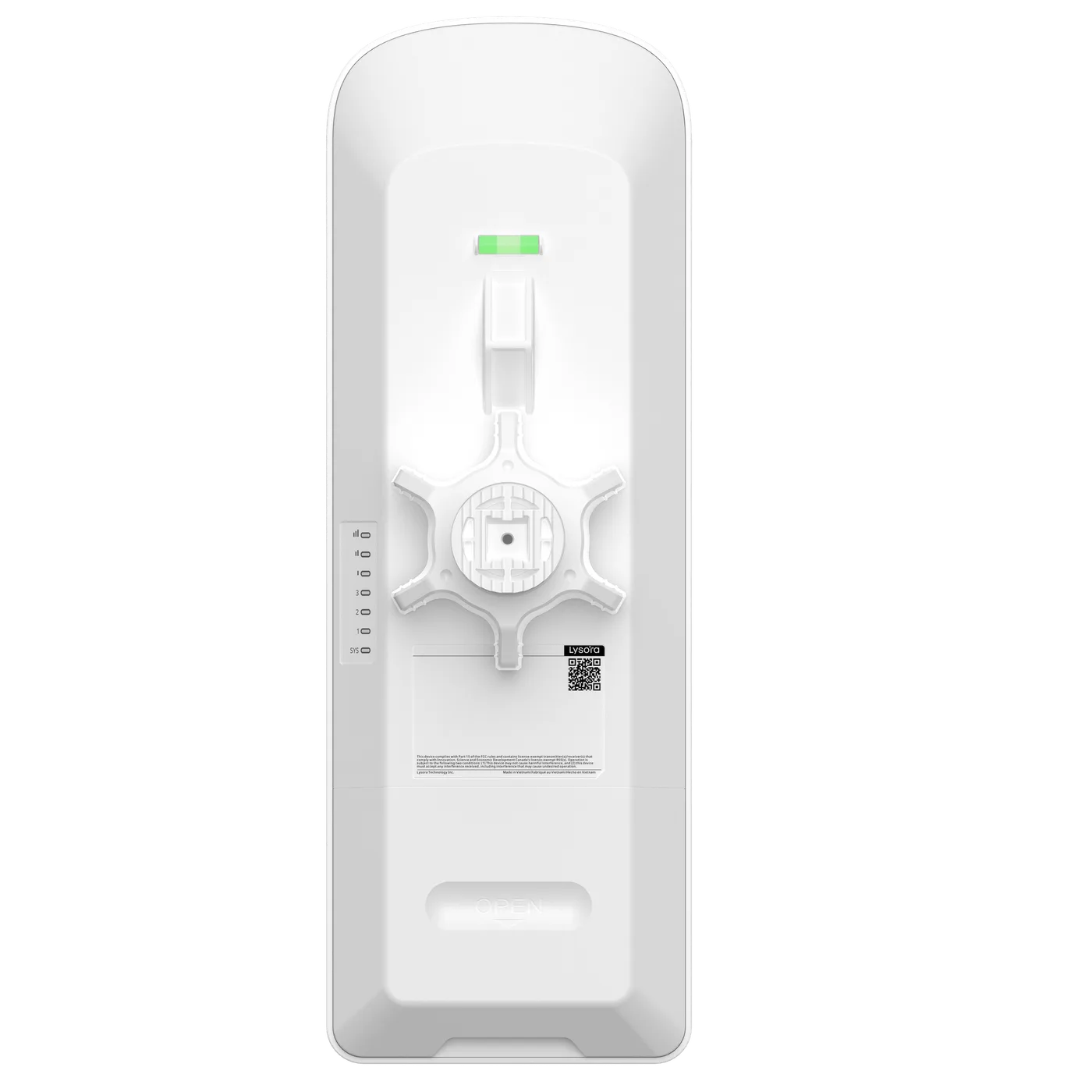

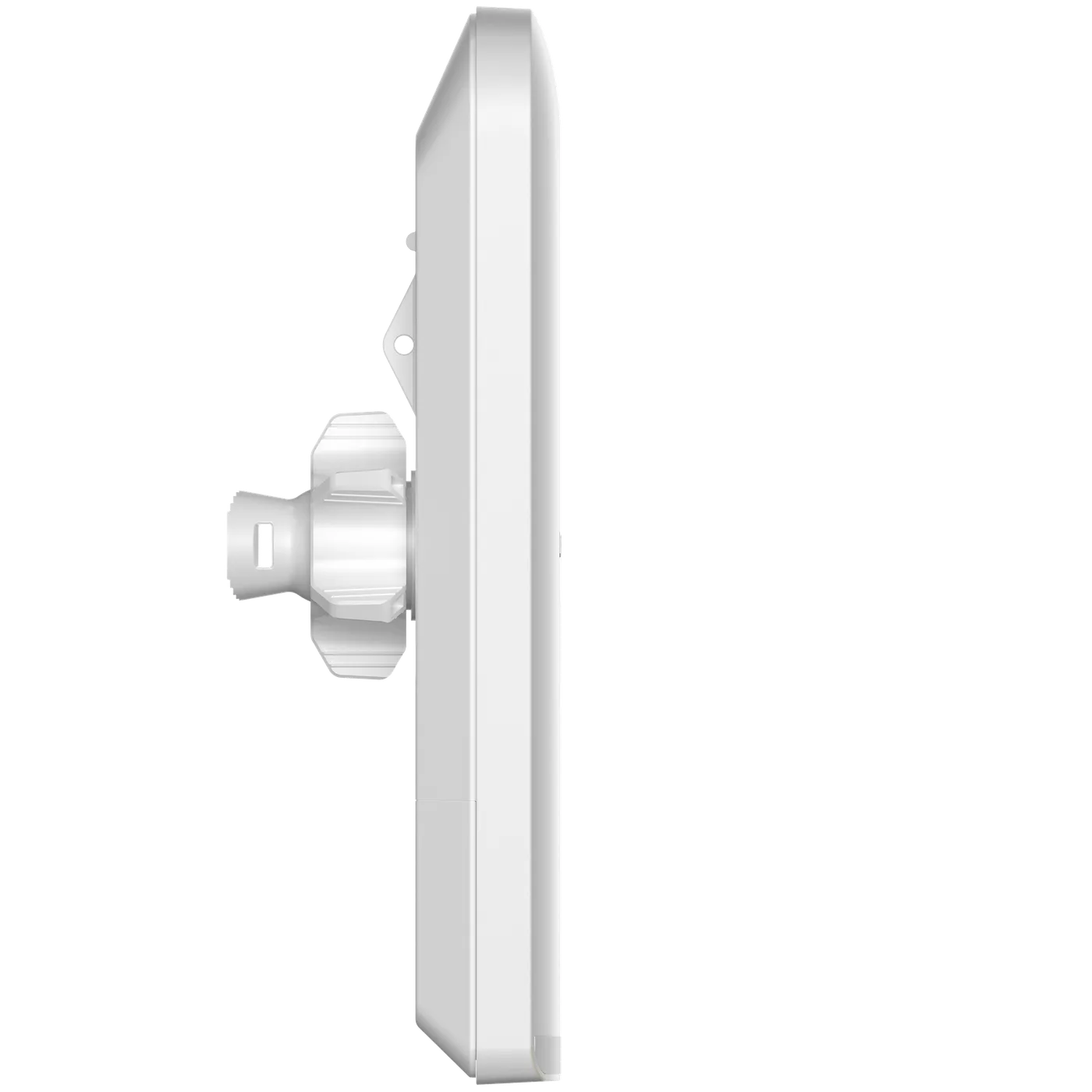

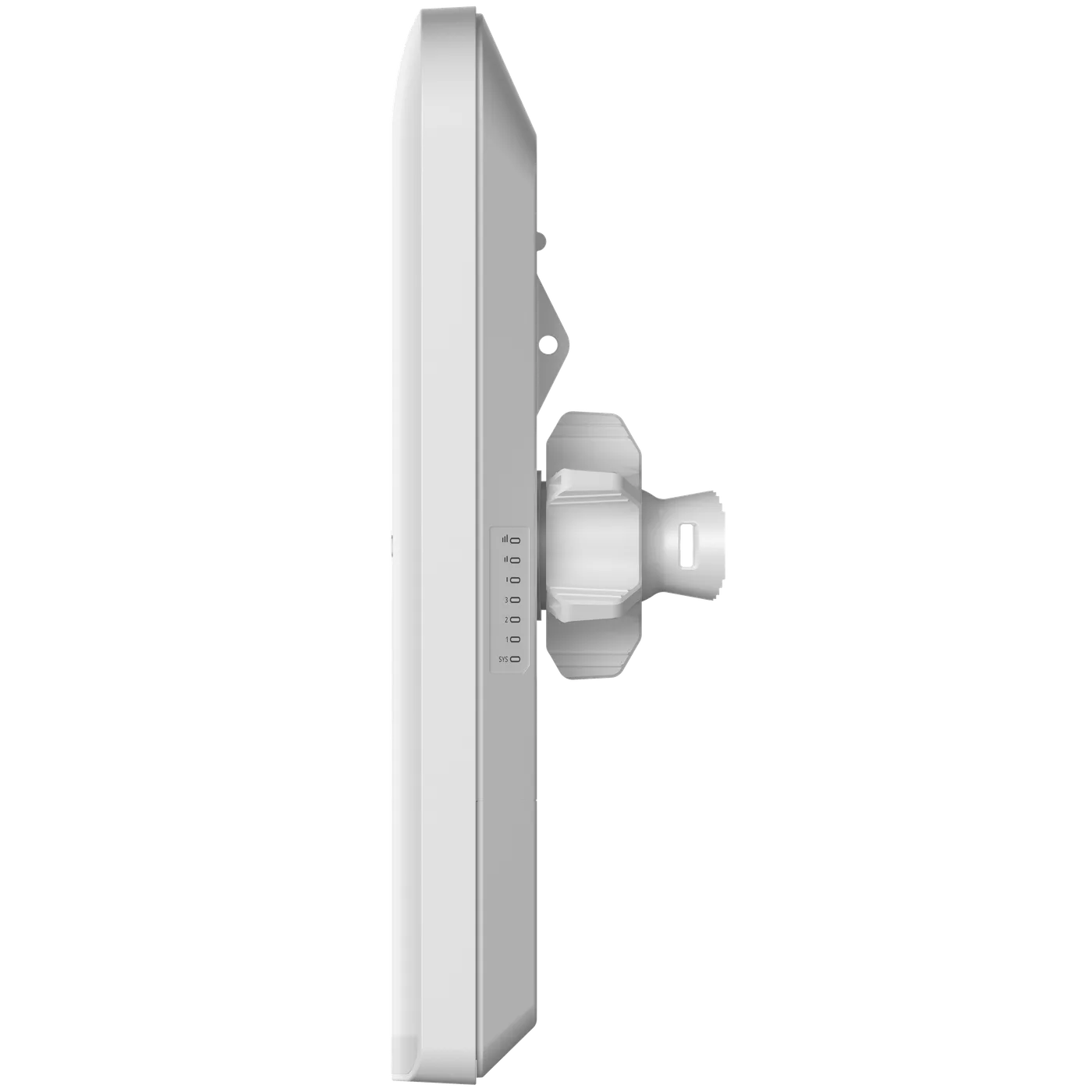

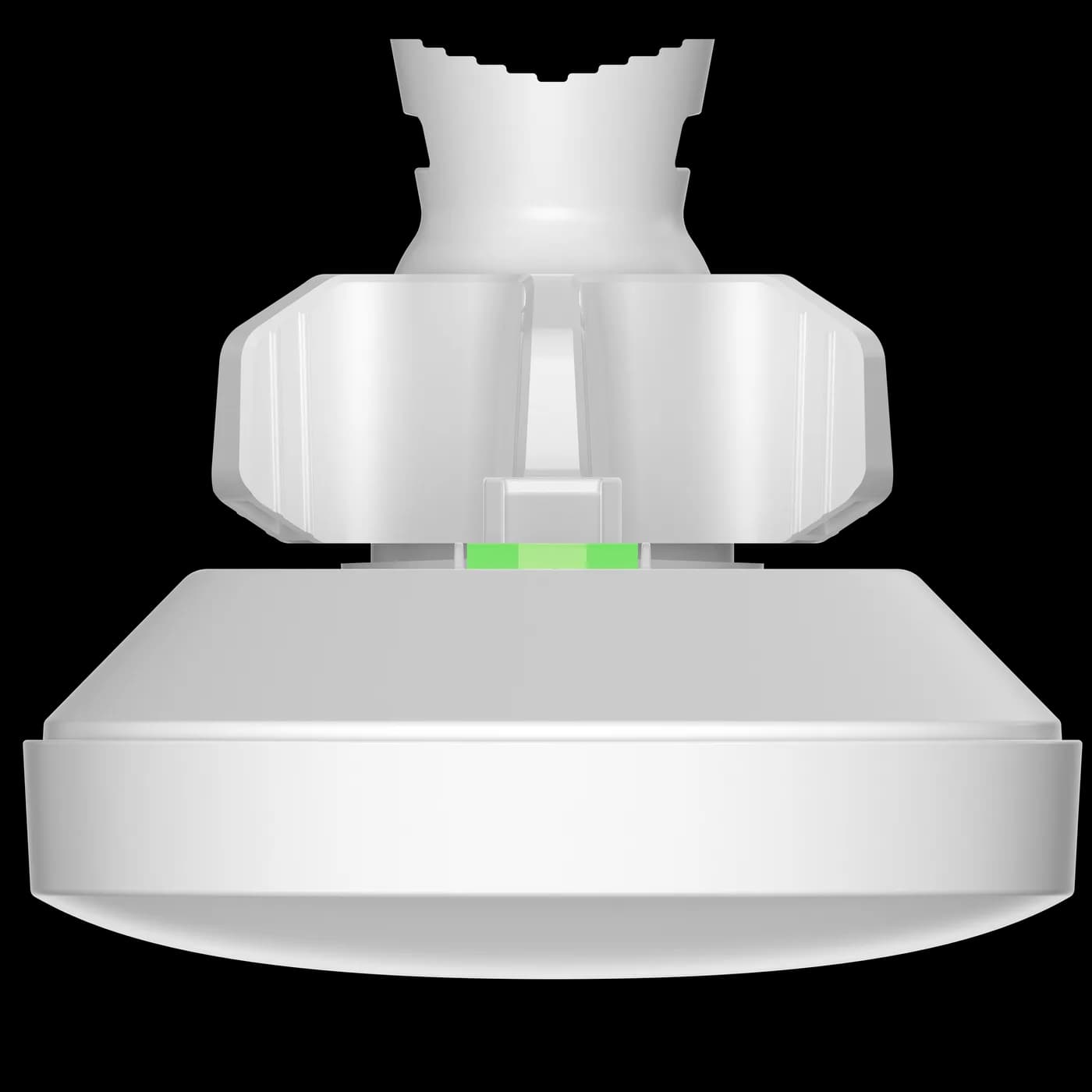

Base5i
5 GHz BaseStation with 15 dBi Antenna
PricingContact for Best Price
- Band
- 5 GHz (dual-band capable)
- Antenna
- 15 dBi, 120° horizontal
- Rate
- 867 Mbps (5 GHz)
- Range
- Up to 5 km
- Ethernet
- 3× 10/100/1000BASE-T
- Rating
- IP55, -30 to +65 °C
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the Base5i is built to do
Technical Specifications
Base5i specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Radio | |
|---|---|
| Frequency | 2400–2472 MHz; 5150–5850 MHz; 5925–7125 MHz |
| Standard | IEEE 802.11 a/b/g/n/ac |
| Antenna gain | 2.4 GHz: 2 dBi / 5 GHz: 15 dBi |
| Max rate | 867 Mbps (5 GHz) |
| Range | 5 km |
| Modes | BaseStation, CPE; TDMA |
| Interfaces & Power | |
|---|---|

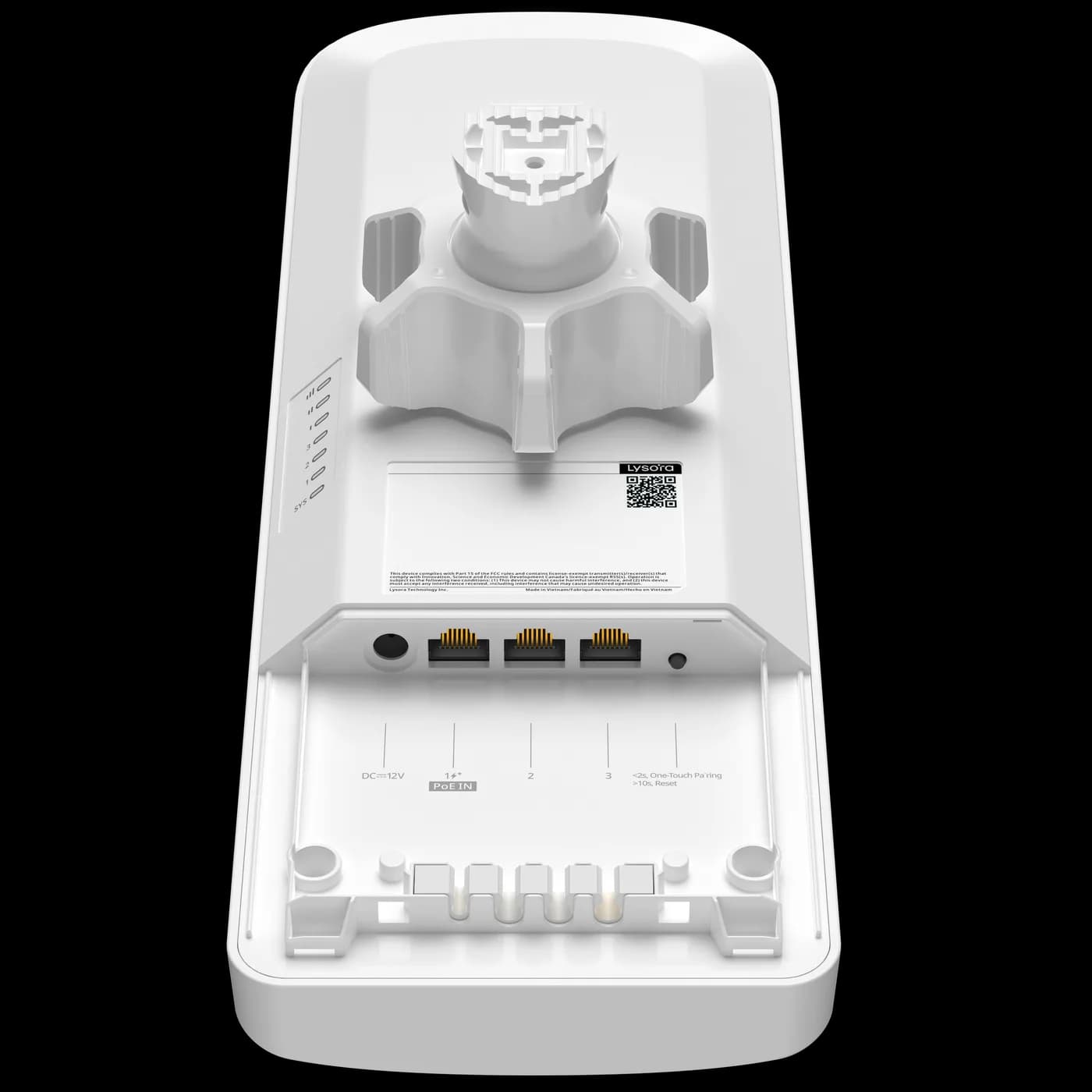

| Ethernet | 3× 10/100/1000BASE-T |
| Power | 24 V PoE/PoE+ or 12–24 V DC |
| Management | Web, Cloud, SSH, SNMP |
| Physical & Environmental | |
|---|---|
| Dimensions | 355 × 124 × 148 mm |
| Weight | 0.83 kg |
| Ingress protection | IP55 |
| Mounting | Wall / pole |
| Operating temperature | -30 °C to +65 °C |
| Compliance | |
|---|---|
| Certifications | FCC, IC, cTUVus, UL 62368-1:2019 |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the Base5i

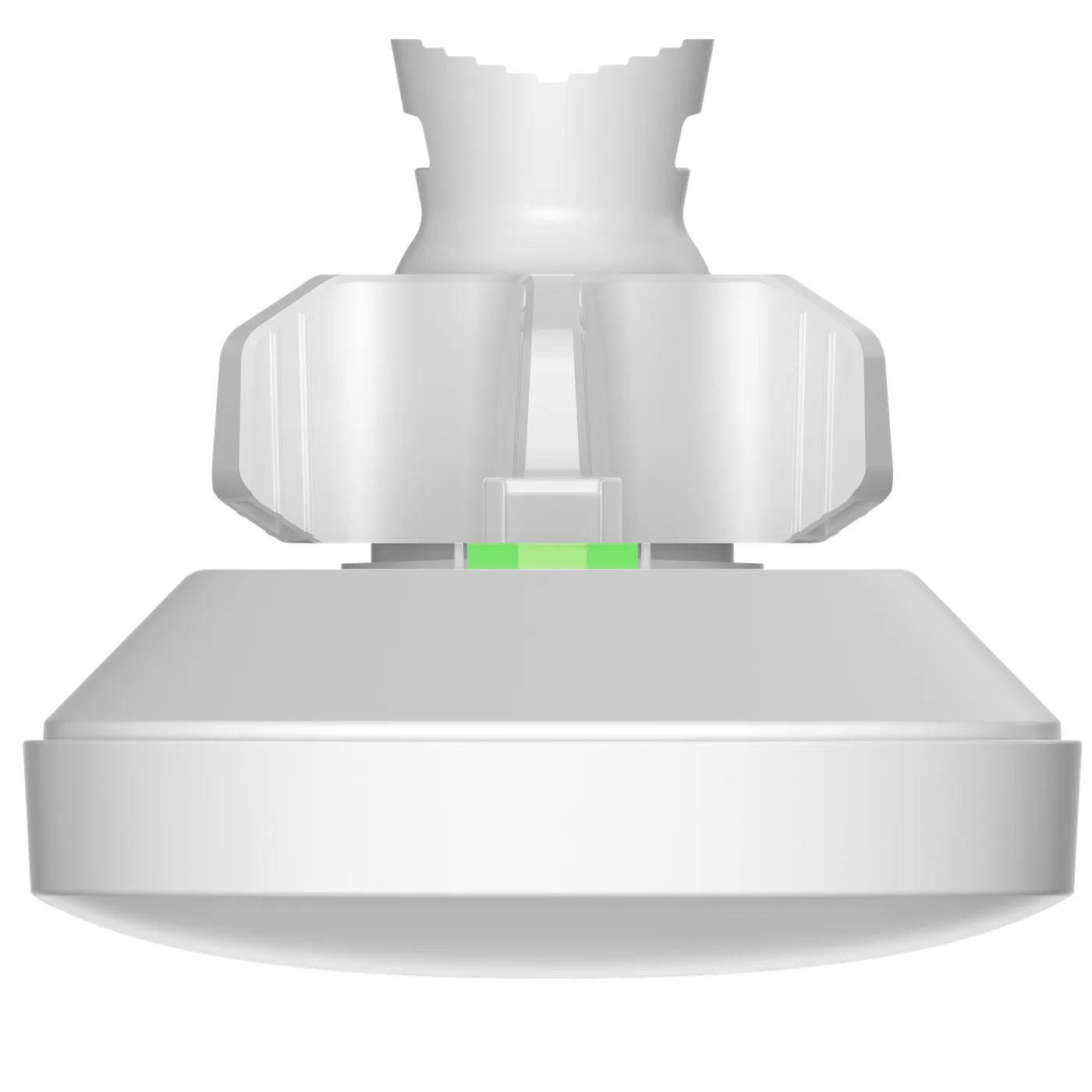

The Lysora Base5i is the base-station end of a wireless bridge network: a 15 dBi directional antenna with 120° horizontal coverage serves CPE clients up to 5 km away at up to 867 Mbps on 5 GHz.

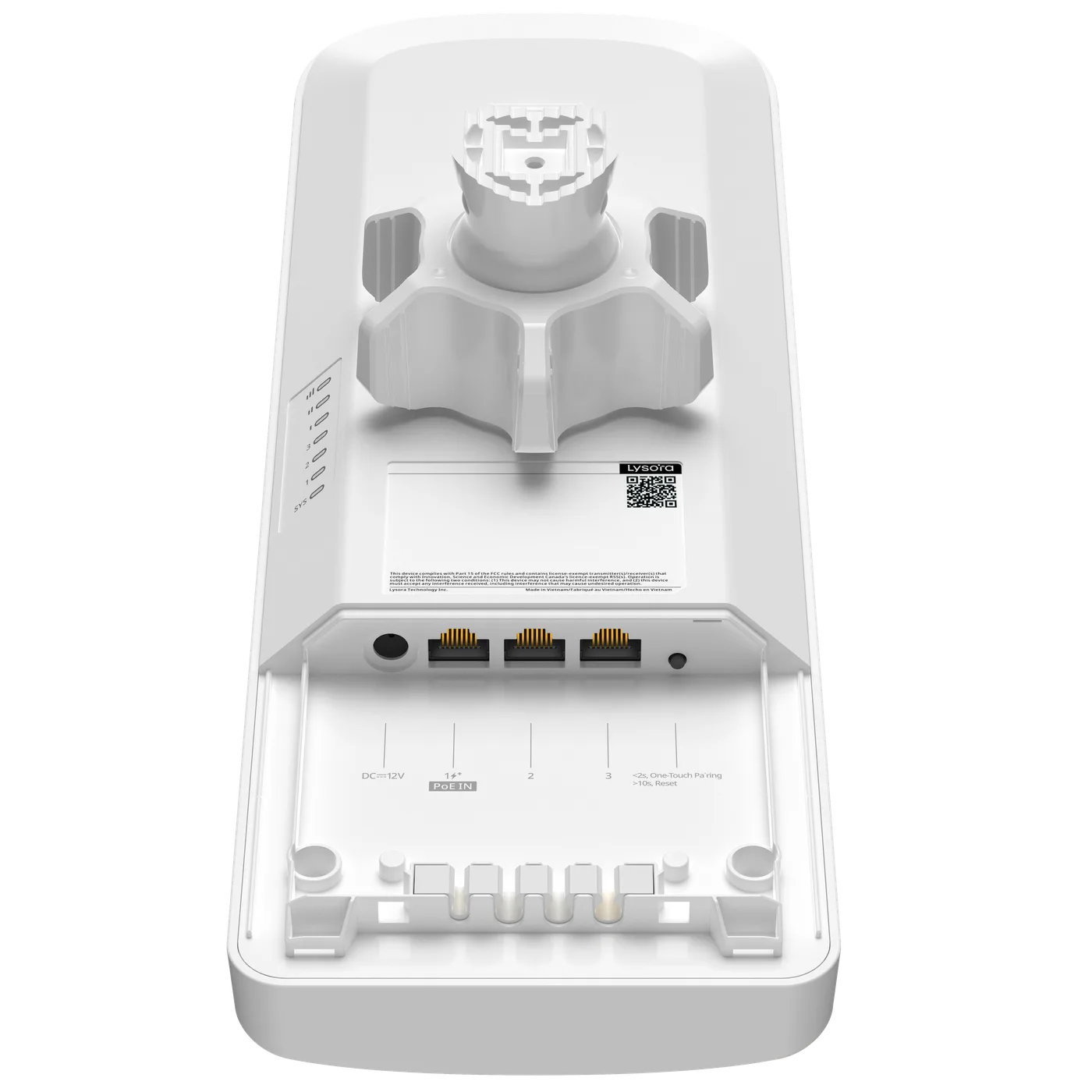

It supports BaseStation and CPE working modes, TDMA bridging, spectrum scan, and VLANs, with three gigabit Ethernet ports at the mast and web, cloud, SSH, and SNMP management.
The IP55 body wall- or pole-mounts and runs -30 to +65 °C — typically one Base5i on a central tower serving CPE5/CPE3-P units at remote buildings and camera poles.
Applications
Where the Base5i is deployed
Downloads
Base5i documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- Base5i Datasheet (PDF)Available on RequestRequest on WhatsApp
- Base5i User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the Base5i
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Wireless Bridges
Wireless Bridges- 13 dBi
- 3 km range
- PoE out 15.4 W
Wireless Access Points- Outdoor IP68
- RJ45 + SFP
- 512 clients
Before You Enquire
Frequently asked questions
How many CPEs can one Base5i serve?
The Base5i's 120° sector with TDMA timing serves multiple CPE clients; Lysora's paired CPE5 and CPE3-P specify point-to-multipoint operation with up to 5 CPEs per link group. Exact counts depend on distance and per-client bandwidth needs.
See the CPE5Do I need line of sight for a 5 km bridge link?
Yes — 5 GHz bridge links need clear line of sight between the Base5i and each CPE. Trees, buildings, and terrain in the path reduce rate and reliability; survey the path before committing to mounting points.
What is the price of the Base5i in India?
Pricing is quotation-based with dealer slabs for registered partners. Bridges are usually quoted as a set — base station plus CPEs — so share your link plan and receive priced options within 24 working hours.
