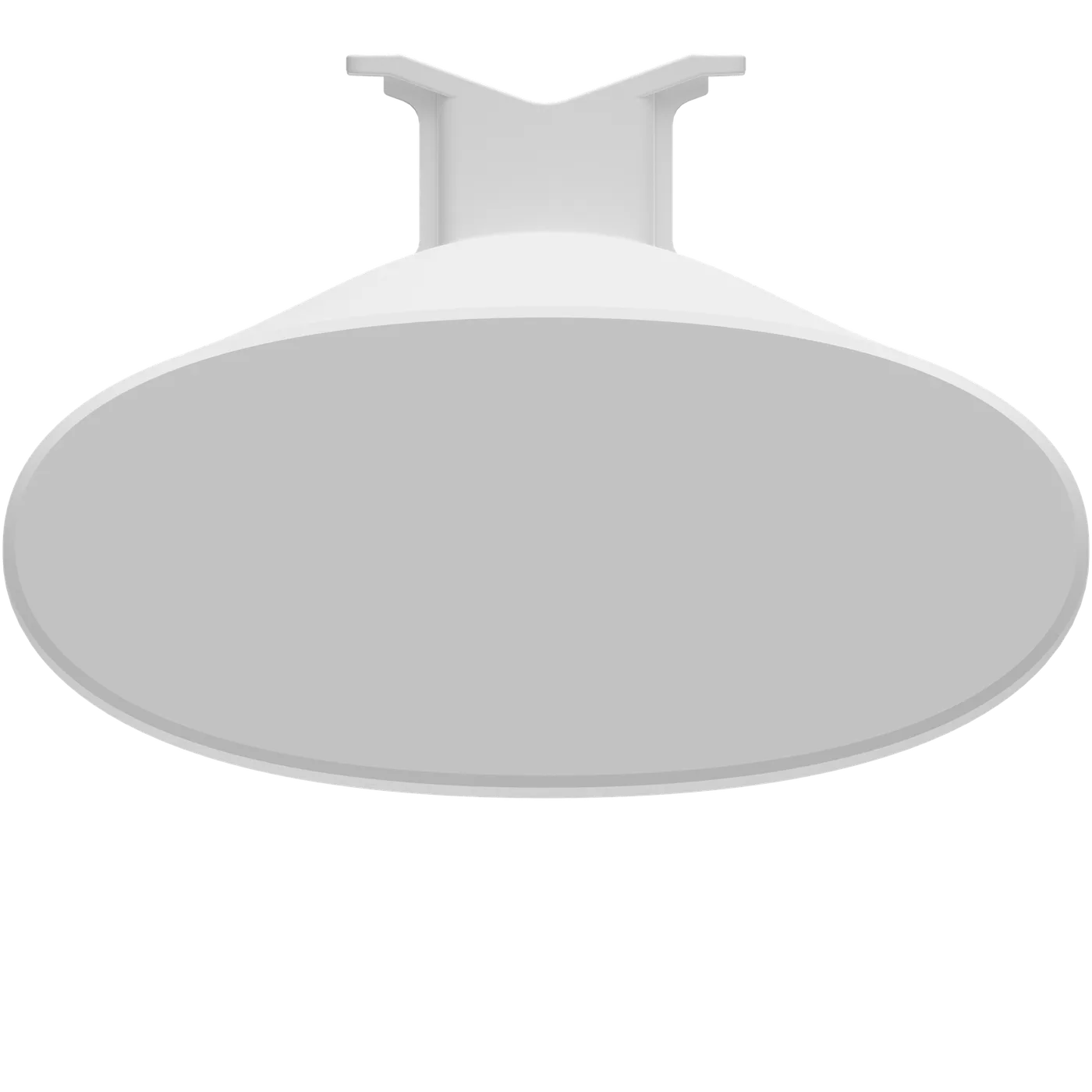

L7-T
Wi-Fi 7 BE5040 Outdoor Access Point
PricingContact for Best Price
- Class
- Wi-Fi 7 BE5040 dual-band
- Radios
- 688 + 4323 Mbps
- Clients
- 511 total
- Port
- 1× 2.5GBASE-T
- Rating
- IP65, -30 to +65 °C
- Power
- PoE+, ≤21 W (spec table)
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Key Features
What the L7-T is built to do
Technical Specifications
L7-T specifications
Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.
| Radio | |
|---|---|
| Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Rates | 688 + 4323 Mbps (BE5040; features text says BE5000 — specification confirmed during quotation) |
| MIMO | 2×2 + 3×3, 5 streams |
| Clients | 511 total |
| Antennas | 3.62 / 6.28 dBi |
| Interfaces & Power | |
|---|---|
| Ethernet | 1× 2.5GBASE-T |
| Power | PoE+; ≤21 W (spec) / <18 W (features) — specification confirmed during quotation |
| Management | Lysora Cloud, web |
| Physical & Environmental | |
|---|---|
| Dimensions | 90 × 46 × 239 mm |
| Weight | ≤0.7 kg |

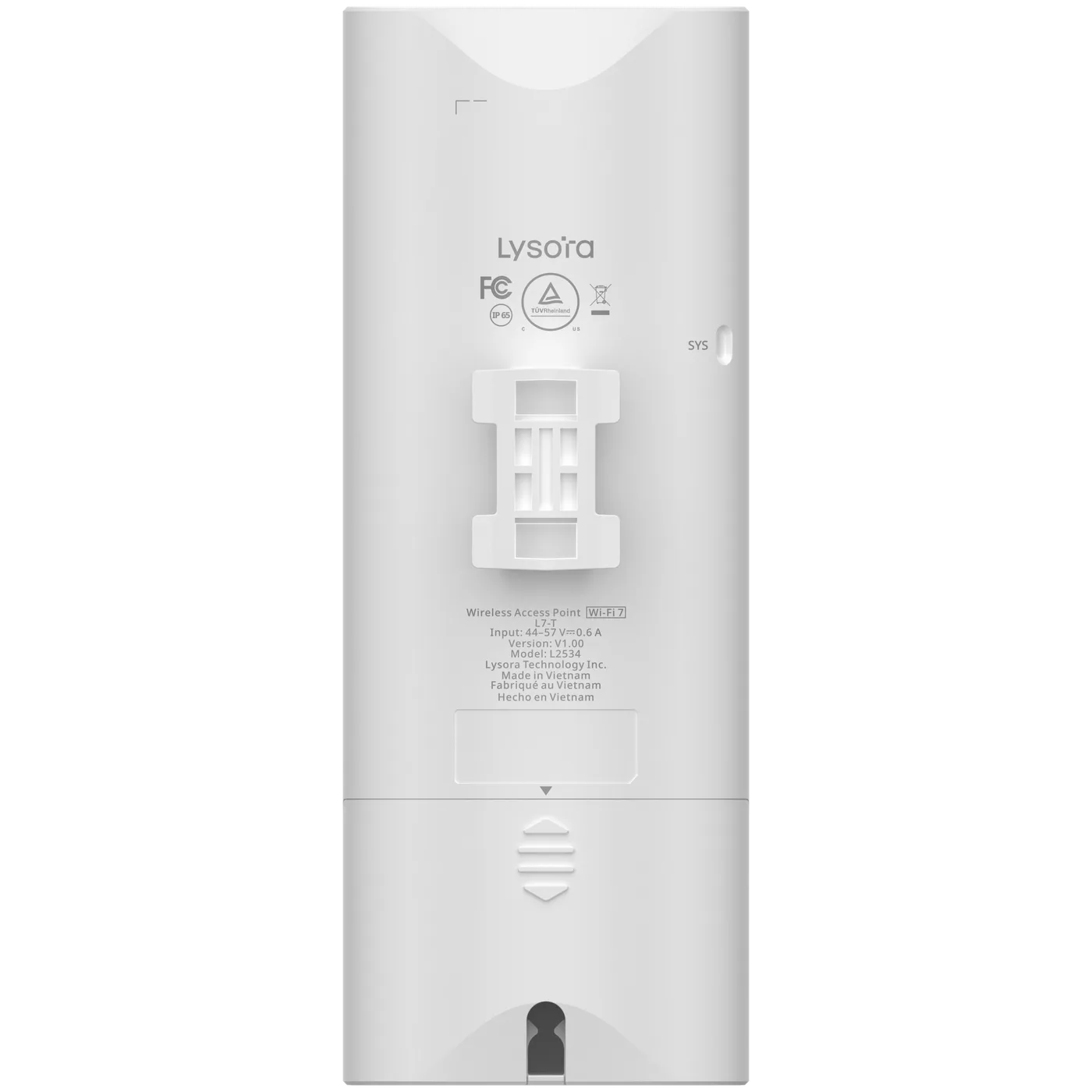

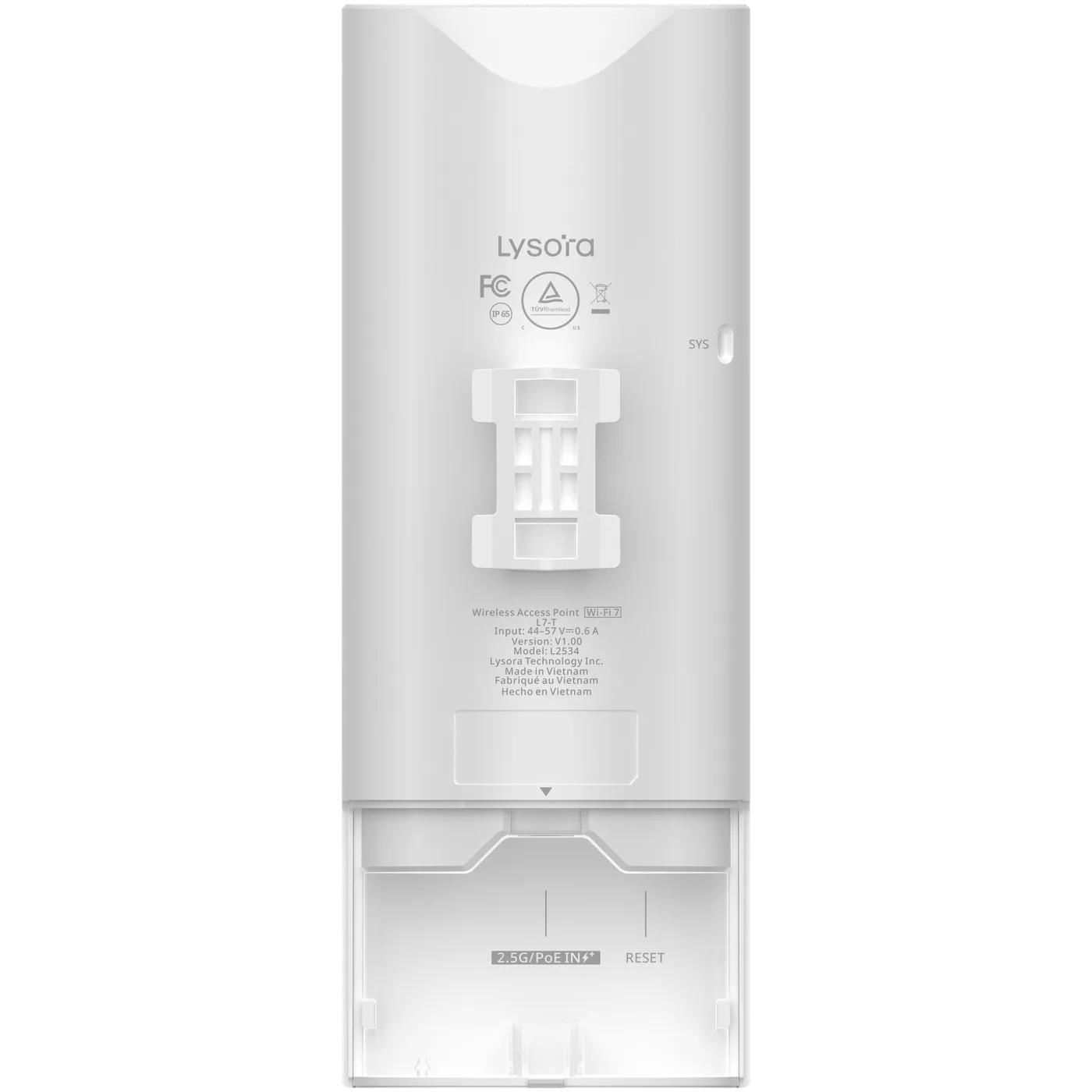

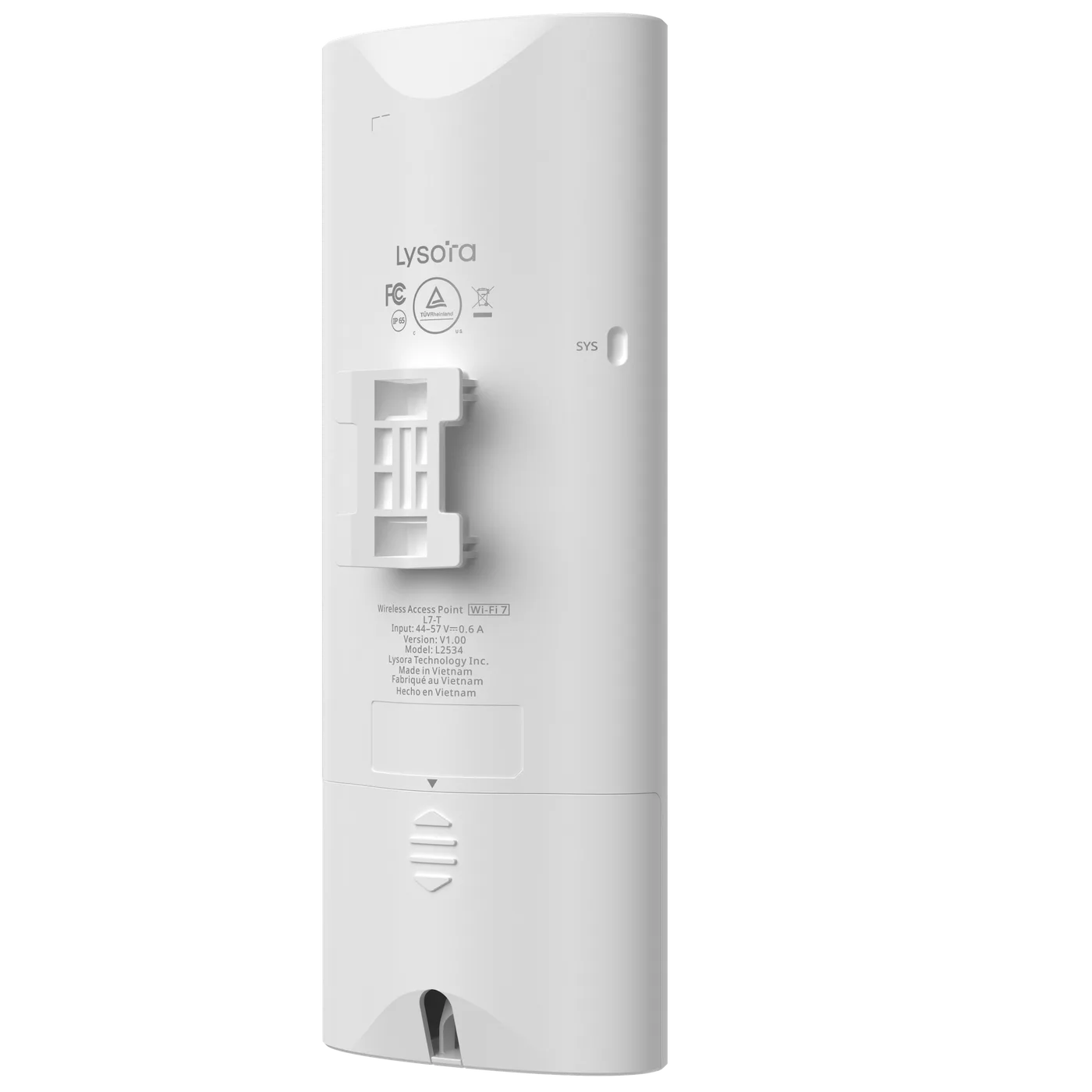

| Mounting | Wall / pole |
| Ingress protection | IP65 |
| Operating temperature | -30 °C to +65 °C |
| Compliance | |
|---|---|
| Certifications | FCC, IC, cTUVus; NDAA compliant |
Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.
Overview
About the L7-T
The Lysora L7-T takes Wi-Fi 7 outdoors: dual-band BE5040 (688 + 4323 Mbps, five streams) in an IP65 enclosure rated -30 to +65 °C, with 3.62/6.28 dBi antennas for area coverage.

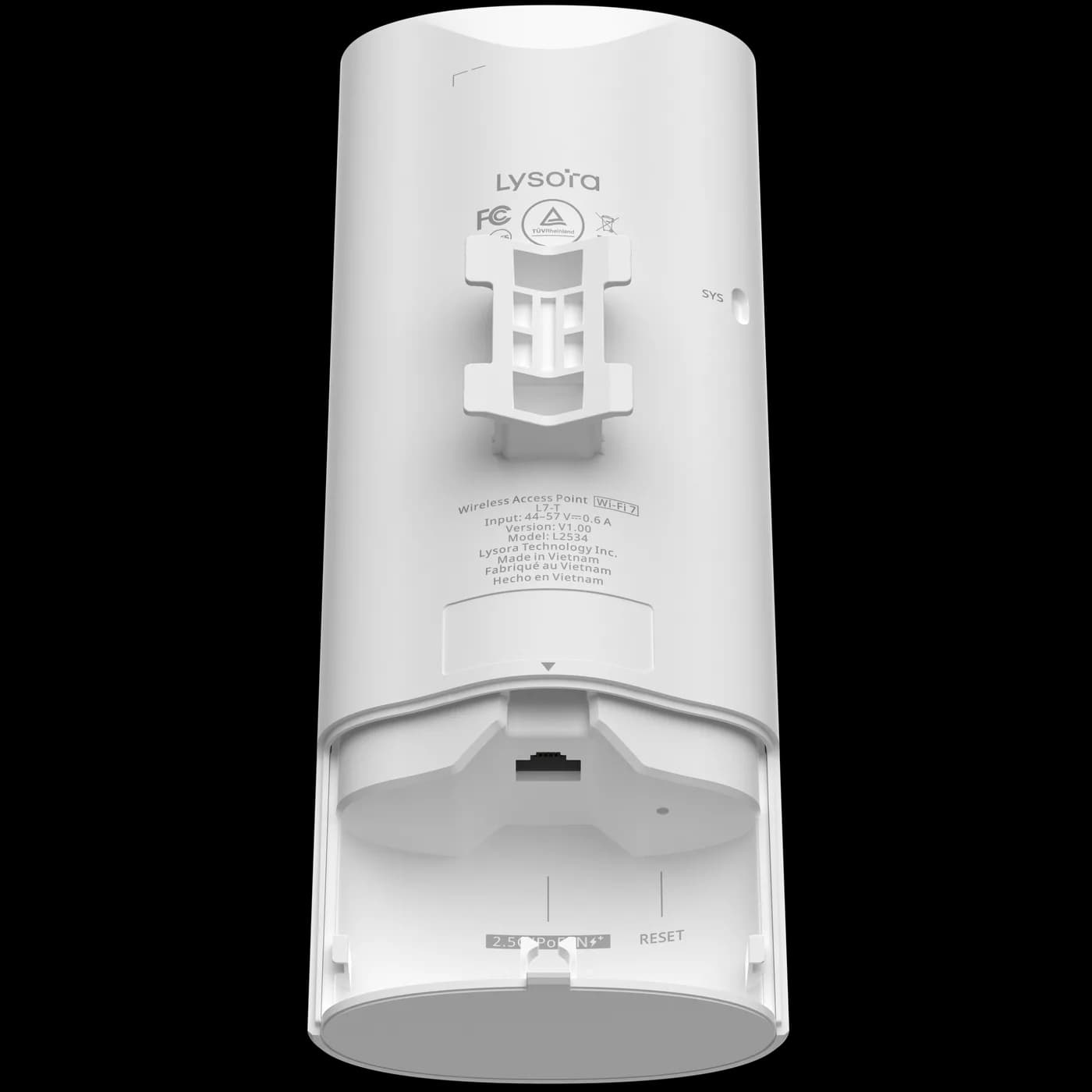

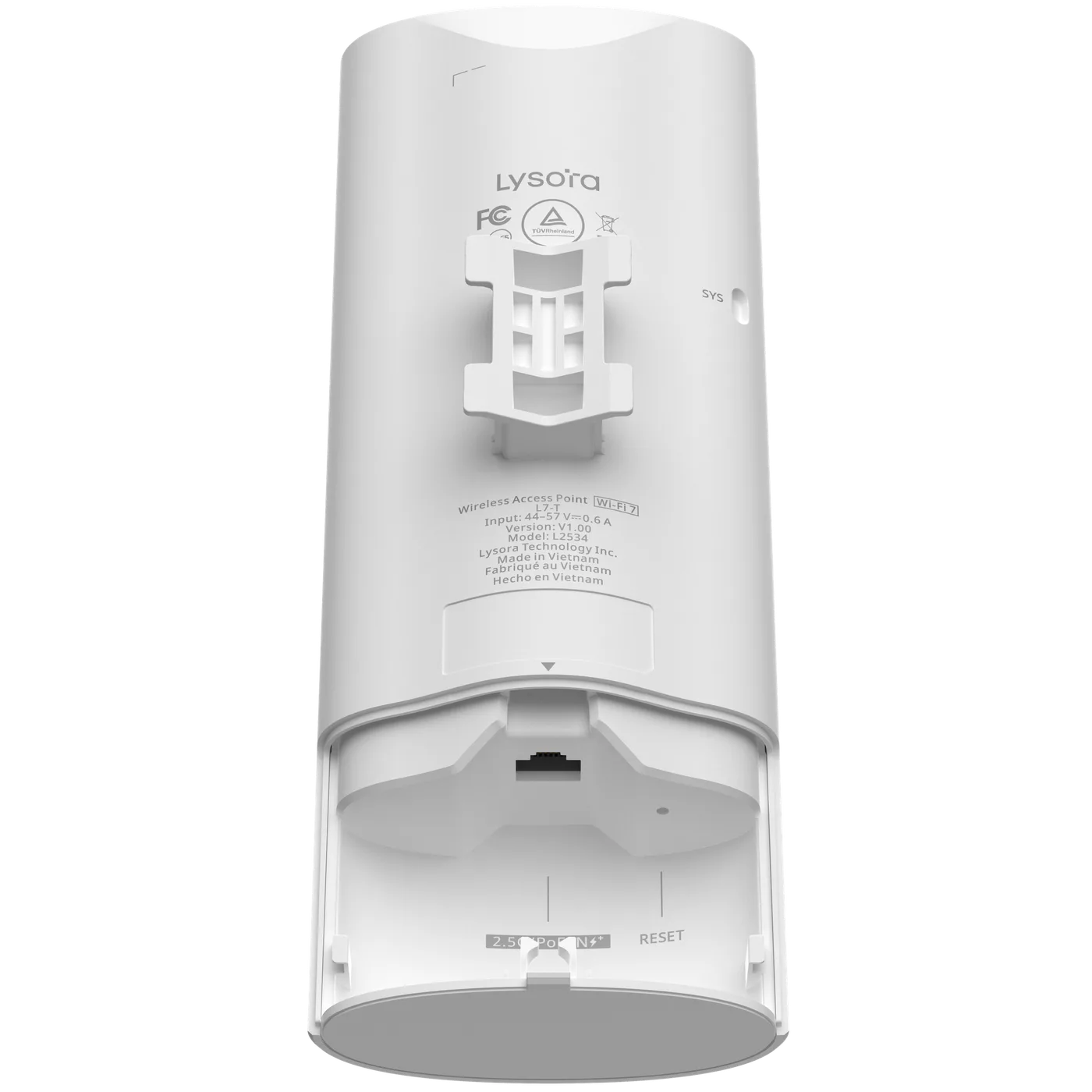

A 2.5GBASE-T port carries backhaul and PoE+ power (≤21 W per the spec table; the features text says <18 W — an official-page inconsistency we flag).
Wall- or pole-mounted at gates, courtyards, and outdoor seating, it joins the same Lysora Cloud estate as the indoor L-series with roaming and meshing.
Applications
Where the L7-T is deployed
Downloads
L7-T documents
Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.
- L7-T Datasheet (PDF)Available on RequestRequest on WhatsApp
- L7-T User ManualAvailable on RequestRequest on WhatsApp
Related Products
Pairs with the L7-T
Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.
- Wireless Access Points
Wireless Access Points- Outdoor IP68
- RJ45 + SFP
- 512 clients
Managed Switches- 8× 2.5G PoE+
- 2× 10G SFP+
- L2 + static routing
Related Resources
Guides that cover the L7-T
Selection and background reading from our technical team.
Before You Enquire
Frequently asked questions
Is the L7-T fully outdoor rated?
Yes — IP65 sealing with a -30 to +65 °C operating range covers Indian summers in full sun and cold-climate sites. Mount it under a small overhang where possible to extend service life, as with any outdoor radio.
Is the L7-T BE5040 or BE5000?
Lysora's page titles it BE5040 with 688 + 4323 Mbps radio rates, while one features line says BE5000 — an official-page inconsistency. We publish the spec-table numbers and confirm the datasheet designation on quotation.
What is the price of the L7-T in India?
Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the L7-T and quantity, and you receive priced options with stock confirmation within 24 working hours.
