Lysora · Industrial Switches

LCST-8GT2SFP-HP

8-Port Industrial Cloud Managed PoE Switch

PricingContact for Best Price
Ports
8× RJ45 (7× PoE+, 1× PoE++)
Uplinks
2× 1GE SFP
PoE budget
228 W default / 300 W max
Management
Web / Cloud / App
Temperature
-40 °C to +75 °C
Warranty
3 years (manufacturer)
Request QuoteUpload BOQWhatsApp
  • Ready Stock
  • PAN India Supply
  • Same Day Dispatch*
  • GST Billing
  • BOQ Assistance

*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.

Key Features

What the LCST-8GT2SFP-HP is built to do

PoE++ port

One high-power port for PTZ or heated housings, beside 7× PoE+.

-40 to +75 °C

Widest temperature rating in the Lysora line.

Cloud managed

Remote PoE control for unmanned cabinets.

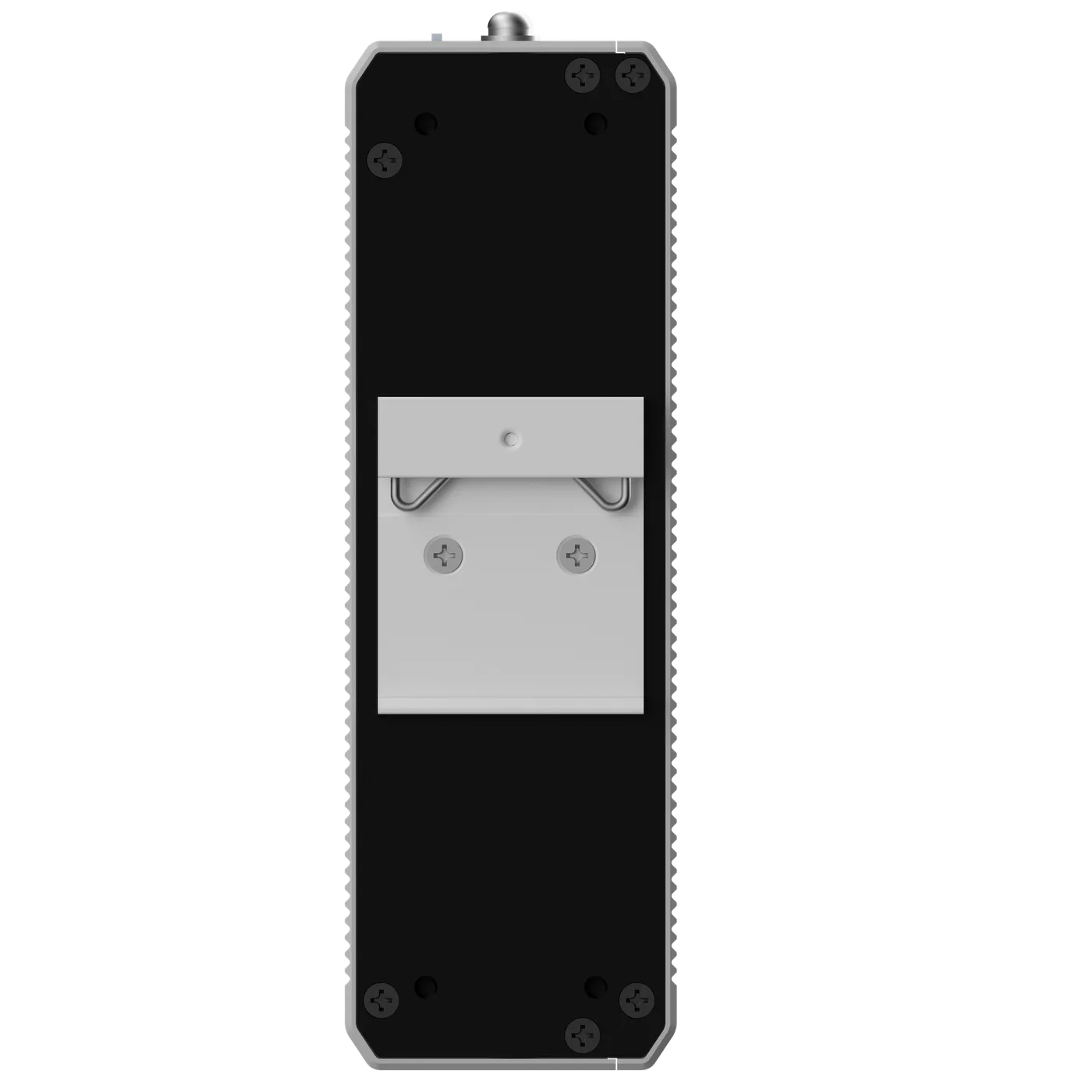

Compact DIN body

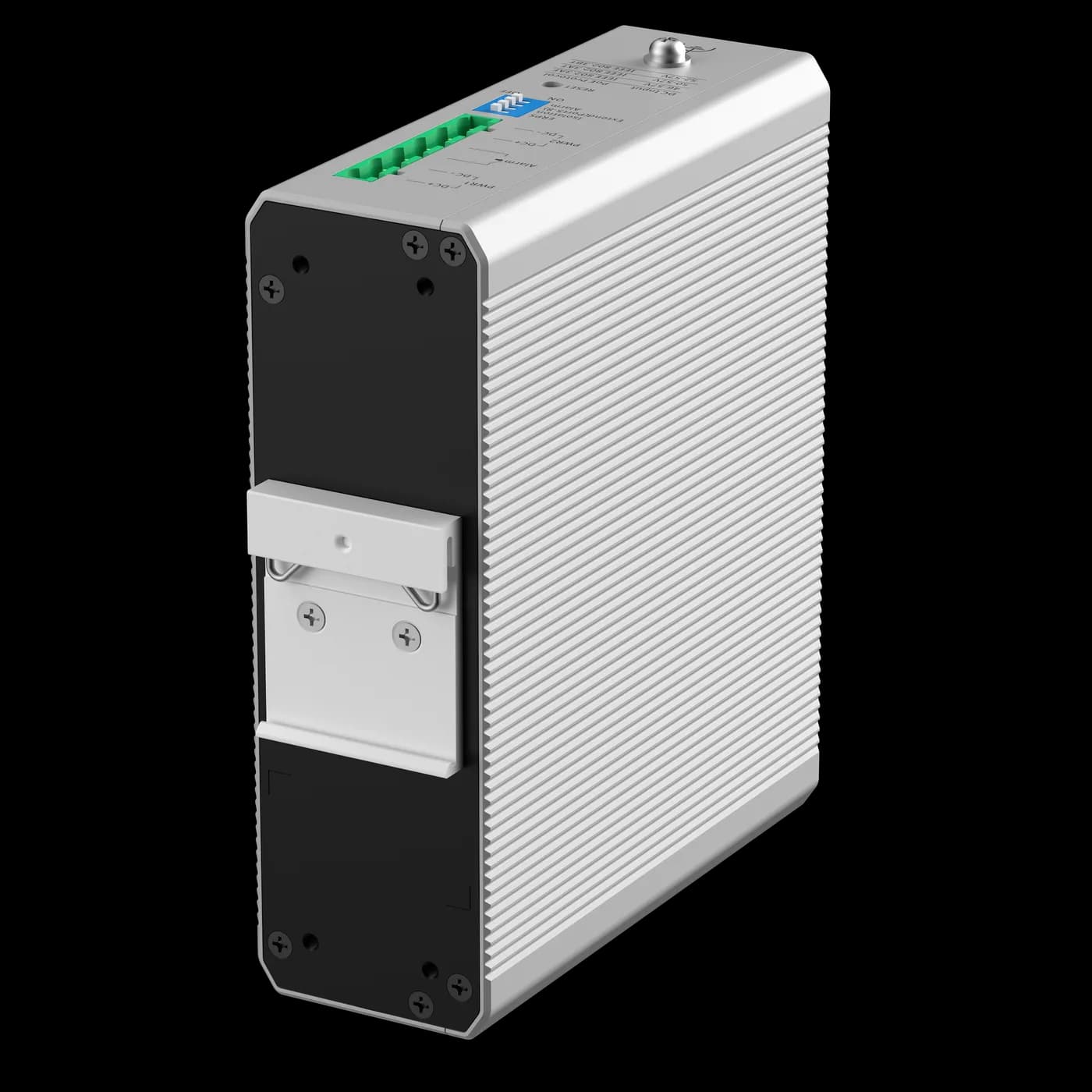

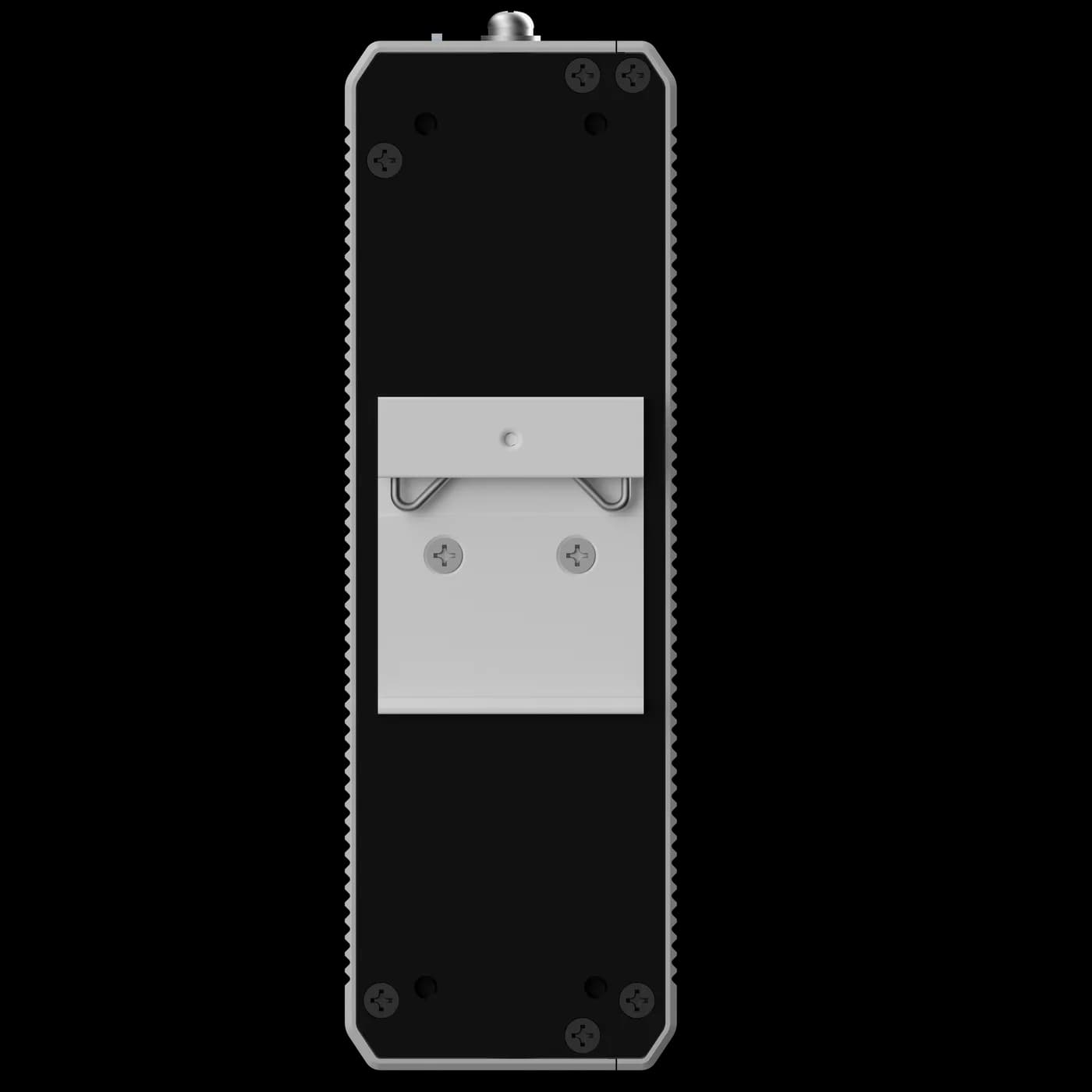

50 × 155 × 130 mm, 0.79 kg, IP40 fanless.

15 kV air ESD

8 kV contact — hardened for field wiring.

NDAA compliant

FCC and IC certified.

Technical Specifications

LCST-8GT2SFP-HP specifications

Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.

Interfaces specifications
Interfaces
RJ45 ports8 (official spec table: 10/100BASE-T; product titled Gigabit — specification confirmed during quotation)
SFP slots2× 1GE SFP
PoE specifications
PoE
Port split7× PoE+ + 1× PoE++
Total budget228 W default / 300 W max
Performance specifications
Performance
Switching capacity20 Gbps
Forwarding rate14.8 Mpps
Buffer / Flash4.1 Mbit / 8 MB
Physical & Environmental specifications
Physical & Environmental
Dimensions50 × 155 × 130 mm
Weight0.79 kg
Ingress protectionIP40, fanless

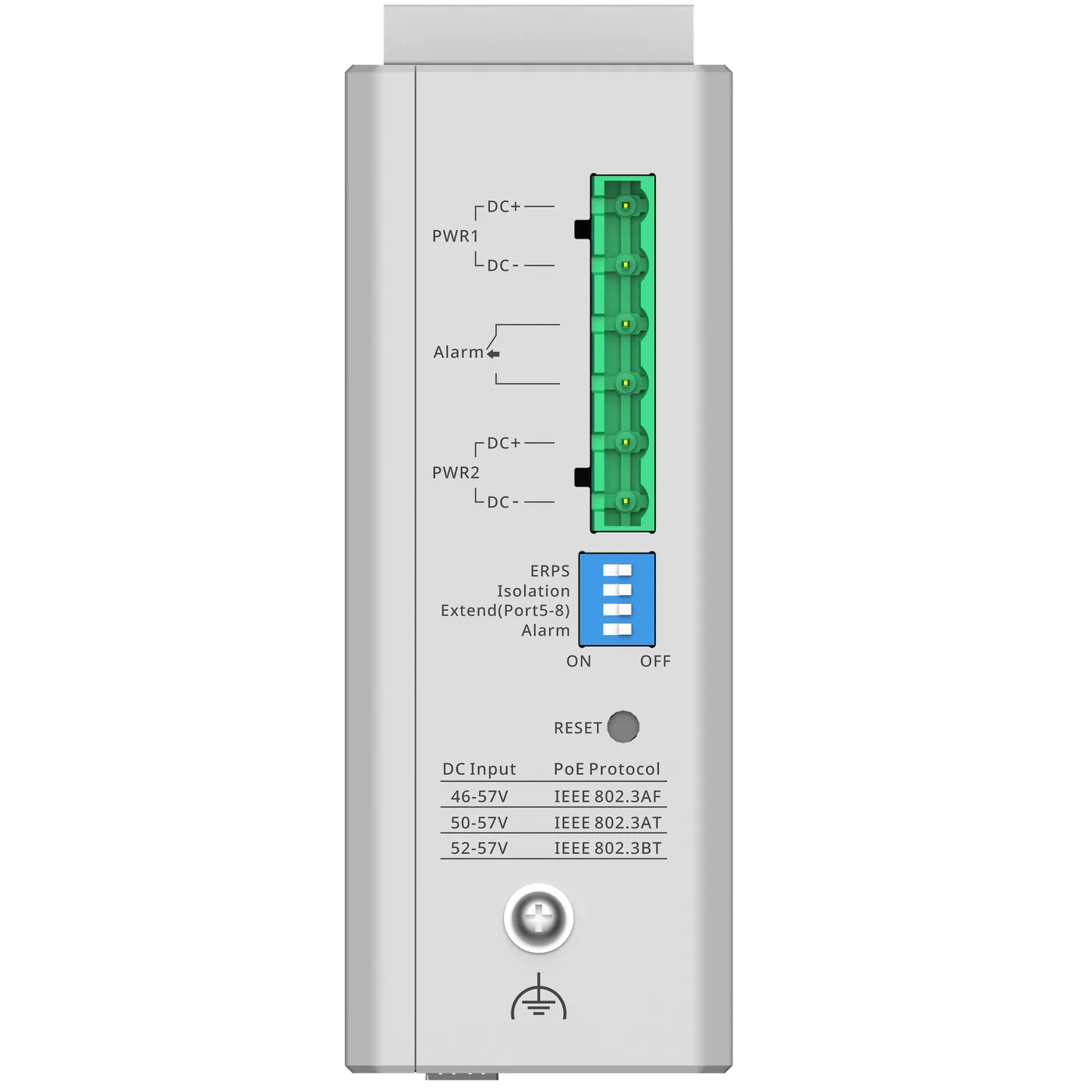

Power input46–57 V DC, 7 A
Consumption312 W max
Operating temperature-40 °C to +75 °C
MTBF200,000 hours
ESD15 kV air / 8 kV contact
Compliance & Warranty specifications
Compliance & Warranty
CertificationsFCC, IC; NDAA compliant
Warranty3 years

Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.

Overview

About the LCST-8GT2SFP-HP

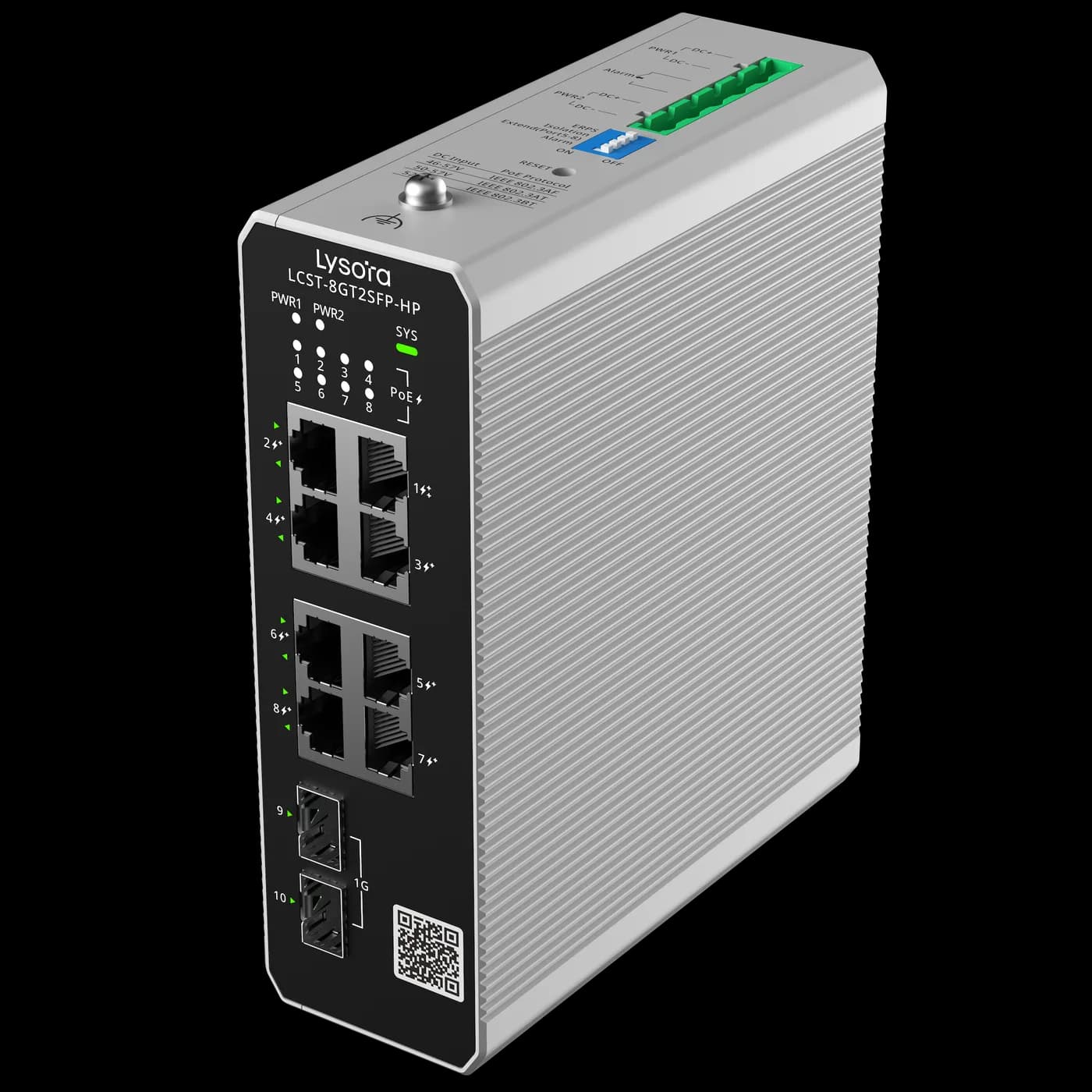

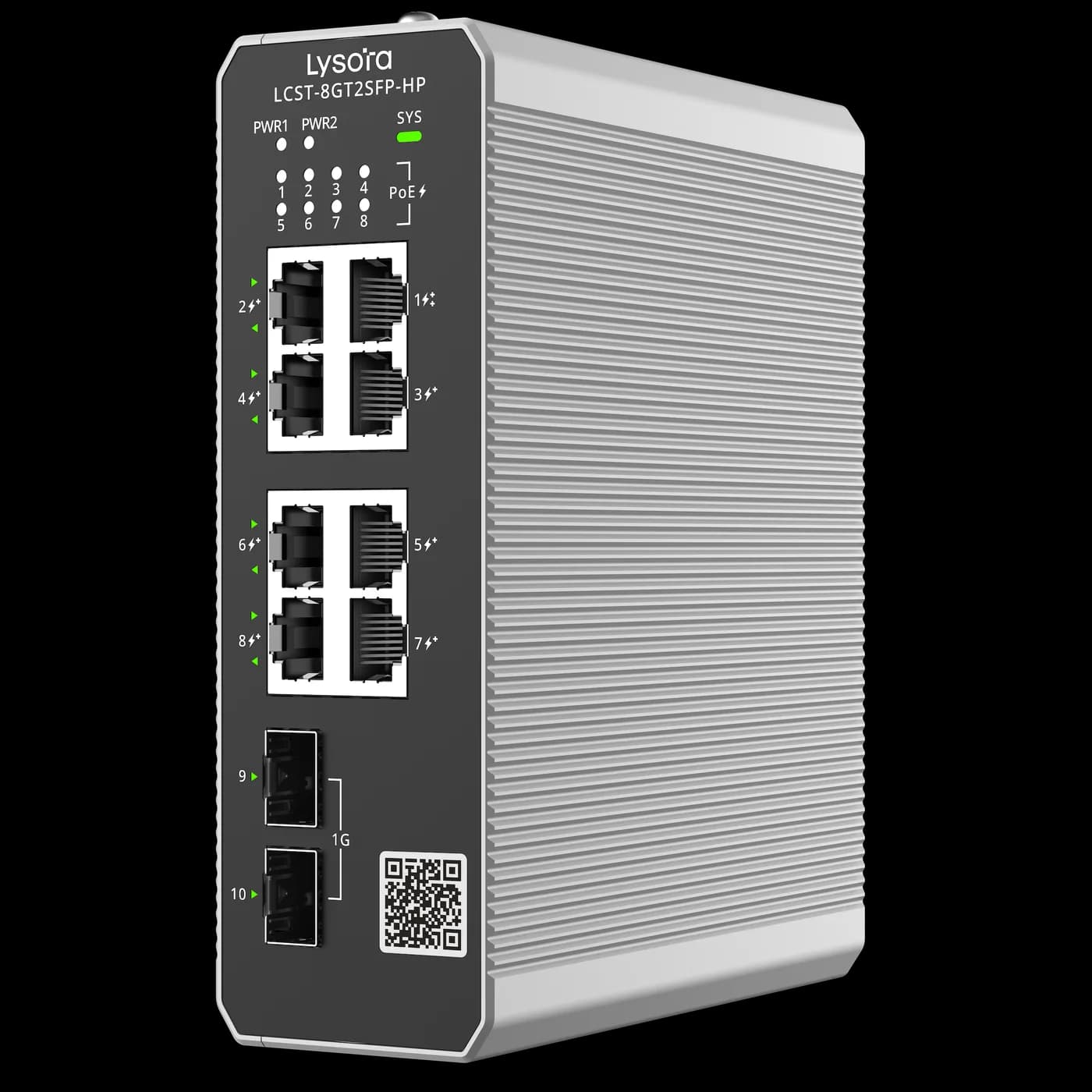

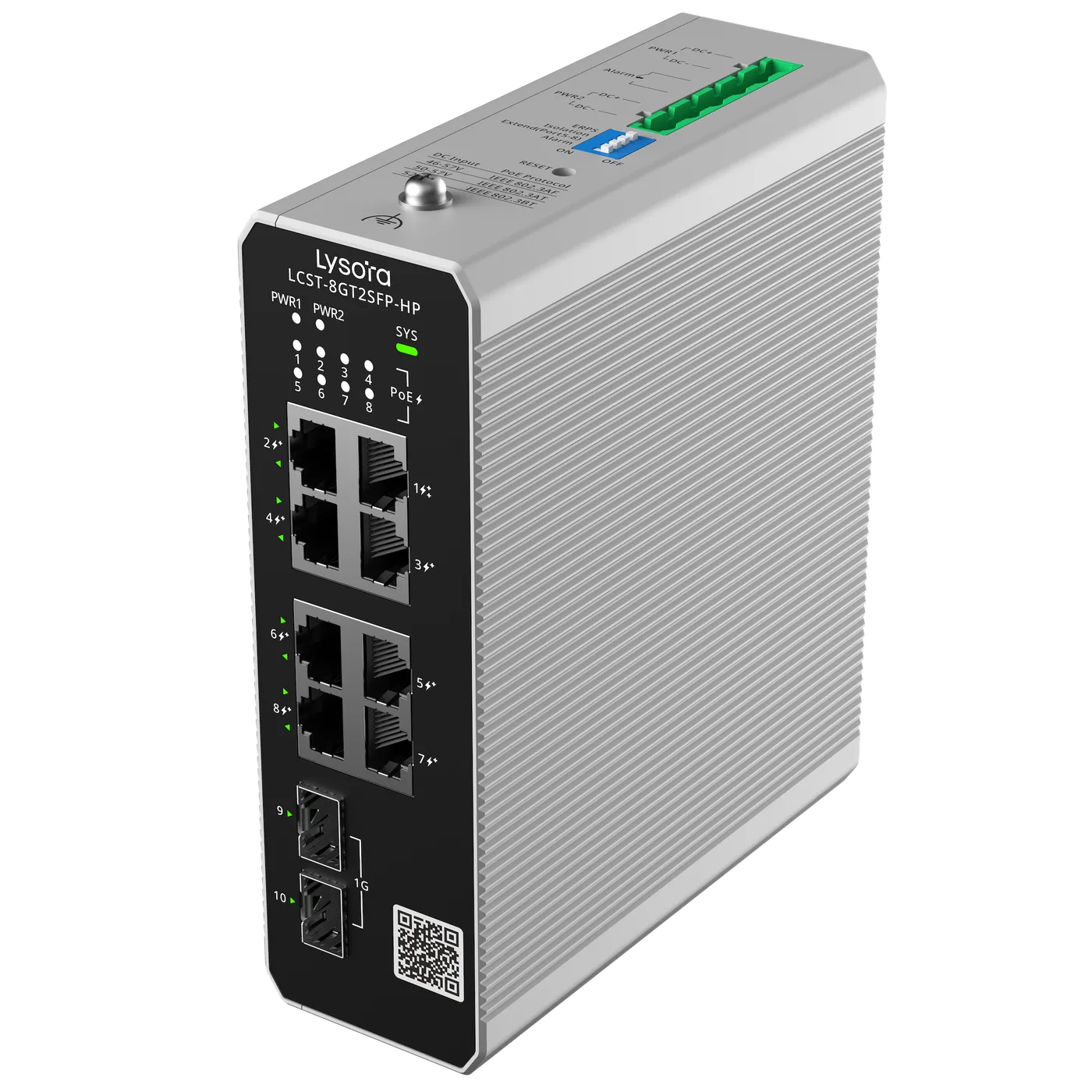

The Lysora LCST-8GT2SFP-HP is an industrial cloud managed PoE switch: eight RJ45 ports (7× PoE+ and 1× PoE++ for high-draw devices) with a 228 W default / 300 W maximum budget, plus two gigabit SFP slots.

The compact DIN-rail/wall body is fanless, IP40, and rated -40 to +75 °C, managed remotely through Lysora Cloud, app, or web — remote oversight for cabinets nobody visits.

The PoE++ port powers a PTZ camera, heater-equipped housing, or high-power AP alongside seven standard PoE+ devices.

Applications

Where the LCST-8GT2SFP-HP is deployed

PTZ camera poles

PoE++ for the PTZ, PoE+ for fixed cameras around it.

Remote roadside cabinets

Cloud-managed PoE where site visits are costly.

Plant floor panels

DIN-rail PoE beside controllers.

Rooftop enclosures

+75 °C rating for sealed boxes in full sun.

Downloads

LCST-8GT2SFP-HP documents

Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.

Related Products

Pairs with the LCST-8GT2SFP-HP

Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.

Why Buy From Lizora Infotech

A supply partner, not just a price list

Ready Stock Availability

Fast-moving SKUs held in the Delhi NCR warehouse, with availability confirmed on every quotation.

PAN India Supply Network

Surface and air cargo delivery to every state, with GST invoicing and e-way bills handled end to end.

BOQ & Solution Consultation

Bill-of-quantities reviewed line by line, with alternatives suggested for out-of-stock or discontinued items.

Technical Pre-Sales Consulting

Switch sizing, PoE budgets, VLAN design, and GPON planning reviewed by our technical team before you commit.

Dedicated B2B Sales Support

A named point of contact for quotes, stock checks, and RMA — not a ticket queue.

Request Dealer Pricing

Related Resources

Guides that cover the LCST-8GT2SFP-HP

Selection and background reading from our technical team.

  • Buying Guides

    Industrial Switch Buying Guide

    When a commercial switch is the wrong choice, and how to specify an industrial one: temperature rating, mounting, DC input, ingress protection, and surge tolerance.

  • Networking Basics

    Industrial Ethernet Basics

    Why industrial networks are built differently: environment, DC power, redundancy, and the separation of OT traffic from IT traffic on shared cabling.

Before You Enquire

Frequently asked questions

What does the PoE++ port on the LCST-8GT2SFP-HP power?

PoE++ delivers substantially more power than PoE+ on that single port — suited to PTZ cameras, heated camera housings, and high-power access points. The other seven ports supply standard PoE+ devices from the shared 228 W (300 W max) budget.

How is this switch managed in remote cabinets?

Through Lysora Cloud and the app, alongside the local web interface. Remote PoE port control means a hung camera in a roadside cabinet can be power-cycled from the office instead of a site visit.

What is the price of the LCST-8GT2SFP-HP in India?

Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LCST-8GT2SFP-HP and quantity, and you receive priced options with stock confirmation within 24 working hours.
