Lysora · Industrial Switches

LS2T-8GT2SFP-HP

8-Port Industrial Layer 2 Managed PoE Switch

PricingContact for Best Price
Ports
8× GbE PoE/PoE+
Uplinks
2× 1GE SFP
PoE budget
240 W
Mounting
DIN-rail / wall, IP40
Temperature
-40 °C to +65 °C
Warranty
3 years (manufacturer)
Request QuoteUpload BOQWhatsApp
  • Ready Stock
  • PAN India Supply
  • Same Day Dispatch*
  • GST Billing
  • BOQ Assistance

*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.

Key Features

What the LS2T-8GT2SFP-HP is built to do

-40 to +65 °C rated

To +80 °C in ventilated cabinets — built for Indian rooftop boxes.

240 W PoE/PoE+ budget

Powers PTZ cameras and heaters at the harsh edge.

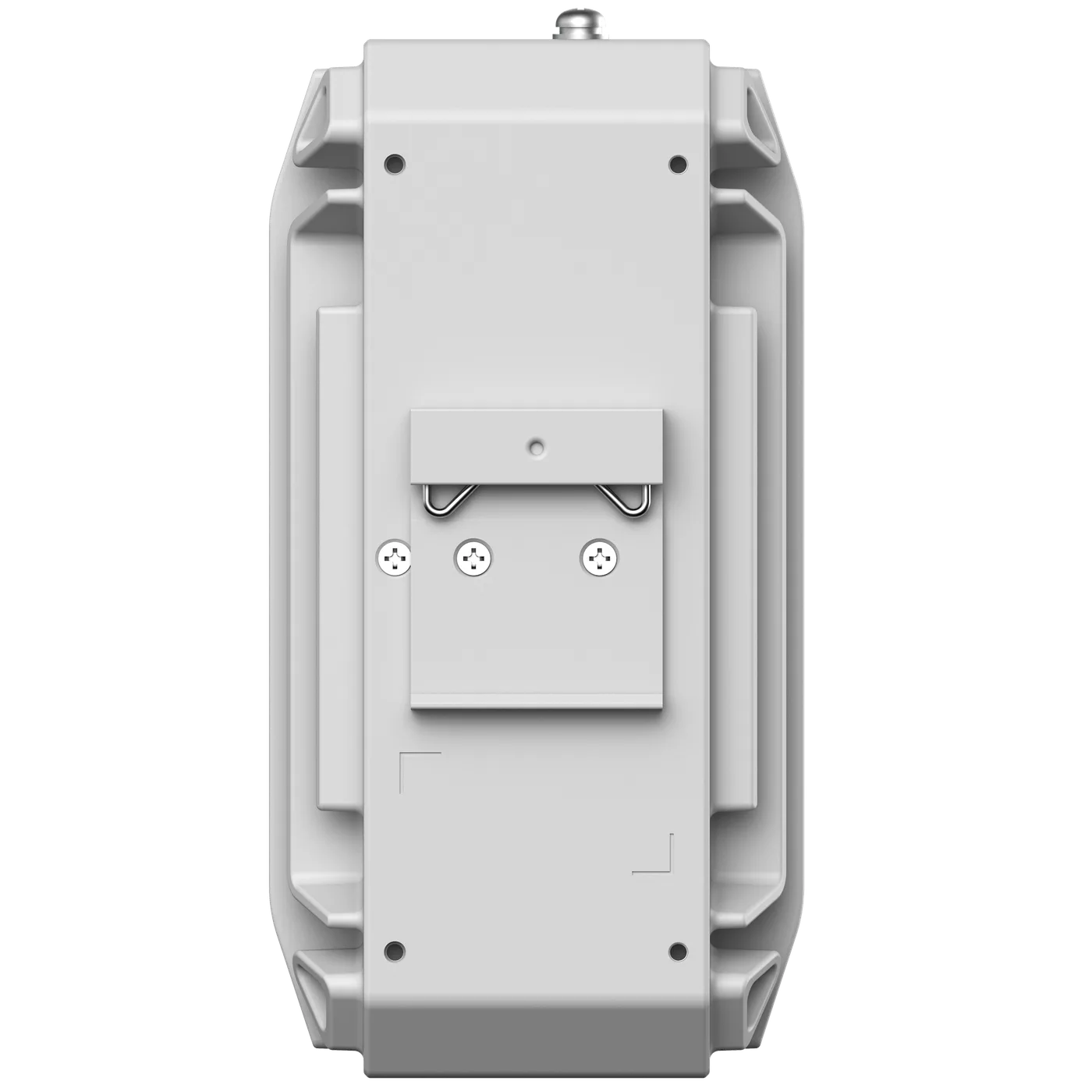

DIN-rail + wall mount

Fits machine panels beside PLCs; IP40 fanless metal body.

12–56 V DC input

Runs from panel DC or solar-battery banks.

L2 managed

VLANs to 4094 — OT/IT separation at the edge.

±6 kV surge

Service-port protection sized for field wiring.

Technical Specifications

LS2T-8GT2SFP-HP specifications

Specifications as published for this model. Confirm project-critical values against the datasheet before ordering.

Interfaces specifications
Interfaces
RJ45 ports8× 10/100/1000BASE-T, PoE/PoE+
SFP slots2× 1GE SFP
PoE specifications
PoE
Total budget240 W
Performance specifications
Performance
Switching capacity20 Gbps
Forwarding rate14.88 Mpps
MAC address table8,000 entries
Buffer / Flash4.1 Mbit / 16 MB
VLANUp to 4094
Physical & Environmental specifications
Physical & Environmental
Dimensions85 × 132 × 165 mm
Weight1.42 kg
Ingress protectionIP40, fanless
Power input12–56 V DC
Consumption260 W max (46–56 V DC)
Operating temperature-40 °C to +65 °C (+80 °C ventilated)
MTBF400,000 hours
Surge±6 kV service / ±4 kV power
Compliance & Warranty specifications
Compliance & Warranty
CertificationsFCC, IC, cTUVus
Warranty3 years

Specifications sourced from the official Lysora catalogue. Where official pages disagree on a value, it is marked and confirmed during quotation.

Overview

About the LS2T-8GT2SFP-HP

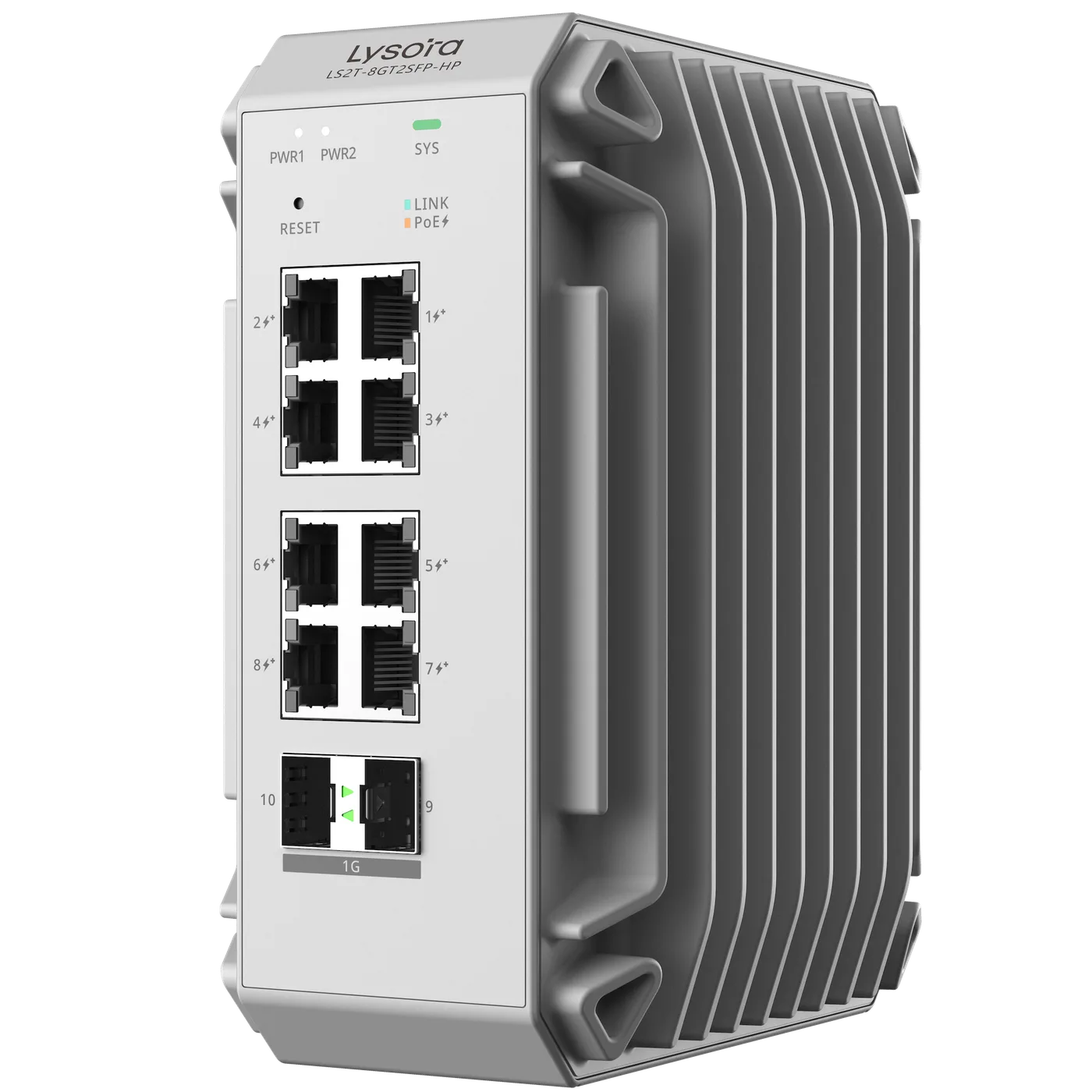

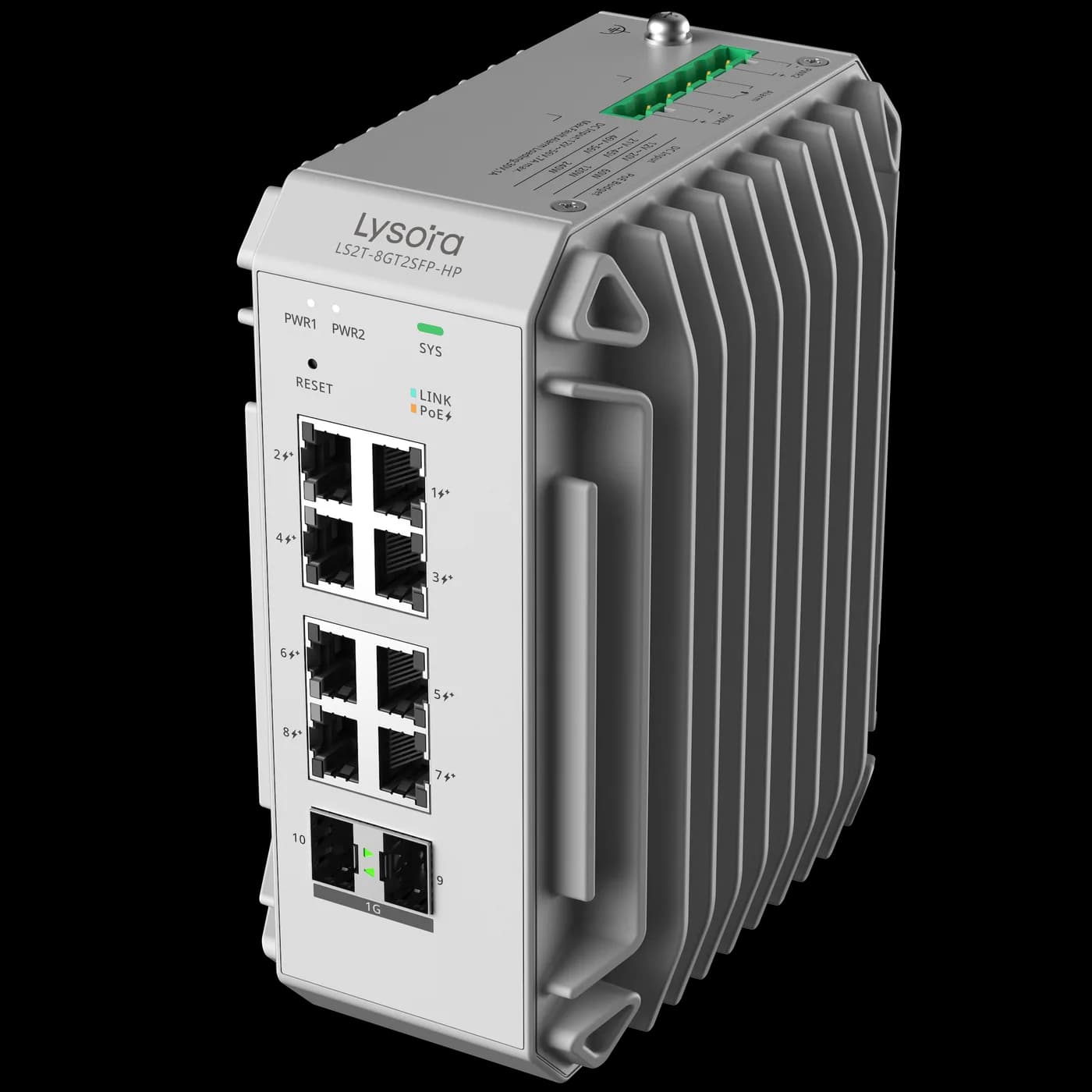

The Lysora LS2T-8GT2SFP-HP is an industrial Layer 2 managed PoE switch: eight gigabit PoE/PoE+ ports with a 240 W budget and two SFP slots, in a fanless IP40 metal body that DIN-rail or wall mounts.

It operates from -40 to +65 °C (to +80 °C ventilated) on 12–56 V DC input — the environmental envelope for outdoor cabinets, factory panels, and rooftop enclosures where commercial switches fail.

Full L2 management (VLANs to 4094) means OT and camera traffic stays segmented even at the harsh edge of the network.

Applications

Where the LS2T-8GT2SFP-HP is deployed

Factory panels

PoE and fiber beside PLCs on the same DIN rail.

Roadside cabinets

ANPR and signal equipment in sealed boxes.

Outdoor camera nodes

PTZ clusters on poles and perimeters.

Utility & rooftop sites

DC-powered enclosures without climate control.

Downloads

LS2T-8GT2SFP-HP documents

Datasheets and manuals are shared without sign-up. Documents not yet hosted online are sent on request within working hours.

Related Products

Pairs with the LS2T-8GT2SFP-HP

Edge PoE switches below it, SFP+ modules in its uplinks, and sibling models for smaller or larger sites.

Why Buy From Lizora Infotech

A supply partner, not just a price list

Ready Stock Availability

Fast-moving SKUs held in the Delhi NCR warehouse, with availability confirmed on every quotation.

PAN India Supply Network

Surface and air cargo delivery to every state, with GST invoicing and e-way bills handled end to end.

BOQ & Solution Consultation

Bill-of-quantities reviewed line by line, with alternatives suggested for out-of-stock or discontinued items.

Technical Pre-Sales Consulting

Switch sizing, PoE budgets, VLAN design, and GPON planning reviewed by our technical team before you commit.

Dedicated B2B Sales Support

A named point of contact for quotes, stock checks, and RMA — not a ticket queue.

Request Dealer Pricing

Related Resources

Guides that cover the LS2T-8GT2SFP-HP

Selection and background reading from our technical team.

  • Buying Guides

    Industrial Switch Buying Guide

    When a commercial switch is the wrong choice, and how to specify an industrial one: temperature rating, mounting, DC input, ingress protection, and surge tolerance.

  • Networking Basics

    Industrial Ethernet Basics

    Why industrial networks are built differently: environment, DC power, redundancy, and the separation of OT traffic from IT traffic on shared cabling.

Before You Enquire

Frequently asked questions

What temperature range does the LS2T-8GT2SFP-HP support?

It is rated for -40 °C to +65 °C, extending to +80 °C in ventilated cabinets. That covers sealed outdoor enclosures in Indian summers, where interior temperatures routinely exceed the 40–45 °C limit of commercial switches.

What power input does this industrial switch need?

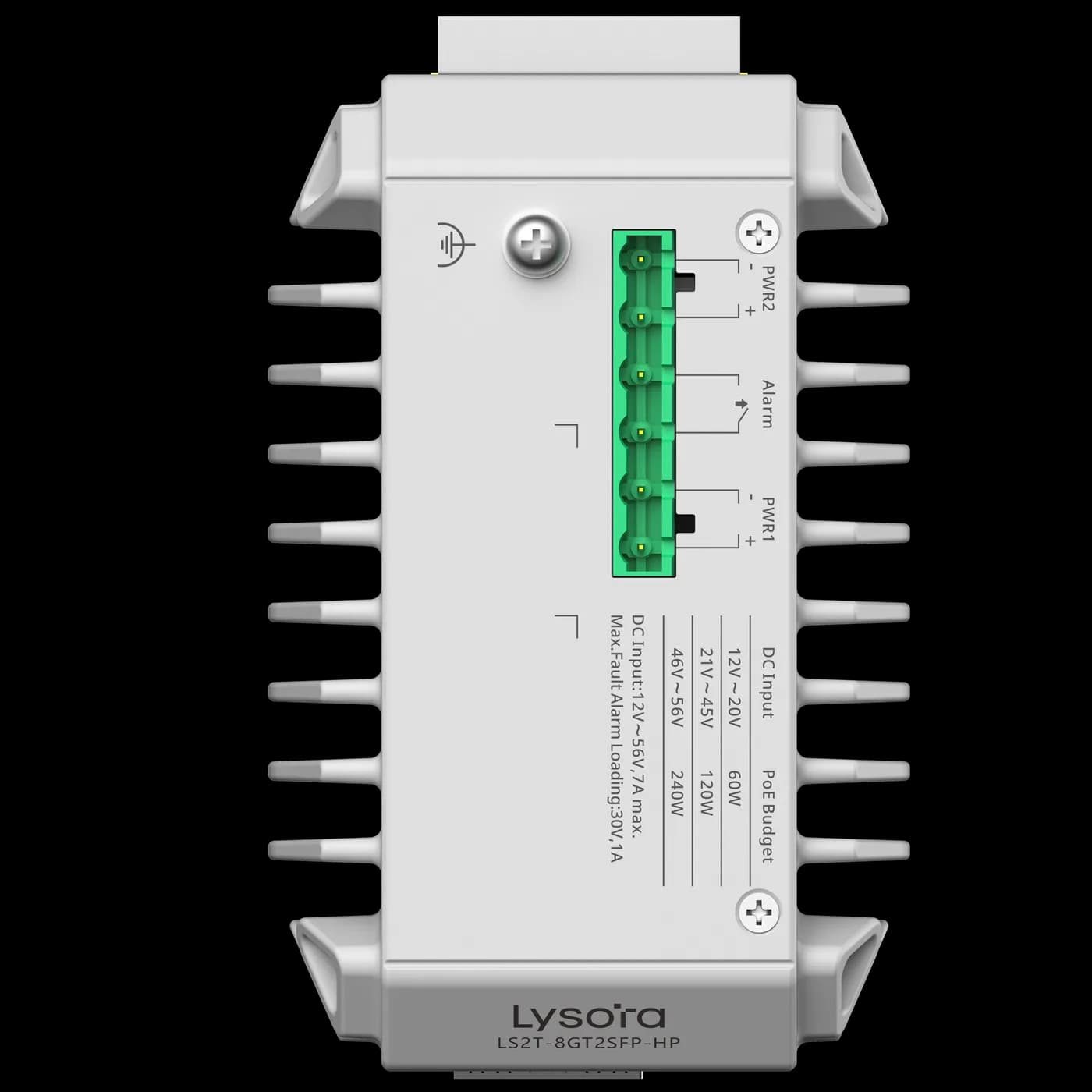

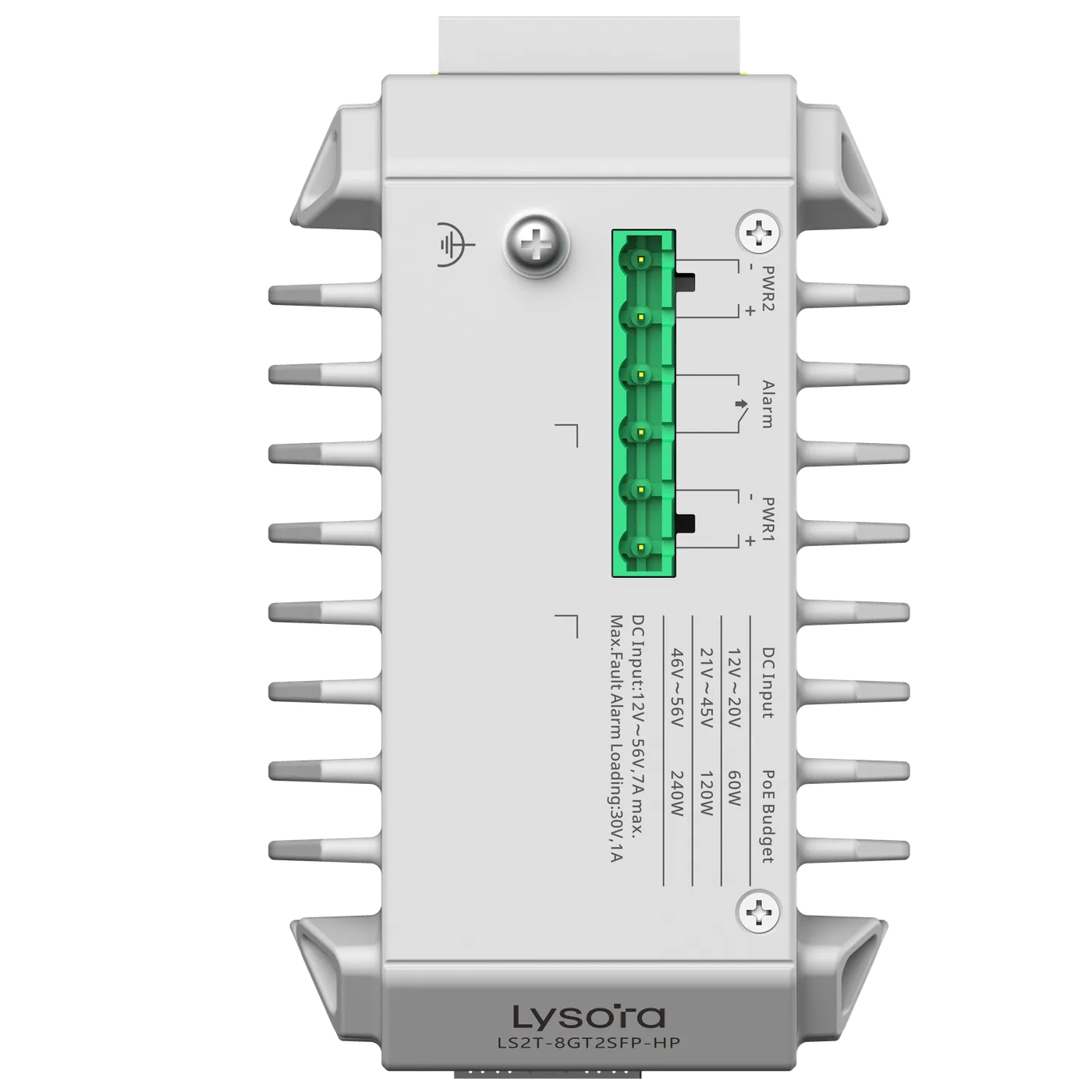

A 12–56 V DC input, with 46–56 V DC required for the full 240 W PoE budget. It runs from panel DC supplies or solar-charged battery banks; AC-only sites add a DIN-rail PSU in the same cabinet.

What is the price of the LS2T-8GT2SFP-HP in India?

Pricing is quotation-based with dealer slabs for registered partners. Send a quote request naming the LS2T-8GT2SFP-HP and quantity, and you receive priced options with stock confirmation within 24 working hours.
