Managed Switches- 24× GbE PoE+
- 370 W budget
- 4× SFP
Solution
Office networks that stay fast as the team grows
Structured switching, PoE, and Wi-Fi for offices of 50–300 users needing VLAN segmentation, centralised management, and room to scale.
- Ready Stock
- PAN India Supply
- Same Day Dispatch*
- GST Billing
- BOQ Assistance
*Same-day dispatch applies to in-stock items ordered before cut-off from the Delhi NCR warehouse.
Overview
About office network solutions
A typical office network carries far more than laptops — IP phones, cameras, door controllers, and wireless access points all share the same cabling, and each has its own security and power needs. The job of the network is to keep those traffic types separated, powered, and manageable from one place.
This solution is built for offices of roughly 50 to 300 users that need VLAN segmentation, centralised switching, and PoE at the edge. A Layer 2 managed access layer handles segmentation; a router or firewall handles the internet edge; PoE switches power the cameras and access points without local adapters.
The design leaves headroom deliberately — spare ports and uplink capacity — because re-cabling an occupied office is far more expensive than the ports you buy up front.
Common Challenges
What this solution solves
Recommended Product Categories
Where to start in the catalogue
The categories most relevant to this deployment. Every product ships from ready stock with GST billing and PAN-India delivery.
Recommended Products
Models that fit this deployment
From the official Lysora catalogue, matched to the requirements above. Final selection is confirmed against your BOQ.

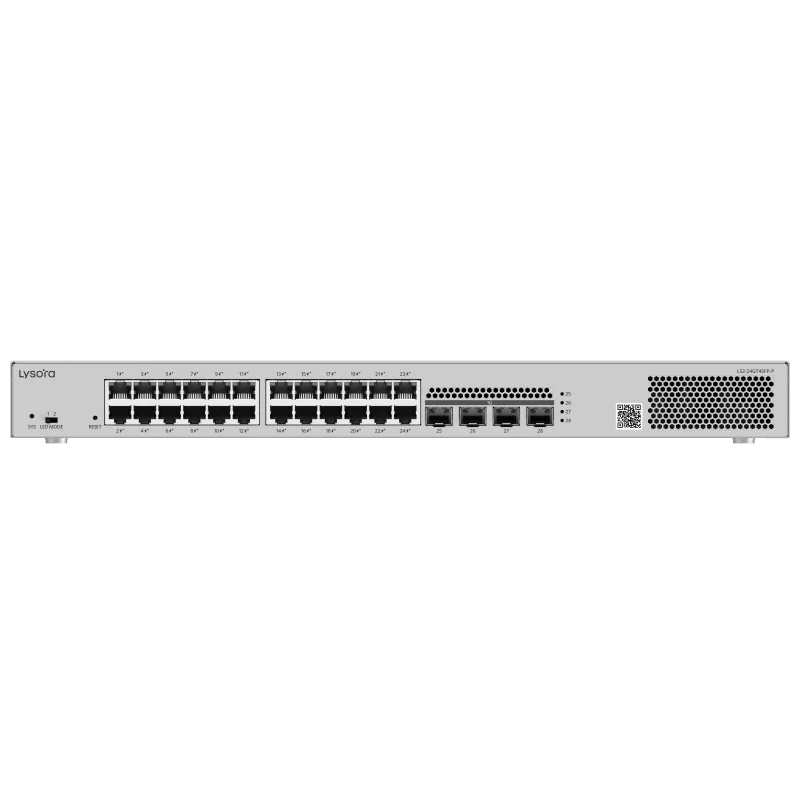

- Managed Switches

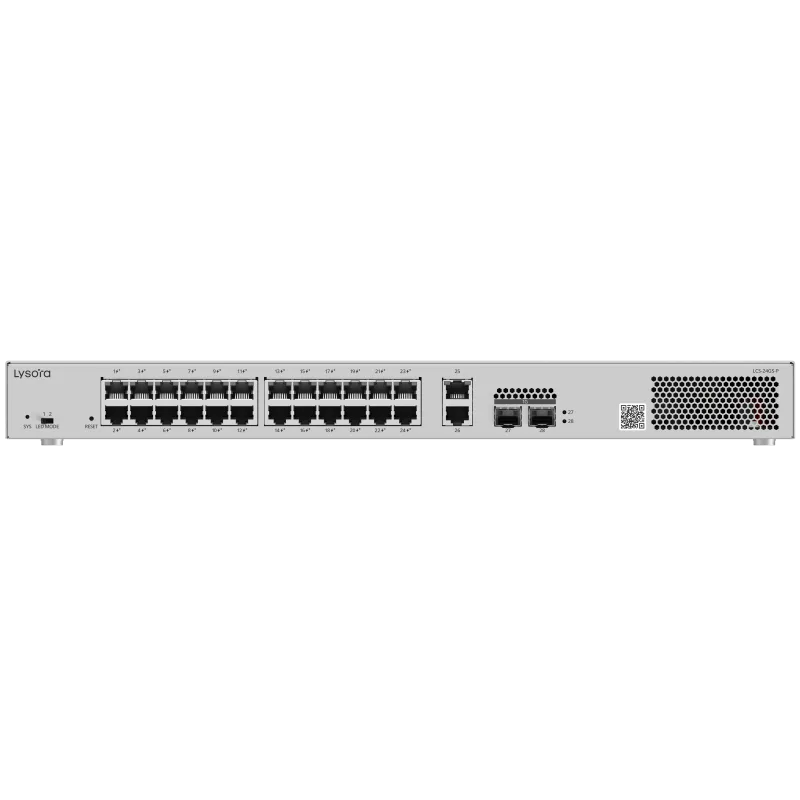

PoE Switches- 24× GbE PoE+
- 370 W budget
- 1U rack
Wireless Access Points- Wi-Fi 7 BE5040
- 511 clients
- 2.5G port

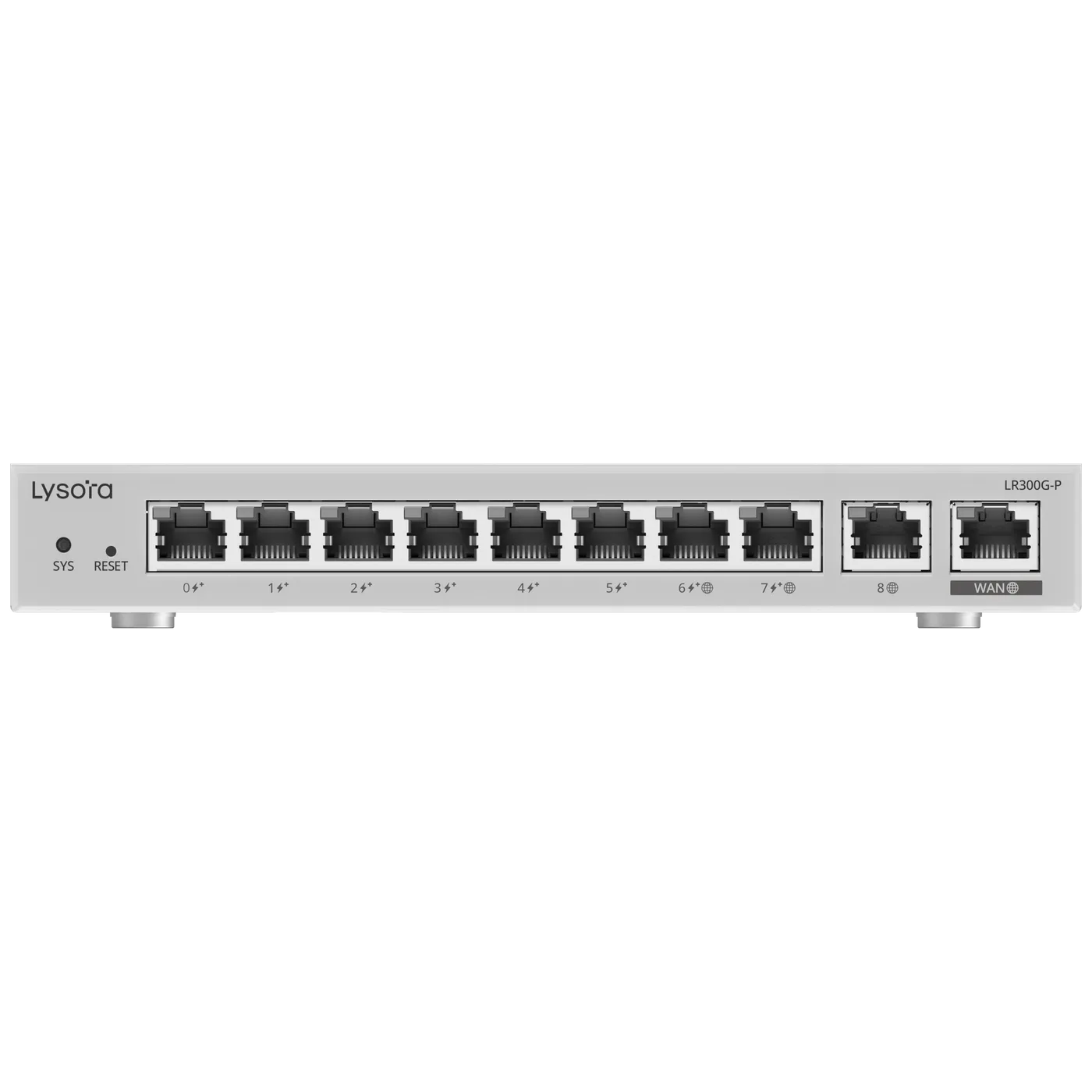

Routers- 8× PoE (110 W)
- 1.5 Gbps
- BGP/OSPF
Deployment Workflow
From planning to support
1. Planning
We work from your device counts, coverage areas, and growth plans to define the topology, VLAN plan, and power budget before anything is quoted.
2. Site survey
Cable routes, rack and cabinet locations, environmental conditions, and existing infrastructure are confirmed — on site or from your drawings.
3. BOQ & quotation
A line-by-line bill of quantities with stock status, priced within 24 working hours, with alternatives suggested for anything out of stock.
4. Installation
Hardware is dispatched with GST invoice and e-way bill. Installation is handled by your team or your integrator; we supply the equipment and documentation.
5. Configuration
VLANs, uplinks, PoE budgets, SSIDs, and management are configured to the plan agreed at the planning stage. Configuration support is available on request.
6. Testing
Links, power delivery, roaming, and throughput are verified against the design before handover, so issues surface before the network goes live.
7. Support
A named point of contact for stock, RMA, and replacements under the standard manufacturer warranty, serviced in India by Lizora Infotech.
Deployment Considerations
Practical advice for this deployment
- Size the PoE budget from the actual draw of every powered device, then keep margin — the total budget, not the per-port maximum, is the limit.
- Segment voice, CCTV, guest, and corporate traffic into separate VLANs from day one; retrofitting segmentation onto a flat network is disruptive.
- Leave 20–25% spare switch ports for moves, adds, and changes over the equipment's life.
- Use fibre uplinks between floors or closets where runs exceed 100 m or where uplink congestion is likely.
- Warranty is the standard manufacturer warranty, serviced in India by Lizora Infotech; exact terms are stated on the quotation.
Before You Enquire
Frequently asked questions
How many users can this office design support?
It is built around offices of roughly 50 to 300 users. Below that a single managed switch may suffice; above it, the same principles scale with a Layer 3 core. Share your device counts and floor plan and we size it against the actual load.
Upload your BOQDo I need a Layer 3 switch for an office?
Usually not. A Layer 2 managed switch with VLANs plus a router or firewall handles inter-VLAN traffic for most single-site offices. Layer 3 earns its cost when routing has to happen at the switch across many VLANs.
Layer 2 vs Layer 3 explainedCan one switch power both cameras and access points?
Yes, provided the total PoE budget covers the combined draw. Cameras and access points share the same budget, so both must be counted when sizing the switch.
Understanding PoE standardsWhat internet edge device do you recommend?
A cloud-managed router or firewall sized to the user count and WAN links. For compact offices a router with integrated PoE can consolidate the gateway and the edge switch into one unit.
See routersIs installation included?
We supply the equipment, configuration guidance, and documentation. Installation is handled by your team or integrator; on-site configuration support is available on request. Scope and timelines depend on the deployment.
Related Resources
Background reading
Guides from our technical team relevant to this deployment.
Related Solutions
Solutions often planned together
Adjacent deployments that share equipment and design decisions.
- Campus Network SolutionsCore-to-access design for multi-building campuses — fibre aggregation, Layer 3 routing where it earns its cost, multi-gig backhaul, and consistent Wi-Fi throughout.Explore range
- Hotel WiFi SolutionsHigh-density wireless for guest rooms, lobbies, and banquet halls — per-room coverage, seamless roaming, and guest traffic kept off the property network.Explore range
- Surveillance Network SolutionsPoE backbones for IP CCTV — camera counts sized against the power budget, a segregated surveillance VLAN, and industrial switching for outdoor and harsh sites.Explore range
Related Industries
Sectors that deploy this
Industry pages with sector-specific requirements and recommendations.
- EnterpriseStructured, segmented networks for multi-floor and multi-building enterprises — core-to-access design, fibre aggregation, multi-gig Wi-Fi, and central management.Explore range
- SMBRight-sized, affordable networks for small and medium businesses — a compact managed core, PoE for cameras and Wi-Fi, and room to grow without over-buying.Explore range
Tell us what you need — get a quote today
Four fields, no account, no attachments needed. Our sales team calls back within working hours with pricing and stock status.
Send your requirement, get a quote today
Share a BOQ, a part list, or just a description of the site — our sales team responds within working hours with pricing and stock confirmation.
Prefer to talk? +91 98910 20998
